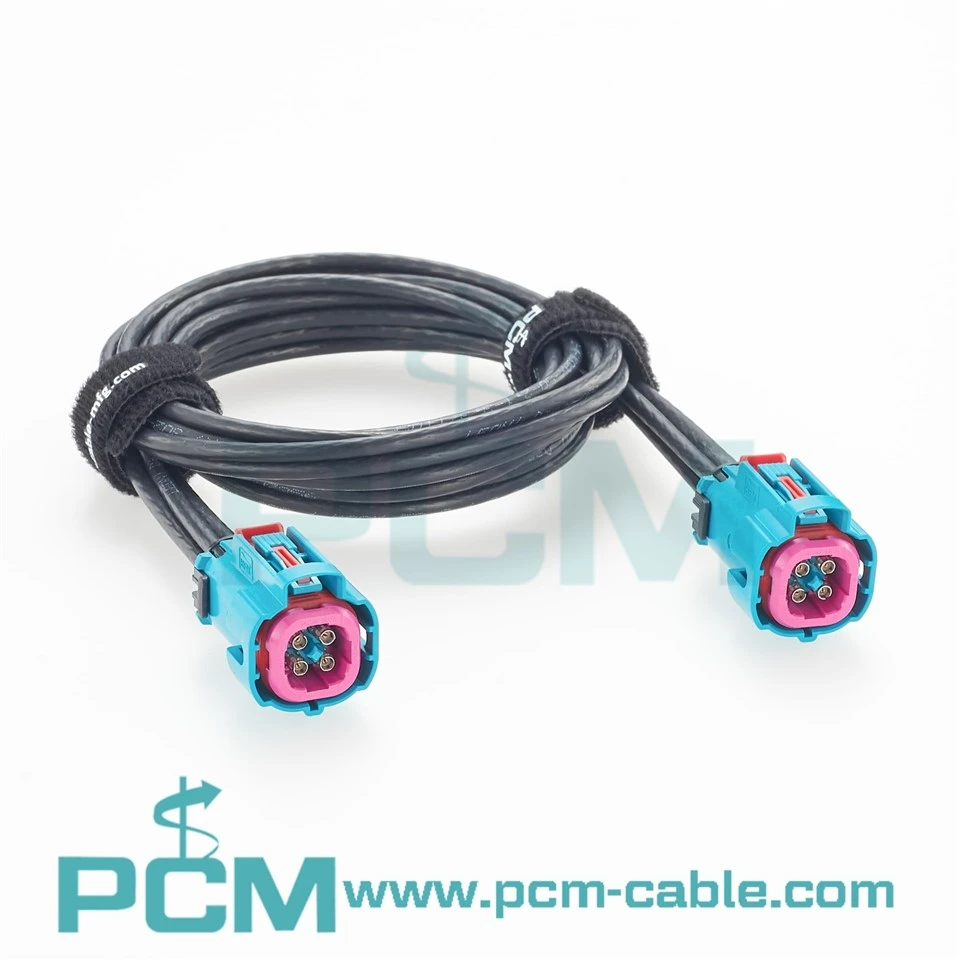

Premier Cable PCM-ZC-0195 is an IP67 Waterproof Quad HFM Mini FAKRA Cable Assembly designed for next-generation automotive electronic architectures. Featuring the Rosenberger AMK14K-1M4Z5-Z Quad HFM Mini FAKRA connector, this cable integrates multiple RF channels into one compact interface, reducing wiring complexity and saving valuable installation space.
The Quad HFM Mini FAKRA Cable provides stable high-frequency signal transmission with low insertion loss, strong shielding performance, and automotive-grade reliability. It is engineered for ADAS systems, surround-view cameras, GMSL applications, vehicle communication modules, and advanced sensor networks.
With IP67 waterproof protection, this automotive coaxial cable maintains reliable operation in harsh environments including engine compartments, exterior camera modules, and outdoor vehicle applications.
Core Advantages
As Premier Cable's cutting-edge innovation, this cable supports 20GHz high-frequency RF signal transmission, delivering throughput far exceeding traditional FAKRA. The Quad HFM integrated design reduces footprint by up to 80%, perfectly matching the high-capacity automotive Ethernet data connectivity required by advanced ADAS systems.
Stable Connection
Engineered for complex automotive EMI environments, the cable utilizes a fully shielded low-loss coaxial structure to ensure exceptional electromagnetic interference protection. Paired with a secure mechanical keying and color-coded locking system, it guarantees 100% positive retention even under severe vibrations, eliminating signal drops.
Installation Requirements
The compact miniaturized automotive connector architecture is tailor-made for modern smart cockpits and space-constrained sensors. Supporting blind mating and modular deployment, it simplifies high-density RF cable routing in tight spaces, significantly reducing assembly time and total cost on automotive production lines.
Products Specification
| Product Name |
IP67 Waterproof Mini FAKRA Z Code Cable Assembly |
| Part Number | PCM-ZC-0195 |
| Connector P1 | Model: AMK14K-1M4Z5-Z;Pin Configuration: 4 Pin |
| Connector P2 | Model: AMK14K-1M4Z5-Z;Pin Configuration: 4 Pin |
| Coding | Z Code |
| Cable Model | LEONI DACAR 302-4 |
| Impedance | 50Ω |
| Available Length | 500±15mm;1000±20mm;2000±20mm |
| Frequency Range | DC ~ 6GHz |
Products Display
Product Features
● High-Frequency & High-Density Integration
Features a 4-in-1 Quad Mini FAKRA (HFM) architecture, supporting an ultra-high operating frequency up to 20GHz.
● IP67 Ingress Protection Rating
Equipped with high-elasticity waterproof silicone seals, achieving stringent IP67 dustproof and waterproof protection.
● Automotive Coding & Mechanical Latch
Features standard universal color coding (A to Z types) with an audible, secure mechanical secondary locking clip.
● Low Return & Insertion Loss
Strictly controlled 50-ohm characteristic impedance ensures optimized insertion loss and minimal return loss during high-speed routing.
Core Application Scenarios
Automotive Ethernet
Supports high-speed data exchange in V2X architectures, providing reliable links for automotive communication networks.
Infotainment Systems
Used for smart cockpit displays, GPS navigation, and digital antenna systems, ensuring reliable high-frequency signal connectivity.
Core Performance Advantages
-
Ultra-Speed Autonomous Data Throughput
Empowers autonomous driving compute platforms with zero-latency sensor data streaming, drastically improving system response times.
-
High Availability Under Harsh Environments
Resists mud, water ingress, and heavy vibration in chassis or grille areas, ensuring undistorted RF signaling under extreme conditions.
-
Maximum Optimization of In-Cabin Routing Space
Replaces multiple traditional single FAKRA cables, enabling engineers to achieve lightweight and ultra-compact wire harness layouts.
-
Significant Reduction in Assembly & Warranty Costs
Integrated mating and exceptional wear-life minimize assembly errors for OEMs and lower long-term vehicular network maintenance costs.
Frequently Asked Questions
Q1： What anti-misfit codes does this IP67 four-pin Mini FAKRA cable support?
A1： This cable from Premier Cable fully complies with Rosenberger standards,offering a full range of color and mechanical codings from A, B, C to Z. We cancustomize the specific coding combination based on your sensor or ECU interface toensure a 100% precise match.
Q2: What is the core difference between traditional FAKRA cables and theMini FAKRA (HFM) from the PCM-ZC-0195 series?
A2: The core differences are space efficiency and frequency responseTraditional FAKRA usually supports up to 6GHz and is bulky. As Premier Cable's newlydeveloped product, the Mini FAKRA (HFM) integrates 4 channels (Quad) into a singleconnector, boosting frequency to 20GHz while saving nearly 80% of installation space,making it the standard RF component for future intelligent vehicles.
Q3: How is the waterproof performance of the product verified during factory quality control?
A3：Adhering to professional manufacturing practices, Premier Cable conducts100% automated airtightness and pressure drop testing on every waterproof cablebefore shipment. Simulating a 1-meter underwater immersion, we ensure each high-frequency waterproof patch cord delivers reliable IP67 protection against extreme rain,snow, or high-pressure car washes.
Products Drawing
Get In Touch
