RoboSense E1R LiDAR Ethernet Cable
PCM Cable Co., Ltd. is one of the leading robosense e1r lidar ethernet cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

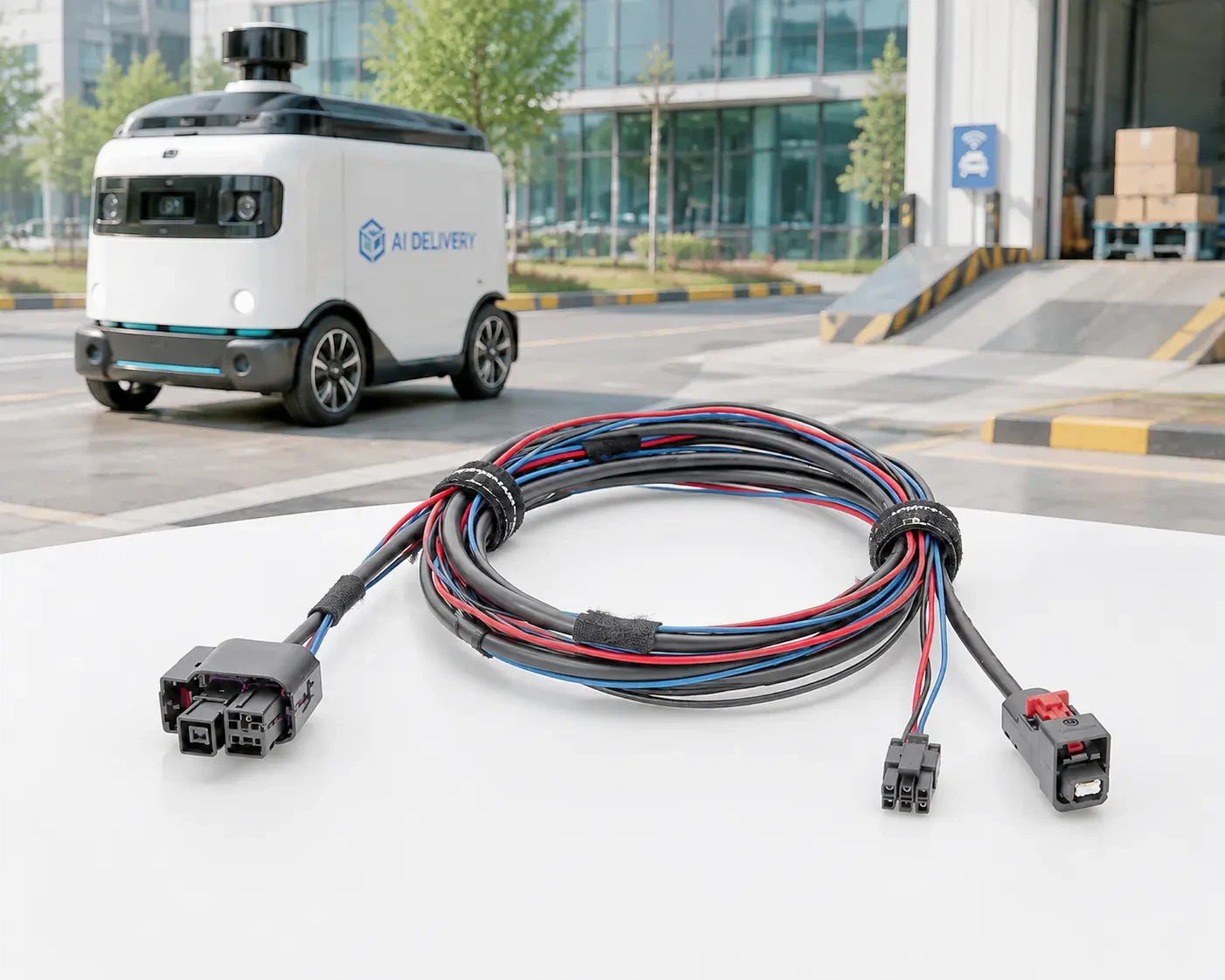

PCM-XQD-0002 is an automotive Ethernet cable assembly developed by Premier Cable for the RoboSense E1R solid-state LiDAR. The E1R side uses a TE Connectivity 2397144-1 MATEnet hybrid connector. The opposite end separates into two branches: an Amphenol NETBridge connector for automotive Ethernet communication and a Molex 43025-0600 Micro-Fit 3.0 six-position connector for power, ground and auxiliary control functions.
The assembly consolidates the E1R high-speed point-cloud data link and low-voltage electrical circuits at one LiDAR interface. At the robot controller or vehicle computing platform, the functions are separated for connection to an automotive Ethernet controller and power-management module.
Two lengths are available. The 2m version suits a nearby computing unit, while the 5m version supports roof-, front-, mast- or remotely mounted LiDAR sensors connected to a central controller.
Core Advantages
As a critical link for next-generation solid-state LiDAR and vision systems, this product ismore than a cable-it is the artery ensuring high-throughput data flow. Backed byprofessional wire harness manufacturing experience, it perfectly resolves the pain point ofdata packet loss caused by jitter during high-speed movements.
Stable Connection
One end connects to the TE MATEnet and Amphenol NETBridge automotive Ethernetarchitecture, while the other couples with Molex Micro-Fit 3.0 for precise power and controlsignal distribution. All three connectors feature positive locking mechanisms to eliminateintermittent disconnects even during long-term vehicle vibrations.
Installation Requirements
The cable body features excellent flexibility and an optimized bending radius, perfectly fittingthe narrow routing spaces of vehicle A-pillars, front bumpers, or robotic arms. In both 2mand 5m versions, the flame-retardant jacket can be routed directly within standardautomotive cable trays, meeting strict wiring space codes.
Products Specification
| Product Name | MATEnet LIDAR A Code to Amphenol HTHCFO11A10S + Molex 43025-0600 Automotive Ethernet Cable Harness |
| Part No. | PCM-XQD-0002 |
| Cable Length | 2000±20mm ;5000±30mm |
| Connector P1 | MATEnet LIDAR A Code;Part Number: 2397144-1 |
| Connector P2 |
Part Number: HTHCFO11A10S ;Type: Automotive high-speed connector |
| Connector P3 |
Molex ;Part Number: 43025-0600 ;Type: 6-pin connector |
| Cable Type | GG 2Speed® 251 |
|
Characteristic Impedance |
100Ω |
Products Display
Core Performance Advantages
Gigabit-Level Data Throughput & Zero Latency
Specially built for high-bandwidth automotive Ethernet, supporting high-speed real-timetransmission of massive point cloud data to minimize algorithm latency.
Superior Signal Integrity in Extreme Environments
Maintains ultra-low Bit Error Rate (BER) under harsh driving conditions like severevibration and thermal shock, ensuring continuous precise perception.
Effortless Plug-and-Play Lossless Installation
Precise buckle-lock structures provide clear tactile feedback during mating, requiring nomodification tools, greatly boosting assembly and maintenance efficiency.
Ultimate Reliability from Strict Automotive Standards
Passed high-standard electrical and mechanical endurance tests, comprehensivelyreducing wiring failure rates to provide a rock-solid communication base for Alplatforms
Core Application Scenarios
Low-Speed Autonomous Delivery Vehicle Vision & Advanced Perception Systems
Suitable for campus delivery vehicles, last-mile logistics platforms, autonomous vending vehicles, airport and hotel delivery robots, and low-speed patrol vehicles operating on controlled roads. PCM-XQD-0002 connects a RoboSense E1R mounted on the front, side or roof to a central computing platform, ADAS controller or sensor-fusion ECU. The Micro-Fit six-pin branch connects to the vehicle low-voltage supply and auxiliary-control system.
Industrial & Commercial Robotics LiDAR Networks
Designed for RoboSense E1R LiDAR integration in AMRs, AGVs, warehouse logistics robots, cleaning robots, inspection robots, service robots and humanoid platforms. PCM-XQD-0002 connects to the E1R through a TE 2397144-1 hybrid interface and separates into an Amphenol NETBridge automotive Ethernet data branch and a Molex Micro-Fit 3.0 six-pin power/control branch. This allows point-cloud communication and electrical functions to connect independently to the robot controller, AI edge-computing platform and power-management module.
Product Features
Triple-Brand Original Connector Integration
Integrates TE MATEnet automotive Ethernet interface, Amphenol NETBridge high-speed connector, and Molex Micro-Fit 3.0 6-pin housing for seamless hardwarecompatibility.
Dual-Shielded Automotive Ethernet Cable
The core wire adopts strict automotive-grade high-frequency shielded twisted pair cableto effectively block external complex EMI and ensure signal purity.
High-Precision Integration Overmolding
The tail joints utilize industrial-grade injection overmolding technology, offering excellentstrain relief to prevent wire core detachment from long-term pulling.
Frequently Asked Questions
Q1: Can this cable fully replace the original solid-state LiDAR connection cable?
A1: Yes. This product is strictly developed according to high-precision 3D perception hardware specs and is fully compatible with automotive Ethernet physical layer protocols as a high-matching wire harness.
Q2: Will there be signal attenuation in the 2m and 5m versions during Gigabit automotive Ethernet transmission?
A2: No. Our cables are optimized for impedance matching (100 ohms). Within the 5m maximum length, the insertion loss and return loss of high-bandwidth signals perform better than automotive standards.
Q3: What role does the Molex 43025-0600 play in this wire harness?
A3: This connector is a Micro-Fit 3.0 6-pin interface, primarily responsible for providing stable low-voltage DC power, synchronization trigger signals (such as PPS), and necessary auxiliary control communication to the LiDAR body.
Products Drawing
