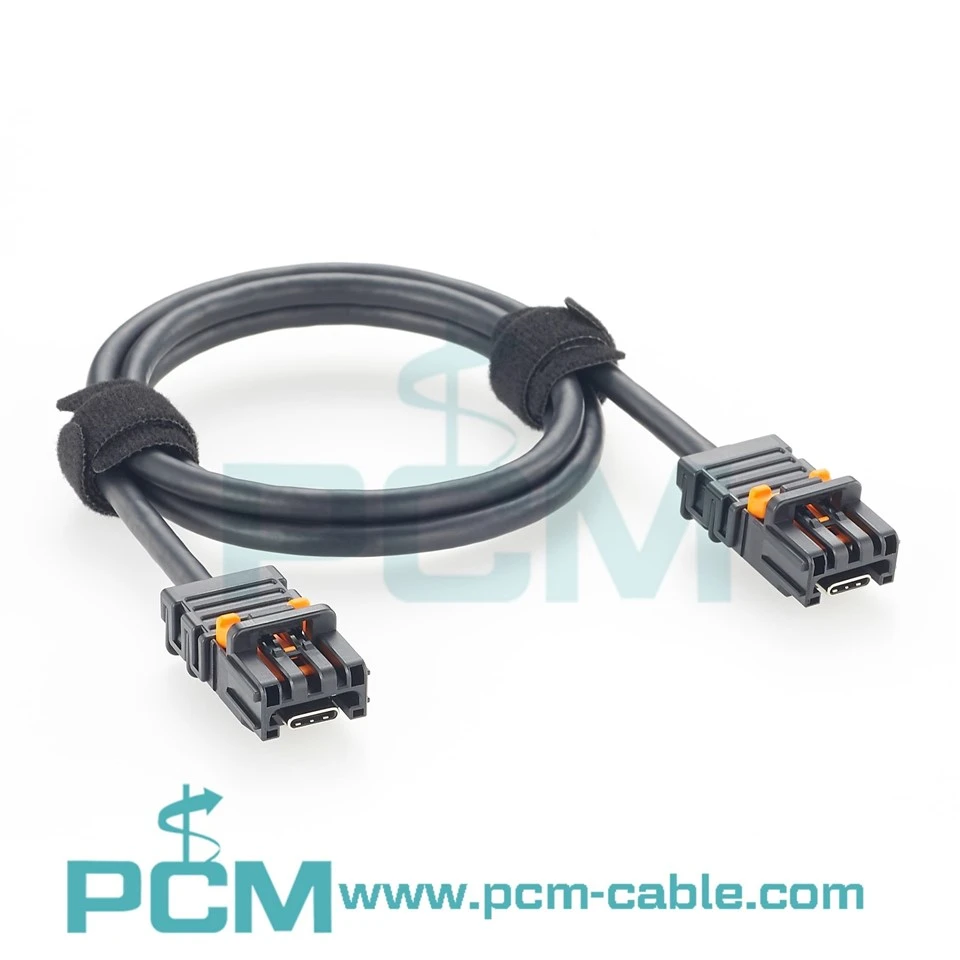

Hirose AU1 Automotive-Grade USB Type-C Cable
PCM Cable Co., Ltd. is one of the leading hirose au1 automotive-grade usb type-c cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-HD-0307 is an automotive-grade USB Type-C high-speed cable assembly based on the Hirose AU1 Series interface architecture. Designed around the AU1MS-24S-HU/C(805) connector system, it combines the high-speed capabilities of USB Type-C with the mechanical locking, mating assurance and vibration resistance required for automotive electronic modules.
Unlike conventional consumer USB-C connectors that mainly rely on mating friction, automotive connections are continuously exposed to vibration, thermal cycling and harness movement. Even slight connector movement can lead to intermittent contact, display interruption, USB device disconnection or data loss.
PCM-HD-0307 integrates a 24-position USB Type-C high-speed interface into an AU1 automotive connector housing with locking interfaces on both ends. Compared with ordinary Type-C cables, it emphasizes positive retention, CPA mating assurance and mechanical stability for fixed high-speed connections between in-vehicle electronic modules.
Why Automotive USB-C Needs Positive Locking?
One of the key differences between automotive USB Type-C and conventional consumer USB-C is that automotive systems require more than convenient mating-they require secure long-term mechanical retention.
Road vibration, chassis movement, harness inertia and continuous thermal cycling can all introduce mechanical stress at the connector. In a fixed module-to-module installation, ordinary Type-C connectors may be more susceptible to micro-movement, intermittent contact or accidental disengagement.
Automotive USB-C systems therefore add features such as CPA, primary and secondary locking, mechanical keying and reinforced housings, transforming the familiar Type-C interface into a more secure automotive wire-to-board interconnect.
Why We Recommend PCM-HD-0307 Hirose AU1?
For large-scale intelligent cockpit and in-car module projects, requirements are not necessarily aboutpursuing maximum 40Gbps bandwidth or highest power supply capability, but rather balancing high-speed data at 10Gbps level, automotive vibration reliability, module size, and Type-C ecosystem
compatibility.
PCM-HD -0307 is developed based on AU1 compatible interface, focusing on solving four practical problems:
● Prevent connector detachment: CPA helps confirm that the plug is fully locked;
● Reduce vibration loosening risk: The reinforced car shell and lock structure is moresuitable for fixed installation compared to exposed consumer-grade Type-C;
● Maintain high-speed signal connection: The AU1 platform supports USE33.2Gen 2 10Gbps and DisplayPort 1.4, among other high-speed protocols;
● Reduce assembly errors: Standard A-Key mechanical coding facilitates physical error prevention for different modules.
Products Specification
| ProductType | USB 3.2 Gen 2 Type-C Male to Male Full-Featured Cable |
| Drawing Number | PCM-HD-0307 |
| P1 Interface | USB Type-C Male |
| P2 Interface | USB Type-C Male |
| USB Standard | USB 3.2 Gen 2 |
| Data Rate | Up to 10Gbps |
| Maximum Power Supply | 20V/5A/100W |
| Video Function | 4K 60Hz DP Alt Mode |
| Cable Outer Diameter | 5.0 + 0.2 mm |
| Length | 1000 ± 30 mm ;1500 ± 30 mm |

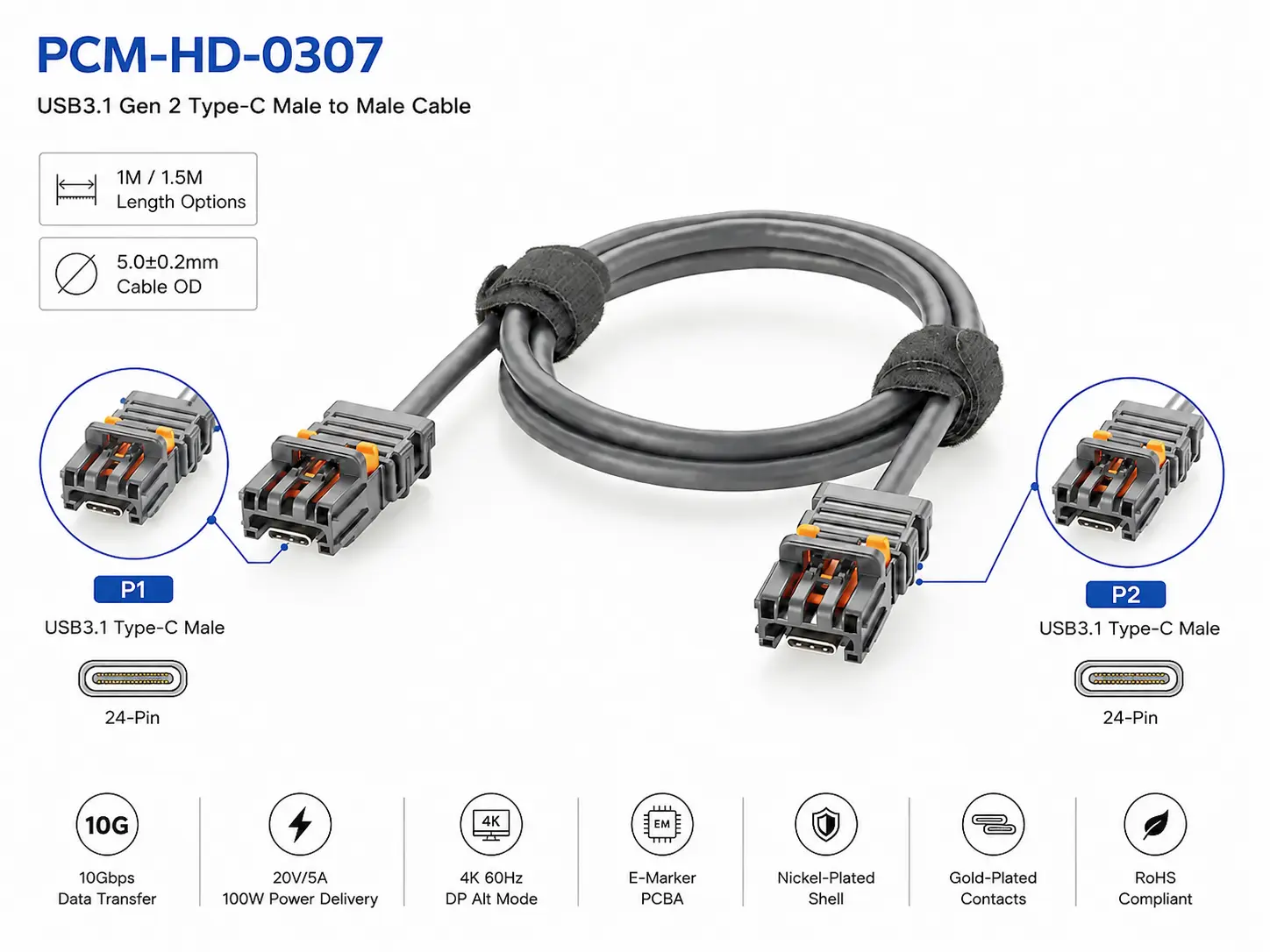

Products Display
Product Features
Dual AU1 Automotive Locking Interfaces
Dual AU1-compatible automotive USB Type-C interfaces use positive locking and CPA-assisted retention for secured in-vehicle module connections.
USB 3.2 Gen 2 Platform
The AU1 platform supports USB 3.2 Gen 2 up to 10Gbps together with DisplayPort 1.4, HDMI and other high-speed transmission standards.
Standard A-Key Mechanical Coding
Standard and A-key mechanical coding helps distinguish interfaces and reduce incorrect mating in connector-dense vehicle architectures.
Automotive Environment Capability
AU1 is designed around USCAR-2 and USCAR-30 automotive requirements with a specified operating range of -40°C to +105°C.
Core Application Scenarios
Automotive Display Systems
Suitable for center displays, passenger screens, digital clusters and display controllers, using AU1 locking USB Type-C interfaces to support USB or DisplayPort links while reducing vibration-related loosening and display interruption.
Telematics & Connectivity Controllers
Designed for TCUs, vehicle gateways, connectivity controllers and embedded computing platforms, providing secured high-speed USB links that help reduce intermittent disconnection caused by vibration and harness movement.
Core Performance Advantages
Reduced Vibration Disconnect Risk
CPA and positive locking provide stronger mechanical retention than conventional friction-based USB-C mating.
Improved High-Speed Link Stability
Secure mechanical mating helps maintain stable differential contacts and reduce intermittent high-speed link interruptions.
Standardized Module Integration
The 24-position Type-C architecture, mechanical keying and locking structure support standardized high-speed module interfaces.
Products Drawing
