RJ45 Male To Dual 6.3mm 1/4" TRS AXIA Cable
PCM Cable Co., Ltd. is one of the leading rj45 male to dual 6.3mm 1/4" trs axia cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

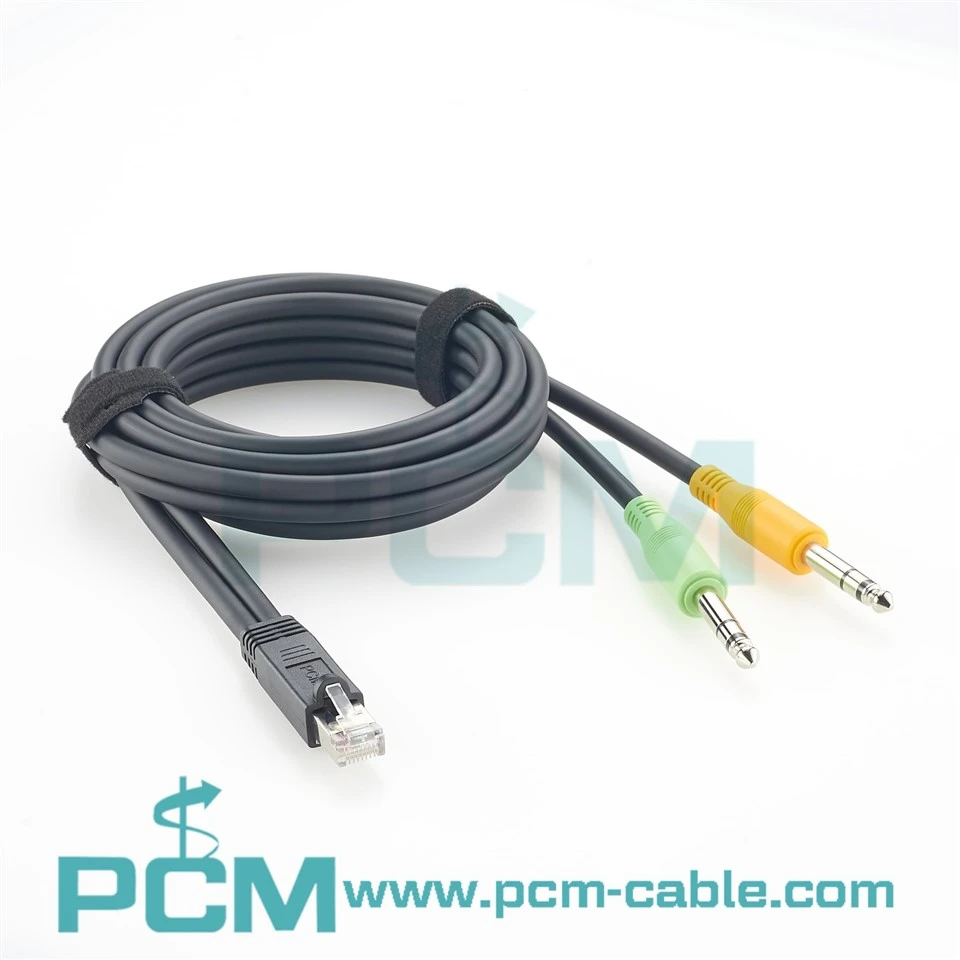

PCM-KW-668 is an RJ45 8P8C Male to Dual 6.3mm (1/4") TRS Male Audio Cable developed for professional broadcast, studio, and audio system integration. One end uses an RJ45 male connector for compatible broadcast audio interfaces, while the opposite end branches into two standard 1/4" TRS male plugs for mixers, audio interfaces, processors, and other TRS-equipped equipment.
◆ Core Advantage
PCM-KW-668 integrates an RJ45 8P8C male connector, a flexible 2-meter cable body, and dual 6.3mm TRS male plugs into one complete assembly, extending a compatible RJ45 audio interface directly to two professional audio ports. Its optimized conductor arrangement and shielding help reduce signal attenuation, external interference, and high-frequency detail loss across rack-to-rack routing. With compatible pin assignments and equipment electrical definitions, it supports the corresponding balanced audio connection while maintaining strong dynamic range and acoustic clarity. Separate TRS plugs also simplify channel identification, equipment positioning, and cable management.
◆ Stable Connection
The RJ45 male connector uses a robust polycarbonate molded body and resilient locking latch for secure engagement with compatible equipment ports. Each standard 6.3mm TRS male plug provides separate Tip, Ring, and Sleeve contact areas protected by a durable metal housing. This dual-ended construction maintains reliable axial retention and electrical contact, helping reduce loosening or intermittent audio caused by cable weight, routine handling, and low-frequency equipment vibration. The flexible 2-meter cable also supports natural routing and minimizes continuous strain near the connectors.
Products Specification
| Product Name | Dual 6.35mm TRS Male to RJ45 8P8C Male Audio Cable |
| Drawing Number | PCM-KW-668 |
| Total Length | 2000±30mm |
| Connector P1 | 6.3mm Stereo Male, Nickel Plated, Orange Molding |
| Connector P2 | 6.3mm Stereo Male, Nickel Plated, Light Green Molding |
| Connector P3 | RJ45 8P8C Male with Shield |
| Conductor Size | 24AWG × 2C |
| Cable OD | Ø6.0±0.12mm |
Products Display
Product Features
Integrated RJ45-to-Dual-TRS Design
PCM-KW-668 integrates an RJ45 8P8C male connector, a 2-meter cable body, and dual 6.3mm TRS male plugs into one complete assembly. It provides a direct physical connection between compatible RJ45 audio interfaces and two professional TRS ports, while separate branches simplify stereo or dual-channel identification and management.
Flexible 2-Meter Equipment Routing
The flexible 2-meter cable provides sufficient reach between consoles, workstations, adjacent racks, and audio processors while reducing the clutter associated with multiple patch cables. Maintaining a proper bend radius and strain-relief allowance helps prevent long-term mechanical loading on the connectors.
Secure RJ45 and TRS Connectivity
The RJ45 male plug features a robust molded housing and resilient locking latch for secure port engagement. Each 6.3mm TRS plug provides defined Tip, Ring, and Sleeve contact areas protected by a durable metal shell. Reliable mechanical retention helps reduce loosening and intermittent audio caused by equipment vibration, cable strain, or routine handling.
Dual-Channel Integrity and Installation Matching
Its optimized conductor arrangement and shielding help reduce electromagnetic interference, crosstalk, and high-frequency detail loss across the 2-meter path. Before installation, verify that the RJ45 audio pin assignment, TRS channel mapping, and Tip/Ring/Sleeve definitions match the target equipment. This product must not be used as a standard Ethernet data converter.
Core Application Scenarios
Telos Alliance Infrastructure Audio Outbound
PCM-KW-668 is suitable for cross-zone connections between compatible Telos Alliance broadcast equipment and remote 6.3mm TRS professional audio devices. The RJ45 8P8C male end connects to the corresponding broadcast audio interface, while the 2-meter cable extends two audio paths toward adjacent racks or processing areas. Dual TRS male connectors can interface with effects units, equalizers, dynamics processors, and audio interfaces, providing greater routing freedom and clear channel organization for professional broadcast installations.
Radio Station Recording Studio Engineering
PCM-KW-668 is designed for professional audio routing in large radio studios, central control rooms, multitrack recording facilities, and production centers. It establishes a dual-channel physical link between compatible RJ45-based broadcast infrastructure and conventional 6.3mm TRS professional equipment. Its 2-meter reach supports routing across consoles, workstations, and adjacent racks to mixers, recording interfaces, monitor controllers, and outboard processors, making it suitable for hybrid installations combining networked broadcast infrastructure with traditional analog audio hardware.
Frequently Asked Questions
Q1: This cable is 2 meters long and features a dual 6.3mm TRS balanced breakout. Will long-distance transmission easily introduce induced noise and AC ground loop hum?
A1: Absolutely not. This model PCM-KW-668 utilizes a "symmetric twisted pair trunk + high-density coaxial branch" anti-noise topography. Even though the cable spans 2 meters, we deploy a floating isolation profile inside the breakout junction where the shields of both channels are completely isolated physically. The ground lines of the dual TRS male ports do not cross-connect inside the hub, grounding exclusively at the terminal RJ45 plug according to broadcast logic. This single-ended grounding topography thoroughly cuts off closed loop paths between remote active systems, completely blocking ground-loop currents and 50Hz low-frequency buzzing to secure reliable point to point balanced transmission.
Q2: Can this cable be connected to an ordinary RJ45 Ethernet port?
A2:The PCM-KW-668 cannot be used as an Ethernet data conversion cable. The target RJ45interface must use a compatible professional audio pin assignment.
Q3: Can other cable lengths be customized?
A3:Yes. Premier Cable can customize cable length, pin assignment, channel labels, and relatedconnector specifications for broadcast, studio, and OEM projects.
Products Drawing
