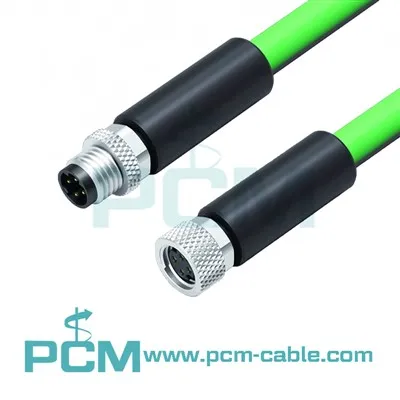

M8 Profinet Cable 4 Pin Male To Female
PCM Cable Co., Ltd. is one of the leading m8 profinet cable 4 pin male to female manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
In Profinet-based industrial networks, not every connection is device-to-device. Many real-world installations require flexible extension, patching, or linking between field devices and control cabinets.
This M8 male to female Profinet cable is specifically designed for those scenarios - enabling quick extension and stable signal transmission without compromising shielding or IP protection.
As a factory-direct manufacturer, we provide a cost-effective and fully compatible alternative to:
- 77 5430 5429 50704-0100
- 77 5430 5429 50704-0200
Specifications
| Product Name | M8 Profinet Cable Male to Female 4 Pin Shielded IP67 PUR – Reliable Field Connection Solution |
| Compatible with | Binder 77 5430 5429 50704-0100, 77 5430 5429 50704-0200 |
| Connector Type | M8 Male to Female Connecting Cable |
| Coding | D-coded |
| Pin Count | 4 Contacts |
| Standard | DIN EN 61076-2-114 |
| Locking System | M8x1 Thread |
| Termination | Moulded |
| Protection Rating | IP67 |
| Cable Type | Profinet / Ethernet CAT5e |
| Shielding | Yes (Shield connected to threaded ring) |
| Conductor Size | 4 x AWG 22 (0.34 mm²) |
| Cable Jacket | PUR |
| Cable Color | Green |
| Cable Diameter | 6.7 mm |
| Rated Voltage | 25 V AC / 60 V DC |
| Rated Current | 4.0 A |
| Impulse Voltage | 1500 V |
| Mechanical Life | > 100 mating cycles |
| Length Options | 1m, 2m, 3m or custom |
Why Male to Female Matters in Profinet Networks
Unlike M8 Profinet male-to-male cables, this configuration is ideal for:
- Extending existing M8 Profinet cable runs
- Connecting sensors to pre-installed panel connectors
- Linking modular I/O blocks in distributed systems
- Simplifying on-site maintenance and replacement
In modern Profinet topology, flexibility at the connection level reduces downtime and installation complexity.
Typical Profinet Applications
This M8 Profinet male to female cable is widely used in:
- Distributed I/O systems
- Sensor-to-controller connections
- Industrial automation lines
- Robotics and motion control systems
- Machine building and OEM equipment
- Control cabinet to field device wiring
Especially useful in installations where pre-terminated cables need extension without re-wiring.
About Us
Premier Cable is a professional manufacturer of industrial connectivity solutions, specializing in Profinet and Industrial Ethernet cable assemblies. With in-house production and strict quality control, we deliver reliable, factory-direct solutions for automation, robotics, and machine building industries.
Our M8 Profinet cable series includes a full range of configurations to meet different installation needs:

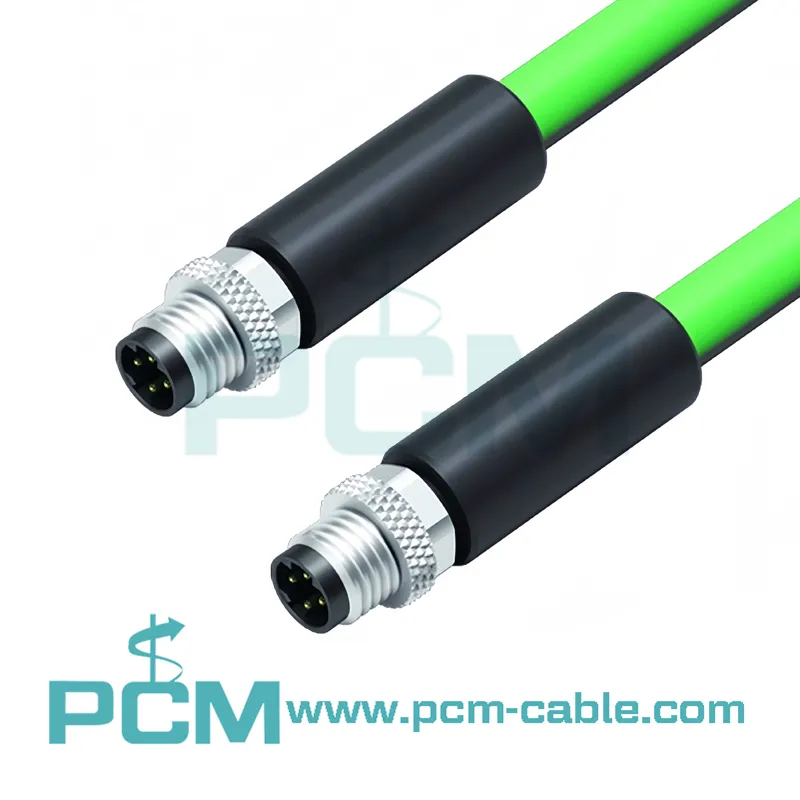

- M8 male to M8 male Profinet cable
- M8 male to M8 female Profinet cable

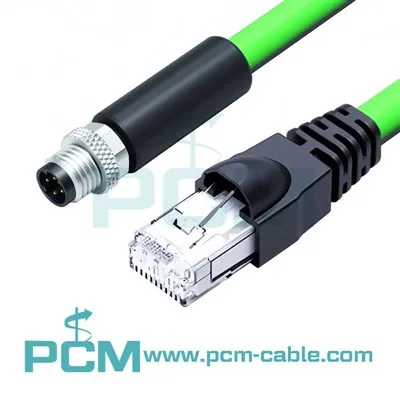

- M8 male to RJ45 male Profinet cable

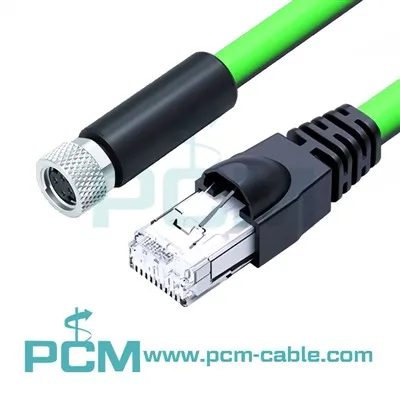

- M8 female to RJ45 male Profinet cable
- M8 male to RJ45 female Profinet cable
- M8 female to RJ45 female Profinet cable
We support custom cable designs, OEM/ODM services, and fast delivery, helping customers build stable and efficient Profinet networks.
