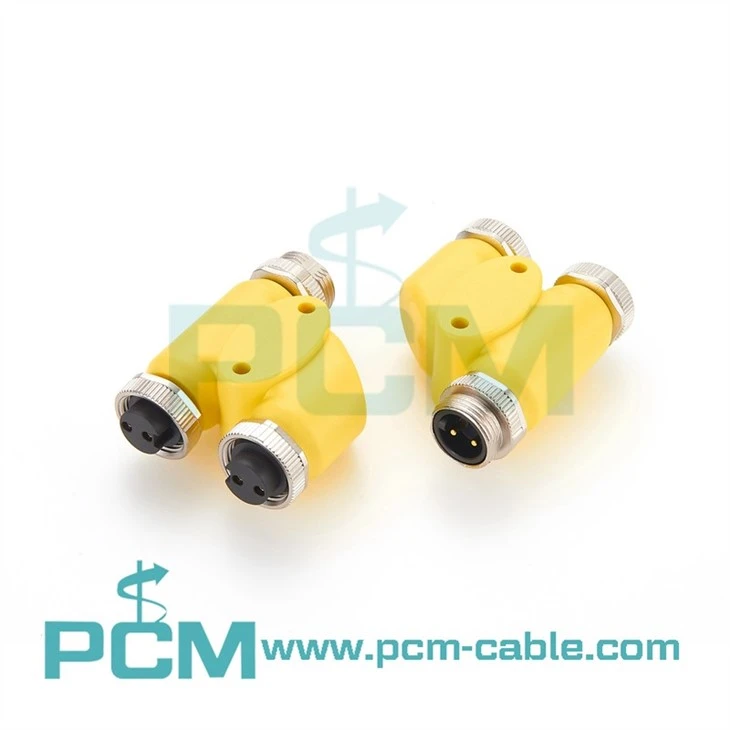

Minifast H Splitter
PCM Cable Co., Ltd. is one of the leading minifast h splitter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable has launched the 7/8 minifast H-splitter and Tees, specifically designed for DeviceNet applications including CAN networks and mobile devices. With voltage monitoring capabilities, this splitter can detect normal, overvoltage, and undervoltage situations, helping troubleshoot and preventing downtime. Furthermore, the parallel wiring provided by the splitter simplifies installation. The "h" configuration comes with a T-shaped connector that quickly and conveniently adds extra cables within a cable tray. The splitter can be specified for any gender, eliminating the traditional male-to-female connection requirement. Additionally, the online diagnostic device can serve as a gender converter to connect male-to-male or female-to-female wire sets. The minifast splitter and T-shaped connector are designed to adapt to various conditions and can handle up to 30V voltage levels within a temperature range of -40 to 105 degrees Celsius. With an IP67 environmental rating, they are ideal for voltage fault points in harsh conditions. This new product provides a positive solution for your DeviceNet applications.
Specification
| Product name | 2-Port H-Splitter W/O Cable |
| Distributed I/O | H-splitter, 2-port |
| Connector | 2-Pin, Male 7/8" Minifast Connector |
| 2-branch drop connection | 2 x 2-Pin, female 7/8" Minifast Connector |
| Operating voltage AC max. | 600 V |
| Operating voltage DC max. | 600 V |
| Current | 9A |
| Number of Cores | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin Optional |
| Housing | Plastic, TPU |
| Mechanical life | > 100 Mating cycles |
| Protection class (When coupled) | P67, Only in screwed condition |
| Ambient temperature range | -40°C…+105°C |
Hot Tags: minifast h splitter, suppliers, manufacturers, factory, customized, wholesale, quotation, free sample, 2 Way Splitter H style 7 8 16UN Female To Male 6 Pin, Electrical Automation Power Supply Connector Cable 7 8 16UNF Pre molded H Splitter, 7 8 Male To 7 8 Female T Type Connector, Actuator And Sensor H Splitter 7 8 16UN Connector, Profibus PA Test Leads 7 8
