USB 3.0 Connector Chassis D-type
PCM Cable Co., Ltd. is one of the leading usb 3.0 connector chassis d-type manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

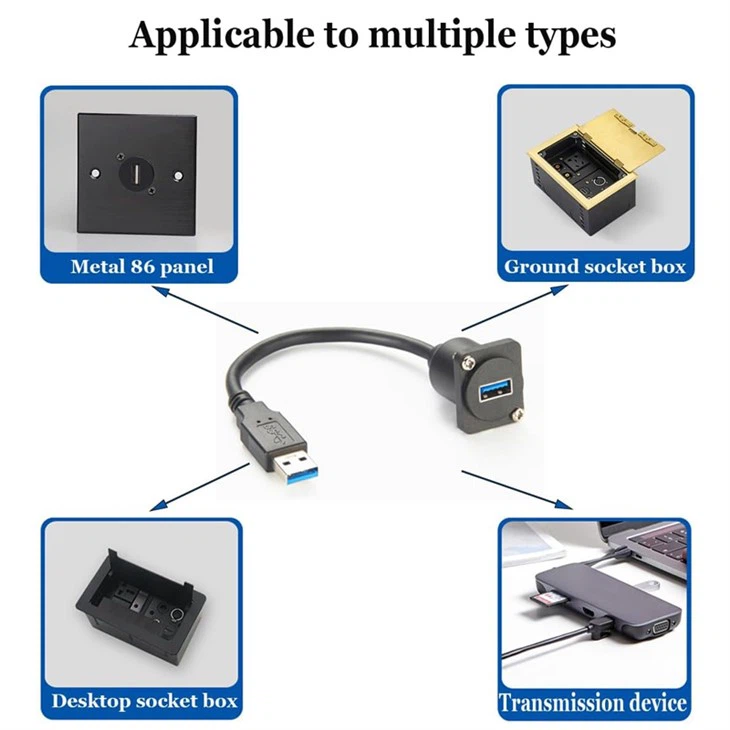

This USB Feed Through Connector is an international universal D-type XLR size, with a hole of 24mm for both surface mounting and concealed rotation, suitable for ground plugs, wall plugs, table plugs, cabinet boards, and stage boxes.
Features & Advantages
Flame retardant and high temperature resistance: The plastic shell is made of insulating material, which is not easy to burn after encountering fire, and will automatically extinguish after leaving the fire source;
Anti-corrosion and anti-aging: selected high-strength engineering plastics, durable;
Standard D-type integrated socket, solderless installation, convenient and fast;
Applications
This USB 3.0 Feedthrough Adapter can be widely used in various indoor and outdoor places such as industry, agriculture, chemical airports, docks, ships, metallurgy, power plants, construction, railways, water conservancy, etc.
Specifications
| Product name | USB 3.0 panel mount adapter USB feedthrough adapter cable |
| DWG No. | PCM-0387, PCM-D-0002 |
| Connector 1 | USB 3.0 connector, male |
| Connector 2 | USB 3.0 connector, female, D-type panel mount |
| Cable length | 20cm, 30cm, 1m, or customized |
| Screws | M3 or 5*11mm UNC#4-40 |
| Nuts | M3 4*2mm or 5*4mm UNC#4-40 |
| Wire |
(28AWG*1P+EAM)*2+28AWG*1P+24AWG*2C+EAB OD:5.8MM; |
| Cable jacket | PVC UL2725 |
