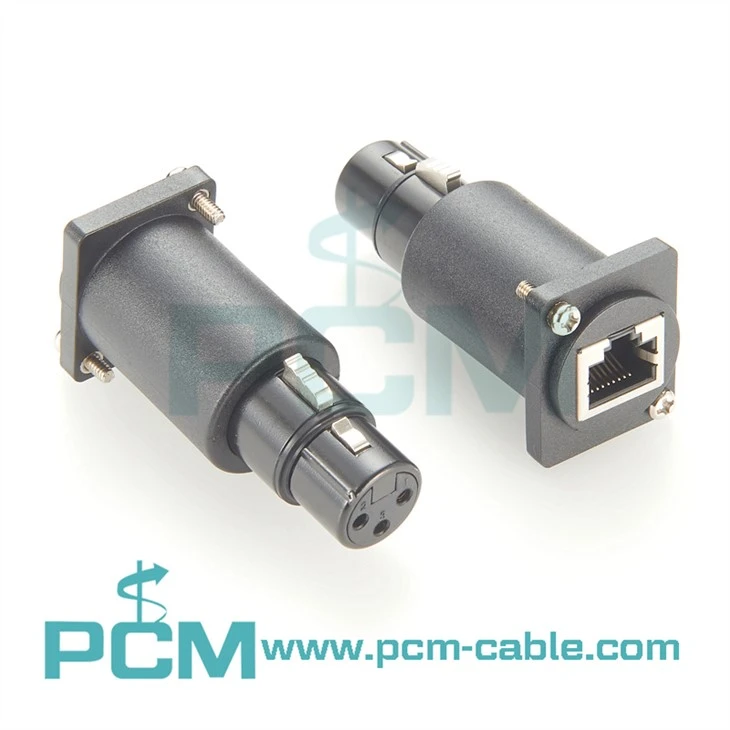

LED Stage lighting DMX512 Cable adpater RJ45 Female to XLR 5 Pin Female adapter
XLR 3pin Female to RJ45 Female Panel Mount Adapter for DMX Lighting Systems
XLR 3pin to RJ45 Female Panel Mount Connector for DMX512 Signal Conversion
XLR to RJ45 Adapter 3 Pin Male Female to RJ45 Female DMX512 Ethernet Converter Cable for Stage lighting
XLR To RJ45 Female Panel Mount Connector
PCM Cable Co., Ltd. is one of the leading xlr to rj45 female panel mount connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This XLR to RJ45 Female Panel Mount Connector is an ideal solution for DMX512 signal transmission. Its RJ45 port adopts XLR shell design. XLR port has multiple configurations, which can be made into male or female, 3-pin or 5-pin. With this adapter, users can easily use CAT-5 or CAT-6 Ethernet cable as DMX512 cable, which greatly reduces wiring costs and simplifies the installation process.
Specifications
| Product name | RJ45 Ethernet to 3-pin 5-pin XLR DMX female male panel-mount feedthru connector |
| DWG No. | PCM-S-0623 |
| Connector 1 | RJ45 connector, female, in XLR shell (D-shape series), panel mounting |
| Connector 2 | XLR connector, 3-pin, female (3-pin or 5-pin, male or female connectors all are available) |
| Support cable type | CAT-5 or CAT-6 Ethernet cable |
| Installation method | Chassis panel mounting, easy to fix on the equipment panel or rack |
Features
- XLR Shell Design: The RJ45 female jack adopts XLR shell design, providing a more stable connection and convenient integration into the equipment rack or panel.
- Flexible XLR end configuration: Supports 3pin and 5pin XLR connectors, optional male or female, to adapt to different equipment needs.
- Versatility: Compatible with standard CAT-5 and CAT-6 Ethernet cables, supports DMX512 signal transmission.
FAQ
Q1: What types of lighting control systems are suitable for this XLR D-type panel mount to RJ45 adapter?
A1: This adapter is particularly suitable for stage lighting systems, LED lighting, special effect lighting and other equipment that require DMX512 control protocol. It can also be used in sound control systems to ensure seamless signal connection between different devices.
Q2: Can this Ethernet to XLR chassis panel mount adapter be used to connect multiple DMX devices in series?
A2: Yes, you can use multiple DMX devices in series. Just make sure that the input end of each device is correctly connected to the DMX signal chain. Using this adapter can easily achieve signal transmission from RJ45 to DMX devices.
Q3: What voltage and current does this RJ45 Ethernet to XLR feedthrough bulkhead mount coupler support?
A3: This adapter is designed for signal transmission of DMX512 protocol. The supported voltage is usually 5V, and the current is determined by the DMX controller and the connected device. The adapter itself does not regulate current or voltage.
