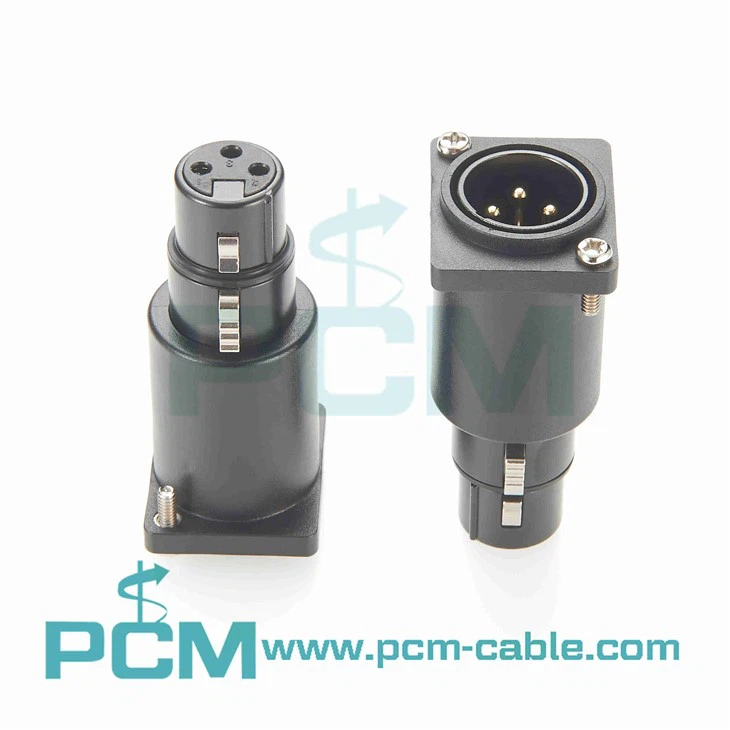

XLR Chassis mount male to female feedthrough adaptor
XLR Pass through Panel Mount Connector Neutrik NA3MDF XLR Male to XLR Female Panel Mount Adapter
D-series XLR Pass Through Panel Mount Adapter Neutrik NA3MDF XLR male to female feedthrough adapter for panel mount
XLR Male To XLR Female Panel Mount Adapter
PCM Cable Co., Ltd. is one of the leading xlr male to xlr female panel mount adapter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This XLR Male to XLR Female Panel Mount Adapter is designed for quick connection and conversion of audio equipment and is compatible with Neutrik NA3MDF and NC5MDM3. The female end is embedded in the XLR shell, which is convenient for direct installation on audio patch panels, racks, walls, desktops or panels to ensure that the connector is firmly and reliably fixed.
This XLR feedthrough adapter is very suitable for the conversion of input and output interfaces of audio systems and is widely used in professional audio equipment, stage performances, recording studios and other audio application scenarios.
Specifications
| Product name | XLR female to male pass through feedthrough panel mount adapter |
| Compatible with |
Neutrik NA3MDF, NA3FDM, ProX XC-3MDF, Redco RC3MDF; Neutrik NC5FDM3, NC5MDM3 |
| DWG No. | PCM-S-0629 (3pin); PCM-S-0630 (5pin) |
| Type | Panel-mount feedthru connector |
| Interface | Standard 3-pin XLR interface or 5-pin XLR interface |
| Contact | Gold-plated |
| Installation | Panel mounting, in XLR shell design, suitable for standard audio patch panels |
| Application | Audio equipment connection, stage sound, audio system expansion, conference system, etc. |
Features
- XLR housing design: The female end is embedded in the XLR housing for easy installation in an audio patch panel or device panel, providing a solid connection and protection for quick integration and configuration.
- Convenient wiring and expansion: This XLR chassis panel mount connector supports connection via short cables, simplifying the installation process. No soldering required, just plug directly into the back to quickly duplicate the input or output port.
- This XLR feedthrough bulkhead mount coupler has a self-locking mechanism to ensure a secure and reliable connection during plugging and unplugging, and is not easy to loosen.
Installation method
- Fix the adapter: Align the XLR Male to XLR Female Panel Mount Adapter with the mounting holes of the panel or rack, and use screws to fix it firmly to the panel or rack. Make sure that the adapter is in close contact with the panel and installed firmly.
- Connect the cable: Insert one end of the short cable into the back of the adapter and ensure that the cable is firmly connected to the connector terminal.
- Complete the connection: Insert the XLR male connector, connect with other audio devices, and use it normally.
