68 Pin Right Angle VHDCI SMT Connector
PCM Cable Co., Ltd. is one of the leading 68 pin right angle vhdci smt connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The key advantage of PCM-TAT-0004 is the combination of high-density 68 Pin VHDCI technology with a PCB SMT mounting structure, providing manufacturers with a compact and efficient board-level connectivity solution. Unlike traditional cable-based VHDCI connections, this connector mounts directly onto the PCB, reducing additional harnesses and adapter components.
Featuring a precision 0.8mm pitch design, it integrates 68 contacts within a compact footprint to support high-density data interfaces required by modern industrial equipment, high-performance computing platforms and test systems. This Right Angle VHDCI Connector is ideal for space-constrained electronic designs requiring high-speed I/O expansion.
◆ PCM-TAT-0004 uses SMT surface-mount technology to provide a stable integrated connection between the connector and PCB. Precision contact arrangement and standardized manufacturing processes help maintain accurate signal mapping while reducing risks caused by mechanical connection issues.
The VHDCI 68 Pin interface is designed for high-density signal transmission environments. Combined with proper PCB layout design, it supports signal integrity requirements in industrial testing, high-speed acquisition and professional computing applications.
◆ PCM-TAT-0004 is manufactured through precision molding and SMT connector production processes to achieve accurate 68-contact alignment at a 0.8mm pitch. The connector consists of a durable insulator, precision metal contacts and PCB soldering structure for reliable high-density connectivity.
Manufacturing focuses on terminal positioning accuracy, molding consistency and solder area quality, enabling the VHDCI SMT Connector to support industrial equipment and professional electronic systems.
Products Specification
| Product Type | VHDCI 68 Pin DIP Connector |
| Connection Method | DIP Through-Hole Mounting |
| Pin Count | 68-pin High Density Configuration |
| Enclosure Material | SPCC Shell, Nickel Plated |
| Connector Total Length | Approx. 49.10 mm |
| Pitch | 0.80 mm |
| Main Body Width | Approx. 43.00 mm |

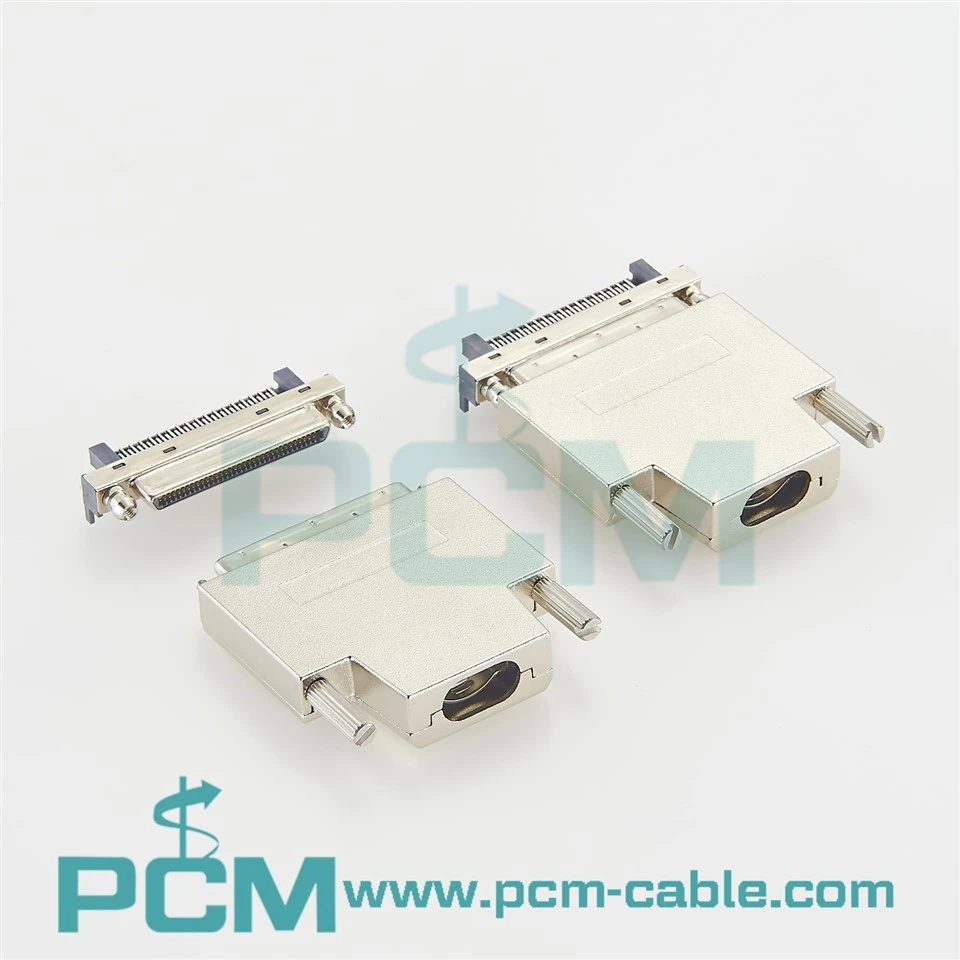

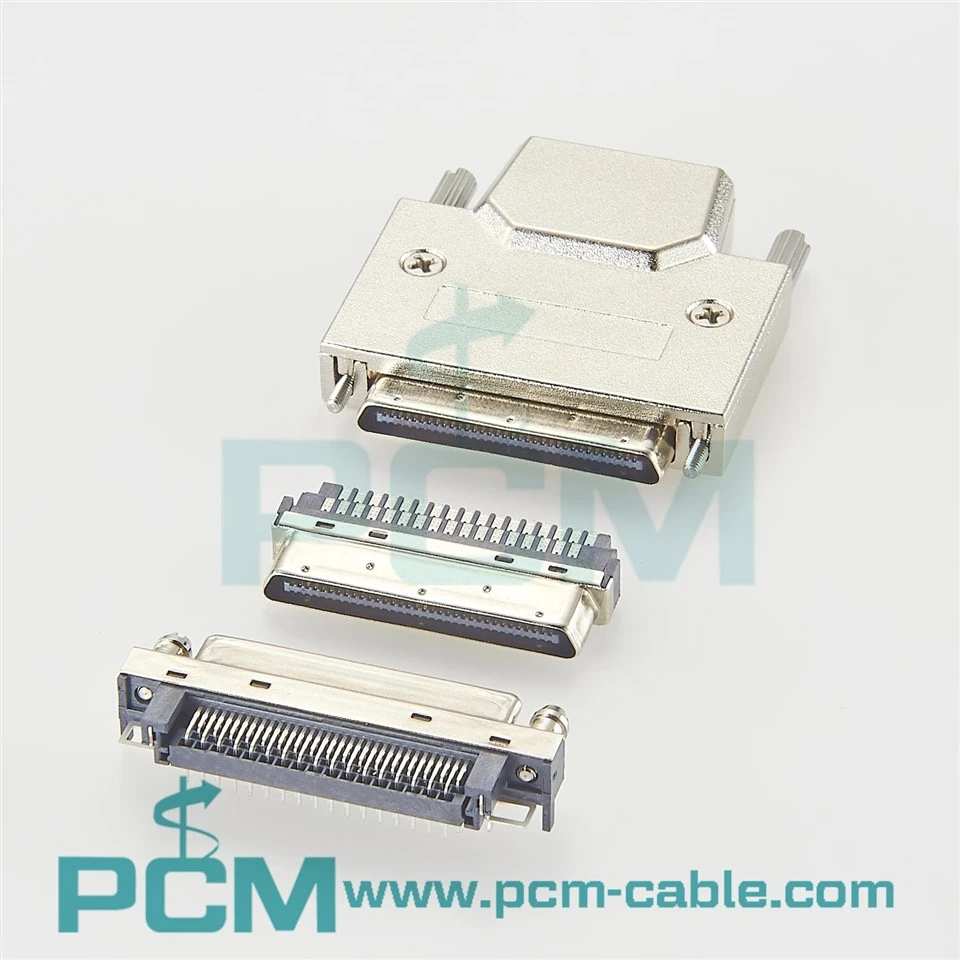

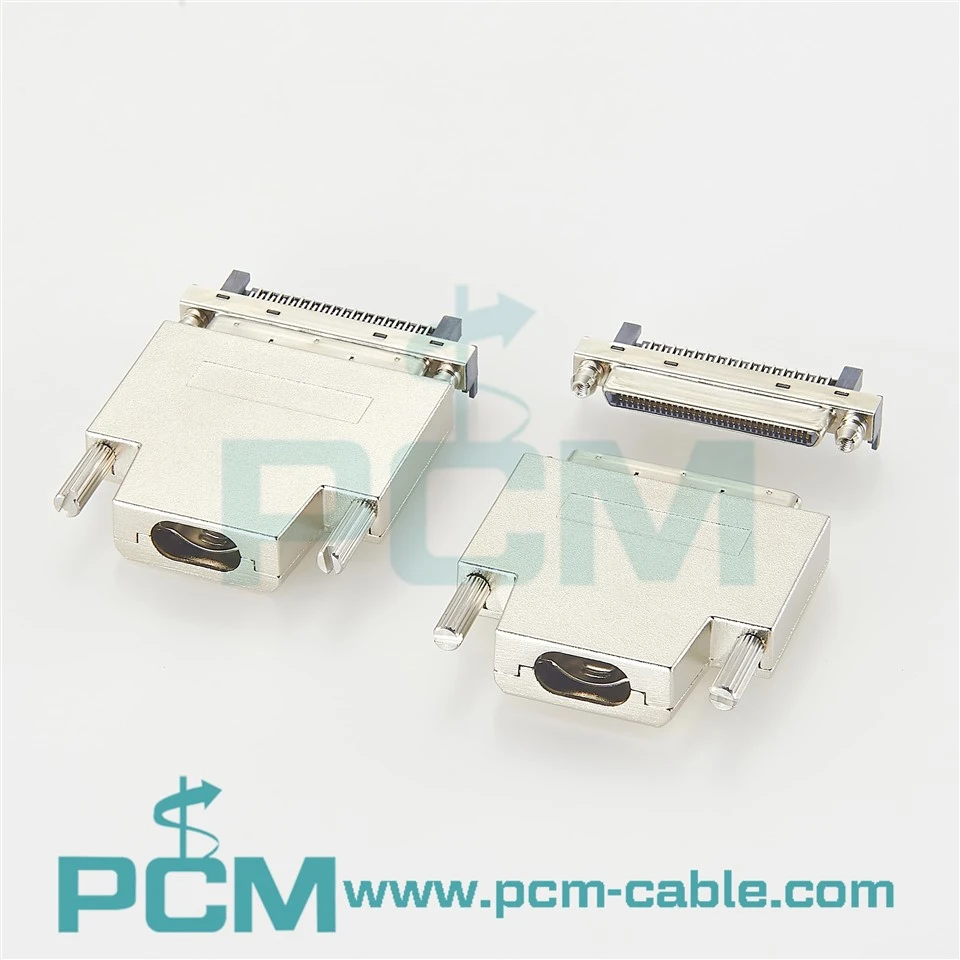

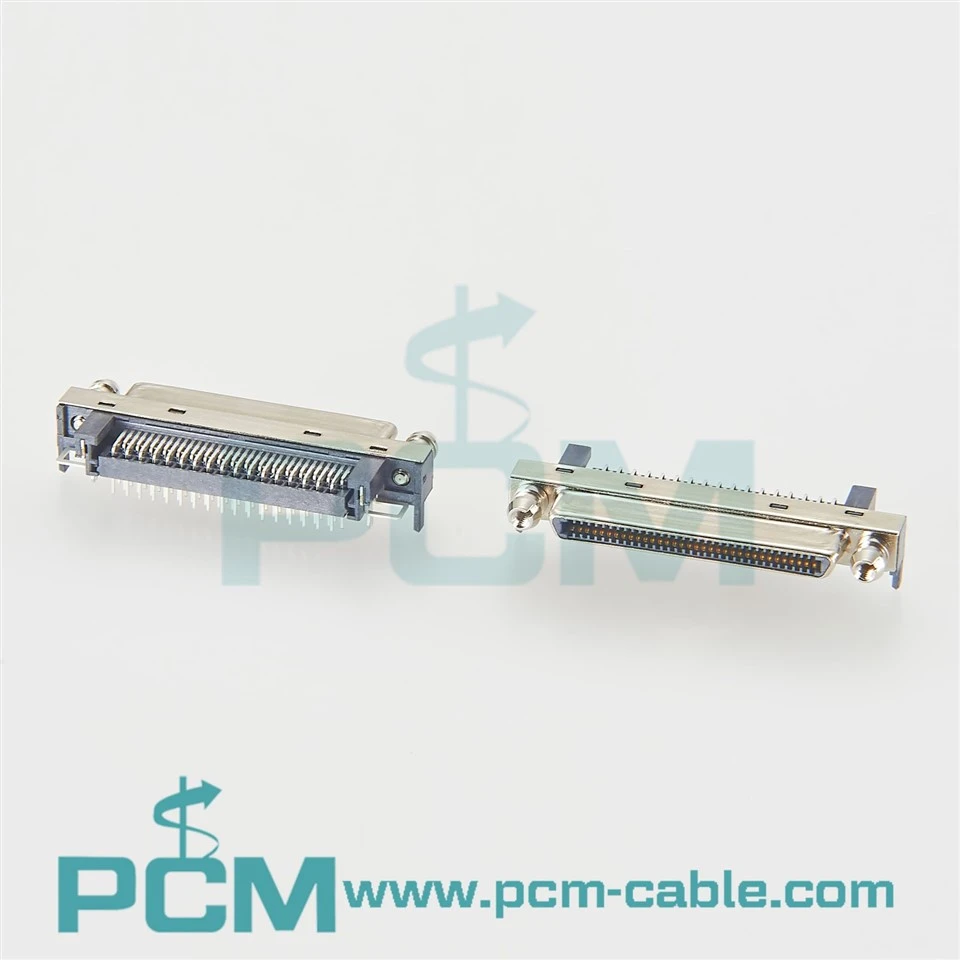

Products Display
Product Features
0.8mm Ultra-High Density Pin Array:
Integrates 68 contacts in a micro-interface, significantly reducing PCB edge footprint, ideal for blade servers and compact IPCs.
SMT Surface Mount Technology:
Features SMT lead design compatible with automated pick-and-place lines, boosting production efficiency for large-scale PCB assembly.
Right Angle Single-Stack Layout:
The 90-degree side-entry design minimizes vertical height on the motherboard, meeting clearance requirements for ultra-thin chassis.
Enhanced Metal Shielding Envelope:
The connector features a fully enclosed shield to effectively prevent internal stray EMI from interfering with differential signals.
Core Application Scenarios
Multi-channel High-speed DAQ Cards
PCM-TAT-0004 68 Pin VHDCI Connector is suitable for multi-channel high-speed DAQ cards, providing high-density connectivity between acquisition modules, sensor interfaces and control boards. Its 0.8mm pitch design supports compact PCB layouts for industrial testing, signal analysis and research data acquisition systems.
High-performance Embedded Computing
PCM-TAT-0004 is designed for high-performance embedded computing platforms, providing reliable connections between processor modules, expansion I/O boards and high-speed interfaces. Its right-angle SMT mounting structure optimizes internal space utilization, making it suitable for industrial computers, edge computing devices and professional control systems.
Core Performance Advantages
SCSI-5/VHDCI Standards Compliance:
Fully compliant with SPI-3 high-speed parallel standards, supporting LVDS signals for electrical interoperability with mainstream DAQ cards.
High-Heat Insulating Base:
Uses LCP (Liquid Crystal Polymer) engineered plastic to withstand lead-free reflow temperatures up to 260°C without physical deformation.
Robust PCB Mechanical Retention:
Equipped with dedicated positioning posts to enhance peel strength between the connector and PCB, withstanding heavy cable tension.
Frequently Asked Questions
Q1: What are the advantages of this SMT model over through-hole versions?
A1: SMT models don't require PCB drilling, allowing for easier double-sided routing and much faster automated assembly.
Q2: What is its maximum data transfer rate?
A2: It supports multi-Gbps throughput, meeting SCSI Ultra 320 and high-level LVDS signal transmission requirements.
Q3: Is the connector RoHS compliant?
A3: Yes, all Premier Cable VHDCI connectors are RoHS and REACH compliant, manufactured using lead-free processes.
