SCSI 68 Pin HPDB Female Connector
PCM Cable Co., Ltd. is one of the leading SCSI 68 Pin HPDB Female Connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The primary advantage of PCM-TAT-0010 is its ability to provide 68 individual contact positions within a relatively compact HPDB interface. Instead of distributing control, feedback, and status circuits across multiple low-pin-count connectors, HPDB68 consolidates numerous signals into one equipment interface.
Its 1.27mm half-pitch contact arrangement further improves panel-space efficiency, making it particularly suitable for industrial controllers, data acquisition systems, test instruments, and legacy Wide SCSI equipment requiring high-density I/O.
Connectors installed in industrial equipment may be exposed to cabinet vibration, cable weight, and mechanical stress during maintenance. PCM-TAT-0010 incorporates a UNC 2-56 screw-locking mechanism to secure the female connector firmly to its mating equipment interface.
The zinc alloy backshell additionally protects the internal solder termination area and cable exit. When properly integrated into a shielded cable design, the metal enclosure can also form part of the overall shielding structure for industrial cabinets, laboratory instruments, and equipment racks.
Products Specification
| Product Name | HPDB 68 Pin Female Connector |
| Drawing Number | PCM-TAT-0010 |
| Connector Type | HPDB High-Density Female |
| Number of Positions | 68 positions |
| Terminal Arrangement | Two rows, 34 positions per row |
| Shell Structure | Metal assembly shell |
| Locking Method | Dual-screw locking |
| Rated Current | 1.0A |
| Working temperature | -55°C to +85°C |

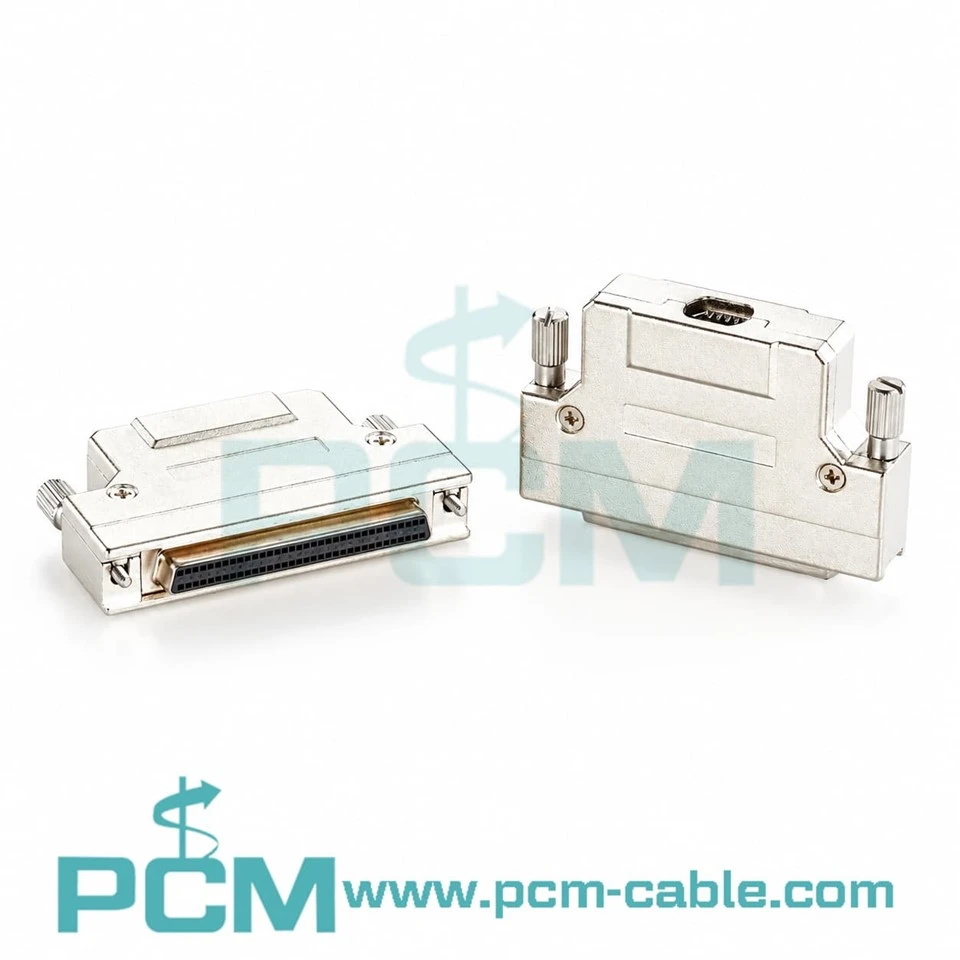

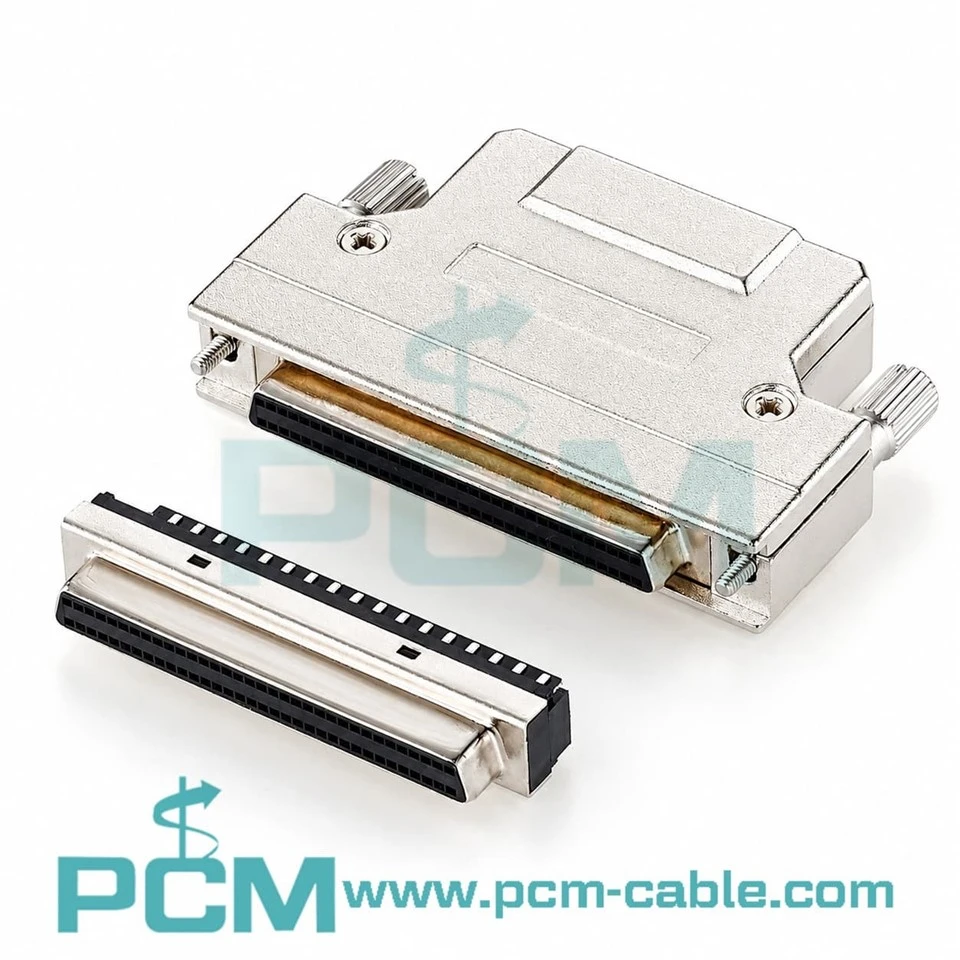

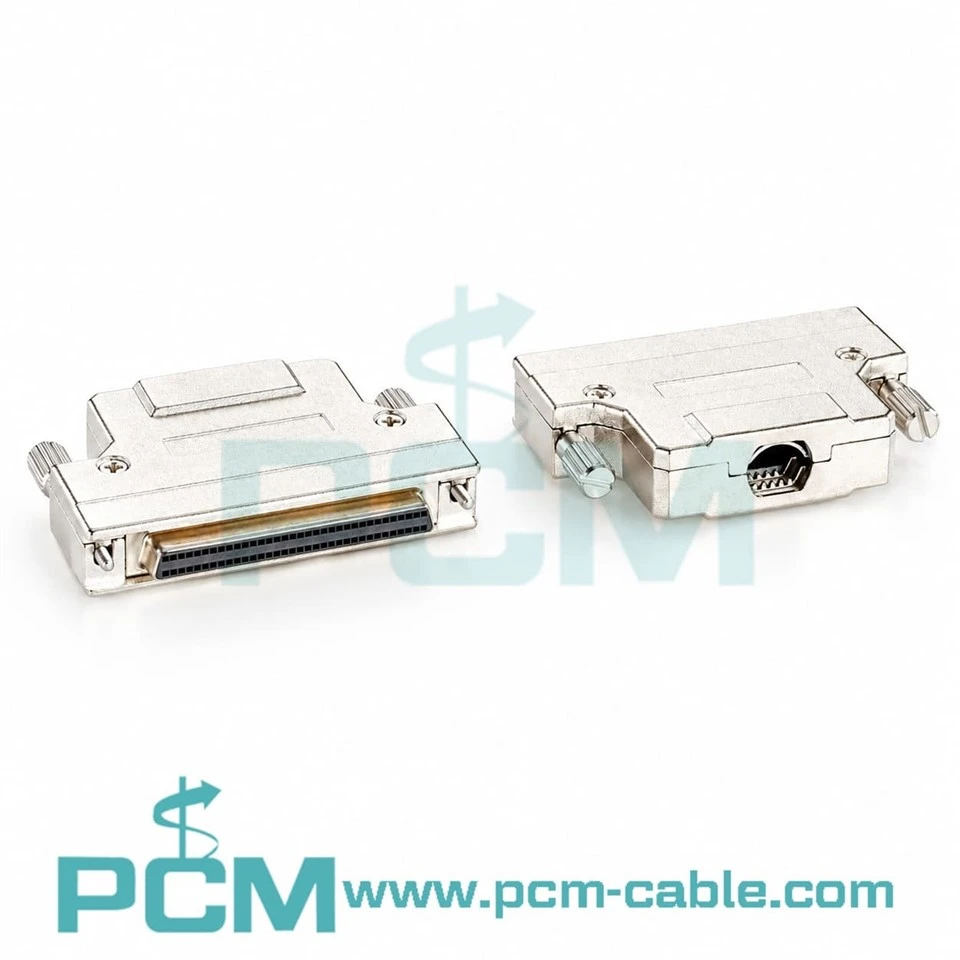

Products Display
Product Features
0.05-Inch (1.27mm) Ultra-Fine Pitch
Adheres rigidly to the standard 1.27mm micro pin pitch layout, carrying multi-channel scripts smoothly within a highly concentrated boundary.

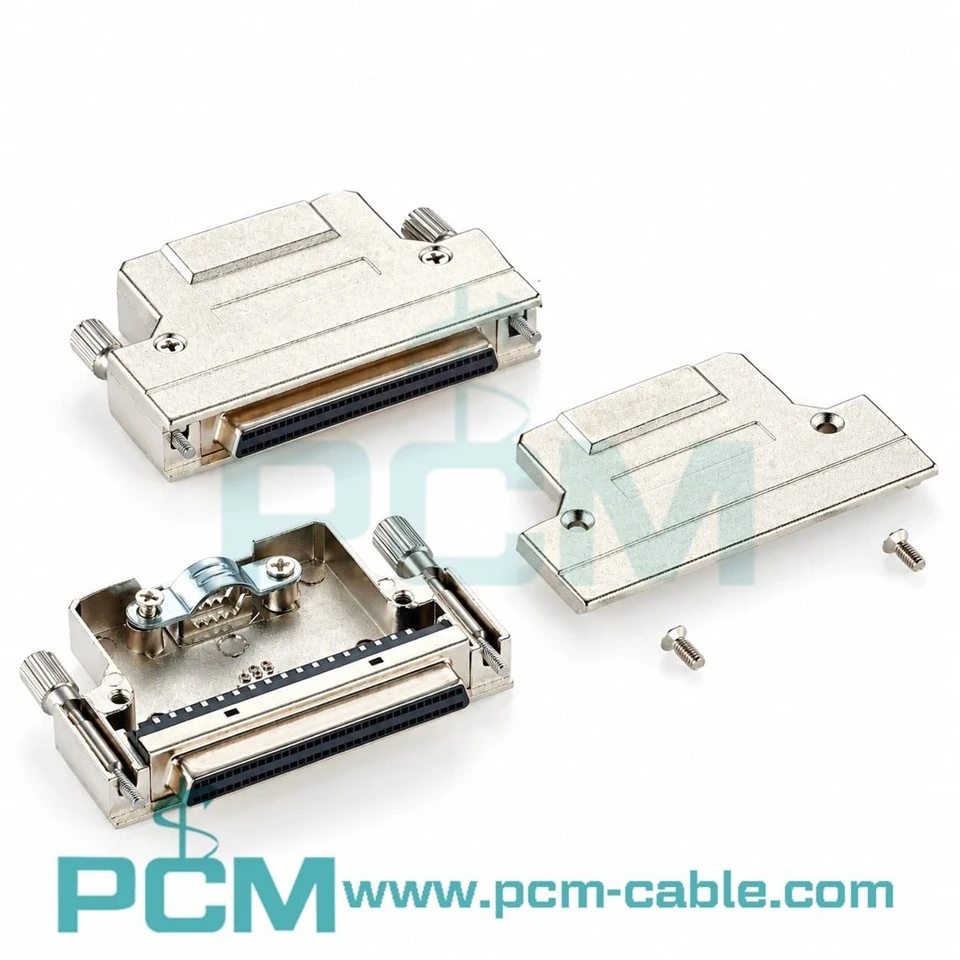

Two-Piece Split Assembly Armor
Innovative split modular zinc alloy backshell configuration greatly simplifies closure assembly workflows after multi-core wire soldering.
Thicker High-Dielectric Insulator Spine
Reinforced insulator core yields superior dielectric voltage barriers, completely stopping tracking currents between pins during voltage spikes.
Rear Heavy-Duty Cable Metal Clamp
Adjustable heavy metal cable strain clamp integrated inside the tail tightly bites heavy cable jackets, isolating internal joints from direct pull stresses.
Core Application Scenarios
DAQ & Sensor Matrix
Suitable for multi-channel DAQ cards, sensor matrices, and laboratory measurement platforms, consolidating analog, digital, trigger, and status signals through an HPDB 68-pin interface for cleaner high-density wiring between acquisition equipment and test fixtures.
Semiconductor Wafer & ATE Testing
Designed for wafer inspection, IC testing, and ATE systems, providing high-density control and measurement connections among test hosts, probe stations, interface boards, and fixtures for semiconductor production and validation.
Core Performance Advantages
SCSI-3 High-Speed Multi-Channel Transmission
The HPDB 68-pin high-density interface supports compatible SCSI and multi-channel DAQ equipment, consolidating multiple data and control lines; final transmission performance depends on cable construction, impedance, and equipment protocol.
Zinc Alloy Shielding & Stable Contact
The rigid zinc alloy backshell protects the 68-pin termination area and can form part of the cable shielding path, while stable contact mating helps control resistance variation in electrically noisy servo, motor, and test-equipment environments.
Wide-Temperature Industrial Operation
Supports an operating range of -55°C to +85°C for industrial cabinets, DAQ platforms, and equipment racks. Combined with 2-56 screw locking and proper strain relief, it provides improved mechanical stability for long-term fixed installations.
Frequently Asked Questions
Q1: The 68-pin pitch is very dense; how does Premier Cable ensure no short circuit occurs duringmanual operation?
A1: This is a very professional pain point. To address this challenge, our HPDB68 female solderconnector has an exclusive three-dimensional, layered, stepped cup geometry. The physical opening spacesof the upper and lower solder joints are intricately spaced, and we thicken the isolation between the jointswithin the insulating glue core. As long as a miniature knife-head electric flame iron and a thin diametersolder wire in accordance with the vehicle specifications can be used to attach multi-core twin wires with veryprecise precision, reducing the risk of manual short circuit to extremely low.
Q2: How is the zinc alloy housing assembled? What is its compatibility with relatively thick shielded twisted pair cables?
A2: Our product is equipped with a very strong split zinc alloy shield backshell. It is built through a modularstructure that is side by side and is finally cosed and tightened using stainless steel screws. The cable clamp atthe end of the housing has a multi-stage adjustable aperture damping, which is specially expanded for multi-channel high-shielding multi-core twisted pair cables (such as standard SCSl68-pin special wire). Whether theouter diameter of the wire is thick or thin, it can be tightened by a built-in wire clamp to provide top-notchtensile protection.
Products Drawing
