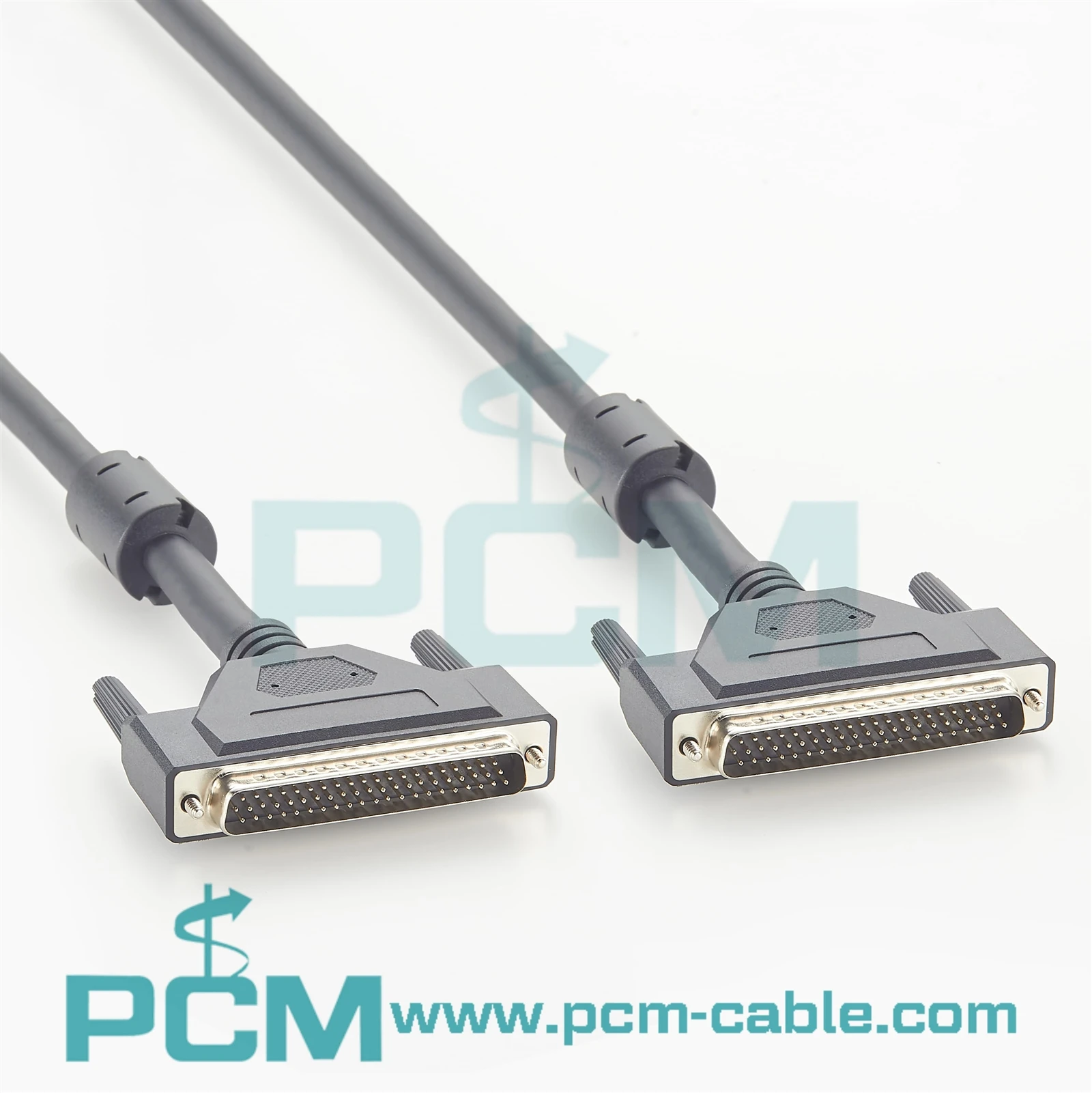

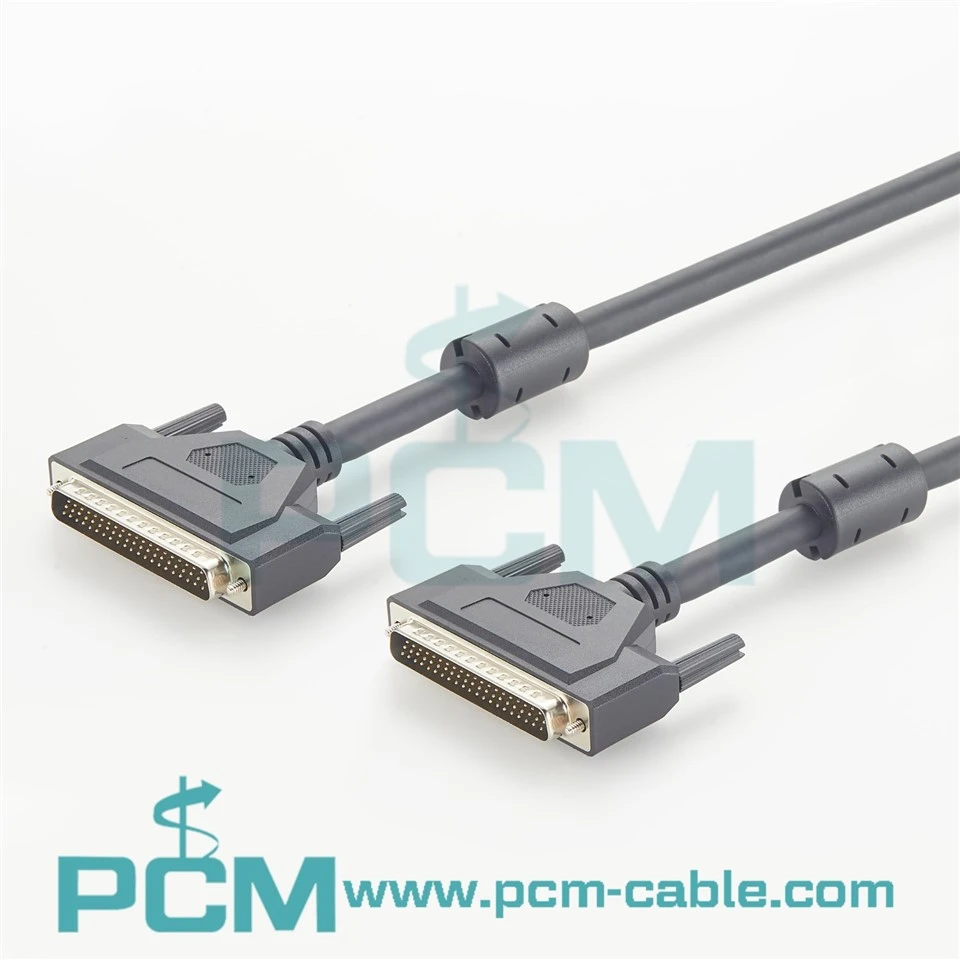

Premier Cable PCM-0957 is a high-performance DB62 Shielded Cable designed for industrial data communication and precision testing applications. Featuring DB62 male-to-male connectors, it provides a reliable replacement solution for Advantech PCL-10162-1E, PCL-10162-2E, and PCL-10162-3E cable assemblies.
This DB62 dual shield cable uses 28AWG straight-through conductors to support multi-channel digital signals, analog signals, and control signals. The dual-layer shielding structure, including foil shielding and braided shielding, effectively reduces EMI, RFI, and electromagnetic interference in industrial environments.
Both ends are equipped with molded ferrite cores to improve high-frequency noise suppression performance, making the cable ideal for DAQ systems, automated test equipment (ATE), motion control platforms, and high-density I/O signal applications.
The molded connector housing provides excellent strain relief and mechanical protection, improving durability during repeated installation and industrial operation.
Core Advantages
As a premier flagship solutions in industrial interconnections, this cable offers a factory-grade plug-and-play drop-in replacement for Advantech PCL-10162-2E. Constructed with high-purity 28AWG oxygen-free copper conductors in a straight-through pinout, it guarantees voltage stability and synchronized signaling for high-density multi-channel I/O operations.
Stable Connection
Engineered for severe electromagnetic interference generated by heavy workshop machinery, this cable implements an active heavy-duty industrial noise mitigation mechanism. It combines aluminum foil and dense copper braiding for double-shielded isolation, paired with dual overmolded ferrite cores to choke off transient EMI, EMC, and RFI noise, eliminating data loss.
Installation Requirements
The DB62 D-sub form factor integrates 62 physical pins into a micro-footprint, tailor-made for high-density signal transmission in control cabinets. Its streamlined profile and optimized cable diameter ensure neat, un-bulky cable management across multi-axis servo drives and centralized DAQ systems, enhancing enclosure thermal airflow.
Products Specification
| Product Name | DB62 Male to Male Shielded Cable Assembly |
| Part Number | PCM-0957 |
| P1 Connector | Type: HD DB62 Male;Interface: 62 Pin Male Connector |
| P2 Connector | Type: HD DB62 Male;Interface: 62 Pin Male Connector |
| Locking Method |
Screw Locking |
| Cable Model | UL20276 28#34PRS+AE |
| Outer Diameter | 10.3mm |
| Compatibility | PCL-10162-1E; PCL-10162-2E; PCL-10162-3E |
Products Display
Product Features
◆ OEM-Grade Drop-In Compatibility
Full 1:1 straight-through pinout, delivering seamless matching with the entire Advantech PCL-10162 series DAQ cards and terminal boards.
◆ Dual Molded Ferrite Cores
Both cable ends feature factory-integrated absorptive molded ferrite rings specifically tuned to choke high-frequency common-mode spikes.
◆ Premium 50-Conductor OFC Structure
Built with 28AWG multi-strand, finely twisted oxygen-free copper wires for minimal DC resistance and optimized conductivity.
◆ Total Coverage Double-Shielded Grid
Combines 100% aluminum foil wrap with a dense braided copper lattice to form a 360-degree closed electromagnetic shielding barrier.
Core Application Scenarios
DAQ Systems
Designed for industrial DAQ systems, this cable connects Advantech and other multi-channel data acquisition cards, terminal boards, and signal conditioning modules. The DB62 high-density interface supports reliable transmission of analog, digital, and control signals for measurement, testing, and monitoring applications.
Industrial Automation & Motion Control
Used in PLC cabinets, multi-axis motion controllers, precision servo drives, and industrial computers, enabling stable transmission of control commands, feedback signals, and status data. The dual shielding and ferrite core design minimizes industrial interference for reliable long-term automation operation.
Core Performance Advantages
Zero-Packet-Drop in High-Speed Inspection
Guarantees distortion-free transmission of high-fidelity digital and analog signals within dense, noisy electrical environments.
Drastic Cut in High-Density Wiring Maintenance Hours
Compared to assemble-type DB62 cables, the molded hood eliminates connectivity risks caused by industrial floor vibrations.
Preventing Adjacent Multi-Channel Signal Crosstalk
Precise internal conductor twisting and separation eliminate cross-talk interference between multi-channel high-density I/O circuits.
Maximizing Long-Term Assembly Production ROI
Exceptional abrasion and fatigue wear life dramatically reduce unexpected assembly downtime due to cable wear failures.
