DB37 Industrial Cable Compatible PCL-10137
PCM Cable Co., Ltd. is one of the leading DB37 Industrial Cable Compatible PCL-10137 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

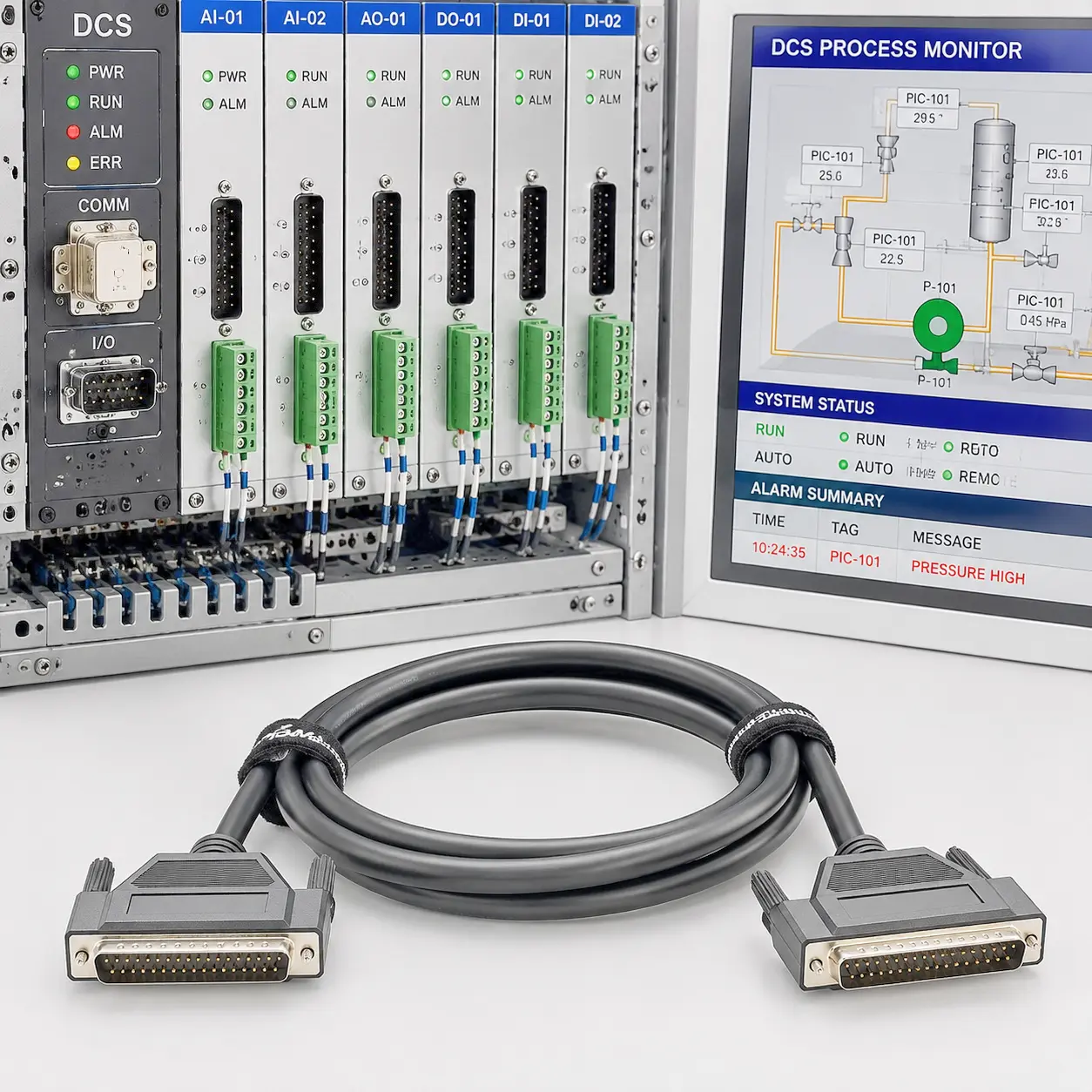

Premier Cable PCM-0966 is a DB37 Shielded Cable Compatible with PCL-10137, specifically developed for industrial data acquisition and automated I/O systems. Featuring standard 37-pin D-Sub male connectors on both ends, it is designed for DAQ cards, digital I/O boards, industrial computers, and terminal board systems based on the Advantech PCL-10137 connection architecture.
It provides a reliable compatible solution for equipment maintenance, OEM integration, and cable system upgrades. PCM-0966 is engineered for demanding industrial applications, with a particular focus on reducing the impact of EMI/EMC noise generated by variable frequency drives (VFDs), servo drives, relays, and high-power equipment on multi-channel I/O signals.
Compared with conventional DB37 cables, PCM-0966 places greater emphasis on signal protection and equipment compatibility in industrial data acquisition environments. The 37-pin interface consolidates multiple digital I/O, control, and feedback circuits into a single connection, providing a clear and reliable signal path between DAQ cards and remote terminal boards.
Core Advantages
As Premier Cable's flagship breakthrough in industrial data bus connectivity, this cable delivers a factory-grade plug-and-play drop-in replacement for the entire Advantech PCL-10137 series. Constructed with 37 cores of high-purity oxygen-free copper conductors in a 1:1 straight-through pinout, it guarantees optimized transmission impedance for high-speed, synchronized low-latency I/O signal exchange across IPCs and DAQ terminal boards.
Installation Requirements
This cable features streamlined physical profiles specialized for automated e-enclosures and high-density chassis panel breakout routing. The front connector utilizes a precision-machined polarized D-shape shroud to guide technicians through quick blind-mating in dark, cramped spaces. Its low-profile flattened hood moves effortlessly past tight frame interferences on standard industrial enclosure rear-panel cutouts, significantly reducing cable trunk clutter.
Manufacturing Craftsmanship
Premier Cable implements an advanced hermetic overmolded backshell manufacturing process on this runner, completely replacing easily loosened snap-together shells. During production, internal joints and the 360-degree welded braid grid are hermetically encapsulated within a vacuum-filled solid compounding resin. All contact surfaces undergo a precision micro-inch industrial gold-plating line, safeguarding the junctions against passivation.
Products Specification

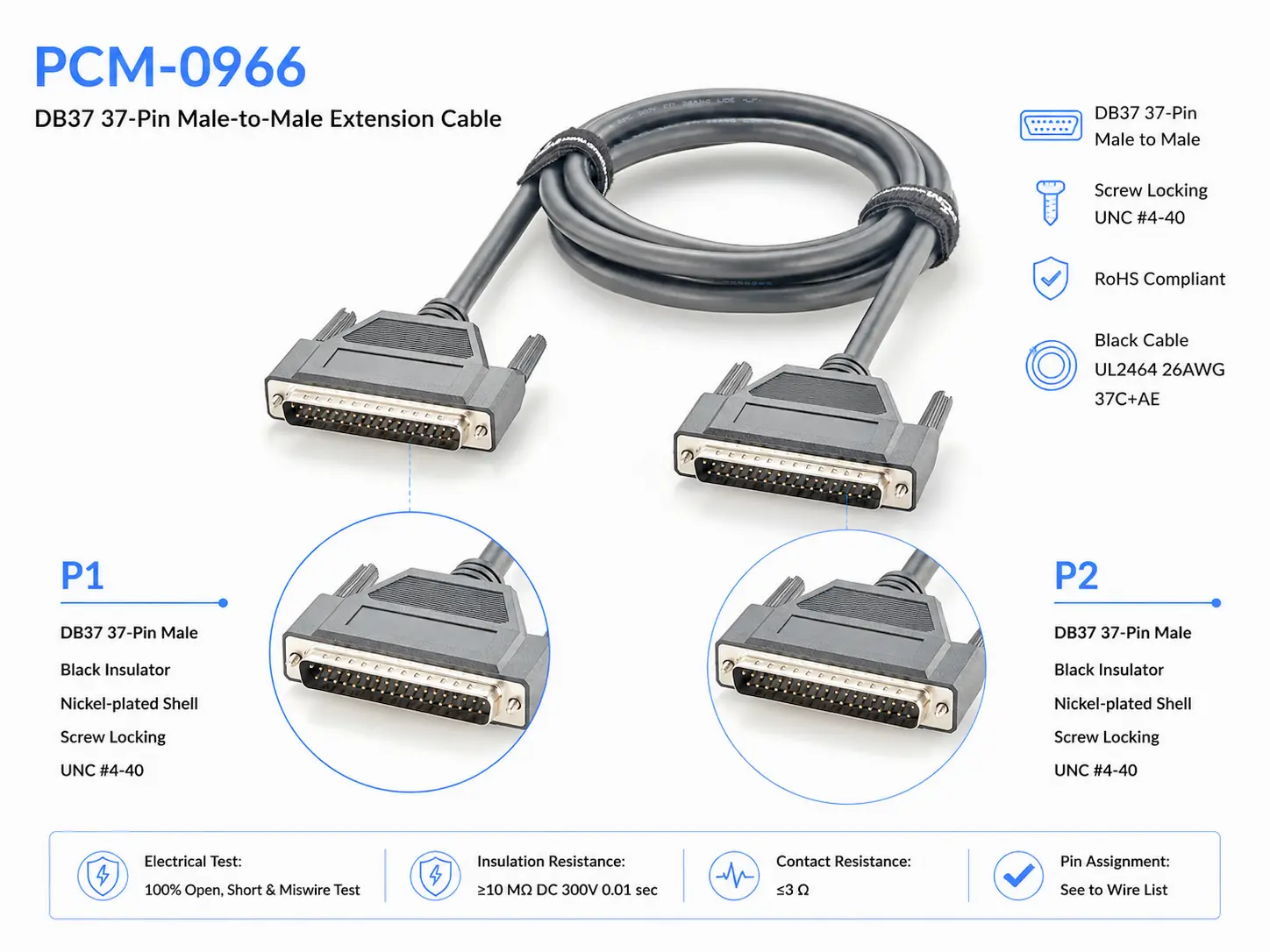

| Product Name | DB37 37-Pin Male-to-Male Extension Cable |
| Part Number | PCM-0966 |
| P1 Connector | DB37 37-Pin Male |
| P2 Connector | DB37 37-Pin Male |
| Locking Method | UNC #4-40 Screw Locking |
| Cable Type | UL2464 26AWG x 37C + AE |
| Cable Outer Diameter | OD9.5mm |
| Cable Color | Black |
Products Display
Product Features
PCL-10137 Equivalent Architecture
Standardized with a 2-row, 37-pin 1:1 straight-through pinout, delivering seamless matching with various multi-channel Advantech DAQ cards.
Braided-Plus-Foil Total Coverage Shielding
Dense copper braid overlaps metallic Mylar wraps to forge a low-impedance closed anti-noise continuous network against high-frequency spikes.
Solid Vacuo-Overmolded Heavy Hoods
Connectors feature solid vacuum overmolding to provide superior overmolded housing pull-out and anti-cracking protection against heavy torque.
Extended Captive Knurled Thumbscrews
Outfitted with extended captive 4-40 UNC screws with deep non-slip grooves, ensuring tool-free reliable mounting in dense rack slots.
Core Application Scenarios
Industrial Automation & DCS Networks
Designed for large automated production lines, centralized PLC cabinets, and distributed DCS networks, PCM-0966 connects central control boards, digital/analog I/O modules, multi-axis servo or stepper drive cards, and industrial computers. Its high-density DB37 interface and dual-layer shielding help suppress EMI/EMC from VFDs, servo motors, and relays, providing reliable multi-channel transmission of control commands, equipment status, sensor feedback, and process data in demanding industrial environments.
ATE Semiconductor Test Fixtures
Suitable for semiconductor ATE platforms, IC handlers, functional test systems, and precision in-circuit test fixtures, PCM-0966 carries multiple measurement, trigger, control, and status-feedback signals between controller boards, switching matrices, interface modules, and test fixtures. Its DB37 multi-channel architecture and dual-layer shielding help reduce external electromagnetic noise and channel interference, supporting stable and repeatable signal transmission during continuous production testing, burn-in verification, and laboratory validation.
Frequently Asked Questions
Q1： Why does the DAQ system need double shielding?
A1：DAQ and digital I/O systems often operate near motors, relays, and switchingpower supplies. Dual shielding helps reduce external EMI/EMC coupling andchannel interference. Advantech specifically describes twisted and shieldedsignal construction for reducing crosstalk and noise.
Q2：Does PCM-0966 support OEM customization?
A2：OEM cable lengths, pinouts, labels, and packaging can be customizedaccording to the approved project drawing. Full technical specifications shouldbe verified when compatibility with a specific PCL-10137 version is required.
Q3： How to ensure stable data acquisition under strong electromagnetic interference in industrial workshops?
A3：PCM-0966 uses 360° copper-braid plus Aluminum/Mylar foil shielding to suppress EMI/EMCgenerated by VFDs, motors, and high-power equipment. The continuous shield path reducescommon-mode noise and transient interference, helping protect sensitive analog, digital I/O, andDAQ signals while improving signal integrity and data reliability over extended industrial cable runs.
