NMEA 2000 Tee Power Cable With Fuse
PCM Cable Co., Ltd. is one of the leading nmea 2000 tee power cable with fuse manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

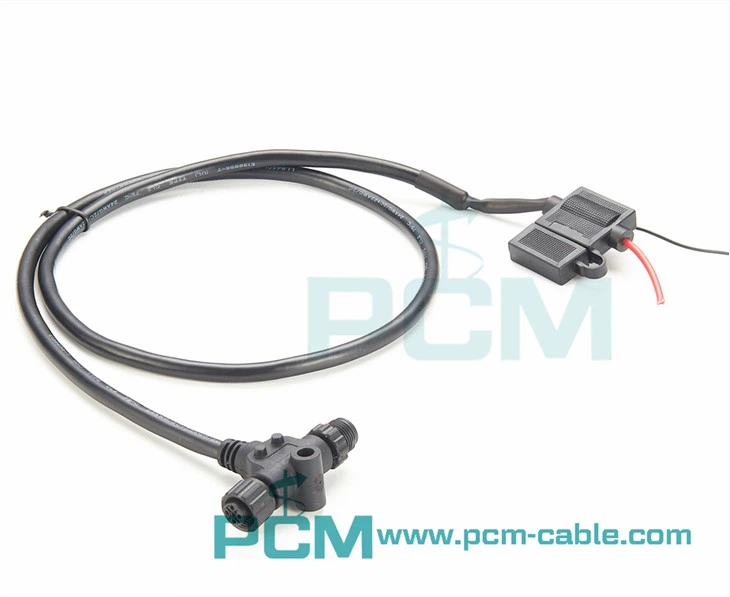

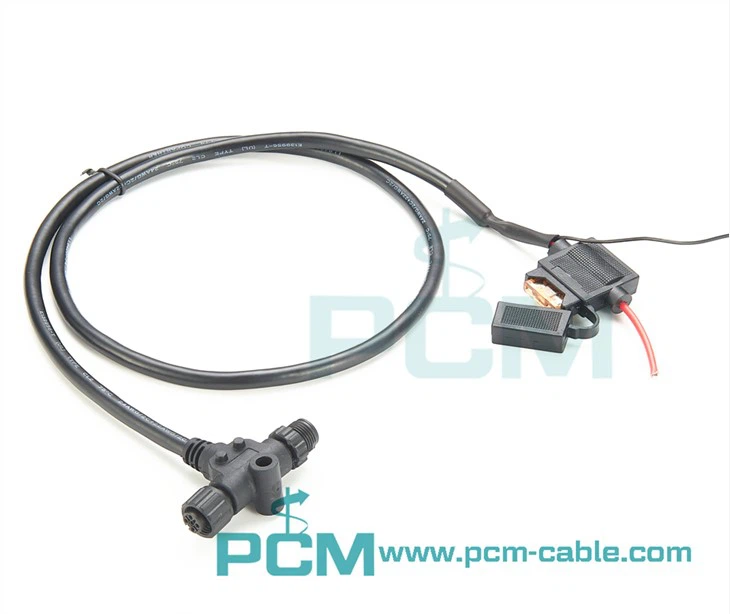

NMEA 2000 Tee Power Cable with Fuse is a cable for connecting NMEA 2000 network equipment, which features a fuse and a branch connector.
The cable consists of a main line and two branches that can bring power to multiple devices on the NMEA 2000 network. Fuses protect the power supply from overloading and damage to equipment.
This cable is commonly used to connect sensors, displays, GPS receivers, and other NMEA 2000 devices. It provides a reliable power connection and waterproof performance for boats, yachts, fishing boats and other marine and marine equipment. Typically connected using standard NMEA 2000 connectors and plugs for easy installation and maintenance.
Specifications
| Product name | NMEA 2000 (N2K) power Tee cable with fuse, for Lowrance Simrad B&G Navico & Garmin Networks |
| DWG No. | PCM-0804 |
| Cable length | 1.5m or customized |
| Fuse rating | 5A |
| Cable type | 18 AWG twisted pair, shielded |
| Cable jacket | PVC |
| Cable diamter | 5.2mm |
| Operating temperature | -40°C to 80°C (-40°F to 176°F) |
| Insulation resistance | DC500V+ -10%, test for 1 minute and the insulation resistance should be more than 100 MQ. |
| Usage | Can be used to branch off a single NMEA 2000 network to multiple devices while providing power |
| Compatible with NMEA 2000 devices that require power | |
Features
1. Tee connector: The cable features a tee connector that allows for the connection of multiple devices to a single power source.
2. Fuse protection: The cable is equipped with an inline fuse that protects the network from overcurrent and short-circuit conditions.
3. Waterproof connectors: The connectors are waterproof and designed to withstand harsh marine environments.
4. High-quality construction: The cable is constructed with high-quality materials that ensure long-term durability and reliability.
5. Easy to install: The cable is easy to install and requires no special tools or expertise.
6. Compatible with NMEA 2000 networks: The cable is fully compatible with NMEA 2000 networks and can be used with a variety of different devices.
