NMEA 2000 Panel Mount Cable

PCM Cable Co., Ltd. is one of the leading nmea 2000 panel mount cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

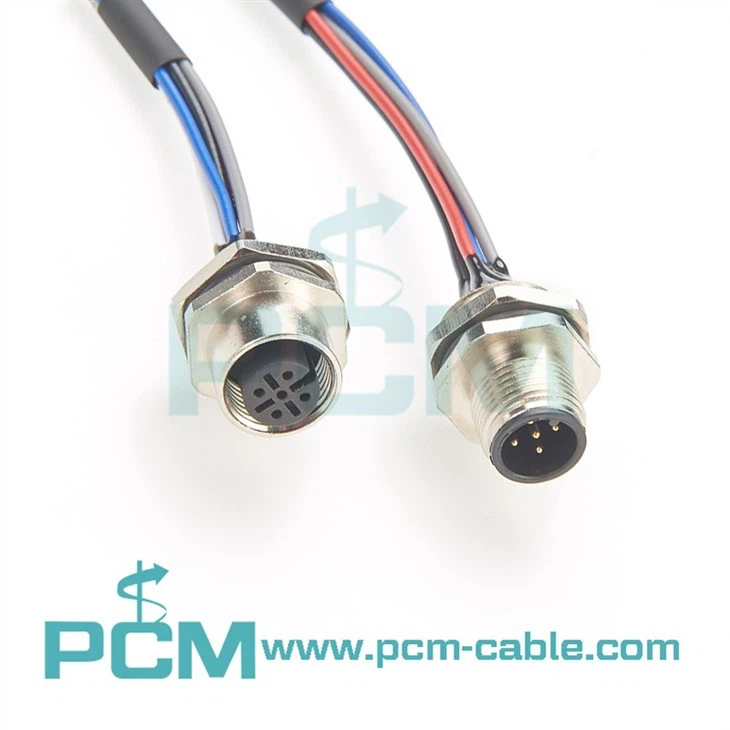

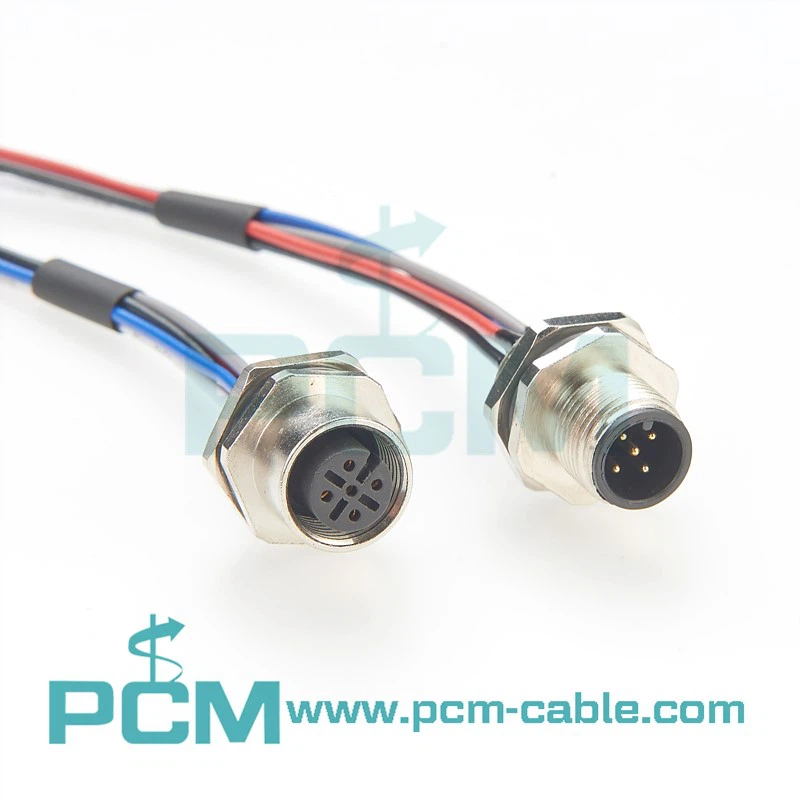

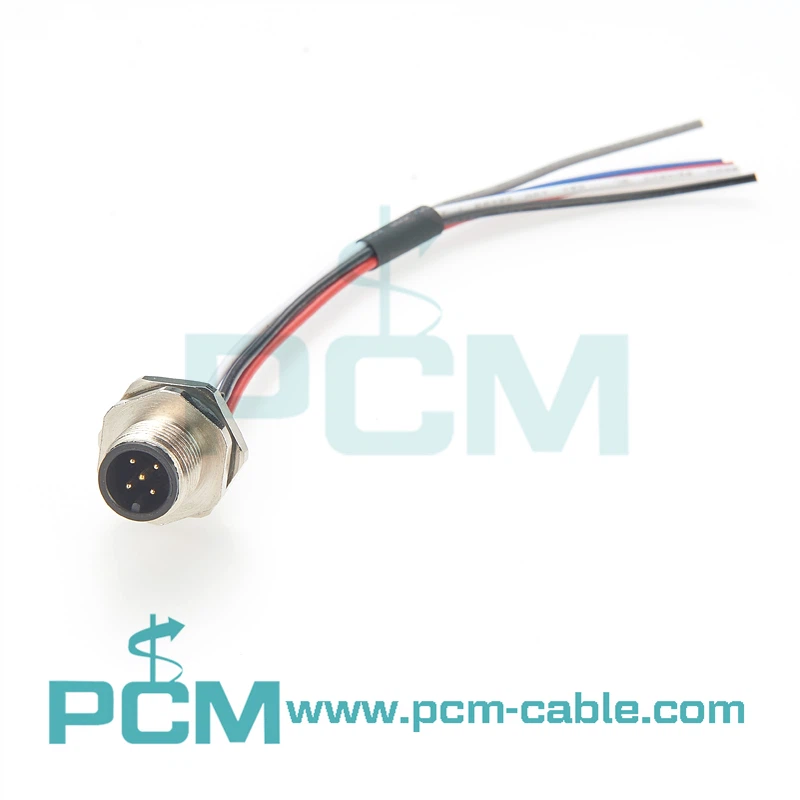

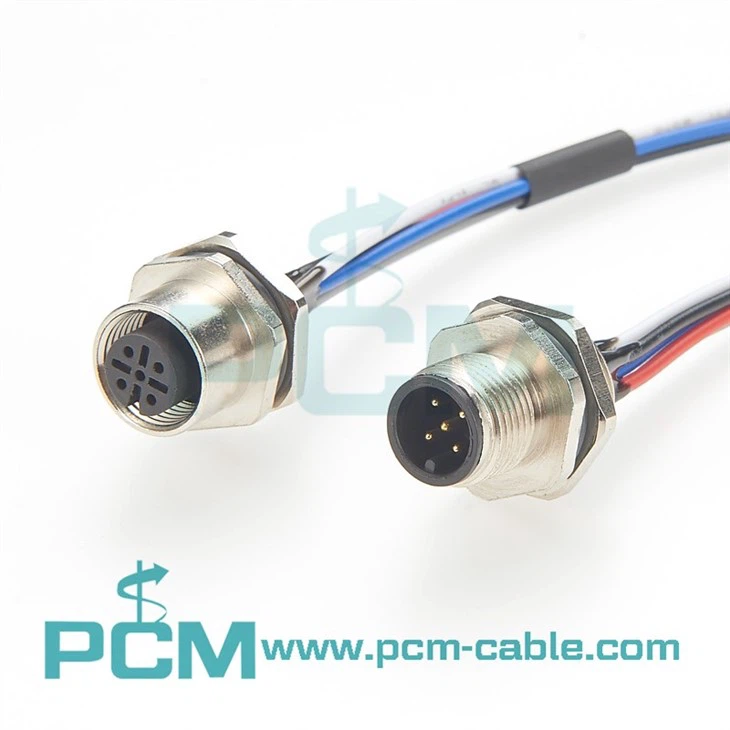

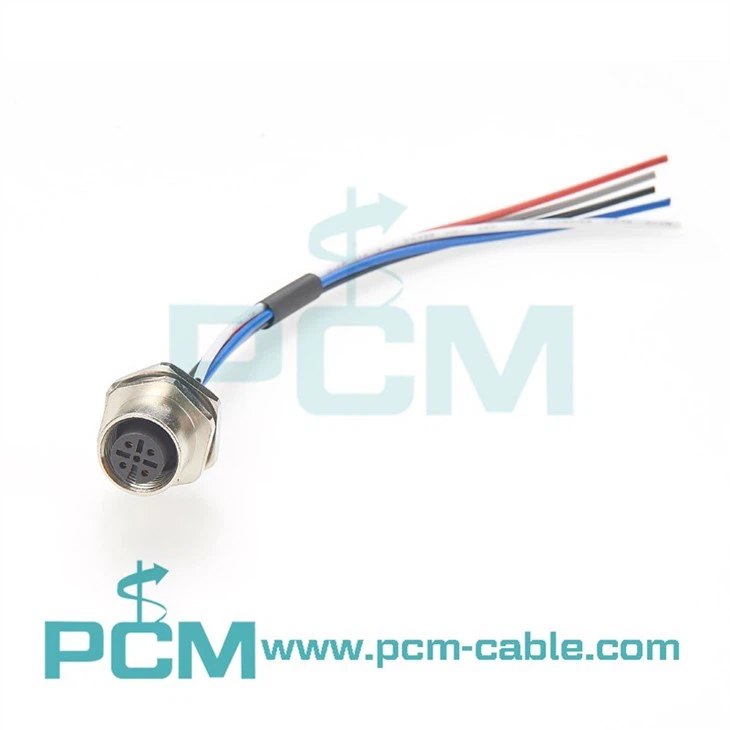

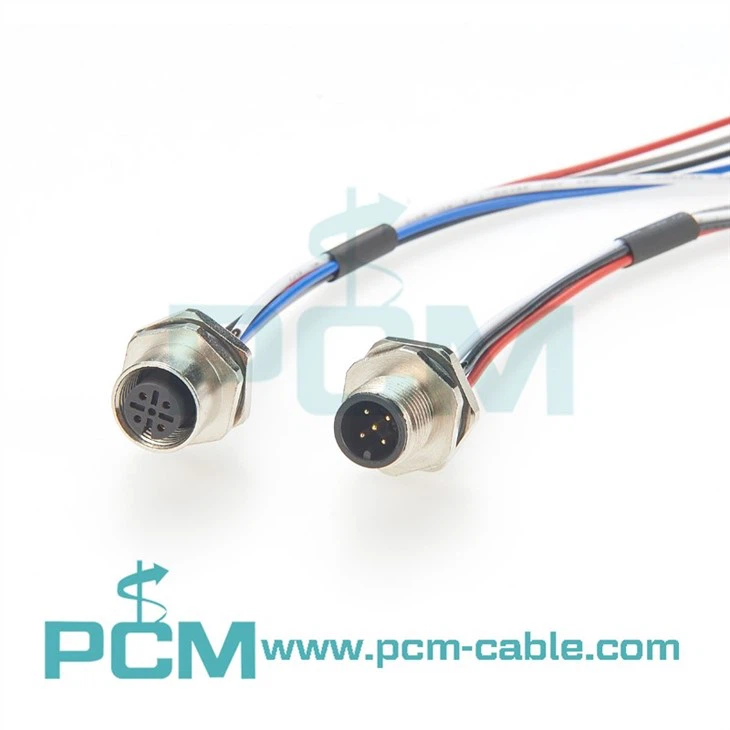

NMEA 2000 Micro Panel Mount Wired Connector with Cable



The NMEA2000 panel mount cable is a cable used to connect marine electronics and sensors. The cable consists of 5 conductors including power, ground, data, clock and alarm. The cable can be used to connect different types of devices and supports high-speed data transfer and multi-device connection.

Specifications



Product name: NMEA 2000 Bulkhead Connector Panel Mounted Wired Connectors
Pin interface: 5
Connection method: panel installation
Rated voltage: 60VDC
Rated current: 4A
Shielding performance: EMC
Waterproof grade: IP67 (when mated)
Material: Nylon
Mating thread: M12
Cable length: 1m or customized

The installation method is as follows:



1. First, confirm the installation location and cable length, and connect the NMEA 2000 panel mount mable.

2. Insert the NMEA 200 connectors into the slots on the panel and secure the screws.

3. Insert the cable lug correctly into the connector housing and turn to secure the plug.

4. Use cable ties to secure the cables to the surface of the hull.

5. Connect devices and sensors at the interface terminals.

6. Verify that the connections are correct and test the functionality of the device.

FAQ:



Q: What is a panel mount wired connector?



A: A panel mount wired connector is a type of connector that is designed to be mounted on a panel or surface with a threaded or screw mount. It is typically used to connect two or more electrical or electronic devices or components. The connector is wired and has pins or sockets that are used to make electrical connections between the connected devices. These connectors are often used in industrial equipment, electronic devices, and automotive applications where a secure and reliable electrical connection is required.
