HSD 4Pin Z-Code Female to RJ45 Automotive Network Cable: Features, Applications and Selection Guide
PCM-0844 is a shielded HSD 4Pin Z-Code female to RJ45 8P8C male network cable featuring 26AWG×2P+AEB CAT5E cable, a black PVC jacket and a nickel-plated RJ45 shell. It provides a compact, shielded physical interconnection between automotive electronic modules and RJ45 network equipment for in-vehicle networking, infotainment, ECU testing, camera systems and automotive development, with OEM customization for cable length, pin mapping, connectors and cable specifications.
What Does This Article Cover?
Automotive electronic systems are integrating an increasing number of cameras, displays, infotainment modules, ECUs, gateways, sensors and test devices. As a result, establishing reliable, clearly defined and maintainable physical connections between different high-speed data interfaces has become an important part of automotive wiring-harness design.
This article focuses on the Premier Cable PCM-0844 HSD 4Pin Z-Code Female to RJ45 8P8C Male Network Cable and systematically explains the fundamentals of HSD interfaces, RJ45 interfaces, CAT5E shielded cable, pin mapping and automotive network harnesses. It also examines why an HSD-to-RJ45 cable is required, which connectivity problems it solves, which equipment it can support and which parameters engineering and purchasing teams should verify during product selection.
Quick Product Introduction
PCM-0844 is a shielded HSD-to-RJ45 interconnect cable designed for automotive electronics and related test systems.
The primary function of this product is not to actively convert communication protocols. Instead, it establishes a harness-level connection between an automotive HSD interface and an RJ45 physical interface according to a predefined pin mapping, making it easier to connect automotive electronic modules with network equipment, test instruments, development platforms and related electronic systems.

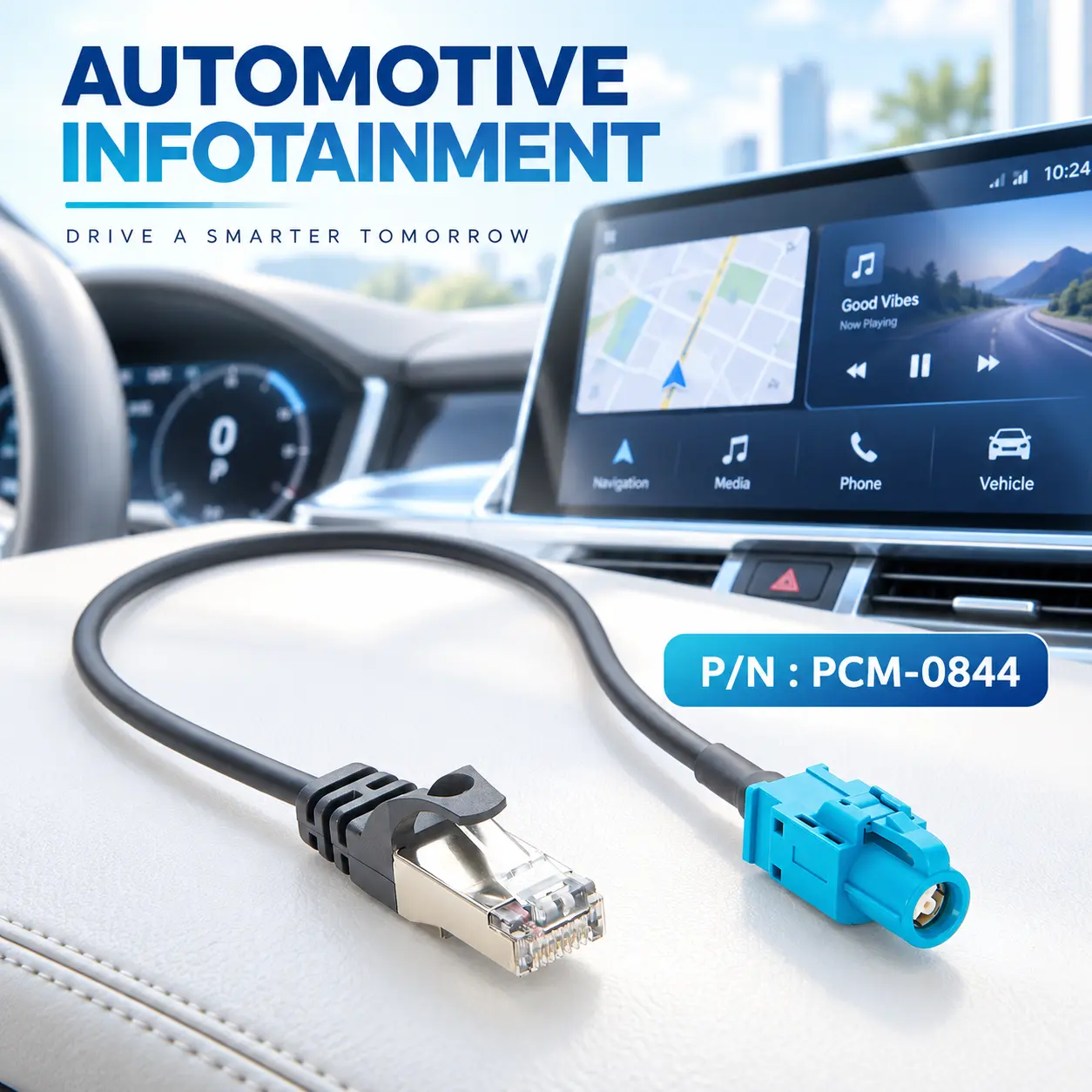

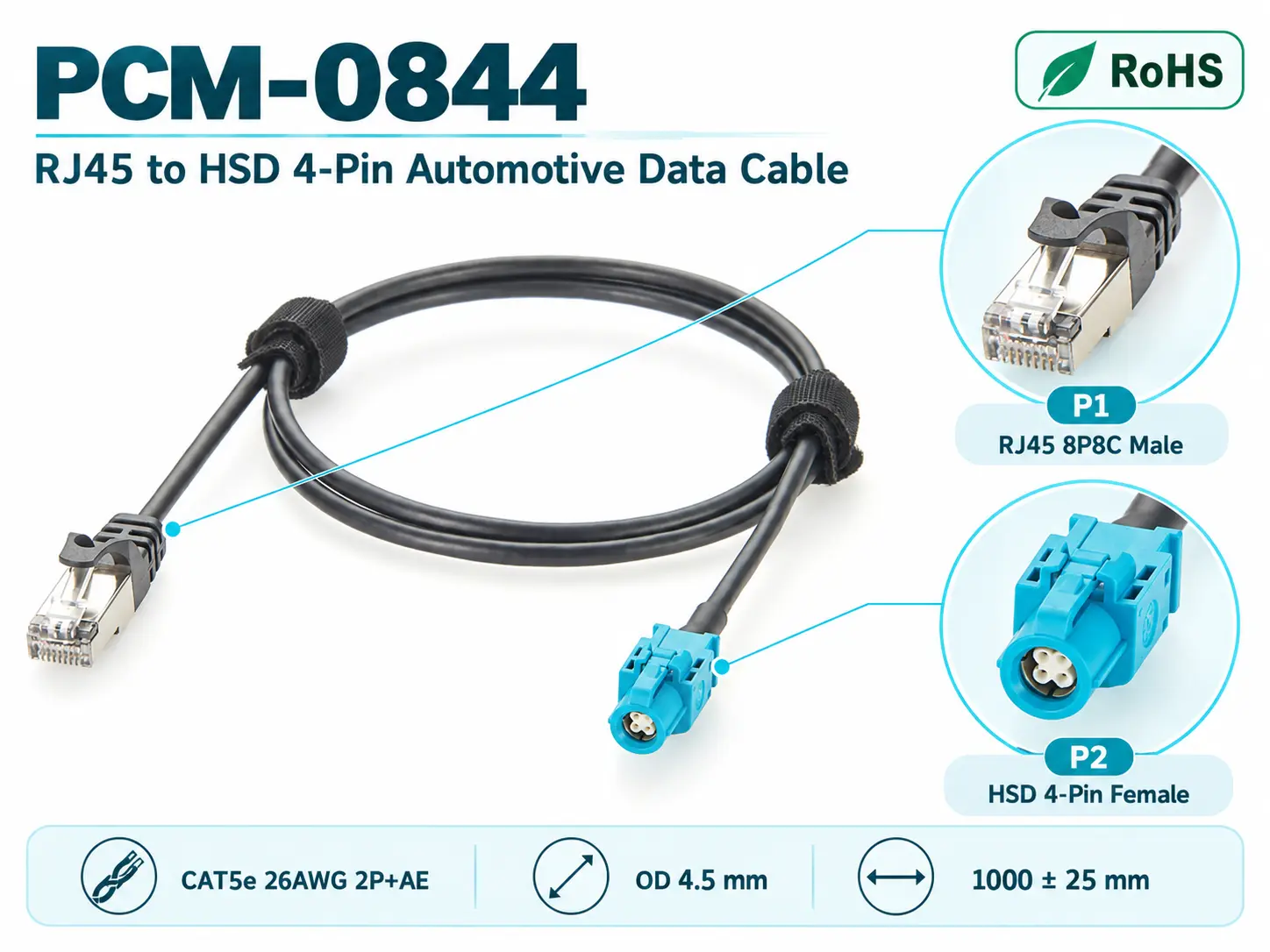

| Product Name | RJ45 8P8C Male to HSD 4-Pin Female Automotive Data Cable |
| Product Type | CAT5e Shielded Ethernet to HSD 4-Pin Cable |
| Premier Cable P/N | PCM-0844 |
| Overall Length | 1000 ± 25 mm |
| Connector P1 | RJ45 Male |
| Connector P2 | HSD 4-Pin Female ;4 Pin |
|
Cable OD |
4.5 mm |
What Is an HSD 4Pin Z Code to RJ45 Cable ?
HSD stands for High-Speed Data and is a high-speed differential data interconnection system commonly used in automotive electronics. Its design focuses on controlled impedance, high-speed differential signal transmission, shielding, mechanical coding and secure locking.
HSD uses different codings to distinguish interfaces and reduce the risk of incorrect mating. PCM-0844 uses a Z-Code HSD interface, so the corresponding mating Z-coded equipment interface must be confirmed during product selection.
The core value of HSD is to provide compact high-speed data connectivity suitable for automotive electronic environments. It is not limited to one upper-layer protocol and can therefore perform different data-interconnection functions across different vehicle platforms and electronic modules.
What Is the Role of CAT5E Cable ?
PCM-0844 uses a 26AWG×2P+AEB CAT5E cable construction.
The twisted-pair structure creates differential signal paths and helps reduce external noise and pair-to-pair crosstalk through controlled twisting, while the shielding structure improves EMI/RFI control in complex electromagnetic environments.
In automotive electronics and test environments, a cable does much more than simply connect two connectors. Conductor gauge, pair geometry, twist, shielding, drain/ground arrangement, cable length and termination can all influence the performance of the final high-speed link.
Pain Points
Detailed Product Introduction
PCM-0844
PCM-0844 is a shielded high-speed data interconnect cable designed for automotive electronics, in-vehicle network development and laboratory testing applications.
One end uses an HSD 4Pin Z-Code female connector, while the other uses an RJ45 8P8C male connector. The 26AWG×2P+AEB CAT5E cable establishes the differential signal paths between the two interfaces, while the black PVC outer jacket provides mechanical protection.
Typical applications include interconnecting automotive electronic modules with RJ45 test equipment, ECU bench testing, infotainment development, in-vehicle network experiments, camera/display system development and R&D validation of other HSD-interface equipment.
Core Construction and Technical Features
◆ HSD 4Pin Z-Code Interface
HSD 4Pin Z-Code supports automotive high-speed data links, providing interface identification and mismating protection for compact ECUs and electronic modules.
◆ Shielded RJ45 8P8C Male
The RJ45 side features an 8P8C interface and nickel-plated metal shell for compatible network, industrial PC and test equipment connections with shielding continuity.
◆ 26AWG Twisted-Pair Construction
The 26AWG×2P twisted-pair structure provides two differential paths, helping maintain signal quality and reduce crosstalk through controlled pair geometry and twist.
◆ Shielded EMI Control Design
Shielded cable combined with metal connector structures helps maintain shielding continuity and reduce EMI/RFI effects on the link and nearby electronic systems.
Products Display

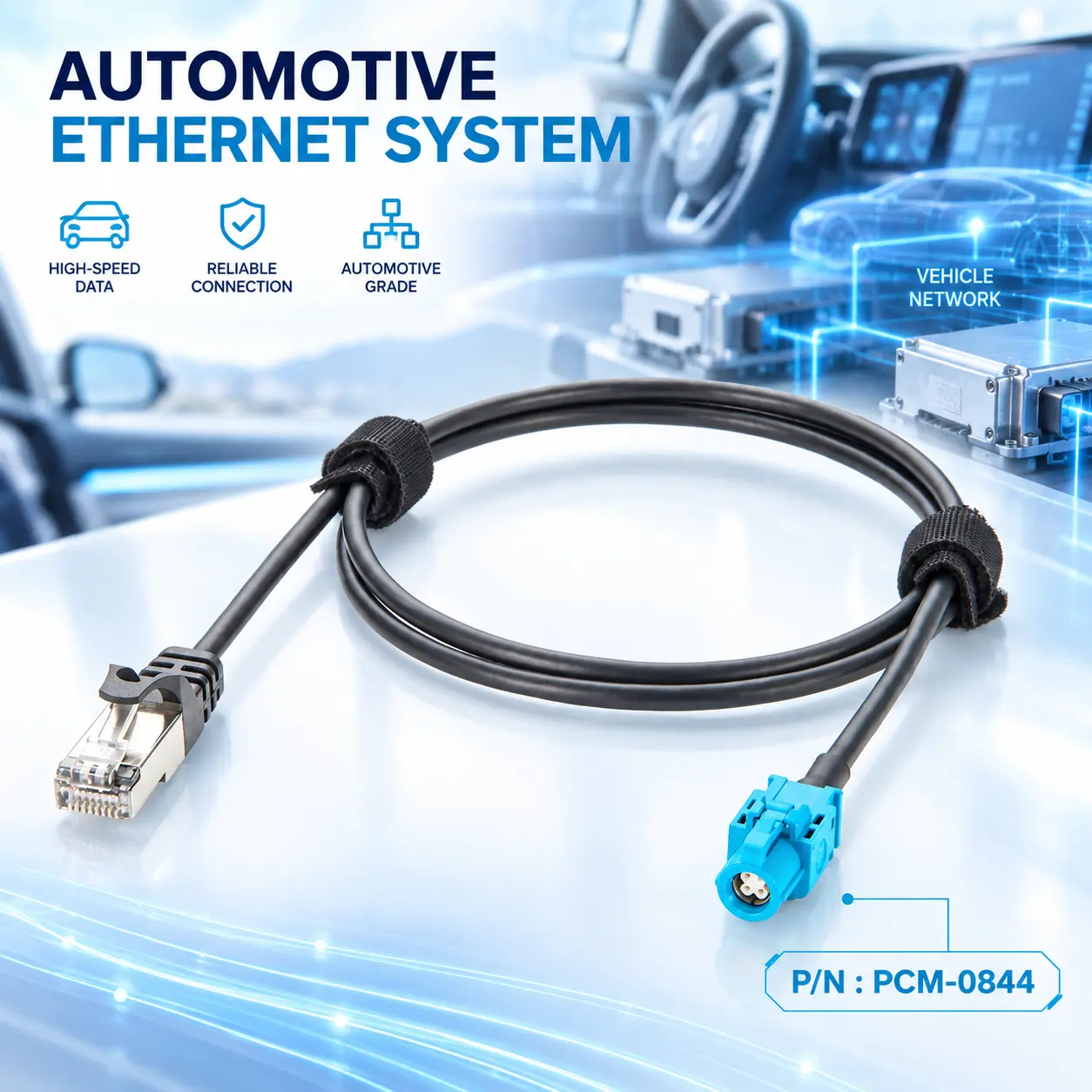

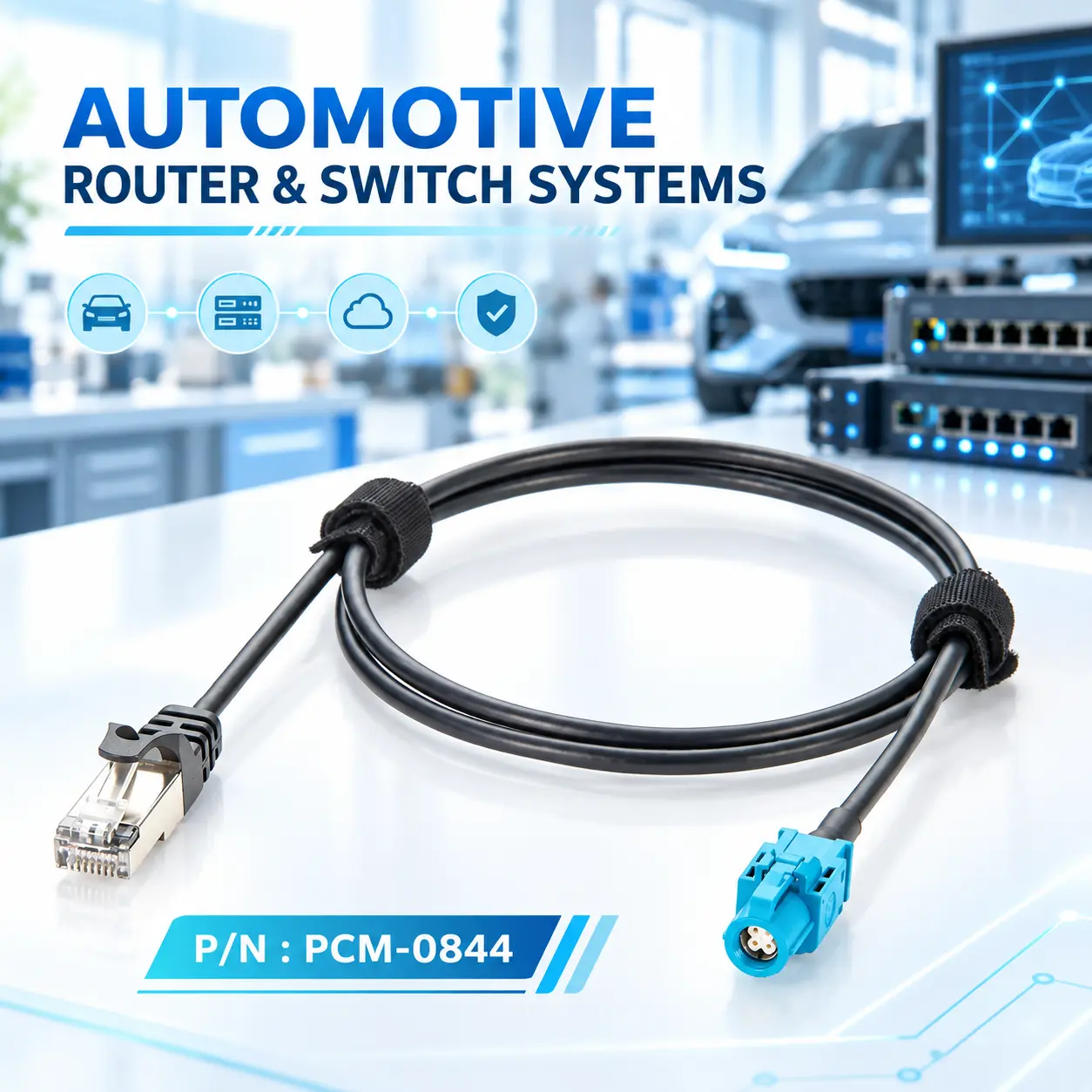

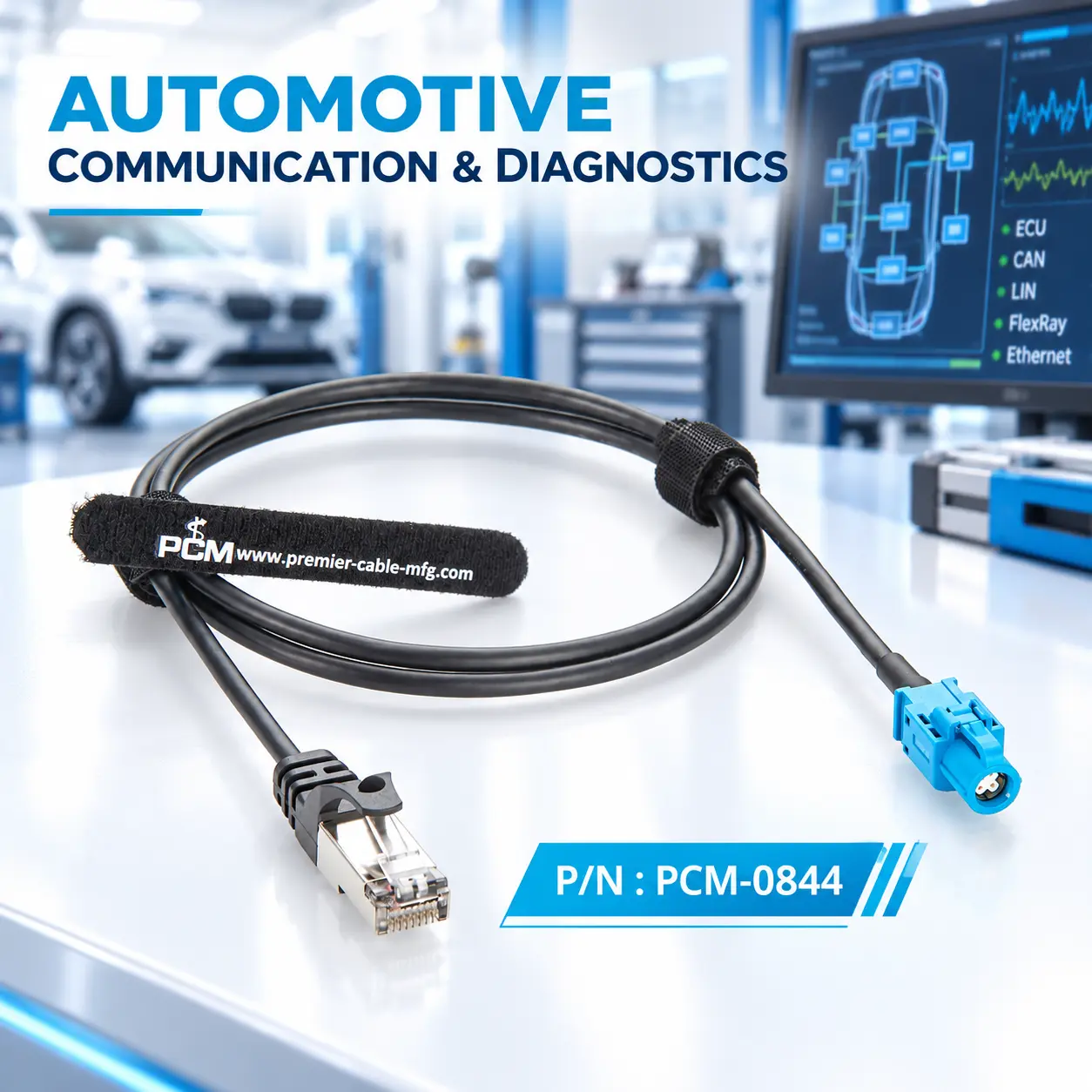

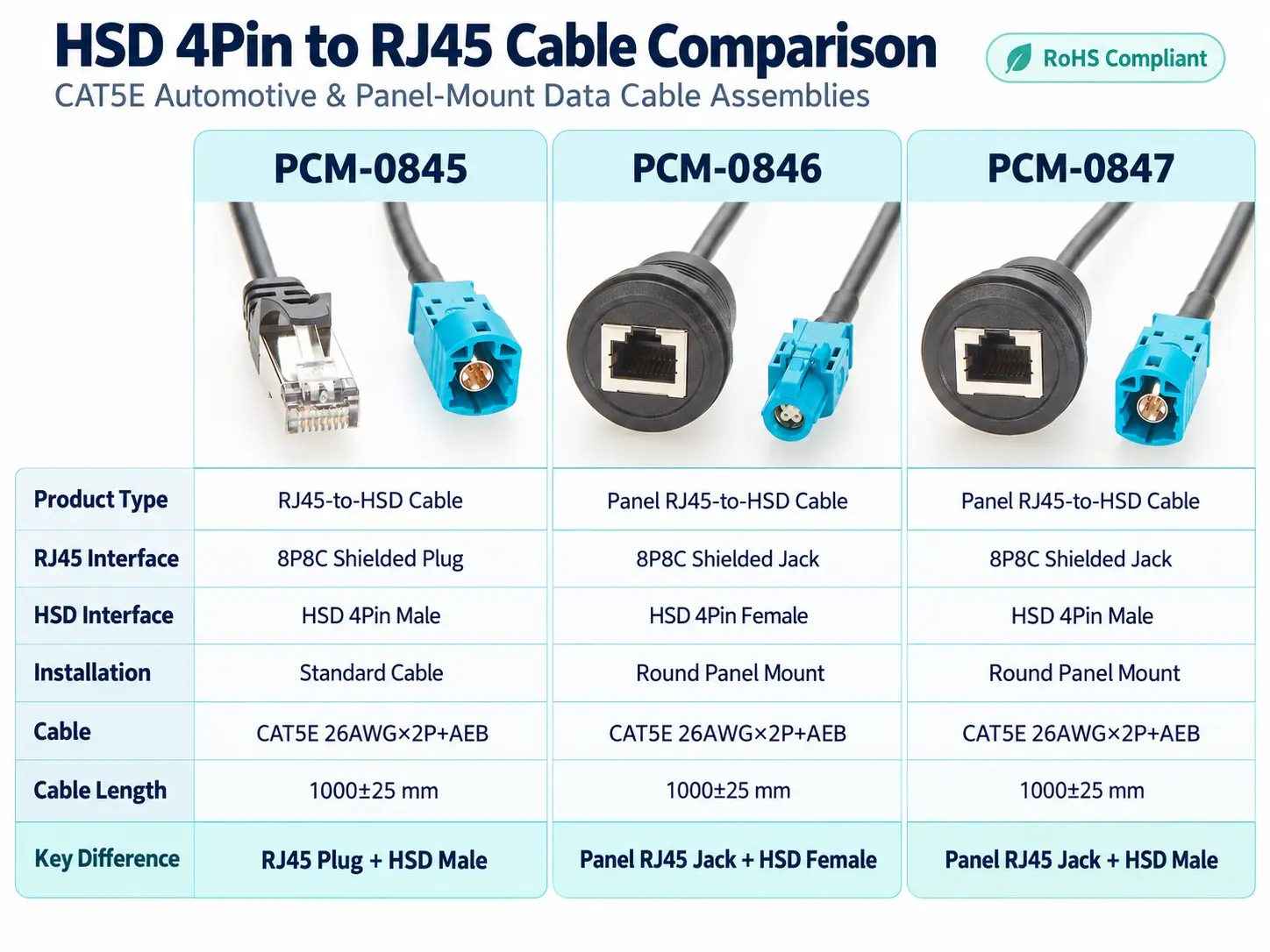

Similar products
Compatibility Statement
Compatibility Verification
PCM-0844 provides physical interface adaptation between HSD and RJ45. The HSD side requires verification of gender, Z-Code, keying and complete P/N, while the RJ45 side requires confirmation of pinout, differential pairs, PHY and protocol.
System compatibility requires matching mechanical, electrical, pin-mapping and protocol definitions.
Technical Compatibility Notice
HSD is a high-speed differential interconnect system, not a single communication protocol. PCM-0844 is a passive cable assembly without a PHY, gateway or protocol converter, so it cannot perform protocol conversion.
High-speed applications should verify pin mapping, impedance, PHY, protocol and link budget, including insertion loss, return loss, crosstalk and signal integrity.
How to Select an HSD to RJ45 Cable ?
Verify HSD Gender, Coding and Complete Interface Definition First
First determine whether the equipment uses an HSD plug or jack, male or female interface, and verify the coding, keying and complete P/N. PCM-0844 uses an HSD 4Pin Z-Code female interface, so the target equipment must provide the correct mating interface. Selection should never be based solely on the description "HSD 4Pin."
Verify Pin Mapping Rather Than Connector Appearance Alone
The four HSD contacts must be mapped to the corresponding RJ45 contacts according to the target equipment requirements. Different ECUs, development boards and test systems may use different pin definitions, so a pinout drawing should be provided for engineering verification before volume production.
Confirm the Protocol, PHY and Target Data Link
If the cable is intended for Ethernet, confirm that both connected devices use compatible Ethernet PHYs and corresponding electrical definitions. If the HSD side carries LVDS, USB, FPD-Link, GMSL or another signal, the presence of an RJ45 connector on the other end does not mean that it can communicate with ordinary Ethernet equipment.
Select Cable Length, Cable Construction and Shielding for the Installation Environment
The standard PCM-0844 length is 1 m, but actual vehicle, test-bench and control-equipment installation distances may vary. When cable length is increased, insertion loss, return loss, EMC and overall signal integrity should be re-evaluated. In high-interference environments, shield continuity, grounding and connector termination should also receive particular attention.
Customization Capabilities
↕ Overall Cable Length Customization
Cable length can be customized for ECU location, test-bench layout and vehicle routing, with signal integrity revalidated for high-speed links.
□ Pin Mapping Customization
HSD-to-RJ45 pin mapping can be customized to customer pinouts for ECUs, development boards and dedicated test equipment.
◉ HSD Interface Customization
Different HSD gender, coding, housing and cable-exit options are available after confirming the complete P/N and mating interface.
⚙ RJ45-End Customization
The RJ45 end supports customized shielding, metal shells, boots, molding and cable-exit protection for different installation environments.
⌘ Cable and Jacket Customization
Cable construction and jacket can be customized for impedance, gauge, OD, flexibility, shielding and temperature, with high-speed performance verified.
◇ Labeling, Packaging and OEM Customization
P/N labels, logos, cable markers, serial numbers and OEM packaging are customizable for clear identification and volume material management.
Product FAQ
Is PCM-0844 an HSD-to-Ethernet Protocol Converter ?
No. PCM-0844 is a passive cable assembly that primarily provides physical interface adaptation and pin mapping between HSD and RJ45. It does not contain a PHY, gateway or protocol-conversion IC. Normal communication can only be established when the electrical interfaces, pin mapping and protocols of both devices are compatible.
Can It Be Used with Any HSD 4Pin Interface ?
No. Gender, coding, keying, housing, complete P/N and pin assignment must all be verified. PCM-0844 uses a Z-Code female interface, so HSD connectors with other codings may not mate mechanically even if they also have four contacts.
Can the RJ45 End Be Connected Directly to a Standard Network Switch ?
Mechanically, it can mate with equipment using a compatible RJ45 8P8C interface. However, actual communication depends on the signal generated by the HSD-side device, PHY, pin mapping and requirements of the target network equipment. System compatibility cannot be determined from the RJ45 connector shape alone.
Why Is Shielded CAT5E Cable Used ?
Shielded twisted-pair cable provides a stable physical transmission path for differential data and helps reduce the effects of EMI/RFI and crosstalk. Proper shielding design is particularly important in environments where ECUs, display modules, power systems and multiple high-speed links coexist.
Can the 1 m Cable Be Customized to 2 m, 3 m or 5 m ?
Yes, the cable length can be customized. However, manufacturability and guaranteed high-speed system performance are different considerations. Increasing cable length affects insertion loss, return loss and the overall link budget, so longer versions should be validated according to the target data rate and equipment-link requirements.
Can the Cable Be Customized According to Our ECU Pinout ?
Yes. Customers can provide the ECU connector P/N, HSD pinout, RJ45 pin assignment and target application requirements, and Premier Cable can manufacture the corresponding cable assembly according to the approved engineering definition. Drawing approval, sample validation and electrical testing are recommended before volume production.
