What Are Superseal Connectors?
Superseal connectors are a type of sealed waterproof electrical connector system originally introduced by TE Connectivity.
They are specifically designed to provide reliable electrical connections in harsh environments, where exposure to water, dust, vibration, and temperature changes is common.
Today, Superseal connectors have become a widely recognized standard in automotive and industrial applications, and many manufacturers offer compatible or equivalent solutions based on this design.
Main Superseal Connector Types
Superseal connectors are mainly divided into two categories:
1. SUPERSEAL 1.0 Connectors (Compact Type)
The SUPERSEAL 1.0 series features a smaller and more compact design.
Key characteristics:
- Smaller size
- Lower current capacity
- Suitable for space-limited applications
⚠️ In most real-world projects, this series is less commonly used compared to the 1.5 series.
2. AMP SUPERSEAL 1.5 Series Connectors (Mainstream Solution)
The AMP SUPERSEAL 1.5 series connector is the most widely used Superseal connector type in automotive and industrial applications.

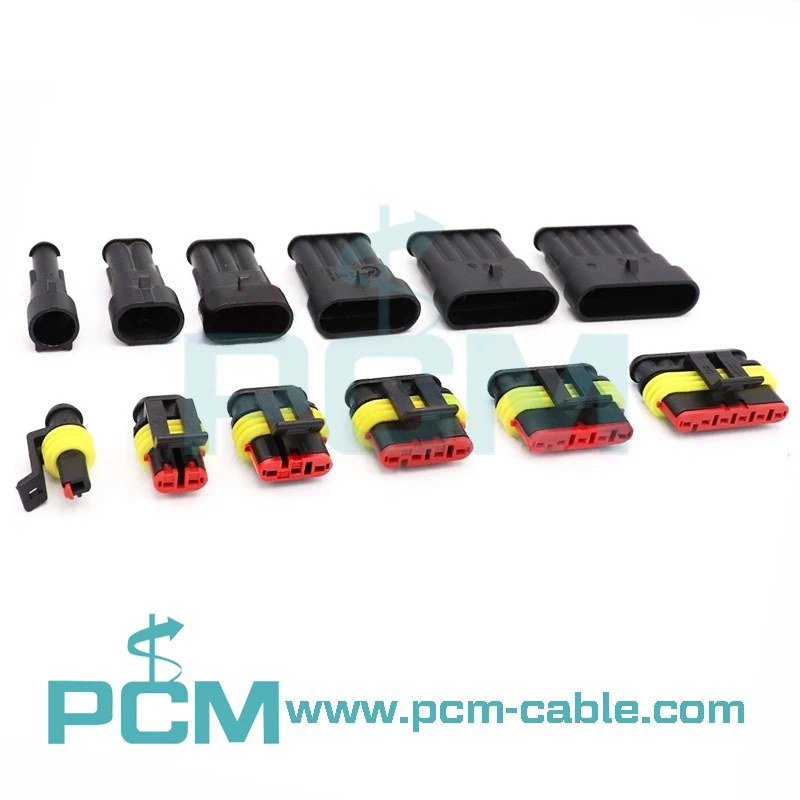

AMP SUPERSEAL 1.5 Series Connector Types (By Pin Count)
This series is mainly classified by the number of positions (pins):
1 Pin Superseal Connector
Used for simple circuit applications
Typical part numbers:
- 282079-2
- 282103-1
2 Pin Superseal Connector
Sensors, LED lighting, and power connections
Typical part numbers:
- 282080-1
- 282104-1
3 Pin Superseal Connector
Typical part numbers:
- 282087-1
- 282105-1
4 Pin Superseal Connector
Common in automotive wiring harness
Typical part numbers:
- 282088-1
- 282106-1
5 Pin Superseal Connector
Typical part numbers:
- 282089-1
- 282107-1
6 Pin Superseal Connector
Multi-signal systems
Typical part numbers:
- 282090-1
- 282108-1
Typical Applications of AMP SUPERSEAL 1.5 Connectors
This connector system is widely used in:
Automotive Industry
- Passenger cars
- Trucks
- Buses
Heavy Equipment
- Agricultural machinery
- Construction equipment
- Off-road vehicles
Industrial Systems
- Control units
- Automation equipment
Sensor Applications
- ECU (Electronic Control Unit) systems
- Various automotive and industrial sensors
Factory Supply: Custom Superseal Connector Cable Assemblies
At Premier Cable, we specialize in manufacturing AMP SUPERSEAL 1.5 connector cable assemblies and custom wiring harness solutions.
We support:
- Standard part numbers such as: 282080-1, 282104-1, 282088-1, 282106-1, etc.
- Custom cable length (e.g., 2m, 5m or more)
- Wire gauge options (16AWG, 20AWG, etc.)
Why choose us?
- Factory direct supply
- Custom OEM / ODM solutions
- Fast sample turnaround
- Stable quality for automotive and industrial use
👉 Whether you need extension cables, Y splitters, Y splitter with cables, we can deliver reliable and cost-effective solutions.
Contact us today to get samples or a quotation.
