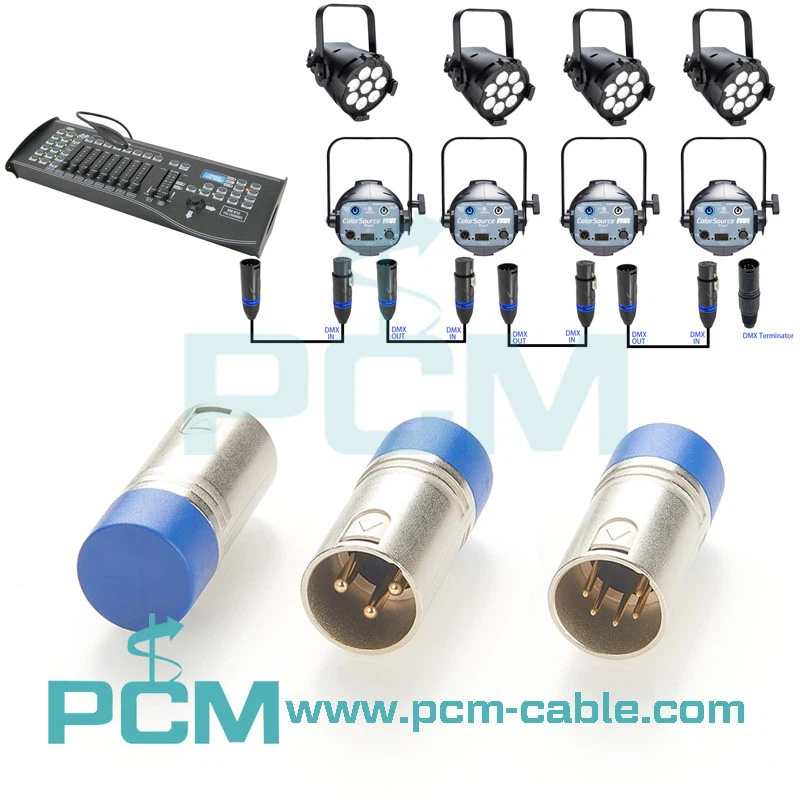

When choosing a DMX termination resistor, you need to consider the following key factors:
- Resistance value: The standard DMX termination resistor value is usually 120 ohms, which is the terminal resistor value recommended by the DMX512 protocol to ensure signal stability. If your system has special requirements, you can also choose a resistor of 110 ohms or other specific resistance values.
- Adapter interface: Choose the appropriate terminator according to the type of DMX connector used in the system. Common DMX interfaces include 3-pin XLR, 5-pin XLR or RJ45, etc. Make sure that the terminal resistor matches the system interface.
- Usage scenario: If your DMX system has a long wiring or many connected devices, the role of the terminal resistor is particularly important. For systems with short distances or few devices, the demand for terminal resistors is relatively low, but it is still recommended to prevent potential signal reflection problems.
- Quality and durability: Choose high-quality DMX end terminators to ensure their stability and reliability in long-term use.
In short, choosing a suitable DMX termination resistor can effectively improve the signal transmission quality of the system and ensure the normal operation of the equipment.
