Using 7/8 and M12 Connectors in NMEA 2000 Marine Networks

Reliable connectivity is the foundation of any modern marine electronics system. Whether you're outfitting a new vessel or upgrading an existing NMEA 2000 backbone, the right connector choice directly impacts long-term performance. 7/8" connectors and M12 A-coded connectors are now widely adopted in marine applications thanks to their rugged design, waterproof performance, and plug-and-play convenience.

These connectors offer a proven solution for interconnecting power feeds, drop cables, and sensor devices across demanding marine environments-ensuring stable communication between GPS, AIS, engine data monitors, depth sensors, and other onboard electronics.

1. Fully Sealed for Harsh Conditions

• IP67/IP68 waterproof rating
• UV-resistant and corrosion-proof materials
• Tested for salt spray and vibration

2. Secure and Vibration-Resistant Locking

• 7/8"-16UN threaded interface prevents loosening at sea
• M12 A-coded screw lock design ensures signal integrity under motion

3. Standardized Marine Pinout Compatibility

• 5-pin M12 A-coded connectors are commonly used for sensor data lines
• 4-pin or 5-pin 7/8" connectors are often used for trunk power cables

4. Fast and Error-Free Installation

• Pre-molded cable assemblies minimize installation time
• Color-coded wiring and T/Y splitter options for easy routing

• GPS and compass sensor drop lines
• Power feed connections to NMEA 2000 backbone
• Engine room sensor cables (temperature, RPM, battery monitoring)
• Waterproof panel-mounted M12 sockets, 7/8" sockets
• Marine-grade I/O distribution boxes

We offer a full range of marine-grade cable assemblies and connectors, tailored to NMEA 2000 systems:

• 7/8" Male & Female cable assemblies (2–6 pins)
• M12 A-coded connectors with PUR/PVC/TPE jackets
• T-splitters, Y-splitters, h-splitters, and custom-length drop cables
• Custom overmolded cables for GPS, transducers, or control systems
• OEM labeling, private packaging, and technical drawing support

We are an experienced marine cable and connector OEM from China, supporting boatbuilders, marine system integrators, and electronics manufacturers with flexible, rugged, and cost-effective cabling solutions for NMEA 2000 applications.

Request a sample or RFQ today - your next marine project deserves reliable connectivity.

Mini-Change Bulkhead Connector

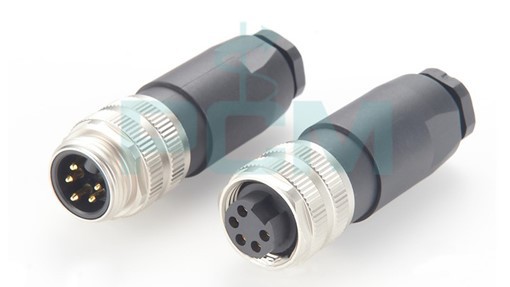

7/8" Mini Field Wireable Connectors

DeviceNet Mini-C Termination Resistor

NMEA2000 Starter Kit

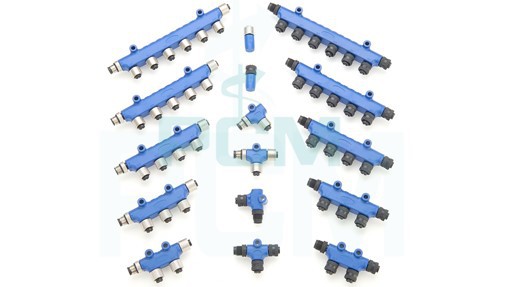

NMEA 2000 Connectors
