3-Pin 7/8"-16 UN Powerfast Cable
PCM Cable Co., Ltd. is one of the leading 3-pin 7/8"-16 un powerfast cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

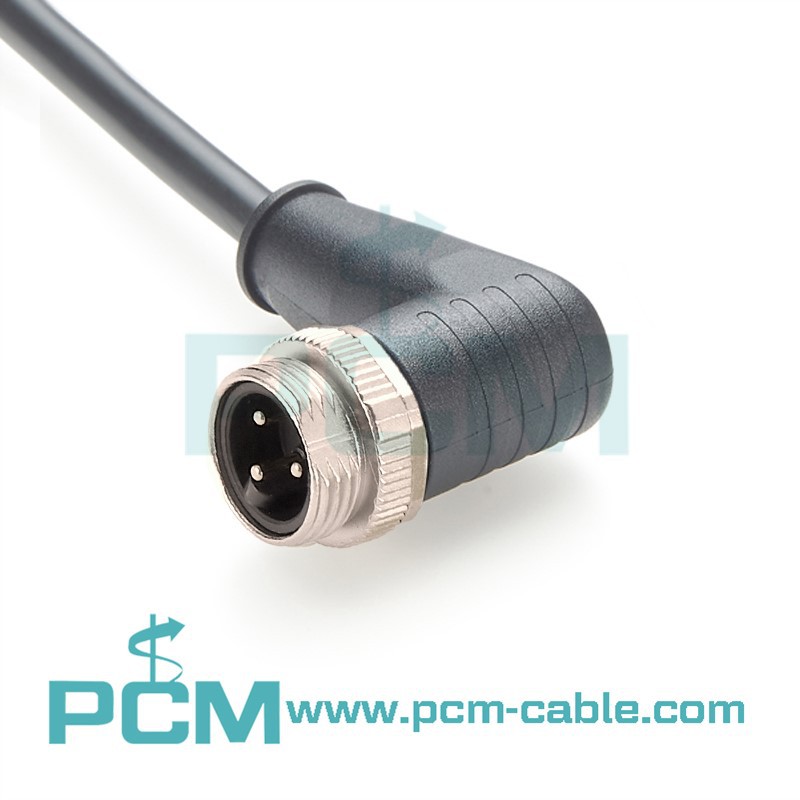

The 3-Pin 7/8"-16 UN Powerfast Cable (PCM-HD-0250) is a high-performance industrial cordset engineered for reliable power transmission in demanding environments. Designed to be fully compatible with WSM 34-M/S4000, this cable ensures seamless integration with existing equipment and systems.
Manufactured by Premier Cable, a trusted factory specializing in industrial cable assemblies, this product is built with robust materials and precision overmolding to deliver long-term durability, stable electrical performance, and secure connections.
Specifications

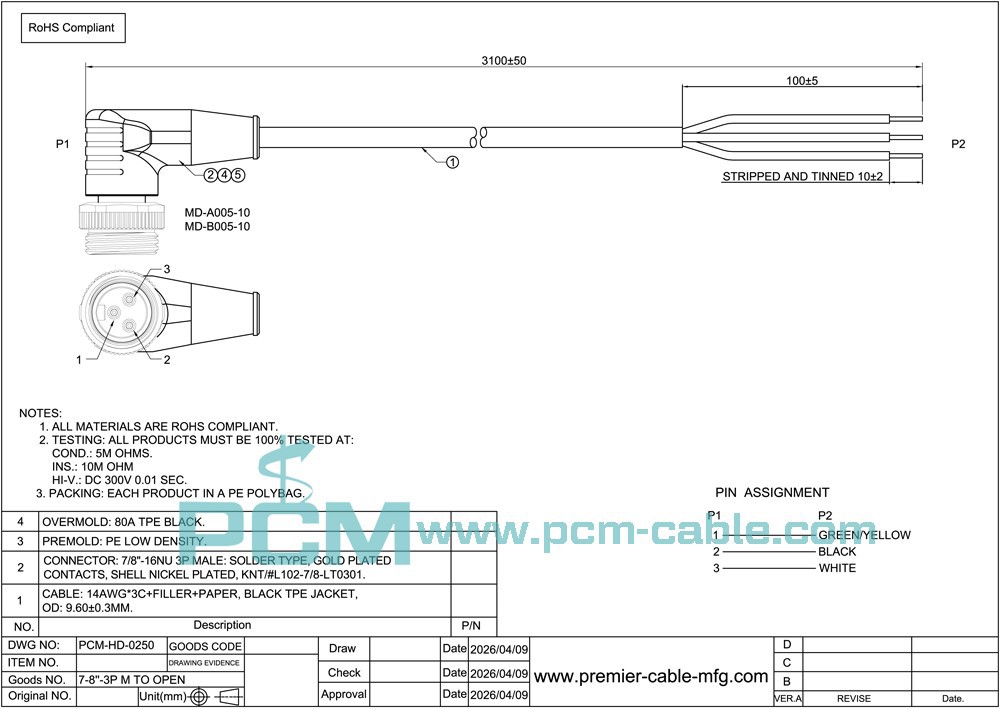

| Product Name | Single-ended cordset | pre-equipped with right-angled 3-pin 7/8"-16 UN powerfast male connector + bare end flying leads |
| DWG No. | PCM-HD-0250 |
| Connector | |
| Connector Type | 7/8" Male, Right Angle |
| Number of Pins | 3 |
| Contact Material | Brass, Gold-plated |
| Coupling Nut | Nickel-plated Brass |
| Housing | TPE |
| Cable | |
|
Conductors |
3 × 14 AWG |
| Jacket Material | TPE |
| Outer Diameter | 9.6 mm |
| Color Coding | Green/Yellow, Black, White |
Electrical |
|
| Rated Voltage | 600V |
| Current Rating | 21A |
Applications
This 7/8 power cordset is widely used in:
Industrial Automation
- Sensors and actuators
- PLC systems
- Industrial control cabinets
Heavy Equipment
- Conveyor systems
- Robotics and assembly lines
- Motor power connections
Outdoor & Harsh Environments
- Direct burial installations
- Oil & gas applications
- Food & beverage equipment (washdown environments)
Factory Wiring & Power Distribution
- Power tray cable routing
- Exposed industrial wiring systems
