7/8" Minifast 5 Pin Right Angle Connector Cable Assembly
PCM Cable Co., Ltd. is one of the leading 7/8" minifast 5 pin right angle connector cable assembly manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Flexible Connectivity for Tight Spaces

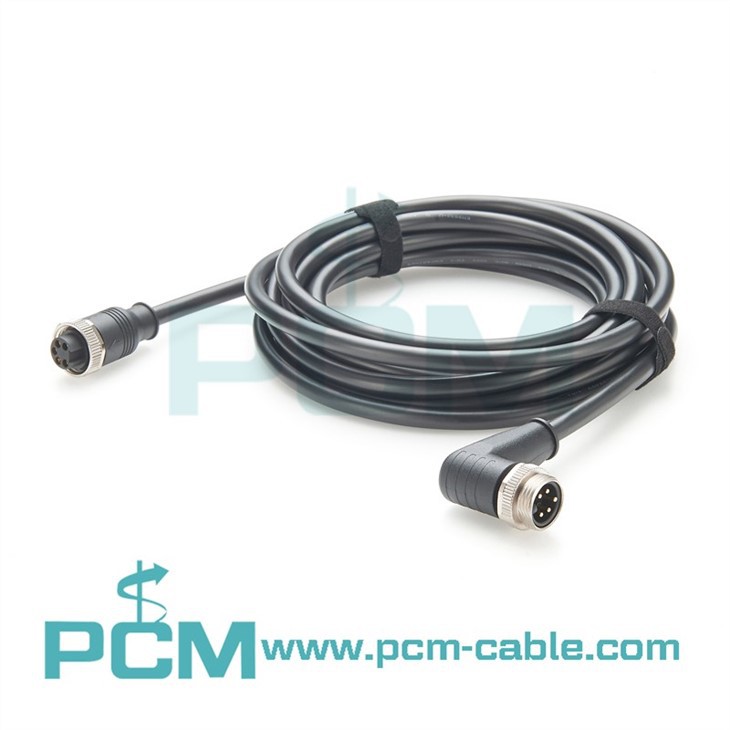

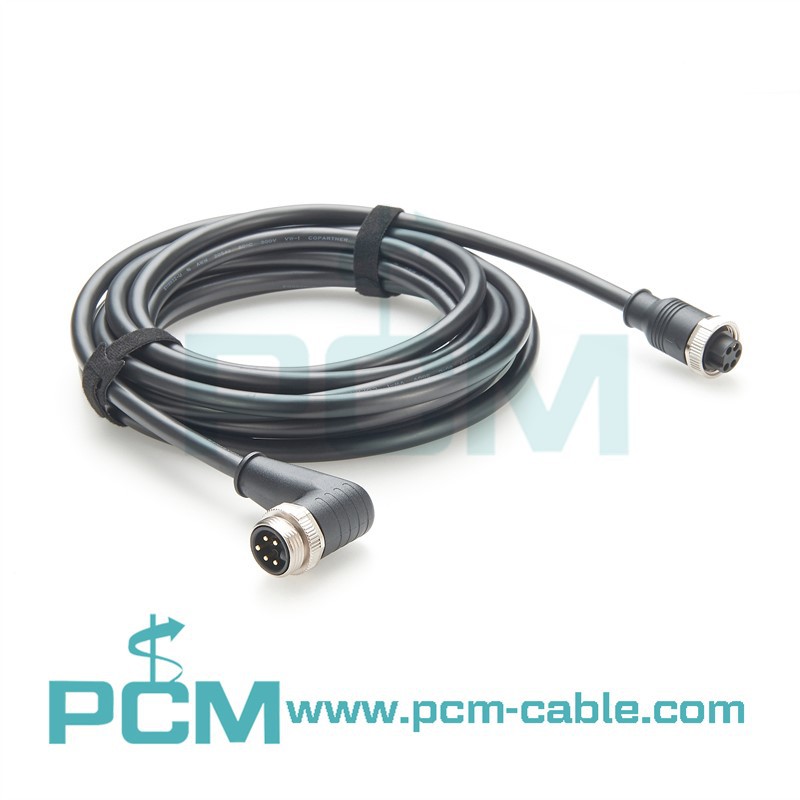

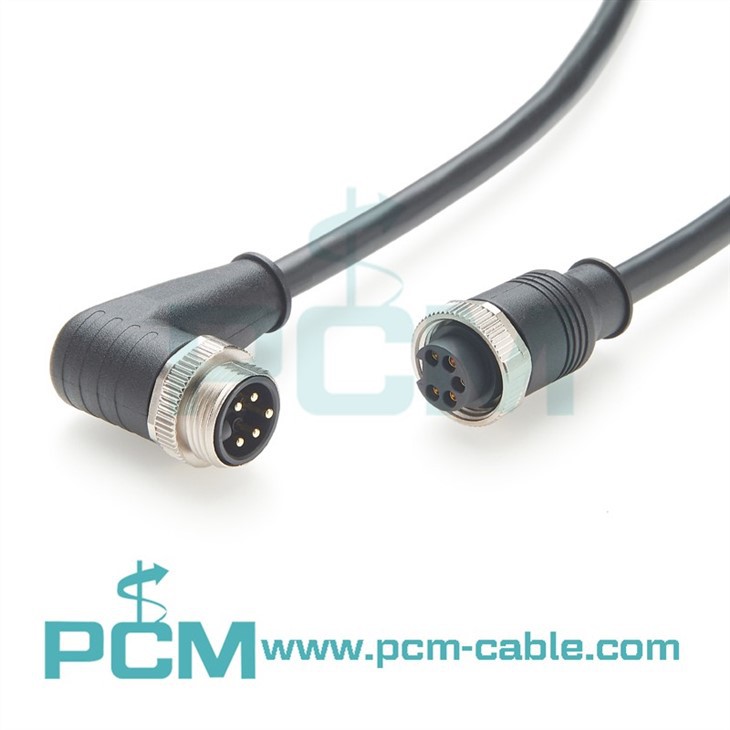

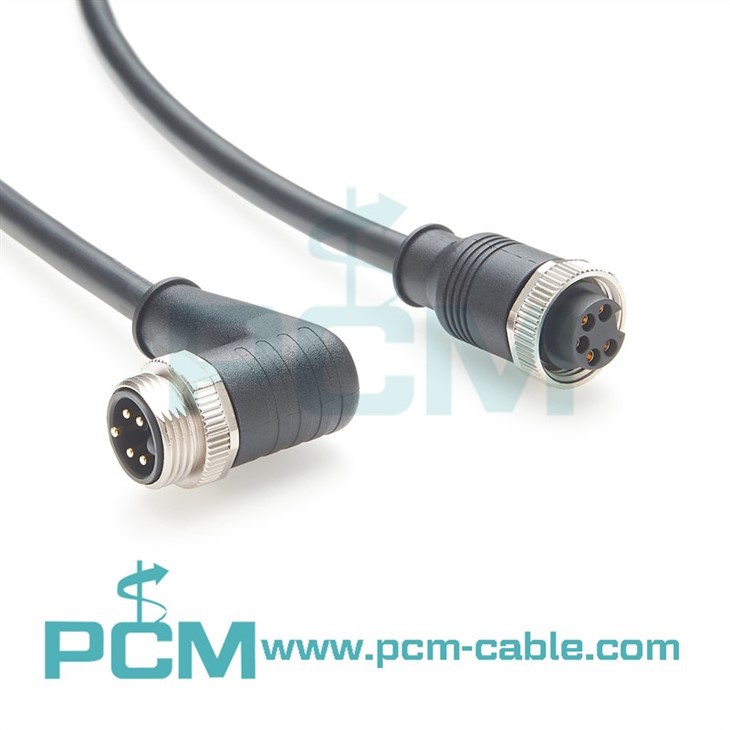

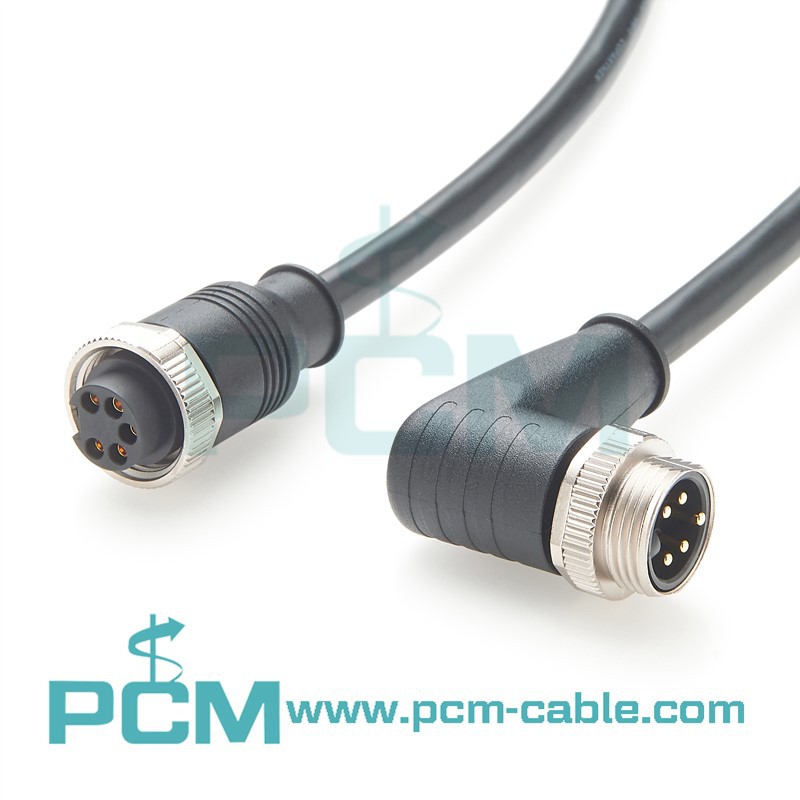

When space is limited but performance can't be compromised, our 7/8"-16UN 5-Pin Right-Angle Male to Female Cable Assembly delivers. Designed with a 90-degree overmolded male connector, this cable allows for reliable installations in compact control panels, tight robotic enclosures, and automated machine layouts.
The cable features a durable TPU jacket that's torsion-resistant and drag chain-compatible, making it ideal for continuous motion systems such as robotic arms, conveyors, and pick-and-place machines. Pre-molded connectors on both ends ensure IP67-rated sealing, while the internal wiring (1.5mm² * 5 conductors) handles industrial-level power and signal transmission with ease.
Specifications
| Product Name | Minifast 7/8" 5-Pin right-angle male to female sensor cable |
| DWG No. | PCM-S-0660 |
| Connector 1 | 7/8"-16UN minifast 5-pin, male, right angle |
| Connector 2 | 7/8"-16UN minifast 5-pin, female, straight |
| Number of contacts | 5 |
| Cable length | 1m, 2m, 3m, 5m, 10m, or customized |
| Conductor size | 5 x 1.5mm² |
| Cable diameter | 9.0mm |
| Jacket material | TPU, oil-resistant, abrasion-resistant, halogen-free |
| Bend performance | Drag chain & torsion-rated, suitable for robotics and motion systems |
| Current rating |
Up to 9A |
| Voltage rating | 300V |
| Waterproof rating | IP67 (when mated) |
| Overmolded ends | Yes, both male and female |
Applications
- Industrial automation systems – Reliable signal and power connections for factory machinery and control cabinets
- Robotics and robotic arms – Drag chain and torsion-rated for continuous motion and tight spaces
- Sensor and actuator wiring – Minifast 7/8" 5-pin sensor cable is perfect for distributed I/O in harsh environments
- Process control networks – Stable performance in FOUNDATION™ Fieldbus and PROFIBUS setups
- Marine electronics – DeviceNet 7/8" male to female cable is suitable for NMEA 2000 backbone connections in marine automation
- AS-Interface and CC-Link systems – Ensures protocol-compliant, shielded connectivity
- Machine tools and conveyors – High-flex cable jacket supports long-term durability in motion applications
About Premier Cable
Premier Cable is a trusted manufacturer of custom industrial cables and connectors. From signal and power assemblies to rugged robotic cabling, we deliver reliable connectivity solutions that meet the toughest field demands. With full in-house production and fast delivery from stock, we help engineers and integrators stay connected - anywhere, anytime.
