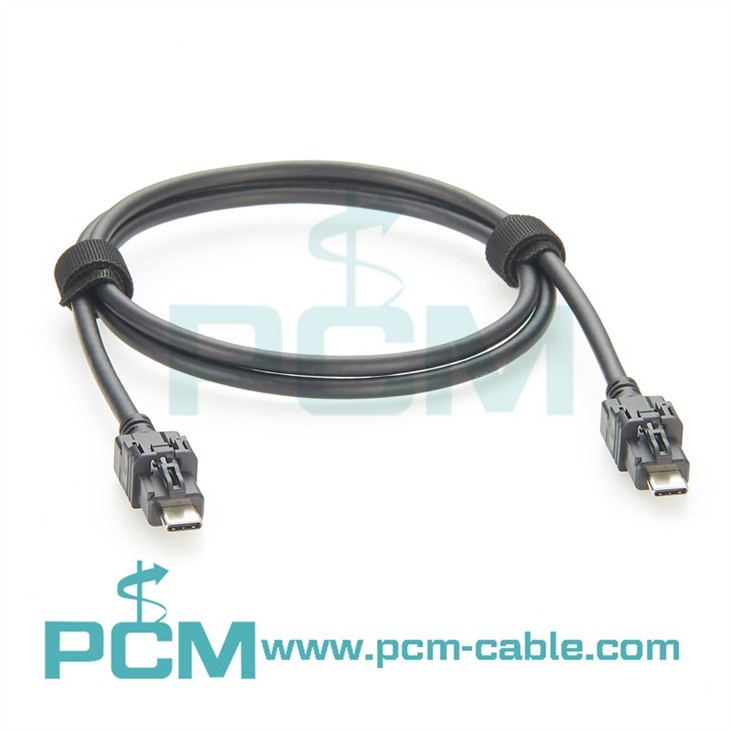

High-Speed 10Gbps USB-C Cable Automotive-Grade USBCC211AA016AS Compatible

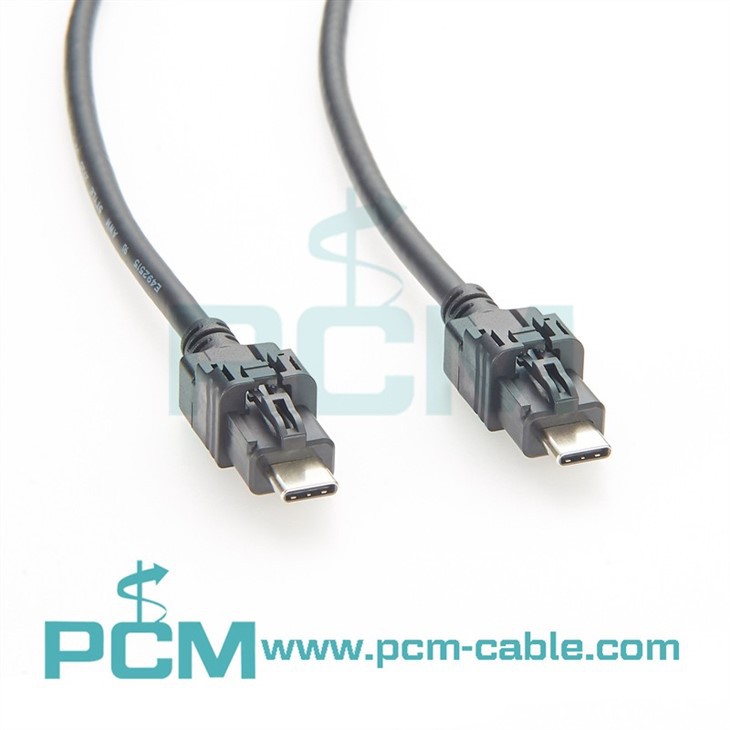

Automotive USB Cable Mini HSBridge Connector USBCC211AA016AS

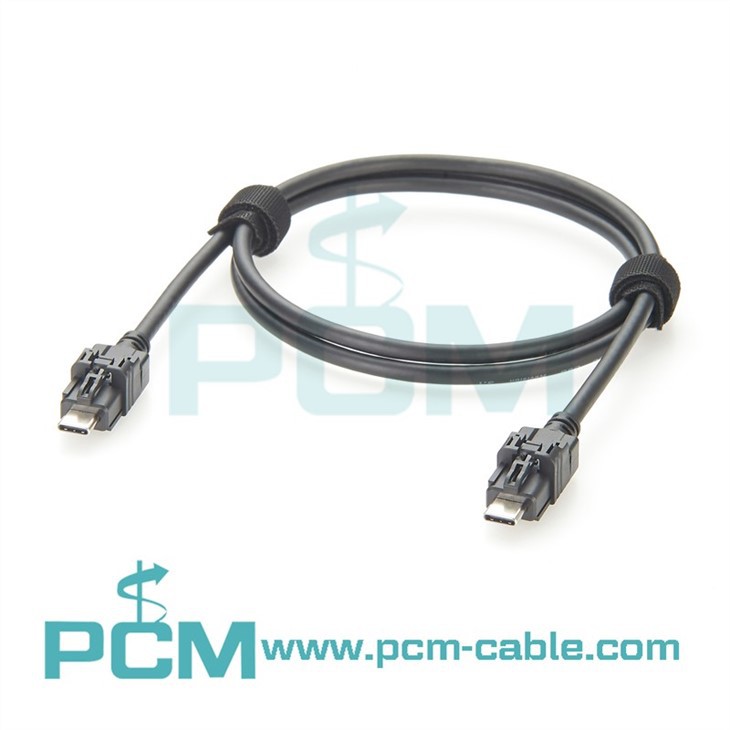

TE Tyco 2398010-1 Automotive USB Cable

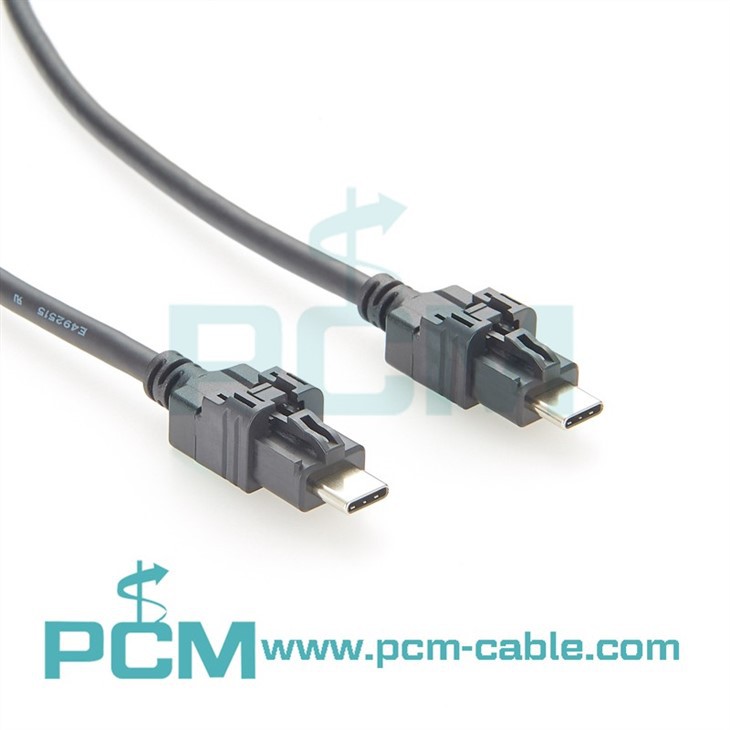

HSAutoLink USB 3.1 Type-C Interconnect Cable
Automotive USB C Cable With Mini HSBridge Connector
PCM Cable Co., Ltd. is one of the leading automotive usb c cable with mini hsbridge connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

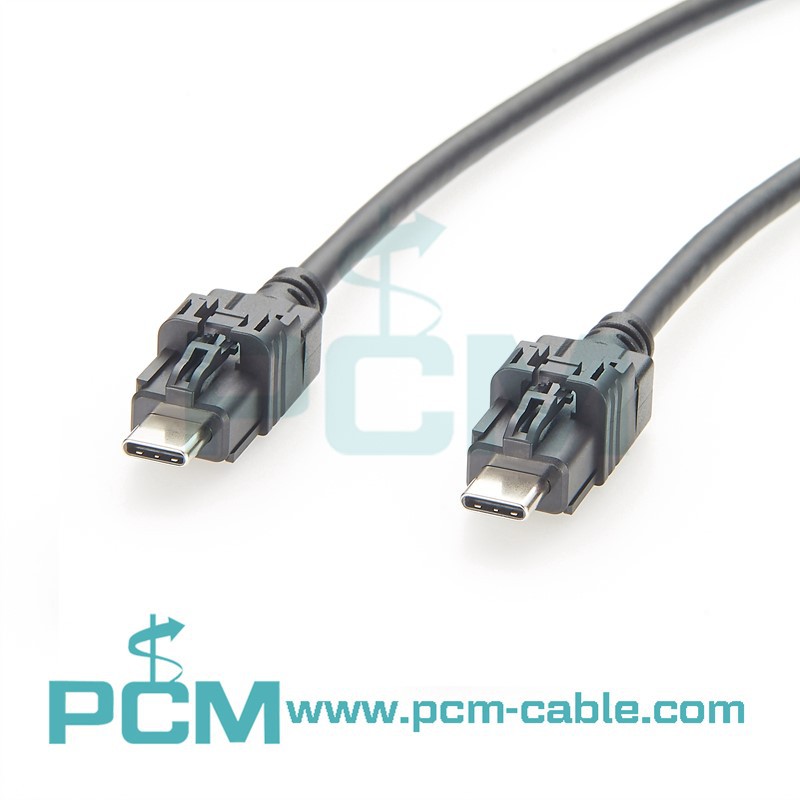

This Automotive USB C Cable with Mini HSBridge Connector is a high-speed USB 3.1 Gen2 cable assembly featuring two automotive-grade USB Type-C connectors. Designed for harsh environments such as automotive and industrial applications, both ends of the cable are compatible with Amphenol USBCC211AA016AS and TE 2398010-1, offering a secure fit, enhanced shielding, and reliable 10Gbps data transmission.
This cable supports USB 3.1 Gen2 standard, enabling high-speed data transfer, power delivery, and video signal transmission, making it ideal for infotainment systems, in-vehicle computing, industrial devices, and diagnostic interfaces.
Specifications
| Product name | HSAutoLink USB 3.1 Type-C interconnect cable |
| Compatible with |
Amphenol USBCC211AA016AS; TE 2398010-1 |
| DWG No. | PCM-ZC-0061 |
| Connector 1 | Automotive-grade USB Type-C connector |
| Connector 2 | Automotive-grade USB Type-C connector |
| Cable shielding | Braid + foil shielded |
| Cable jacket | PVC, flame-retardant, oil-resistant (customizable) |
| Cable length | 1m or customized |
| RoHS / REACH compliance | Yes |
| Insertion force | <50N |
| Axial pull-off force | >110N |
| Contact resistance | 20 MlN |
| Working voltage | ≤ 20V(DC) |
| Test voltage | 100V/AC, 50ms, 0.5mA |
| Insulation resistance | 100V/DC, 20MΩ, Min For 10ms |
Features
- Data Rate: Supports USB 3.1 Gen2 up to 10 Gbps
- Connectors: Dual automotive-grade USB Type-C (Amphenol USBCC211AA016AS / TE 2398010-1 compatible)
- Shielding: Braided and foil shielding for excellent EMI resistance
- Durability: Ruggedized connectors with locking features (varies by application)
- Cable Jacket: Automotive-grade TPE or PVC, flame retardant, flexible
- Custom lengths available
Applications
- In-vehicle infotainment and media interfaces
- Automotive diagnostics and programming
- High-speed device communication in industrial systems
- USB data bridge between embedded modules
- Harsh-environment USB-C extension cable
