USB 10G Interface Tester For Type-A And Type-C Quick USB Hub Diagnostics

PCM Cable Co., Ltd. is one of the leading usb 10g interface tester for type-a and type-c quick usb hub diagnostics manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

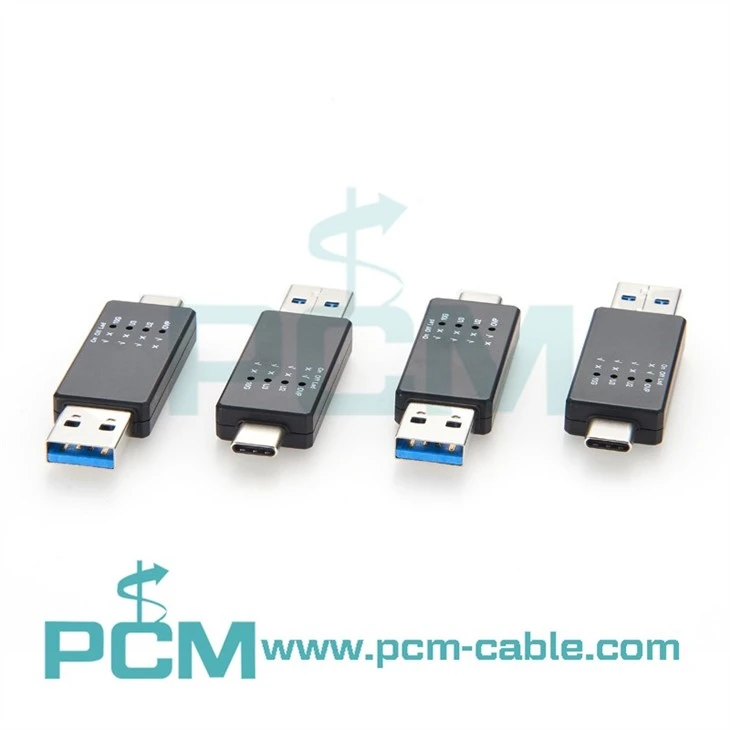

USB 10G Interface Tester for Type-A and Type-C is a high-performance diagnostic tool designed for quickly testing USB connections. This multi-functional tester is ideal for factory quality control, testing USB hubs, and verifying USB interfaces such as USB 3.0, USB 3.1, USB 3.2, and USB Type-C. With its user-friendly design and fast testing capabilities, this tool provides accurate and efficient testing for various USB interfaces, ensuring optimal functionality and performance of USB ports.





Product name	10Gbps USB3.2/USB3.1 interface tester HUB QC test type-c docking station USB port function quick test
Interface support	USB Type-A (supports USB 2.0, 3.0, 3.1, 3.2) USB Type-C (supports USB 2.0, 3.0, 3.1, 3.2)
Test mode	USB 3.2 Gen2 (10G) USB 3.0 (5G) USB 2.0 (480Mbps)
Voltage range	Input voltage: 4.75V - 5.5V (normal operating range) Overvoltage protection: >5.5V (indicator light on, warning of overvoltage)
LED indicator	10G light: USB 3.2 Gen2 10G signal is normal (light on means the signal is normal) U3 light: USB 3.0 5G signal is normal (light on means the signal is normal) U2 light: USB 2.0 signal is normal (light on means the signal is normal) OVP light: overvoltage protection indicator (light on means the voltage exceeds 5.5V)
Compatibility	Applicable to all devices that support USB Type-A and Type-C interfaces, such as computers, notebooks, USB hubs, mobile hard drives, USB flash drives, etc.









• Dual Interface Design: This 10G USB signal tester supports testing of both USB Type-A and USB Type-C interfaces, making it versatile for various testing environments.



• Quick Results: Plug-and-play functionality ensures instant and accurate results with no additional setup.



• Comprehensive Functionality: Quickly tests USB 3.2 Gen2 (10G), USB 3.1 (5G), and USB 2.0 for signal connectivity, voltage stability, and over-voltage/under-voltage protection.



• Real-time Diagnostics: Displays clear indicator lights to confirm the operational status of the USB connection, making troubleshooting easier and faster.



• Voltage Detection: Monitors the voltage of USB ports and provides alerts for over-voltage (above 5.5V) or under-voltage (below 4.75V) conditions.









• Factory Testing: Ideal for USB hub and device manufacturers, this USB hub diagnostic tool is perfect for quality control and final inspection before shipment.



• PCB Testing: Efficient for PCBA board testing, allowing for quick checks of USB 2.0 and 3.0 signal connections, and detecting open circuits, false soldering, or weak connections.



• Lab and Customer Inspections: USB port speed tester is essential for laboratories and customer verification to ensure USB port functionality meets expected standards.



• USB Performance Verification: Designed to test the full functionality of USB 3.0, 3.1, 3.2, and USB Type-C ports in various devices, ensuring reliable performance.







10G Light Indicator:



• When the 10G light is on, it means the USB 3.2 signal is operating correctly (USB 3.2 Gen2 10G mode).
• If the 10G light is off, the USB 3.2 signal is not functioning properly (NG).



U3 Light Indicator:



• When the U3 light is on, the USB 3.0 5G signal is stable.
• If the U3 light is off, the USB 3.0 5G signal is not functioning properly (NG).



U2 Light Indicator:



• When the U2 light is on, the USB 2.0 signal is connected and working correctly.
• If the U2 light is off, the USB 2.0 signal is not functioning properly (NG).



Over-voltage Protection (OVP):



• The OVP indicator light will turn on if the USB voltage exceeds 5.5V.
• If the light is off, the USB port voltage is within the normal range (4.75V to 5.5V).
