Servo Motor Cable Plug Connector M40 6 Pin 8 Pin

PCM Cable Co., Ltd. is one of the leading servo motor cable plug connector m40 6 pin 8 pin manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



About US



Premier Cable is a factory specializing in manufacturing servo motor cables. Whatever your application needs, Premier Cable has the right cable for you.



These cables are flexible and feature twisted pairs, braided shielding and drain wires for reliable quality. The internal shield connects to the mating connector as well as the auxiliary B-side Dsub connector (if applicable) to accommodate a variety of application needs. The shield on the flying lead side of some cables should be connected to the driver for complete shield protection. All cables have PVC outer sheath.

Premier Cable also offers PUR outer sheathing if you need a heavy-duty application. At the same time, in order to meet vacuum applications, TPE outer sheath is also available.



Premier Cable pays great attention to every detail and ensures that the quality of each cable is strictly inspected before being released. Whether you're using it in an industrial environment or in a robotics application, Premier Cable's cables will keep your equipment running smoothly.

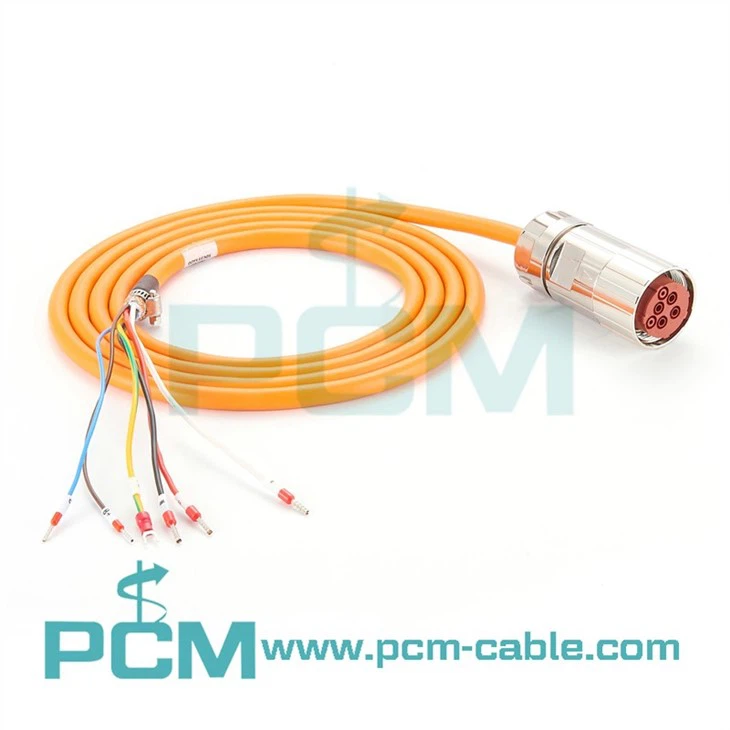

Product name	M40 Power Solution Connector
Model	6FX5002-5DG31-1AF0, 6FX5002-5DG31-1EF0, 6FX5002-5DG31-1FF0, 6FX5002-5DG31-1BA0
Connector	Open end , Pin : U,V,W,PE,BR+,BR-
Usage	For SIMOTICS S-1FT2/S-1FT7/S-1FK2/S-1FK7/M-1PH8 motors with full-thread connector
Material	Pure copper
Contact	Gold plating
Cable jacket	PVC / PUR
Wire	6 Core 4C*2.5mm2 + 2*0.75mm2,4C*13AWG + 2C*19AWG 80°600V
No. of cores x cross section mm2	4x2.5 + 2x1.5C C
Test voltage, rms Power conductors	4.0 kV
Test voltage, rms signal conductors	2.0 kV
Type with braking lead	Yes
Rated voltage V0/V according to EN 50395	600 V/1000 V
Type of connection cable engine side	Connector full thread
Connector	M40 Full Thread Connector x Open End Lead
Type of bolting	not relevant
