DB25 Female to DB9 Male RS232 Adapter
PCM Cable Co., Ltd. is one of the leading DB25 Female to DB9 Male RS232 Adapter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The newly developed Premier Cable PCM-KW-686 is a compact DB25 Female to DB9 Male D-Sub serial adapter designed to provide a physical interface transition between legacy equipment, cables or serial systems using a DB25 male connection and downstream environments requiring a DB9 male interface configuration.
For PLCs, industrial computers, modems, POS systems, serial servers, data-acquisition equipment and legacy peripherals that remain in active service, replacing an entire controller, communications device or installed cable infrastructure simply because DB25 and DB9 connector formats differ can add unnecessary retrofit cost.
PCM-KW-686 provides a compact D-Sub adapter architecture for legacy-equipment maintenance, interface migration, system integration and engineering troubleshooting.
Compatibility Notice
PCM-KW-686 is an interface adapter, not an automatic protocol converter. Always verify the equipment pin assignment, connector gender, communication standard and wiring configuration before installation. A DB25 connector may carry RS-232, another serial standard, a parallel interface or manufacturer-specific signals.
Core Advantage: Preserving Legacy Serial Infrastructure
The primary value of PCM-KW-686 is not simply converting "25 pins into 9 pins." It provides a mechanical and electrical transition between two D-Sub connector formats in systems where the signal mapping has already been verified. For PLCs, modems, industrial PCs, POS terminals or test equipment that remain operational, this approach can prevent otherwise serviceable equipment from being retired solely because connector generations differ.
Stable Connection: D-Sub Mating and Retention Must Be Verified
DB25 and DB9 are established D-Sub connector formats, but reliable operation depends on more than contact mating. The equipment should verify connector gender, screw or retention arrangements, surrounding clearance and the mechanical load applied after installation. In vibration environments, a heavy external cable should not continuously transfer bending moment through PCM-KW-686 into the equipment's D-Sub port; additional cable support may be required.
Installation Requirements: Verify Gender, DTE/DCE and Pinout First
At least four items should be verified before installation.
First, confirm interface gender so that the equipment mates correctly with the DB25 Female and DB9 Male ends.
Second, verify the internal DB25-to-DB9 pin mapping of PCM-KW-686.
Third, identify the DTE/DCE roles because RS-232 equipment roles affect whether a straight-through or crossover arrangement is required.
Fourth, determine the handshake requirements. Some systems use only TxD, RxD and Ground, while others require RTS, CTS, DSR, DTR, DCD and RI.
Products Specification
| Product Name | DB25 Female to DB9 Male D-Sub Adapter |
| Premier Cable P/N | PCM-KW-686 |
| Connector P1 | DB25 Female, Black Insulator, Nickel-Plated Shell |
| Connector P2 | DB9 Male, Black Insulator, Nickel-Plated Shell |
| Structure | Integrated Straight Adapter |
| Overall Length | 49.5 ± 1 mm |
| DB25 Side Height | 55.5 mm |
| DB9 Side Height | 33.9 mm |

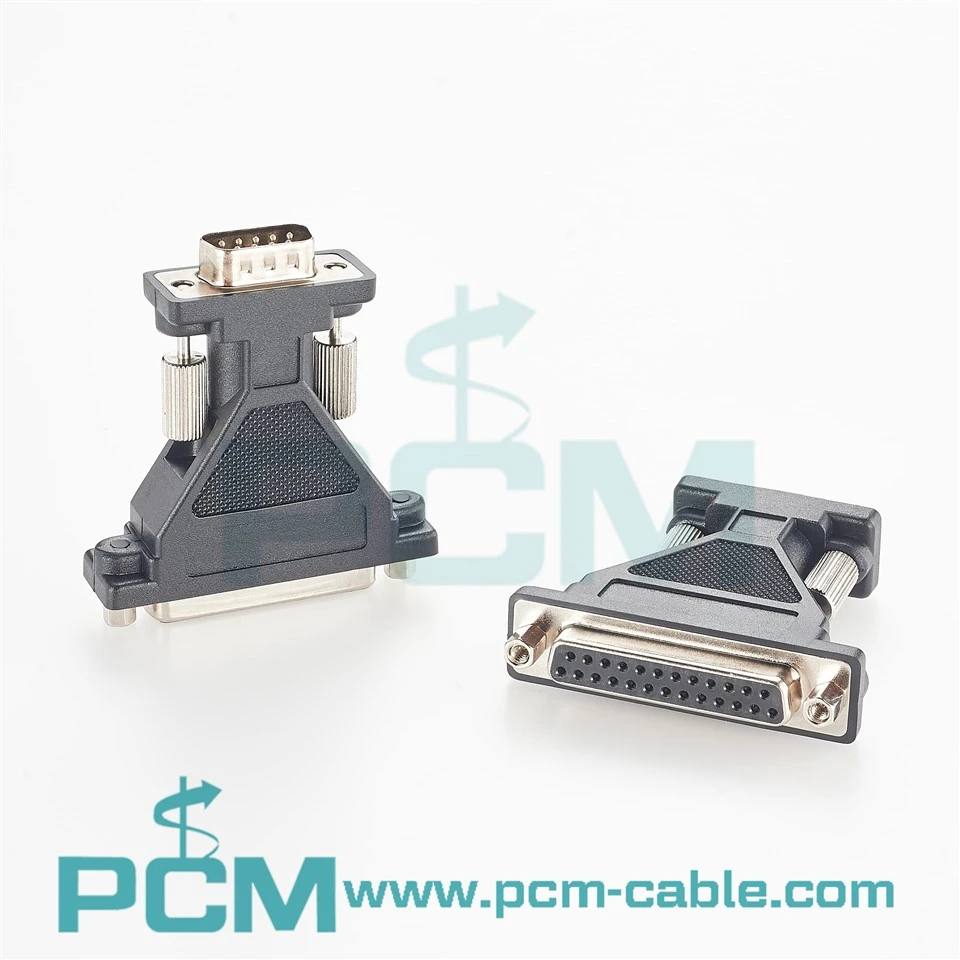

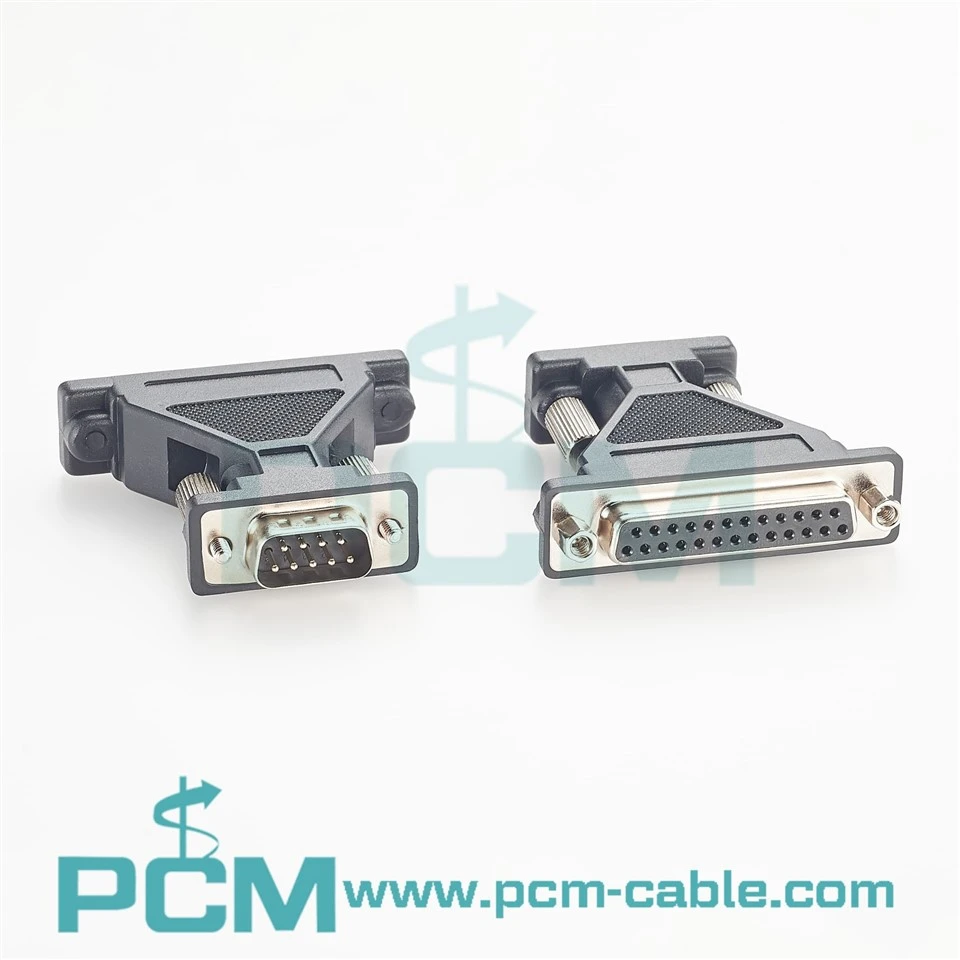

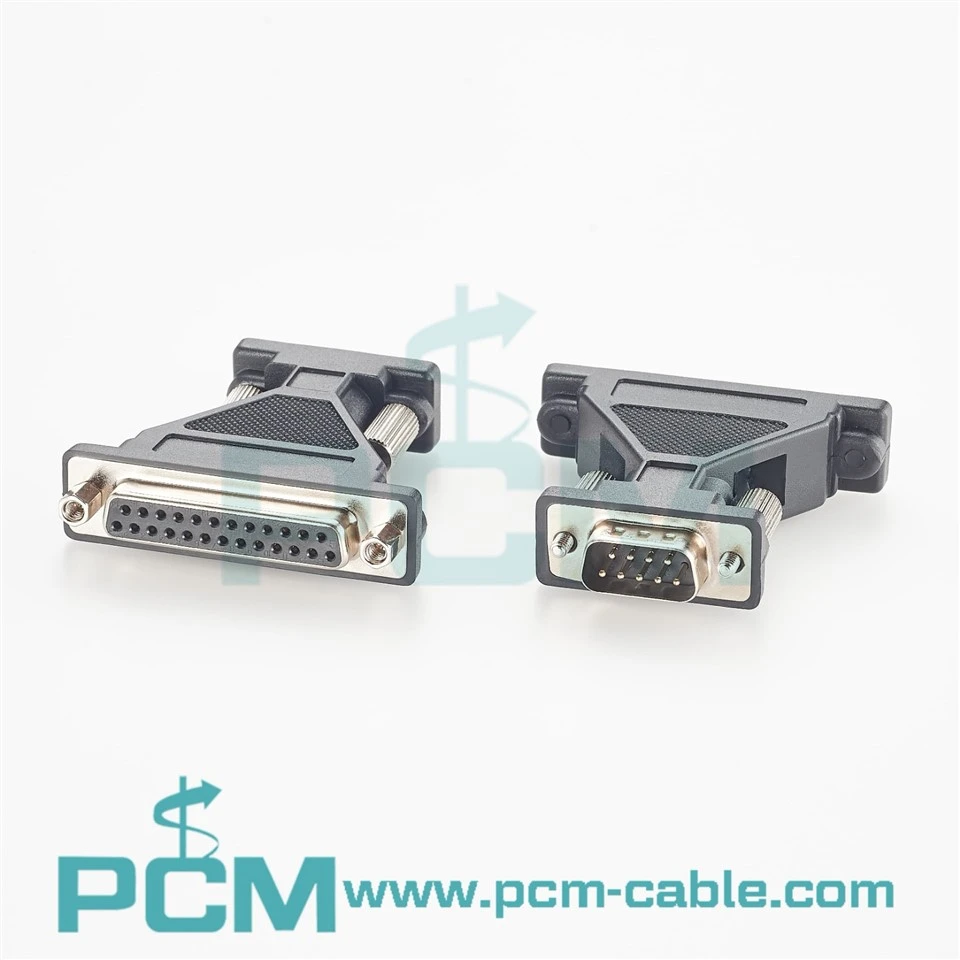

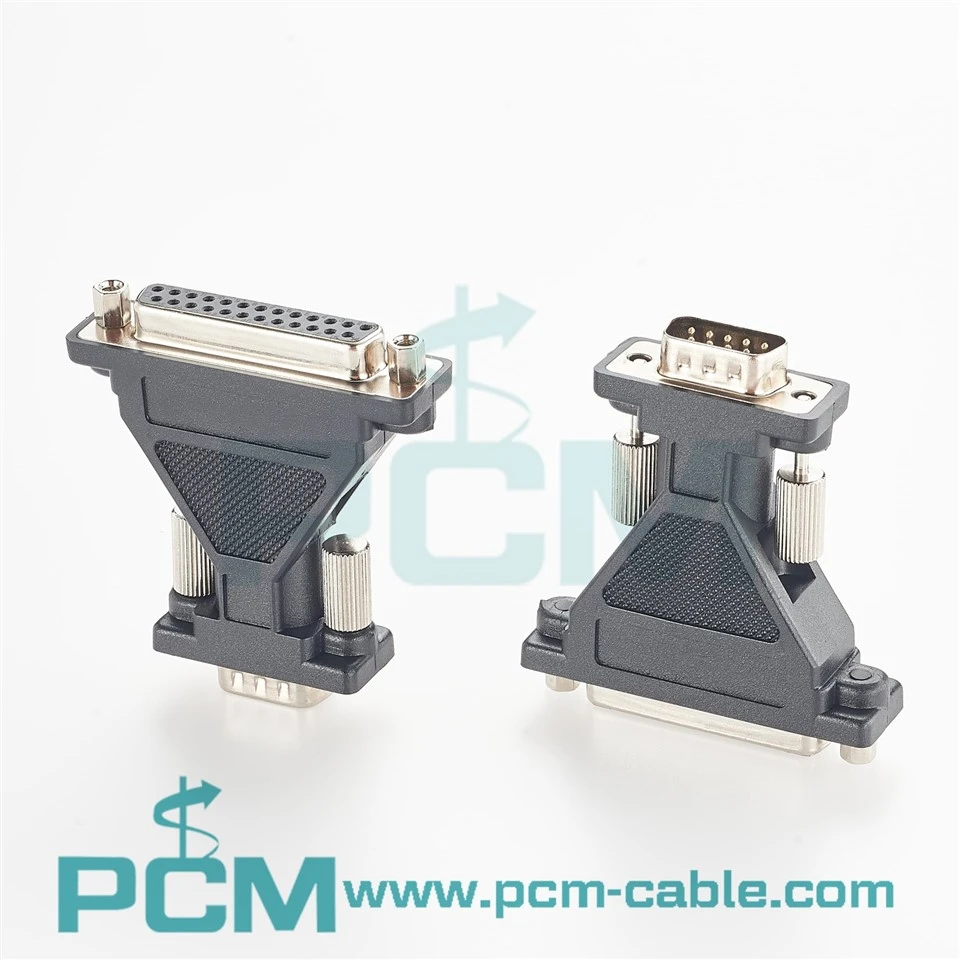

Products Display
Product Features
DB25 Female to DB9 Male Interface Combination
PCM-KW-686 combines a 25-pin D-Sub female connector with a 9-pin D-Sub male connector in one compact adapter body. Compared with using a longer DB25-to-DB9 conversion cable, this configuration is particularly useful when ports are located close together, cabinet space is limited or only a connector-format transition is required.
Designed for Legacy Serial Interface Migration
Many legacy industrial controllers, modems, serial servers and peripheral devices still use DB25 connections, while newer service terminals, serial accessories and industrial computers more commonly use DB9 interfaces. When the pin mapping is compatible, PCM-KW-686 provides a transition between these DB25 and DB9 environments and can help extend the useful life of legacy serial equipment.
Compact Cable-Free Adapter Architecture
PCM-KW-686 uses a direct D-Sub adapter architecture without an additional long conversion cable. In control cabinets, laboratory service benches, equipment rear panels and densely populated serial-port areas, this helps reduce unnecessary cable loops, cable accumulation and additional fixing requirements.
Passive Interface Adaptation
PCM-KW-686 is positioned as a passive D-Sub interface adapter and should not be interpreted as a USB-to-RS232 converter, protocol converter or signal-level converter. When its internal pin mapping is configured for the target RS-232 equipment, it provides physical signal remapping rather than changing baud rate, protocol, voltage levels or data format.
Core Application Scenarios
PLC Programming and Industrial Equipment Maintenance
Suitable for servicing PLCs, industrial controllers, CNC peripherals and legacy automation equipment that still use DB25 serial interfaces. When service computers, serial accessories or test equipment use DB9 connectivity, PCM-KW-686 can provide the required interface transition after the device pinout has been verified.
Industrial Computers and Serial Servers
The adapter can support DB25/DB9 interface adaptation in industrial PCs, serial expansion systems, terminal servers and industrial communications cabinets, particularly in upgrade projects where legacy and newer equipment must coexist and the entire serial infrastructure cannot be replaced at once.
Data Acquisition and Laboratory Equipment
Suitable for interface adaptation on DAQ systems, measurement instruments, test controllers and legacy laboratory serial equipment. When the existing protocol and pinout remain unchanged and only the external D-Sub connector format must be adapted, a compact DB25 Female to DB9 Male adapter can reduce the need to manufacture an entirely new cable assembly.
Core Performance Advantages
Reduces Legacy-System Interface Upgrade Cost
In a functioning legacy serial system, replacing a controller, peripheral device or complete cable assembly solely because DB25 and DB9 connector formats differ is not always necessary. When the pin mapping is compatible, PCM-KW-686 can retain existing equipment and reduce unnecessary hardware replacement and rewiring costs.
Reduces Multi-Stage Adapter Complexity
Chaining multiple gender changers, short cables and serial accessories increases rear-panel space requirements and introduces additional mechanical connections and troubleshooting points. PCM-KW-686 consolidates the DB25 Female and DB9 Male transition into one interface node, simplifying the connection path when the target wiring is compatible.
Supports Faster Field Troubleshooting
When DB25 and DB9 interfaces from different equipment generations are combined, failures may result from connector gender, pin mapping, DTE/DCE roles, handshake configuration or equipment settings. A clearly specified DB25-to-DB9 adapter helps engineers separate connector-format problems from protocol or device-configuration problems, improving troubleshooting efficiency.
Suitable for Standardized OEM Service Inventory
For OEMs and system integrators maintaining multiple generations of serial equipment, a standardized DB25 Female to DB9 Male adapter can reduce the need for improvised conversion cables. Clear pinout versions, part-number labeling and packaging control can also help prevent straight-through and null-modem variants from being mixed during service operations.
Frequently Asked Questions
Q1：Is PCM-KW-686 a Protocol Converter?
A1：No. PCM-KW-686 is a passive DB25 Female to DB9 Male D-Sub adapter and contains no USB-to-RS232 chipset, MCU, UART conversion, signal isolation or protocol-conversion circuitry. Its role is to provide physical D-Sub interface and signal-line adaptation after the internal pin mapping has been verified.
Q2：Is It Compatible with Every RS-232 Device?
A2：No universal compatibility can be guaranteed. The DB25/DB9 interface, connector gender, DTE/DCE role, TxD/RxD direction, hardware handshake and internal pinout must all be verified. Two devices using RS-232 do not automatically connect directly.
Q3：Can Different Screws or Housings Be Customized?
A3：Retention hardware, housing materials, colors and logos can be customized according to equipment-panel requirements, D-Sub jack-screw construction and available space. The equipment mechanical drawing or existing connector specification should be provided for verification.
Products Drawing
