DB25 Female to DB9 Female RS232 Adapter
PCM Cable Co., Ltd. is one of the leading DB25 Female to DB9 Female RS232 Adapter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The newly developed Premier Cable PCM-KW-687 is a compact DB25 Female to DB9 Female D-Sub serial adapter designed for legacy equipment, industrial test benches, automation commissioning and control-cabinet maintenance. Unlike a conventional same-pin-count gender changer, it addresses both connector-gender mismatch and the physical transition between 25-position and 9-position D-Sub interfaces. Its integrated design can reduce the need for additional adapters and serial cables, simplifying equipment connectivity.
The female-to-female configuration defines mechanical connectivity only and does not establish the internal signal mapping. In common RS-232 implementations, DB25 and DB9 pin positions are not numerically identical; for example, DB25 Pin 2 commonly corresponds to DB9 Pin 3. Before selection, verify the actual pin assignment, equipment signal definitions and communication requirements. Without confirmation, PCM-KW-687 should not be described as a universal RS232, null-modem or straight-through adapter.
Core Advantage: Dual-Female Architecture for Male-Ended Systems
The defining value of PCM-KW-687 is its DB25 Female + DB9 Female configuration.
When the target system consists of a DB25 male interface and a DB9 male interface, the DB9 male side of PCM-KW-686 does not provide the required mating gender, whereas PCM-KW-687 provides female mating interfaces on both sides.
PCM-KW-687 is therefore not simply a cosmetic variation of PCM-KW-686; it addresses a different equipment-gender combination.
Stable Connection: Mechanical Mating and Pin Mapping Are Both Required
Successful D-Sub mating confirms mechanical compatibility only.
A stable serial connection additionally requires correct contact positions, pin assignments, signal ground, TxD/RxD routing and handshake lines.
Stable connectivity with PCM-KW-687 should therefore be evaluated at two levels.
Mechanically, the DB25 male must mate correctly with the DB25 female, the DB9 male must mate correctly with the DB9 female, and the applicable screw or jack-post hardware must match.
Electrically, the internal pin mapping must match the requirements of the connected equipment.
Compatibility Notice
Connector gender alone does not determine electrical compatibility. Verify the pin assignment, RS-232 wiring requirements and equipment documentation before use. PCM-KW-687 should not be assumed to provide a null-modem crossover or protocol conversion unless its specified wiring is designed for that function.
Products Specification
| Product Name | DB25 Female to DB9 Female Adapter |
| Premier Cable P/N | PCM-KW-687 |
| Connector Configuration | DB25 Female → DB9 Female |
| Insulator | Black |
| Overall Length | 49.5 ± 1 mm |
| DB25 Width | 55.5 mm |
| DB9 Width | 33.9 mm |

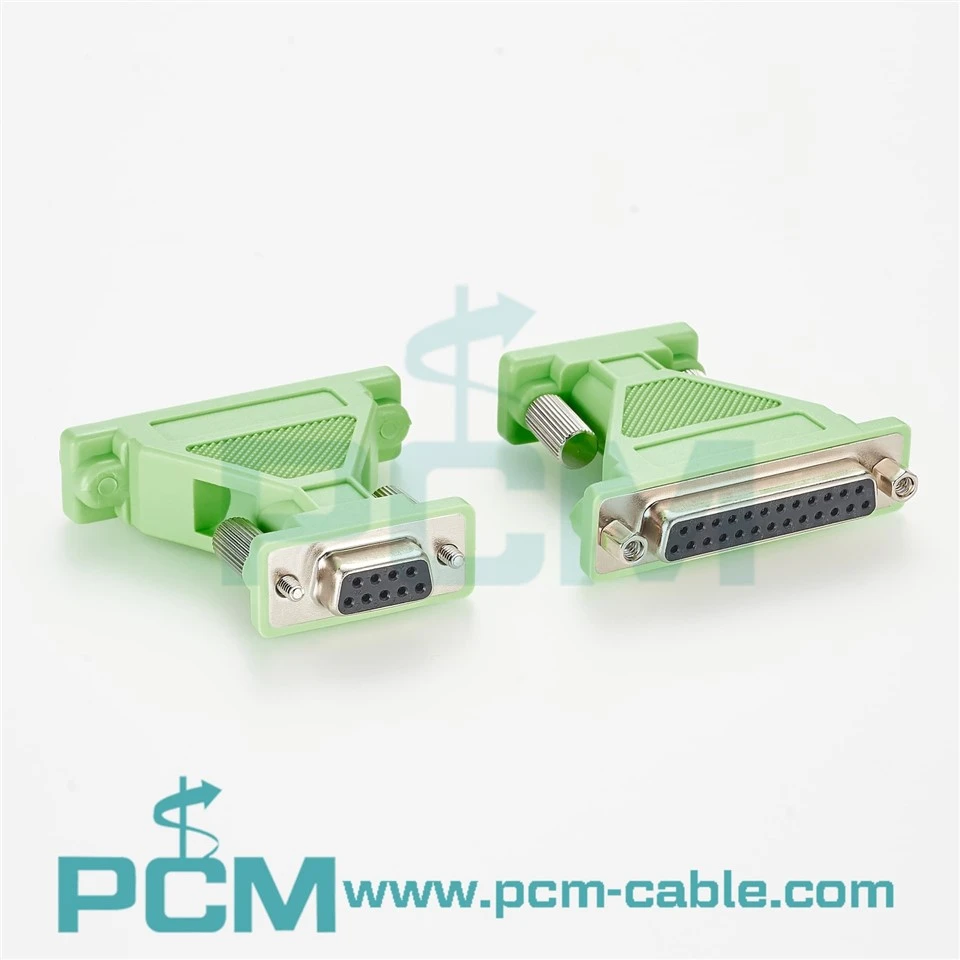

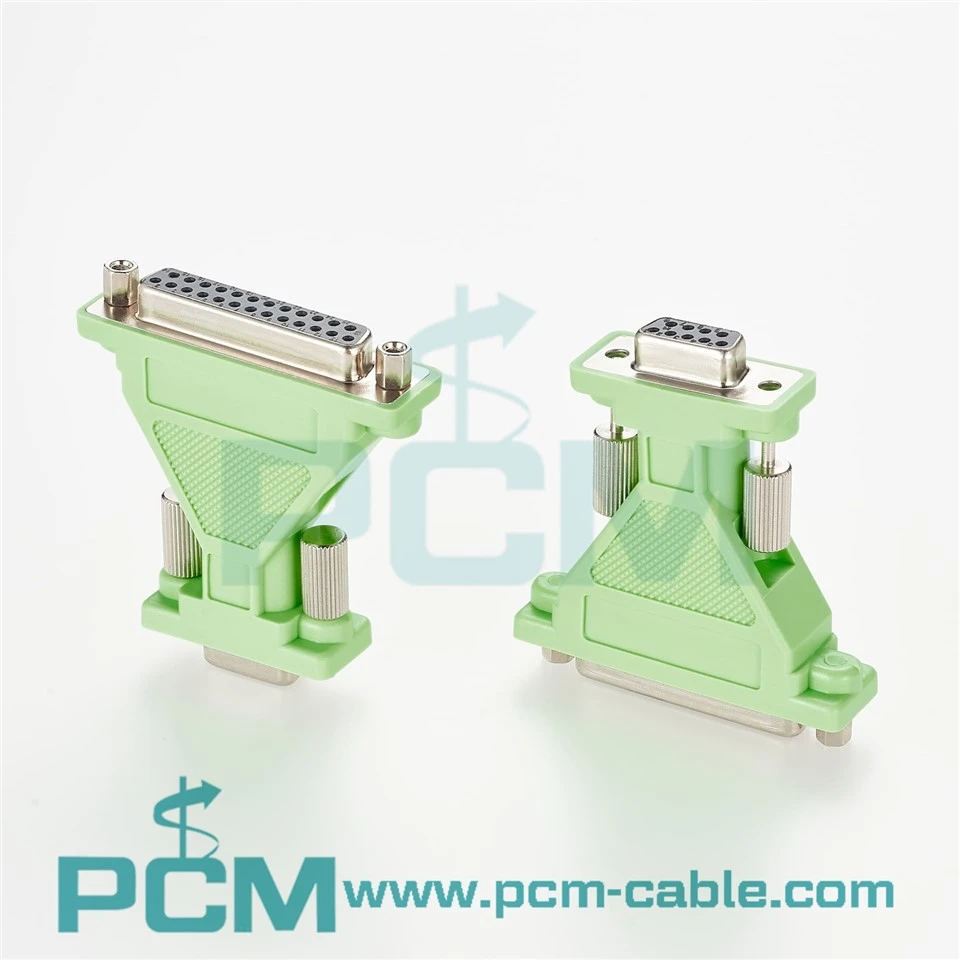

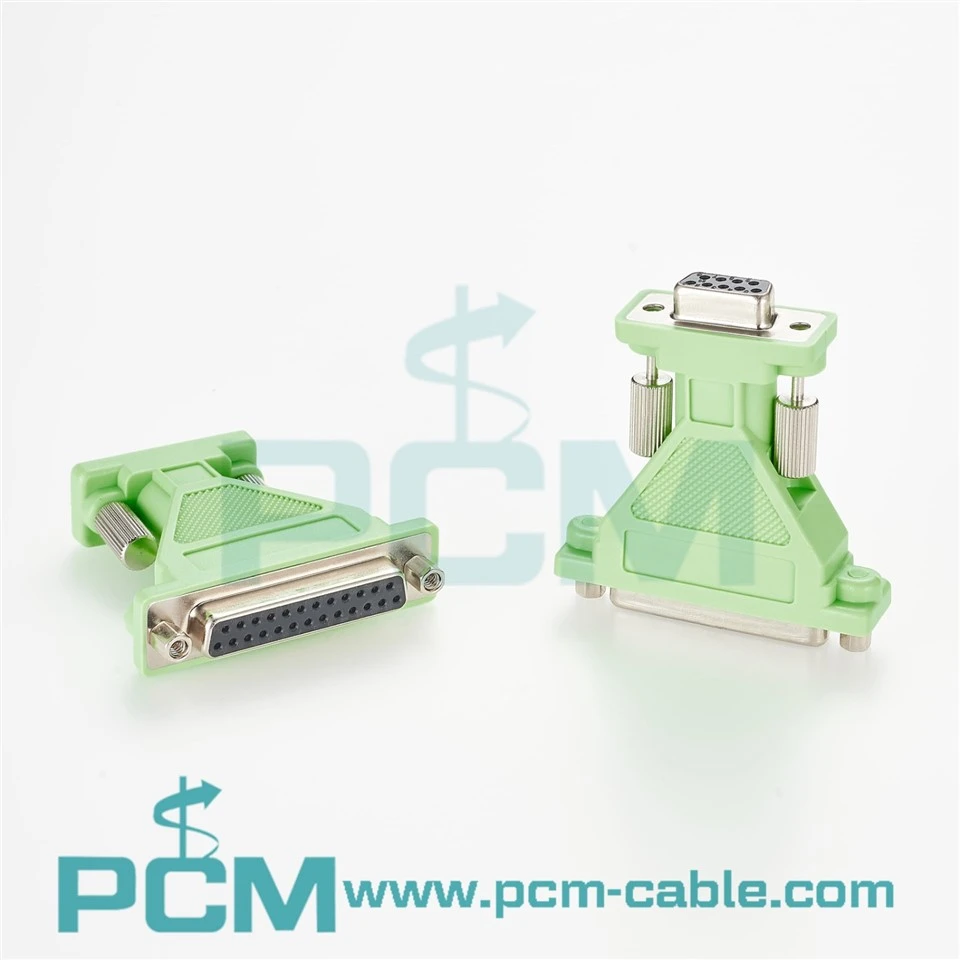

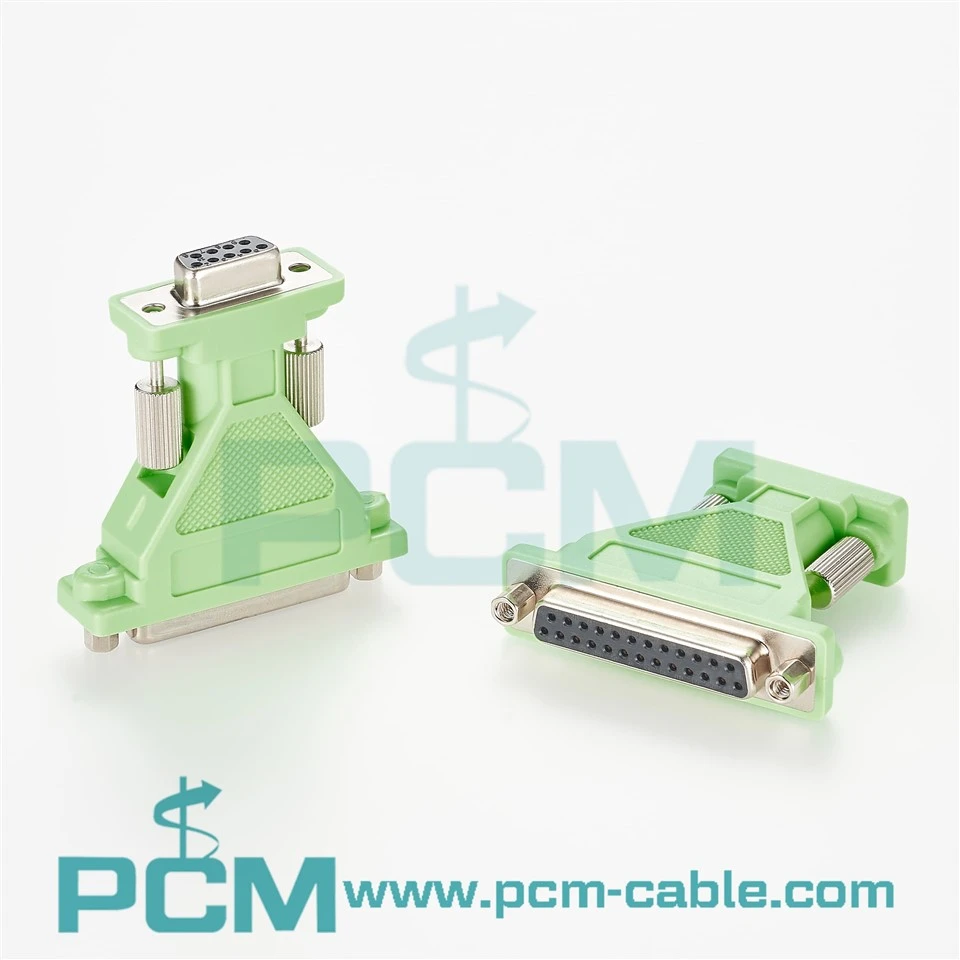

Products Display
Product Features
● DB25 Female + DB9 Female Dual-Female Design
PCM-KW-687 combines DB25 Female and DB9 Female interfaces for male-ended equipment or cables. Compared with the female-to-male PCM-KW-686, it is better suited to testing, maintenance and temporary interconnection between equipment generations.
● DB25-to-DB9 Mixed-Position Adaptation
Unlike a same-pin-count gender changer, PCM-KW-687 provides a physical transition between 25-position and 9-position D-Sub formats, supporting legacy DB25 equipment in systems using DB9 serial interfaces.
● Compact Cable-Free Adapter Construction
The compact direct-adapter design avoids an additional conversion cable, making it suitable for control cabinets, test benches and equipment rear panels. It reduces cable loops, extra fixing points and unnecessary connection nodes.
● Passive D-Sub Interface Mapping
PCM-KW-687 is a passive adapter that does not perform protocol, baud-rate or voltage-level conversion. It routes signals between D-Sub formats when the internal pin mapping matches equipment requirements; actual functionality depends on the confirmed wiring diagram.
Core Application Scenarios
Laboratory and R&D Testing
Research laboratories often contain test equipment from different generations with different connector configurations.
PCM-KW-687 can provide rapid adaptation between DB25 male equipment and DB9 male test interfaces.
Its dual-female design is especially useful for temporary connections during pinout, serial-communication and device-function verification.
PLC and Industrial Control Commissioning
Some legacy PLCs, controllers and industrial equipment continue to use DB25 serial interfaces, while engineering service tools may use DB9 connections.
PCM-KW-687 can serve as a commissioning accessory, provided that the target PLC's serial pin assignment, DTE/DCE configuration and handshake requirements are verified.
Core Performance Advantages
Resolves Both Connector Size and Gender Mismatch
A conventional gender changer addresses connector gender only, while PCM-KW-687 addresses both the DB25-to-DB9 format transition and the need for female mating interfaces.
For connections between DB25 male and DB9 male equipment, it can therefore reduce additional adaptation stages and create a more direct interface path.
Reduces Failure Points from Multi-Stage Adaptation
Using a DB25 gender changer, DB25-to-DB9 cable and DB9 gender changer together introduces several additional mating interfaces, screws and mechanical joints.
Every additional connection point can increase the possibility of looseness, incorrect installation, intermittent contact and troubleshooting complexity.
When the required pinout is built into PCM-KW-687, these intermediate connection points can be reduced.
Improves Test-Bench and Service Flexibility
The dual-female construction is well suited to service environments that frequently encounter different male D-Sub equipment.
Engineers can keep PCM-KW-687 as a defined adapter in a test bench or service kit and quickly establish DB25-to-DB9 connections after confirming the pinout, rather than fabricating temporary soldered cables on site.
Supports OEM Pinout Standardization
System integrators can develop versions using standard RS-232 mapping, null-modem wiring, three-wire serial connections or customer-specific pinouts.
Assigning separate part numbers, labels, pinout drawings and packaging identification to each wiring version helps prevent visually identical adapters with different internal mappings from being used incorrectly during service.
Frequently Asked Questions
Q1：Is It Compatible with Every DB25 and DB9 Device?
A1：No universal compatibility can be guaranteed.D-Sub defines a connector format only.Connector gender, protocol, pinout, signal direction, DTE/DCE role and handshake requirements must all be verified.
Q2：Does Female-to-Female Mean Null Modem?
A2：No.Connector gender and pin mapping are independent concepts.A null-modem configuration must be defined by its specific TxD/RxD and handshake crossover wiring.
Q3：What Information Should Be Provided Before Ordering?
A3：Customers should provide the DB25-side equipment model, DB9-side equipment model, connector gender on both sides, communication standard, DB25 pinout, DB9 pinout, DTE/DCE configuration, straight-through or null-modem requirement, handshake signals, mechanical space and screw or jack-post requirements.The most important information is the actual pin assignment.
Products Drawing
