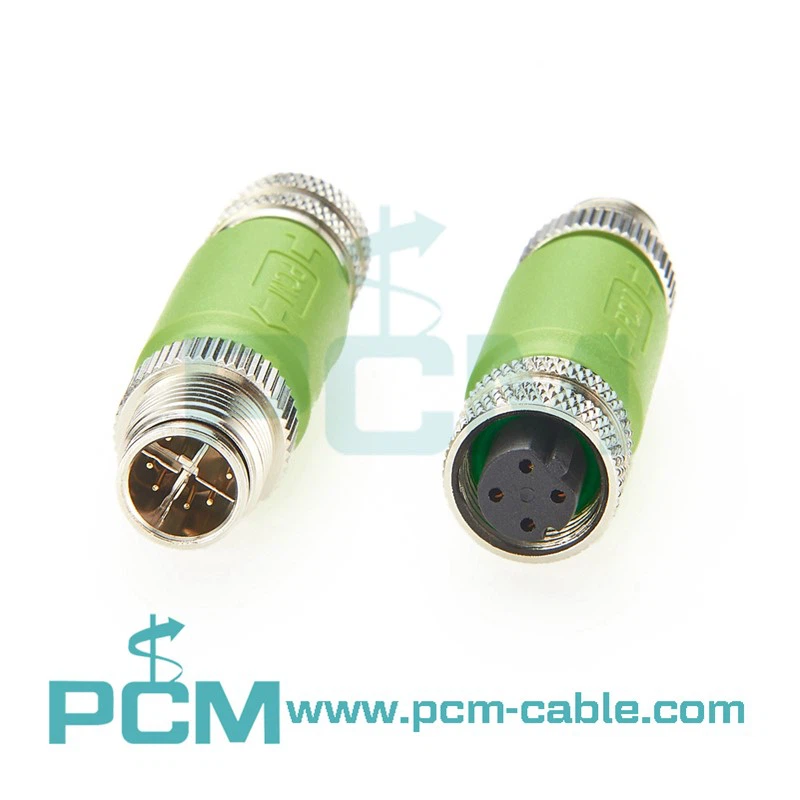

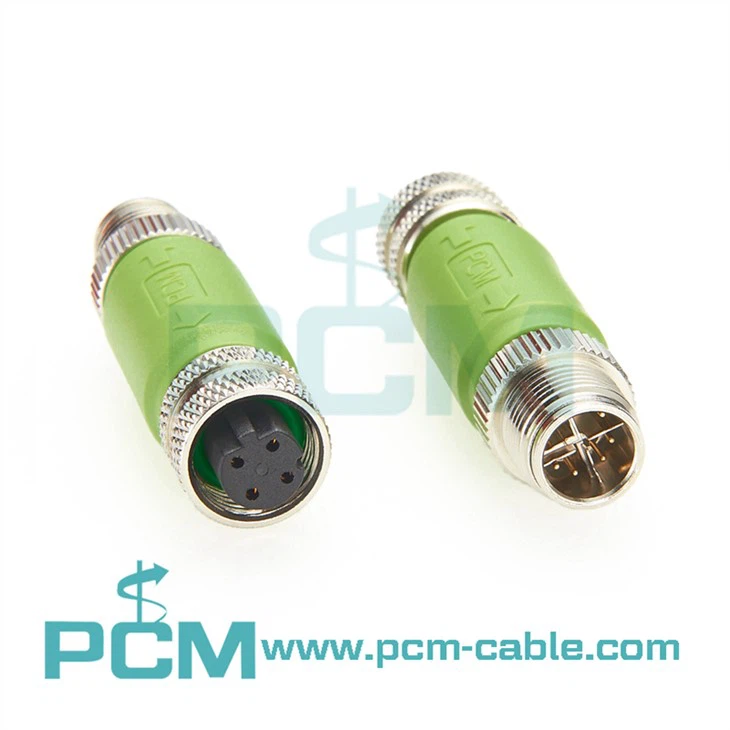

M12 Adapter X-code Male To D-code Female
Premier Cable Co., Ltd is one of the leading m12 adapter x-code male to d-code female manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The Premier Cable M12 Adapter X-code Male to D-code Female is designed to bridge the gap between legacy M12 D-coded Ethernet cabling and modern M12 X-coded Gigabit systems. This rugged IP67-rated adapter allows Cat5e-based 100 Mbit/s networks to be connected to newer Gigabit Ethernet switches without the need for rewiring or costly upgrades.
Perfect for railway upgrades, industrial automation, and machine networks, this plug-and-play adapter enables flexible transitions between 100 Mbit/s and 1 Gbit/s Ethernet setups.
Specification
| Product name | M12 adaptor M12 D-encoded socket to M12 X- encoded pin |
| Compatible with |

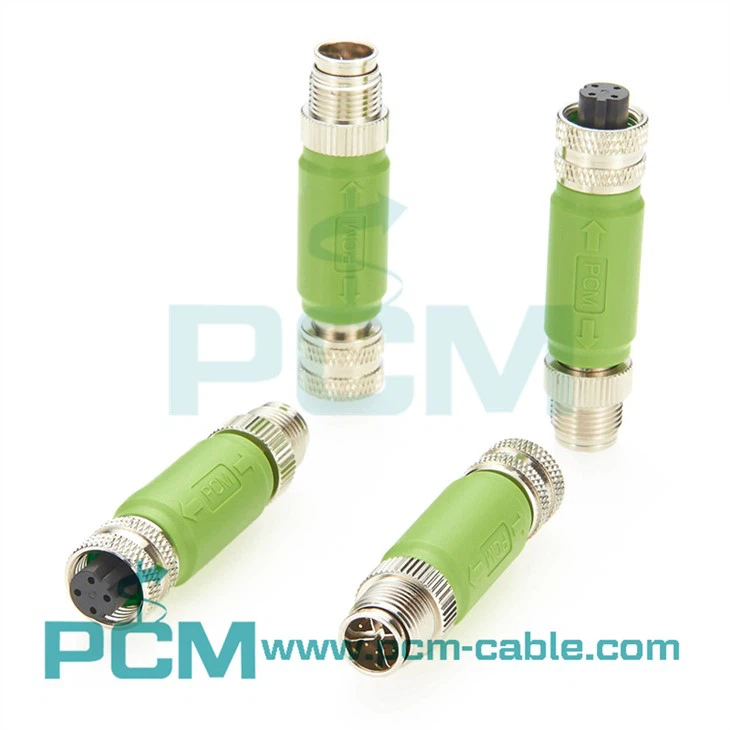

Simens 6GK1901-0DE20-6AA0, 6GK1901-0DE21-6AA0; Provertha 42-900167 |
| DWG No. | PCM-0856 |
| Interface A | M12 X-coded male (Pin) |
| Interface B | M12 D-coded female (Socket) |
| Ethernet compatibility | Cat5e, 10 Mbit/s, 100 Mbit/s |
| Nominal voltage | 48 V |
| Rated current | 0.5 A |
| Contact resistance | ≤ 10 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Ingress protection | IP67 (when locked) |
| Standards compliance | IEC 61076-2-109 / IEC 61076-2-101 |
Features
- Easy Integration: Connect D-coded cables to X-coded ports without rewiring.
- Plug-and-Play: No additional tools or installation required.
- Backward Compatibility: Ideal for existing Cat5/Cat5e cabling infrastructure.
- Cost-Saving Solution: Eliminate the need to replace legacy D-coded cables when upgrading to Gigabit Ethernet switches.
- Rugged & Reliable: Industrial-grade M12 design, IP67 protection, perfect for harsh environments.
Applications
- Railway retrofitting: Maintain D-coded cabling while upgrading switches to X-coded Gigabit models.
- Industrial Ethernet: Support mixed-speed network nodes (100 Mbit/s and 1 Gbit/s).
- Factory automation: Ensure compatibility between legacy devices and modern infrastructure.
- Transportation systems: Reliable performance in rolling stock and onboard communications.
