M12 D Code Control Cabinet Feed-through Connector

M12 D-code Ethernet receptacle bulkhead connector, suitable for industrial Ethernet communication systems such as PROFINET.
Send Inquiry
Product Introduction

This M12 D code control cabinet feed-through connector is a high-performance industrial Ethernet wall-through adapter designed for communication connection between control cabinets and field devices. It adopts standard M12 D-coded 4-pin structure and supports 100Mbps industrial Ethernet data transmission. The two ends are M12 D-code male and female respectively, with full metal shielding structure and IP67 protection level, ensuring stable operation in high interference and harsh environments.



This product is fully compatible with Turck FKD FSD 44/M12 and Phoenix Contact 1424326, and can be used as a direct replacement. It is widely used in a variety of industrial communication protocols, including:



  • PROFINET
  • Ethernet/IP
  • Modbus TCP
  • EtherCAT



The wall-through structure facilitates fast, safe, and compact panel connection between control cabinets and external devices, and is a reliable interface solution in industrial communication systems.



M12 D code control cabinet feed-through connector



Specifications



Product name Control cabinet feed-through, 4-pin, M12 D-code, male to female, bulkhead
Compatible with

Phoenix Contact 1424326 SACC-4P-DSI-M12FSD/FSD-M16;

Turck FKD FSD 44/M12

DWG No. FT-D4-MF
Interface  M12 eurofast male straight to M12 eurofast female straight
Mounting orientation Rear mount
Protection class (When coupled) IP67
Number of contacts 4
Installation method Panel through-wall, fixed with nuts
Application Data
Fieldbus protocol Ethernet, Profinet, EtherCAT

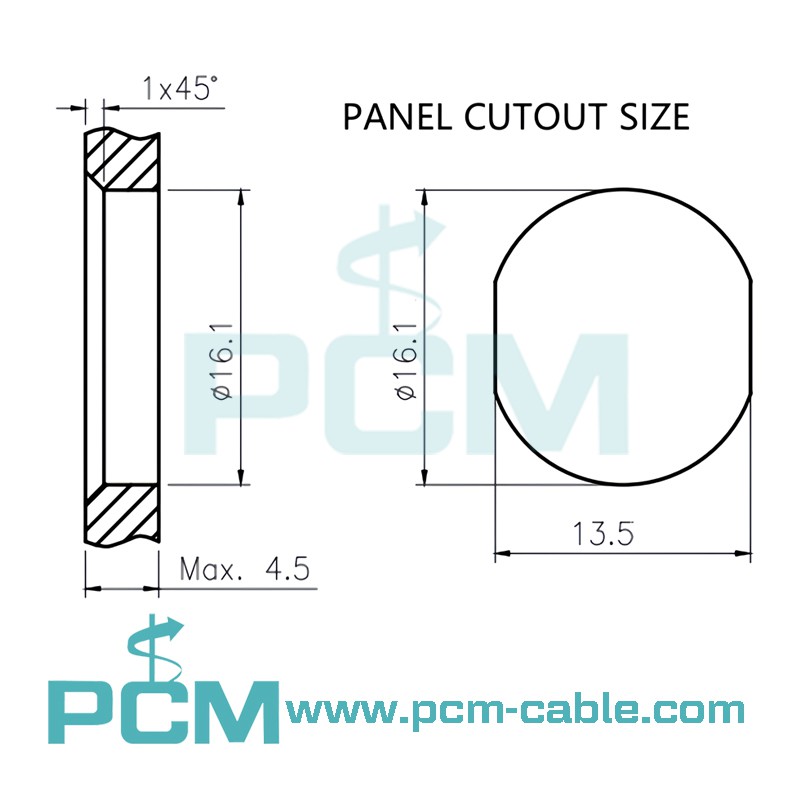

Cutout size of M12 D Code Profinet Feedthrough Connector





Factory Advantages



Premier Cable is a professional industrial connector and cable manufacturer with more than ten years of export experience. Its products cover industrial connection fields such as M8/M12/M16/M23/7/8"-UN. We provide through-the-wall connectors with various codes (A, B, D, X, Y, L, etc.) and specifications, supporting rapid prototyping, small batch delivery, and large batch customization. We truly provide spot supply, no MOQ, flexible delivery, and professional service.



Applications



  • Data connection between industrial Ethernet switches and field equipment
  • Through-wall connection from control cabinet to communication modules such as sensors, PLC, HMI, etc.
  • Robotic equipment, packaging machinery, automatic warehousing, logistics sorting systems, etc.
  • Factory automation and industrial communication systems







M12 Ethernet receptacle bulkhead connector
