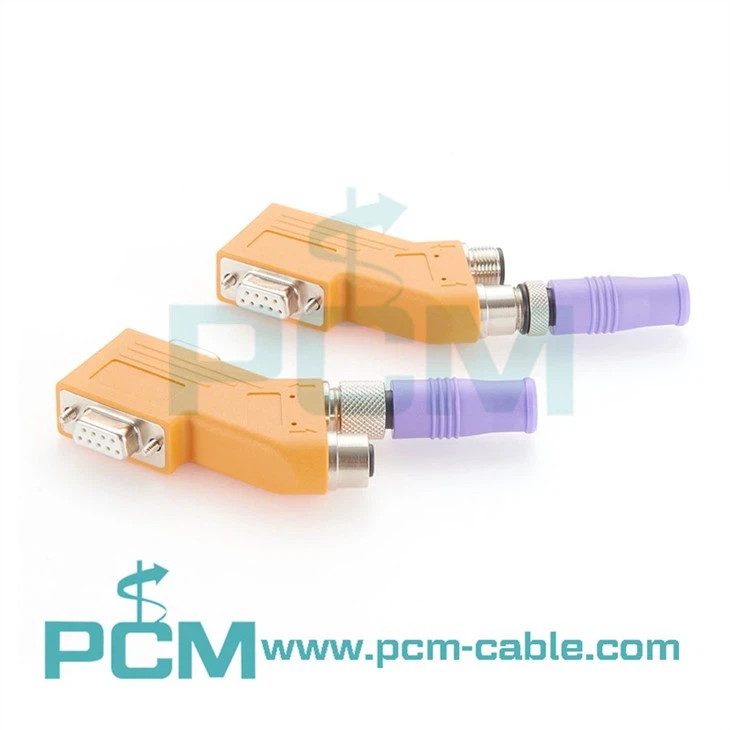

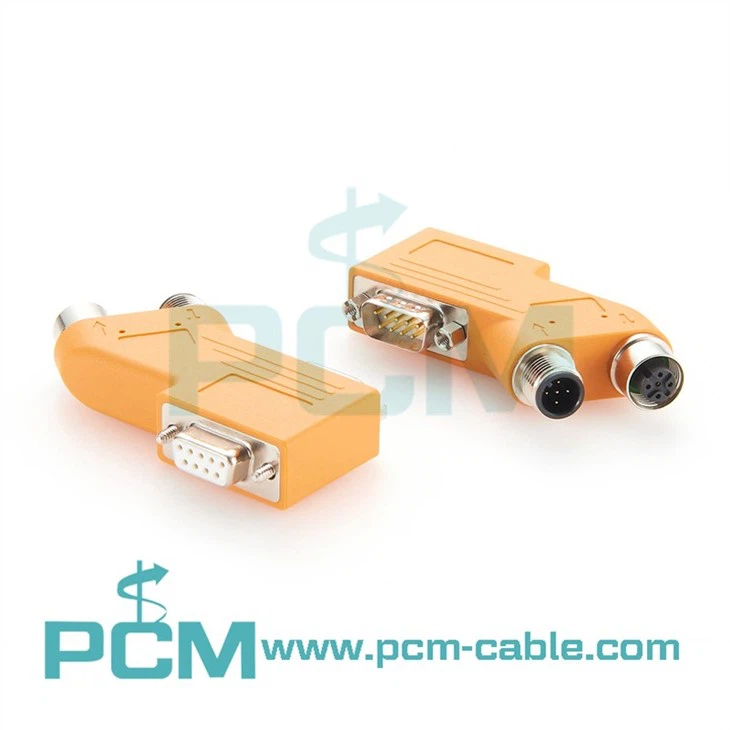

CANopen D-SUB Bus Connector M12 DB9

The CANopen D-SUB Bus Connector is a D-SUB bus connector designed for industrial automation applications. It features a CANopen protocol and offers reliable and secure data communication between different devices in a network.



Specification



Product name	9 Pin D-sub socket connector for CAN system
Type	SUBCON-PLUS-CAN/35/M12 SUBCON-PLUS-CAN/35/PG/M12
Order No.	2902324, 2902325
Type of connector	D-SUB connector, 9-pos
Electrical mounting	two M12 cable entries (A-coded) under 35°
Nominal voltage UN	5 V
Nominal current IN	100 mA
Bus system	CAN, CANopen, SafetyBus-P
Usage	CANopen Programmable Logic Controller
Compatible	Phoenix Contact SUBCON-PLUS-CAN/35/PG/M12 - D-SUB bus connector 2902319
Connection	Programming connection

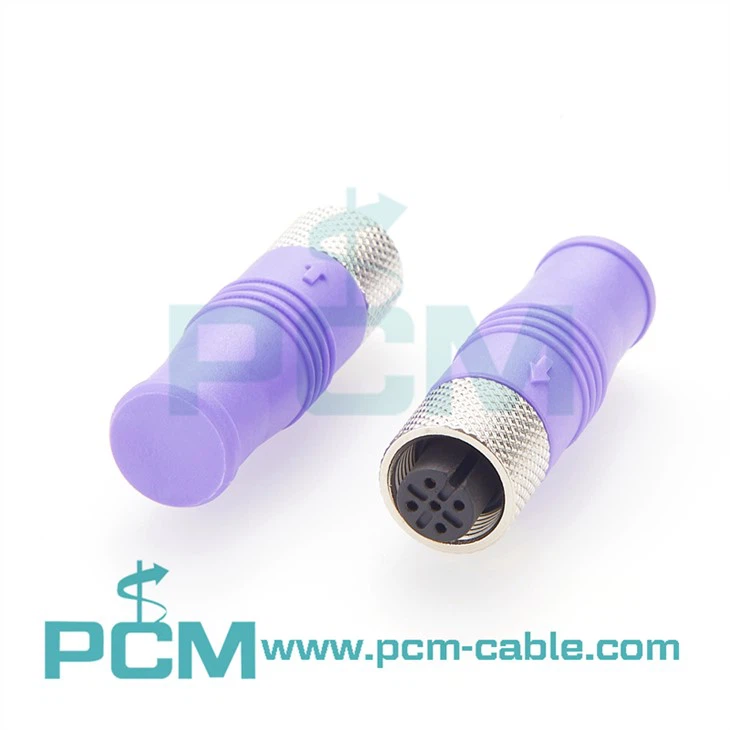

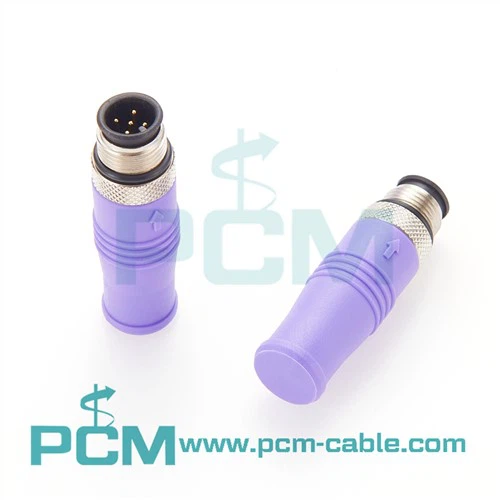

Resistor	Termination resistor via separate M12 terminator



FAQ



Q: What is the difference between this SUBCON-PLUS-CAN connector and the Profibus DP connector?



A: The biggest difference is that they are used under different PLC communication protocols. This connector is used for PLC under the CANopen protocol and the Profibus DP connector is used for PLC under the Profibus protocol. The second difference is the DB9 interface of the two connectors, the male and female are opposite. The third difference is that in the M12 interface, one is A code, and one is B code.
