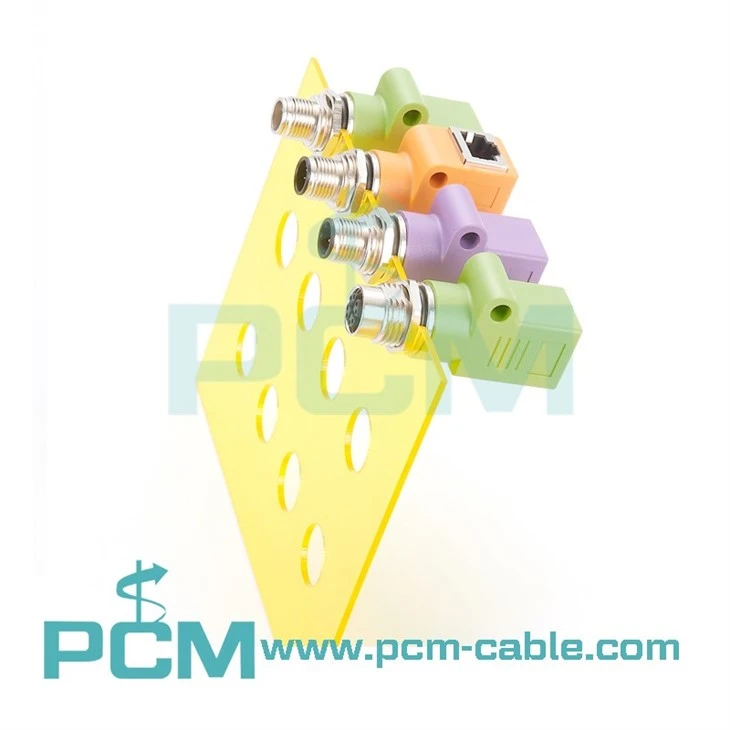

Panel Feed Through Adapters M12 X-coded to RJ45 for Electrical Cabinets
Control Cabinet Feed Through M12 4 Pos D Coded To RJ45
PCM Cable Co., Ltd. is one of the leading control cabinet feed through m12 4 pos d coded to rj45 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The M12 D-Code to RJ45 Control Cabinet Feedthrough Connector is an excellent choice for front panel installations. It is a durable and shielded connector that easily connects PROFINET RJ45 jumpers to the enclosure. With this adapter, all you need to do is make a 16mm hole in the enclosure or cabinet and thread the adapter through it, then tighten it. It can transmit data at a rate of 100Mbit/Cat5e and the M12 connector can achieve an IP67 protection rating when plugged in and tightened. The connector is also resistant to vibration and shock, and in addition to the M16 flange mounting method, we have added a screw hole on the connector body for situations where you don't need to mount this connector on a cabinet but still want to secure it in place. This connector is the perfect solution for all your connection needs.
Specifications
| Product name | Accessories for Fieldbus Systems Wall Panel feed-through RJ45-M12 Connector |
| Model No. | PCM-0660 |
| Interface 1 | M12 connector, D-coding, 4 Pin, Male |
| Interface 2 | RJ45 Female |
| Angle | Straight |
| Number of Positions | 4 |
| Transmission Speed | 100 Mbps |
| Operating voltage DC max. | Operating voltage DC max.: 60V |
| Current operating per contact max. | 2A |
| Ethernet category | Cat 5e |
| Device type | Wall feedthrough, panel mount, control cabinet mount, flange mount, chasis mount, bulkhead panel mountable |
| Mounting set | M16 x 1.5 |
| Transmission type | Profinet, Ethernet, EtherCAT |
| Usage | Connected with M12 cable and Ethernet cable |
