Termination Resistor RJ11 RJ12 6P6C

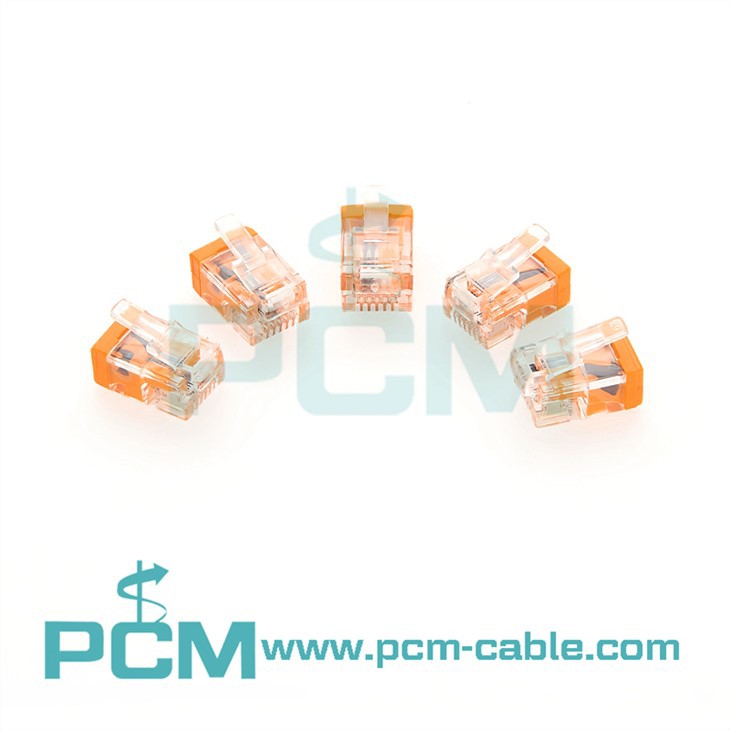

ISDN terminating resistor RJ11 RJ12
pinout pin assignment drawing of 6P6C RJ12 terminator 6P4C RJ11 Terminator Telephone termination resistor
pinout pin assignment drawing of RJ12 6p6c modular plug with resistor
pinout pin assignment drawing of RJ12 6p6c modular plug with resistor pin2 and pin3
RJ12 6P6C terminator
RJ12 telephone terminator
RJ12 termination resistor
RJ12 6P6C Termination Resistor
PCM Cable Co., Ltd. is one of the leading rj12 6p6c termination resistor manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Our RJ12 6P6C termination resistor is a high-performance terminal resistor designed to prevent signal reflection and data loss, suitable for a variety of communications and telephone systems. The RJ12 terminator ensures that the signals of unused ports are properly terminated, thereby improving the stability of the entire system and the reliability of data transmission.
The RJ12 6P6C interface supports 6 wires and is commonly used in telephone systems, ISDN, Modem, and other multi-line data transmission applications. Installing this 6P6C terminator can effectively avoid communication errors caused by signal reflection and ensure stable communication in long distances or complex networks.
Specifications
| Product name | RJ12 6P6C telephone terminator |
| DWG No. | PCM-0742, PCM-0735 |
| Interface type | RJ12 6P6C (optional RJ11 6P4C) |
| Resistance value | 120Ω (standard configuration, can be customized according to needs) |
| Resistor location | Across pins 4/5 (optional across pins 1/2; across pins 2/3; across pins 3/4; across pins 3/6; across pins 1/2 & 3/6; across pins 4/5 & 3/6, etc.) |
| Number of resistors | 1 (or 2, or customized) |
| Applicable equipment | Telephones, switches, building intercoms, security systems, data communication equipment |
Features
- High compatibility: The 6P6C terminator plug supports all telephone systems, data networks and communication equipment using RJ12 6P6C interface.
- Signal protection: RJ12 end connector prevents signal reflection and interference by terminating unused lines, improving system reliability.
- Plug and play: standard RJ12 6P6C interface design, easy installation, no additional tools required.
- High-quality resistance: RJ12 120Ω terminator adopts high-quality resistance components, provides stable signal termination, and ensures the best communication performance.
- Versatile application: RJ12 terminator resistor is suitable for telephone exchange system (PBX), building intercom, security system, ISDN data communication and other scenarios.
Applications
- Telephone system: RJ12 telephone terminator is applicable to port terminals in multi-line telephones and exchange systems (PBX) to improve communication stability.
- Building intercom: 6-pin RJ12 terminator ensures the correct termination of multi-line signals in intercom systems.
- Security system: RJ12 connector terminator can be used in alarm and access control systems to prevent signal reflection.
- ISDN/Modem communication: RJ12 end connector ensures no signal loss in data communication, suitable for long-distance connections.
Customized service
We support customized resistor values and resistor quantities according to customers' specific needs to ensure the best adaptability of the product in various applications.
