BNC Panel Mount Extension Cable
BNC Male to BNC Female Bulkhead Mount Using Flexible RG58 Coax Cable
Panel mount BNC male to female extension cable with RG58 coax
RG58 Coaxial Cable BNC Male to Female Bulkhead
Panel Mount BNC Extension Cable for Radio & Communication Equipment
BNC Male to Female Bulkhead Mount RG58 Coax Jumper Cable for Wireless Microphone System Receiver Amateur Mobile CB Radio UHF VHF Ham Radio Antenna Patch Panel Rack Mount
BNC Panel Mount Male to Female RG58 Extension Cable 50Ω
RG58 BNC Male to Panel Mount Female Cable for RF & Antenna Systems
BNC Panel Mount Extension Cable
PCM Cable Co., Ltd. is one of the leading bnc panel mount extension cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

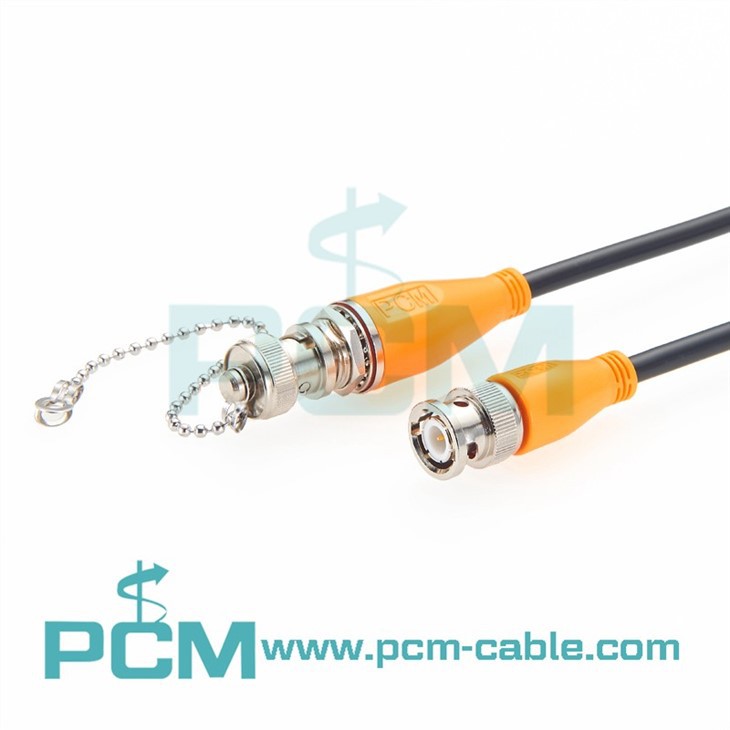

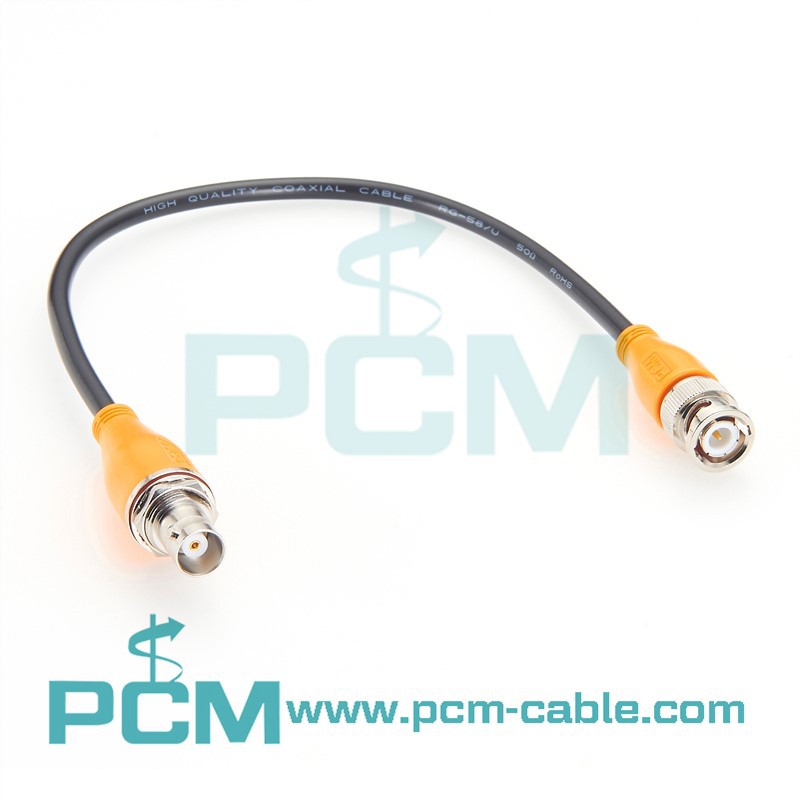

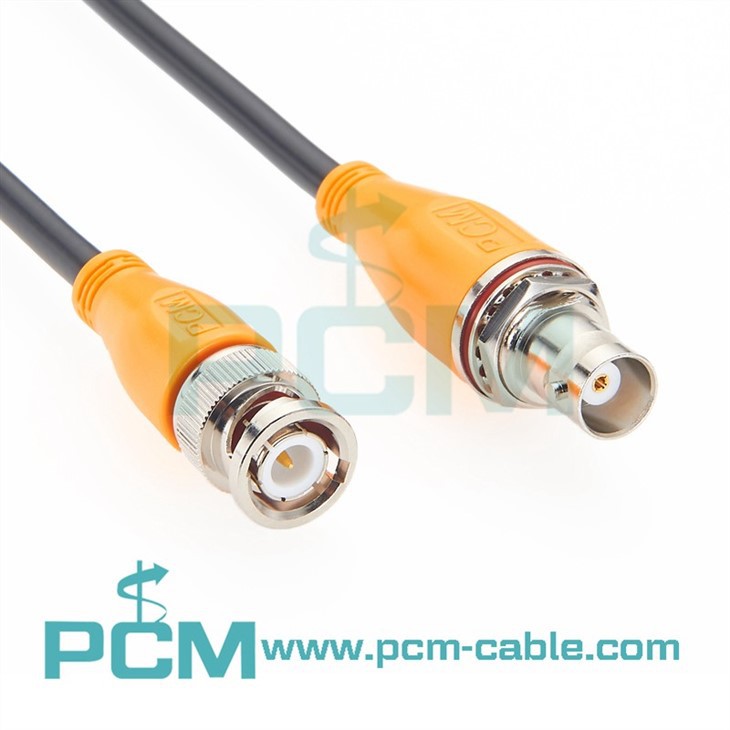

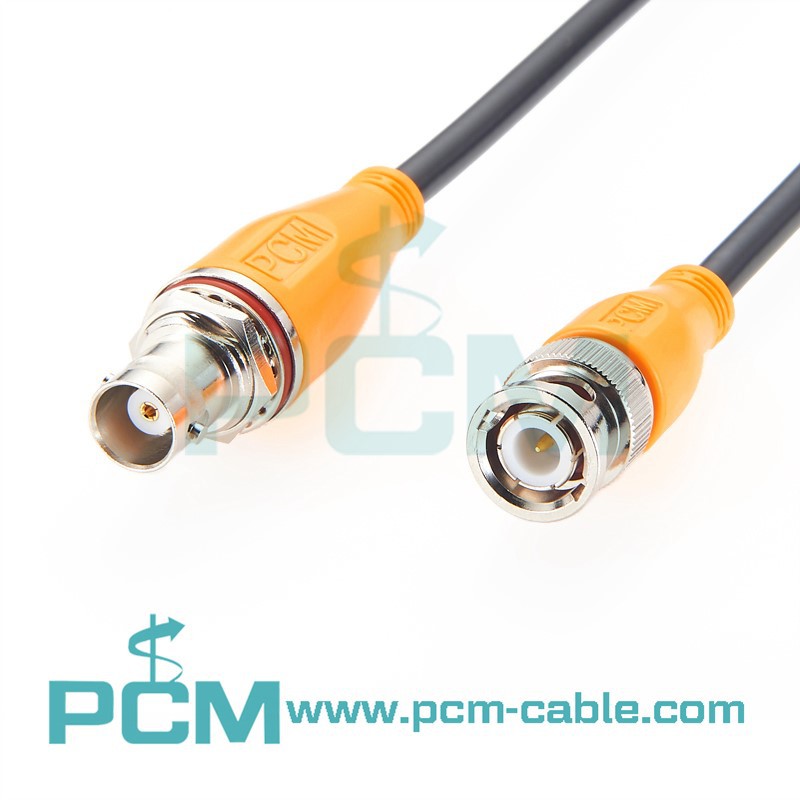

The PCM-SHM-0008 BNC Panel Mount Extension Cable is designed to bring a BNC interface to the outside of panels, bulkheads, or enclosures. The bulkhead BNC female connector mounts securely to a wall or panel, while the BNC male connector provides convenient access for test equipment, RF modules, CCTV systems, or communication devices.
Built with 50Ω RG58, gold-plated contacts, and a low VSWR of <1.5, it ensures reliable RF signal transmission. Standard lengths include 1 ft, 3 ft, and 6 ft, with full customization available.
If you require a 75Ω BNC cable using RG59, we can manufacture it on request.
Specifications
| Product name | BNC Male to BNC Female Bulkhead Mount Using Flexible RG58 Coax Cable |
| DWG No. | PCM-SHM-0008 |
| Connector A | BNC Female Panel Mount (Bulkhead) |
| Connector B | BNC Male |
| Cable type | RG58 |
| Impedance | 50 Ω |
| Frequency range | DC – 1 GHz |
| VSWR | < 1.5 |
| Opening size | 12.8 mm |
| Connector plating | 3U" Gold Plating |
| Cable length | 1 ft / 3 ft / 6 ft |
| Custom made | Supports customization of any length, wire type, and structure. |
| Installation | Panel / bulkhead feedthrough |
Features

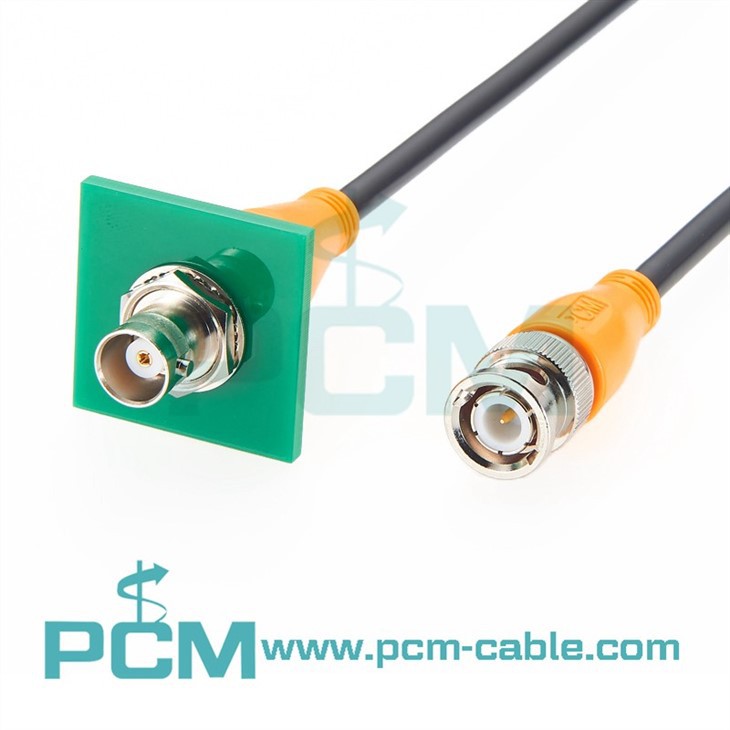

- BNC Female Panel-Mount (Bulkhead) to BNC Male extension design
- 50Ω RG58 coaxial cable with low VSWR (<1.5)

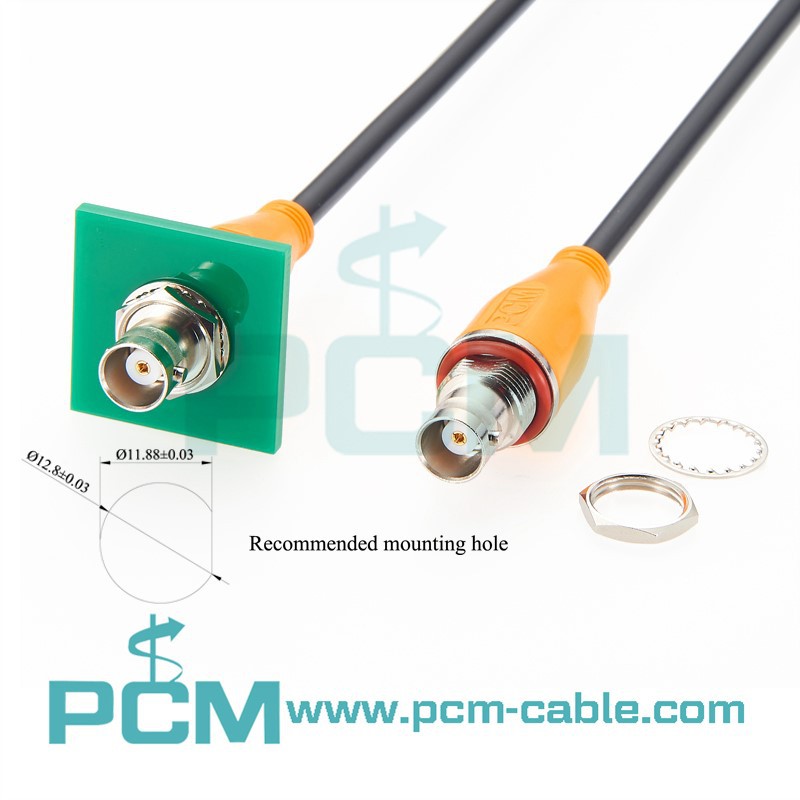

- Recommended panel cutout: 12.8 mm
- Gold-plated BNC connector pins (3U") for stable RF performance
- Length options: 1 ft / 3 ft / 6 ft or fully customized
- Suitable for enclosure wall, distribution panel, and cabin feedthrough
- Factory-direct OEM/ODM cable assembly
Applications
- RF test setups and instrument interfaces
- Panel mount connectivity for enclosures
- CCTV and analog video systems
- RF communication modules
- Lab equipment and engineering test benches
FAQ
Q1: Can you produce a 75-ohm version of the RG59?
A1: Yes. We can modify this structure to RG59 cable and manufacture a 75Ω BNC panel extension cable according to your requirements.
Q2: Is it suitable for outdoor use?
A2: Standard RG58 PVC is suitable for general environments. For outdoor applications, TPU, PE, or flame-retardant sheaths can be customized.
Q3: What is the shielding structure of this BNC male to female bulkhead mount RG58 coax cable?
A3: The RG58 has braided copper mesh shielding, suitable for RF signal scenarios with high interference immunity requirements.
