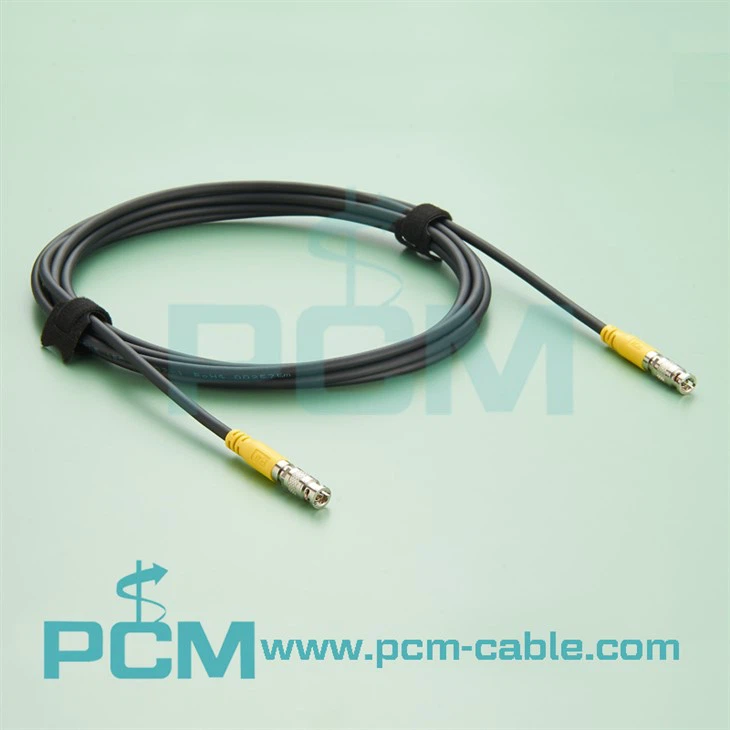

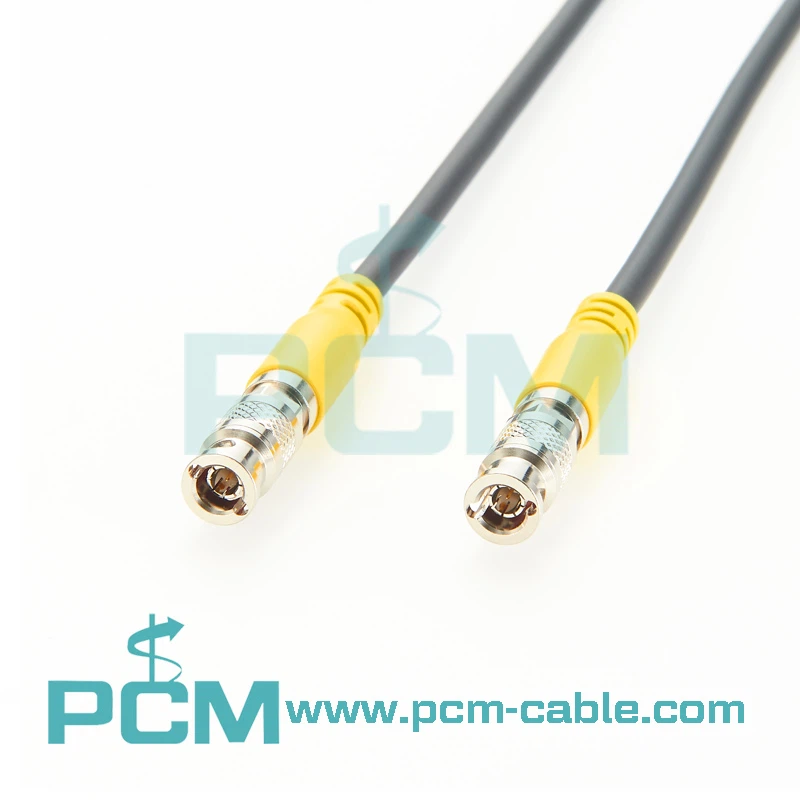

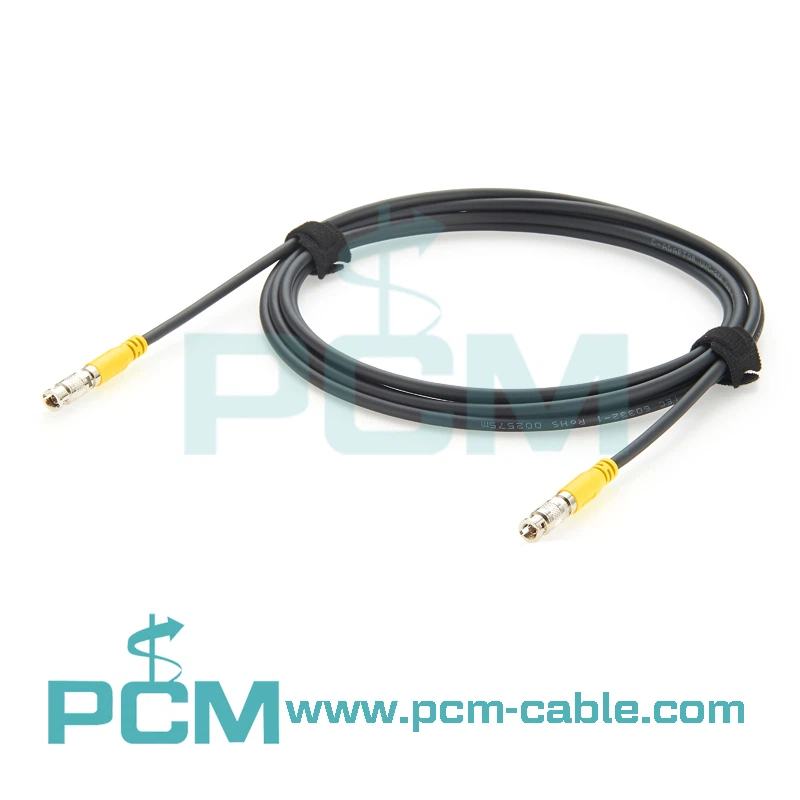

CoaXPress Cable HD BNC To HD BNC

PCM Cable Co., Ltd. is one of the leading coaxpress cable hd bnc to hd bnc manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.







CoaXPress cable is the abbreviation of "Coaxial Express", also known as CXP cable. It is a high-speed, high-performance data transmission solution designed for industrial and professional imaging applications. It can be used to transmit video, images, control signals and power, and is widely used in machine vision, high-speed industrial camera connections, medical imaging, life sciences, broadcasting and defense.



CoaXPress cable uses single or multiple coaxial cables and is often equipped with the following plugs: BNC connector, HD-BNC (Micro BNC) connector, or DIN 1.0/2.3 connector, and the CoaXPress standard ensures seamless compatibility with industry equipment.





Product name	CoaXPress CXP-12 SDI framegrabber machine vision industrial camera cables HD BNC to HD BNC
Compatible with	Active Silicon AS-CBL-1MM-0010-xM; 3M CoaXPress cable assembly 1CXx-xx-0S Series; Laird Belden 1695A HD-BNC Male to HD-BNC Male Cable HDBNC1695; Basler 2200000703, 2200000704, 2200000705; Basler 2200000320, 2200000321, 2200000322, 2200001228, 2200001229

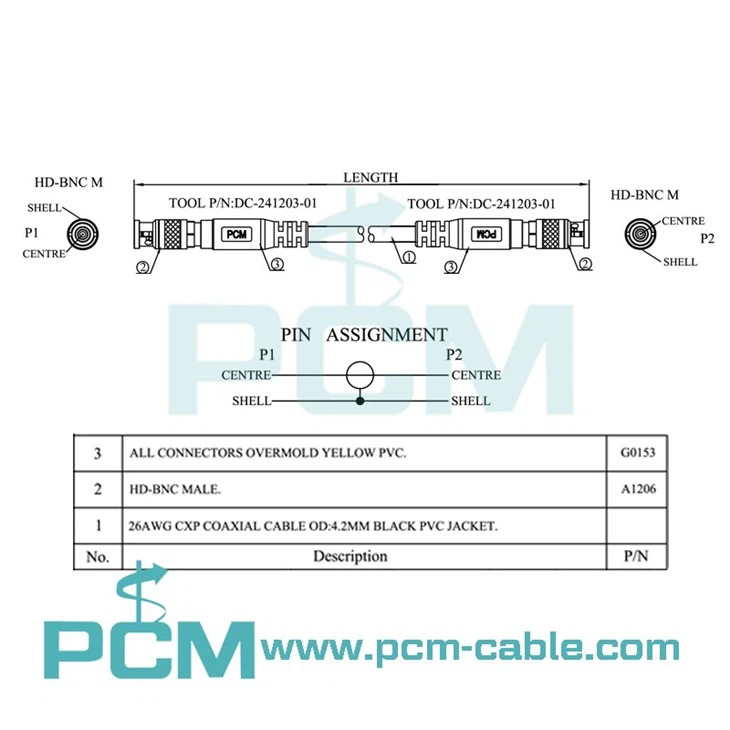

DWG No.	PCM-S-0577

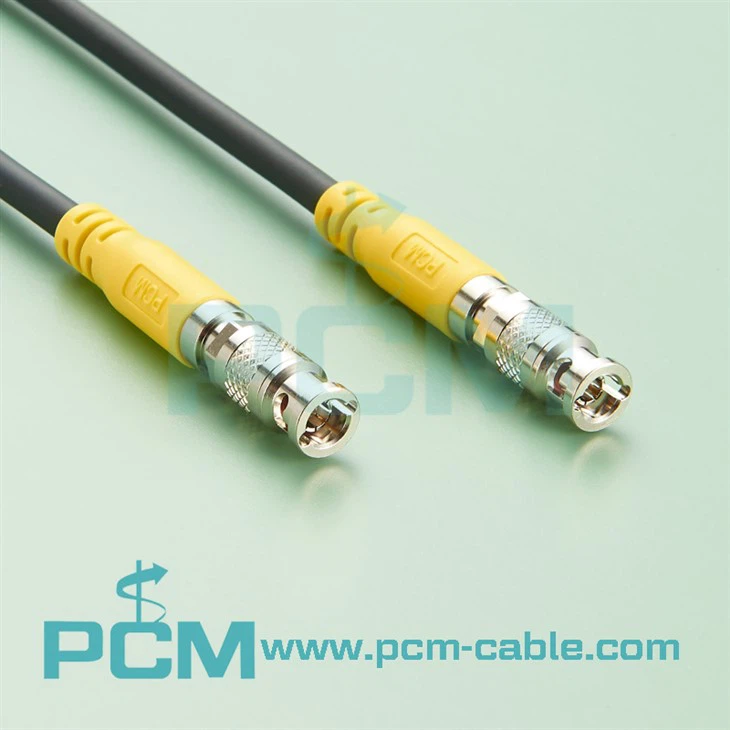

Connector camera side	HD-BNC connector, Micro-BNC connector, male, (DIN 1.0/2.3 connector is available)
Connector host side	HD-BNC connector, Micro-BNC connector, male, (DIN 1.0/2.3 connector is available)
Cable length	3m, 5m, 10m, 20m, 30m, or customized
Supported standards	CoaXPress 1.1 and 2.0
Data rate	Supports up to 12.5 Gbps (CXP-12 cable)
Cable type	75 ohm coaxial cable
Moving characteristic	Static or drag chain
Wire gauge	26AWG
Cable diameter	4.2mm
Cable jacket	PVC, high-flex drag chain cable







• High-speed transmission: This CXP cable supports single-channel data transmission speeds up to 12.5 Gbps.

Multi-channel combinations can achieve higher bandwidth (such as CoaXPress CXP-12 cable).



• Simplified wiring: Data, trigger signals, and power are transmitted over a single coaxial cable (Power-over-CoaXPress, PoCXP).



• Low-latency triggering: This HD-BNC to HD-BNC SDI cable has strong real-time and low-latency triggering performance, suitable for scenarios requiring high-precision synchronization.



• High reliability: Using 75-ohm coaxial cable, it has strong anti-interference ability and is suitable for industrial environments.



• Compact design: Using HD-BNC (Micro-BNC) connectors, it saves space while maintaining excellent performance, suitable for intensive connection needs.





• Machine Vision: CoaXPress cable assembly is widely used in high-speed production line detection and industrial automation equipment connection.



• Medical Imaging: CoaXPress cable micro-BNC to micro-BNC is also used in high-resolution imaging equipment such as CT, ultrasound, and microscopes.



• Broadcasting and Media: CoaXPress CXP-12 SDI framegrabber machine vision industrial camera cables are used for high-speed connection between high-definition cameras and transmission equipment.



• Defense and Aviation: Monitoring systems, precision guidance and target recognition systems.



• Life Sciences: CXP Cable can also be used in laboratory automation equipment and microscopic imaging technology.







Q: What is the difference between HD-BNC and Micro-BNC?



A: HD-BNC connector and Micro-BNC connector are the same connector, "HD-BNC" is a registered name of manufacturers such as Amphenol. They are a miniaturized bayonet-locking 75-ohm connector, about 50% the size of a standard BNC, ideal for high-density and high-speed applications. Functionally identical, the naming is mainly different due to brand or industry conventions.





Premier Cable is a professional cable manufacturer that focuses on providing high-performance custom cables, including CoaXPress cables, Ethernet cables, USB camera cables, GigE cables, and Hirose power cables.



Our products are widely used in machine vision, industrial automation, medical imaging, and broadcast equipment, and we have won the trust of customers with reliable performance and flexible customization services. Let us be your ideal partner for efficient connectivity!
