HPCN 68 Pin Male to Male SCSI Cable
PCM Cable Co., Ltd. is one of the leading HPCN 68 Pin Male to Male SCSI Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

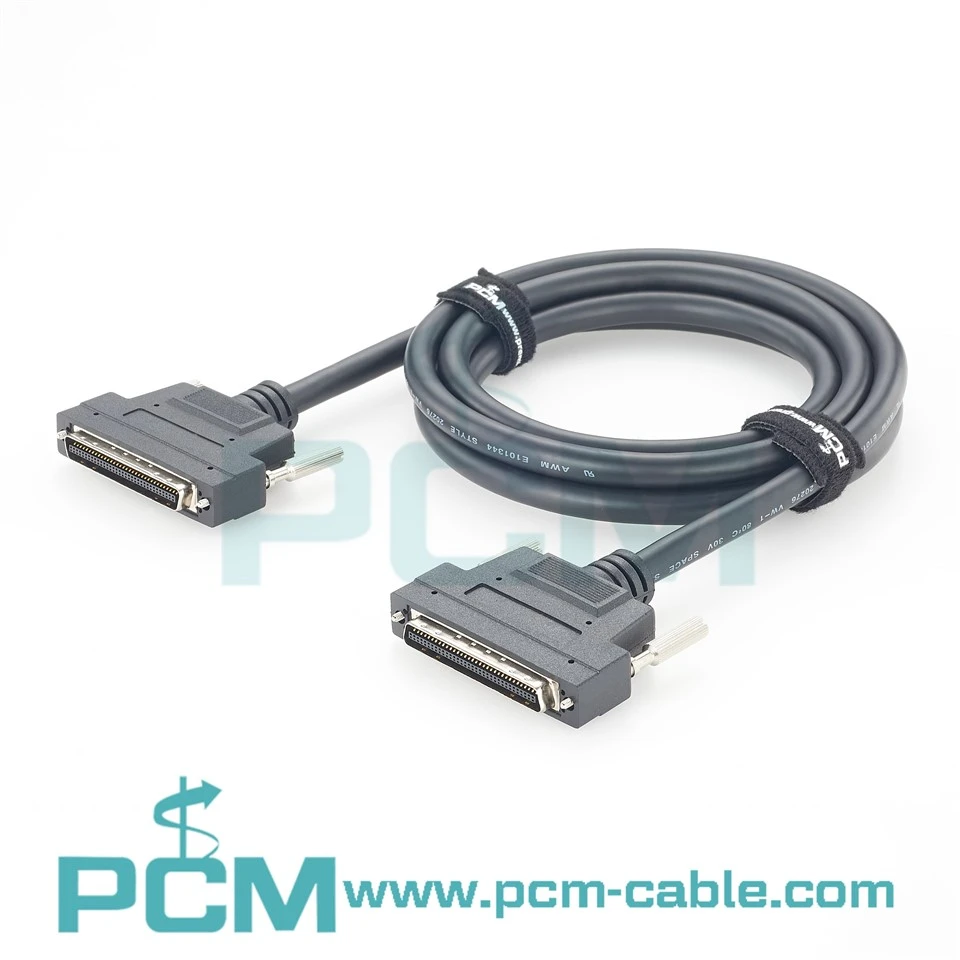

Premier Cable PCM-S-0779 is an HPCN68 Male to Male SCSI Cable designed for high-density industrial data transmission applications. Both ends feature standard HPCN68 68-pin male connectors, enabling direct point-to-point connection between HPCN68 compatible devices and providing a reliable data pathway for industrial control systems, DAQ equipment, and test platforms.
Compared with traditional large SCSI connection solutions, the HPCN68 interface utilizes a compact high-density connector structure, maintaining 68-pin signal capability while reducing equipment space requirements. It is especially suitable for industrial cabinets, embedded control systems, and high-density I/O applications.
This 68 Pin SCSI Cable helps engineers achieve equipment interconnection, system upgrades, and signal expansion while meeting the requirements of automation control, motion systems, DAQ acquisition, and test measurement applications. HPCN68 is recognized as a compact high-density SCSI connectivity solution compared with traditional HD68 interfaces.
Stable Connection
Industrial 68-pin latch-type cable features secure side-latch locking and high-tension contacts to prevent signal dropouts caused by vibration or repeated movement, ensuring stable connections in demanding industrial environments.
Manufacturing Process
Premier Cable uses precision automated assembly, laser processing, and controlled termination technology to ensure consistent 68-pin signal alignment, reliable impedance performance, and durable connector construction.
Service Life
Built with durable conductors, reinforced connectors, and rigorous electrical testing, this cable supports long-term industrial operation with excellent mechanical durability and signal reliability.
Products Specification
| Product Name | HPCN 68-Pin Male-to-Male SCSI Cable |
| Drawing Numbe | PCM-S-0779 |
| P1 Connector | HPCN 68-Pin Male |
| P2 Connector | HPCN 68-Pin Male |
| Connector Structure | Dual Identical 68-Pin High-Density Connectors |
| Length | 2000 + 30 mm |
Products Display
Product Features
Symmetrical Peer-to-Peer Ribbon Terminals
Both terminating ends feature high-spec HPCN 68-pin ribbon contact plugs. This fully symmetrical, homogeneous layout is tailored to bridge host and peripheral units matching identical parallel specifications, erasing routing confusion.
Stainless Steel Side Clip-Latch Mechanisms
The connector profiles integrate high-flexibility stainless steel squeeze latches. Upon mating, the side springs snap instantly into receiver blocks, providing robust seismic defiance while cutting deployment and tear-down times.
Monoblock Die-Cast Zinc Armor
Utilizing a unified, extra-thick die-cast zinc-alloy housing, the assembly delivers premium impact resistance. The hermetically closed shell margins block incoming metal shavings and abrasive workshop dust from penetrating core zones.
Full-Width Multi-Strand High-Flex Harness
The internal 68 signal paths are tightly bundled using multi-strand ultra-fine copper wire configurations. Supported by a sweep-radial tail frame, it dispels concentrated shearing loads generated by routine trailing actions.
Core Application Scenarios
Advanced Semiconductor Die-Bonders & SMT Equipment
Deployed to bridge command processors to multi-axis high-speed moving sub-platforms inside smart picking modules or precision surface mount technology equipment.
Industrial PLC Rack Peer-to-Peer Inter-Card
Serving as a standard 68 Position Ribbon Jumper within modular logic assembly boxes to rapidly string together closely situated matching HPCN68 master communication sub-racks.
Multi-Way Environment Metrology & Laboratory DAQ Grids
Routing complex, simultaneous feedback loops into high-density parallel data capture cards across long distance laboratory telemetry grids or automotive stress testing tracks.
Multi-Channel Motion Capture & Tracking Matrix
Serving as a specialized Multi-channel motion capture system wire connecting multi-camera tracking arrays directly to processing units for latency-free positional coordinate feeds.
Core Performance Advantages
● Symmetrical Parallel Bit-Width Zero Bias
Tailored for massive bit-width data streams. All internal 28AWG differential pairs undergo geographic length calibration, neutralizing arrival offsets across paths to secure perfectly balanced 68-channel streaming.
● High-Fidelity Micro-Ohm Insertion Performance
The leaf-style ribbon pins are treated with heavy gold-layer enrichment, securing a consistent micro-ohm connection boundary. Even in extended cascading jumpers, it aggressively minimizes interface insertion loss.
● Continuous Circular Braid Ground Noise Cancellation
An enhanced aluminum shield overlays a dense tinned copper weave, linking radially to the zinc hulls. This continuous shielding envelope safely grounds loop distortions arising from cross-equipment ground potential anomalies.
● Extreme Climate Operational Endurance
Passing continuous -40°C to +105°C thermal shock testing, the advanced jacket polymer yields superb thermal physics. It locks in steady electrical parameters whether exposed to outdoor freezes or chassis bake-offs.
