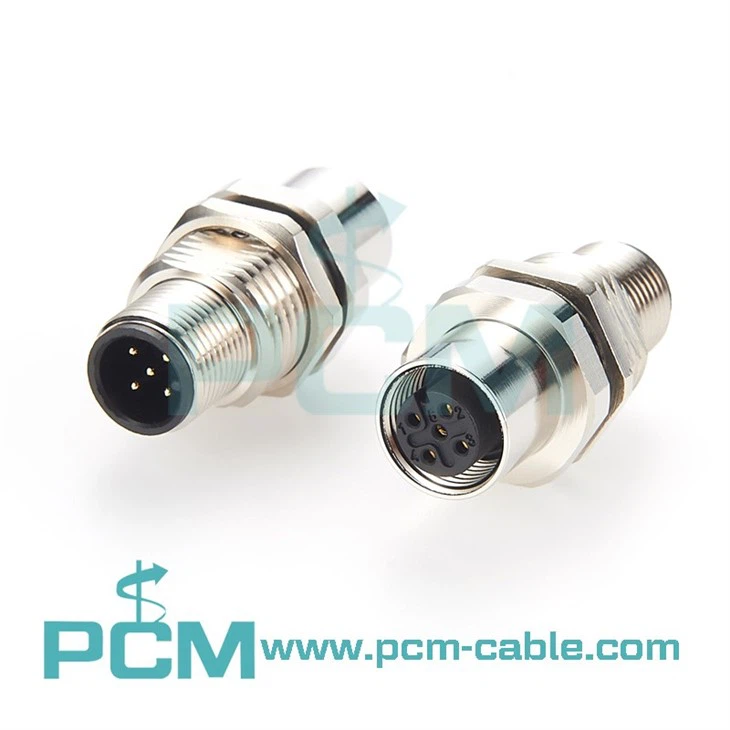

NMEA2000 Wall Duct micro-c
Sensor actuator control cabinet feed-through, male to female, 5-pos., M12, shielded, A-coded, bipolarscrew mounting with M16 thread
M12 Switch Cabinet Feed-Through 5-Pin A-Coded
Actuator and Sensor Receptacle Panel Feed-through Connector

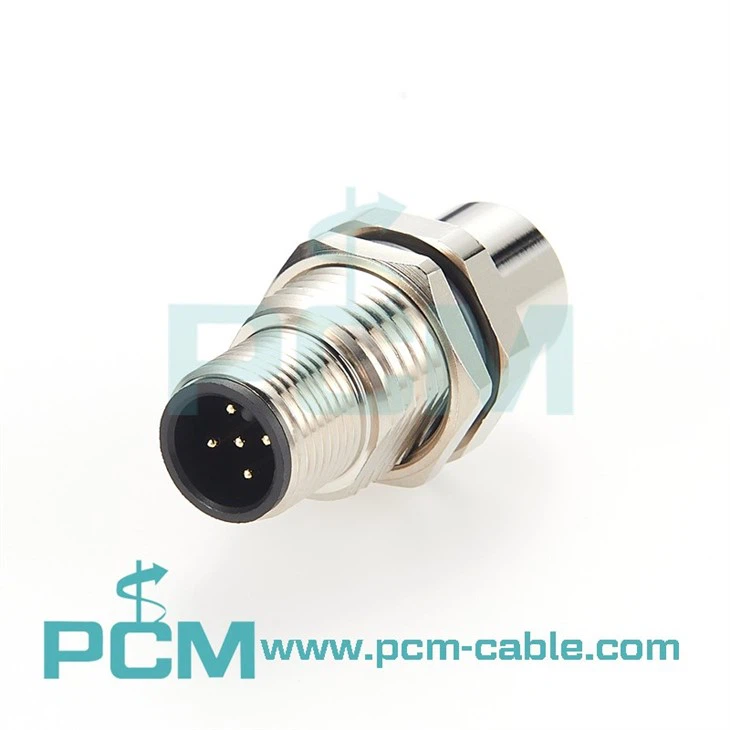

NMEA 2000 Network Through Bulkhead Adapter
PCM Cable Co., Ltd. is one of the leading nmea 2000 network through bulkhead adapter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Create a waterproof NMEA2000 connection through a bulkhead.
The NMEA 2000 network through bulkhead adapter is an essential accessory for any boat owner who wants to connect multiple electronic devices on board. It provides a secure and reliable way to route NMEA 2000 network cables through bulkheads or walls, ensuring seamless integration between different instruments and systems.
Specification
| Product name | NMEA 2000 through bulkhead adaptor |
| DWG No. | FT-A5-MF |
| Design | Panel feedthrough |
| Connector A | M12 connector, A code, 5 pin, male |
| Connector B | M12 connector, A code, 5 pin, female |
| Panel cut-out | 16 mm |
| Waterproof rating | IP67 |
| Mounting thread | M16 |
Advantages
One of the main advantages of this Bulkhead Feed-Thru Connector is that it simplifies the installation process of NMEA 2000 networks. It eliminates the need for tedious and time-consuming cable routing, which can be challenging, especially on larger vessels. The adapter is also perfect for retrofitting existing boats that don't have NMEA 2000 networks installed.
The NMEA 2000 network through bulkhead adapter is made of high-quality materials that ensure reliable performance in harsh marine environments. It is designed to withstand the rigors of saltwater, UV rays, and high temperatures, making it ideal for long-term use.
Furthermore, this adapter is compatible with a wide range of NMEA 2000 devices from different manufacturers, enabling easy integration of instruments such as GPS units, depth sounders, and VHF radios. Users can also expand their networks by adding new devices without worrying about cable routing, thanks to the adapter's ability to connect multiple cables.
