Industrial automation, machine vision and smart manufacturing require increasingly reliable high speed data transmission.
The IX Type B to M12 X Code Cat6A industrial Ethernet cable uses four pairs of 26AWG twisted conductors, multilayer shielding and a drain wire, with IX Type B and M12 8 pin X coded connectors at opposite ends.
This article covers its structure, operating principle, applications, compatibility risks, selection, installation and customization to help engineers and purchasing teams reduce cable selection errors.
This article focuses on the following questions:
- What is an IX B-Key to M12 X coded cable ?
- Why does a CAT6A SFTP cable use four twisted pairs ?
- How does an IX to M12 cable differ from RJ45 to M12 cables ?
- Why is stronger interference protection important in industrial automation environments ?
- Which pinout, interface and equipment parameters should be confirmed before purchasing ?
- How can cable length, cable material, connectors, pinout and overmolding be customized ?
- How can buyers select an industrial cable manufacturer for OEM, wholesale and long term project supply ?
Quick Product Introduction

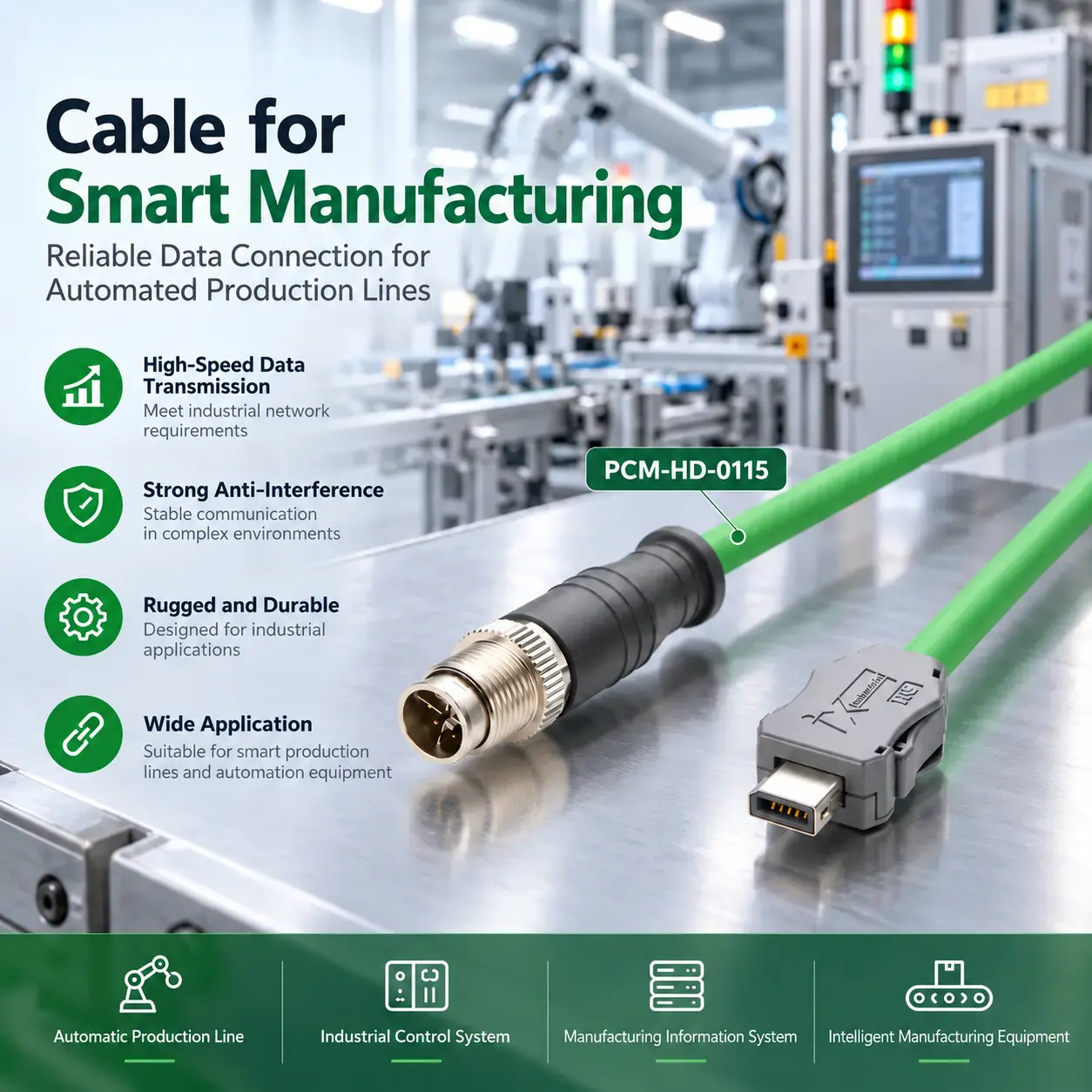

PCM-HD-0115 IX Type B to M12 X coded shielded cable for high speed industrial data connections.
| Product Name | IX Type B to M12 X Coded Cat6A Industrial Ethernet Cable |
| Premier Cable P/N | PCM-HD-0115 |
| Connector A | IX40G-B-10S-CV, Type B Male, 10 Pin, Solder Type |
| Connector B |
|
| Cable Type |
|
| Cable Length | 2000 ± 30 mm |
| Cable OD | 6.5 ± 0.2 mm |
| Conductor | 26AWG × 4 Pairs |
| Outer Jacket | Green TPU |
PCM-HD-0115 vs RJ45 to M12 Cable
| Comparison Item | PCM-HD-0115 IX Type B to M12 X Code | RJ45 to M12 X Code |
| Connector Structure | Compact IX connector saves device space | RJ45 is larger but widely used |
| Installation Space | Ideal for compact and high density equipment | Better suited to standard network devices |
| Industrial Application | Ideal for vision, robotics and controllers | Common for switches and network equipment |
| Connection Reliability | Industrial design provides secure connection | Standard RJ45 may need extra protection |
| Vibration Resistance | Better suited to demanding industrial environments | Less suitable for vibration intensive use |
| Wiring Advantage | Reduces adapters and improves integration | Requires relatively more installation space |
| Typical Users | Ideal for industrial OEMs and integrators | Suitable for general Ethernet users |
What Is an IX B-Key to M12 X Code Cat6A Cable ?
An IX Type B to M12 X Code Cat6A cable consists of IX and M12 X coded connectors, four twisted pairs, shielding, a TPU jacket and overmolding. It is designed for high speed data transmission between industrial devices. The twisted pair structure helps reduce crosstalk and improve differential signal stability.
Individual AL MYLAR shielding and overall braided shielding improve resistance to electromagnetic interference, while the drain wire supports shield grounding. This cable is suitable for machine vision, robotics, industrial control and automation equipment requiring high speed communication, reliable connections and strong interference resistance.
What Is IX Industrial ?
IX Industrial is a miniaturized connectivity solution for industrial Ethernet equipment, supporting reliable data interfaces within limited installation space.
Its key features include compact dimensions, high contact density and secure mechanical retention, helping reduce connector footprint while improving internal wiring efficiency.
IX interfaces are commonly used in compact PLCs, machine vision systems, robot controllers, embedded devices and industrial communication modules, especially where PCB or panel space is limited.
Main Industrial Data Connection Challenges
Core Product Value
PCM-HD-0115
The core advantages of PCM-HD-0115 can be summarized as:
◆ High Speed Data Transmission
The 26AWG four pair twisted construction supports high speed industrial data transmission. Its twisted pair design helps reduce crosstalk and maintain signal integrity for machine vision, robotics and automation applications.
◆ Enhanced EMI Protection
Individual AL MYLAR shielding combined with overall braided shielding helps reduce external electromagnetic interference and pair-to-pair interference, supporting stable data communication in demanding industrial environments.
◆ Compact and Reliable Connection
IX Type B and M12 X coded connectors provide direct connectivity between different industrial devices. Compact connectors, TPU jacket, metal shells and overmolding improve mechanical protection while reducing adapters and field termination.
◆ Flexible Project Customization
Connector type, pinout, cable length, jacket and cable specifications can be customized for OEM, machine vision, robotics and automation projects, supporting different equipment designs and installation requirements.

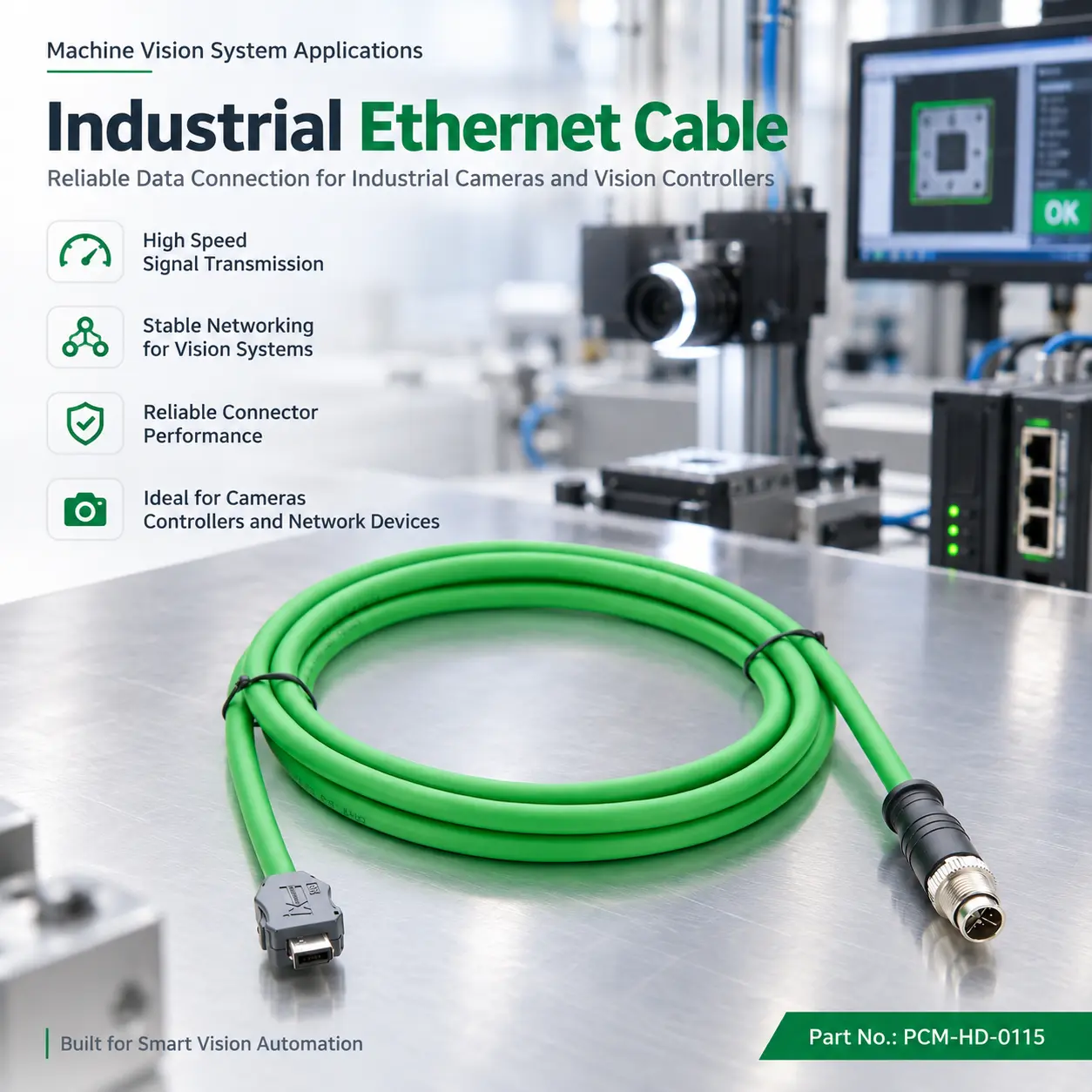

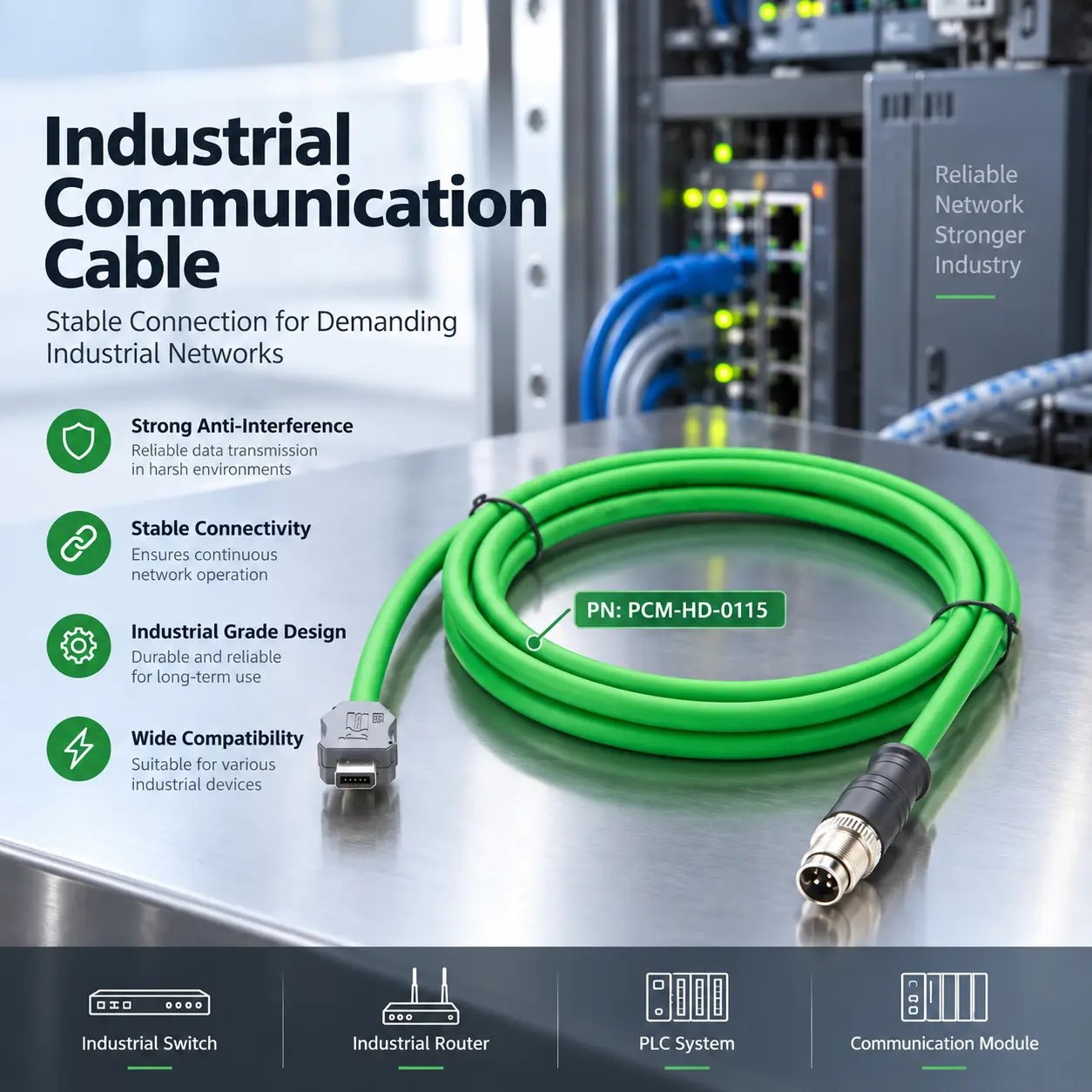

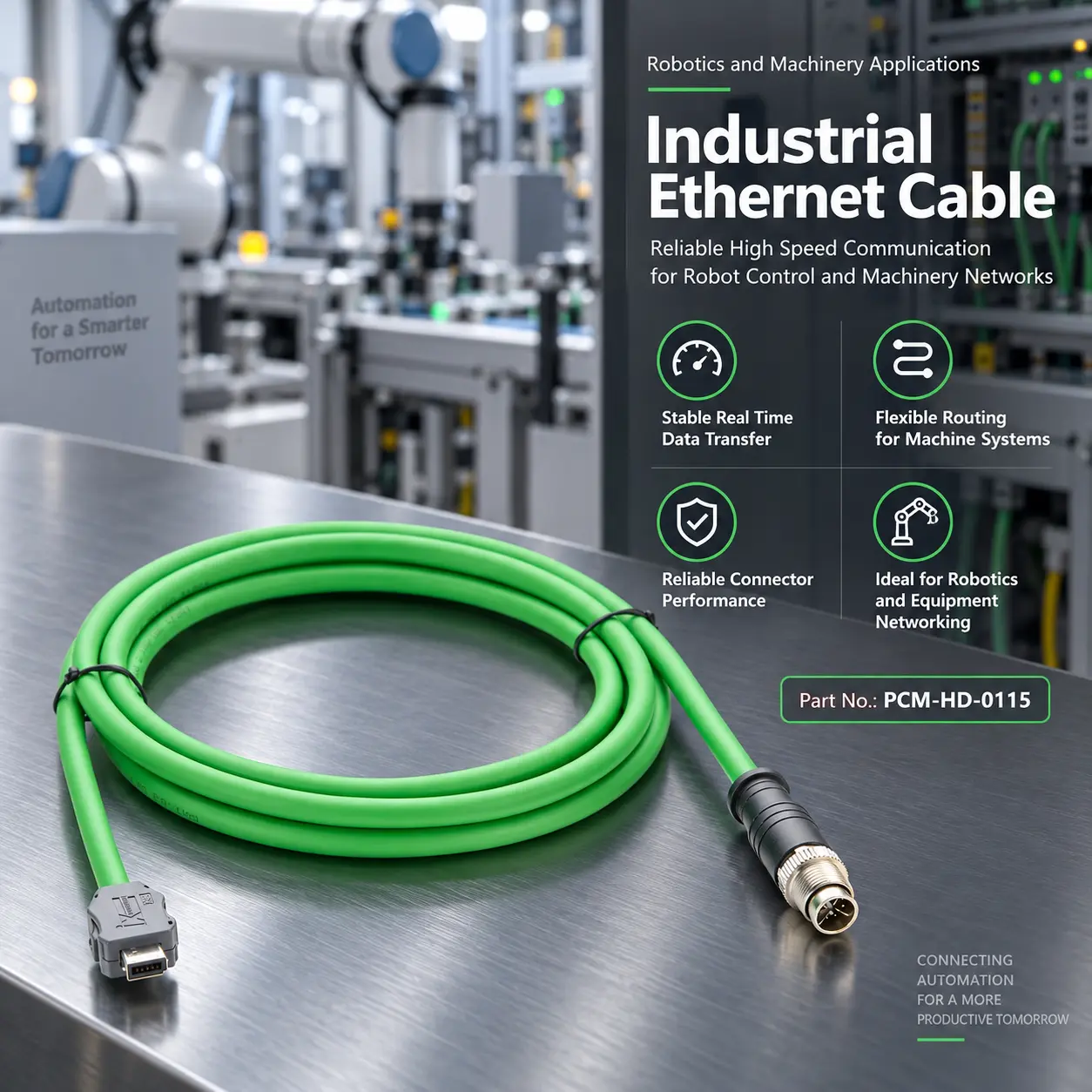

Products Display

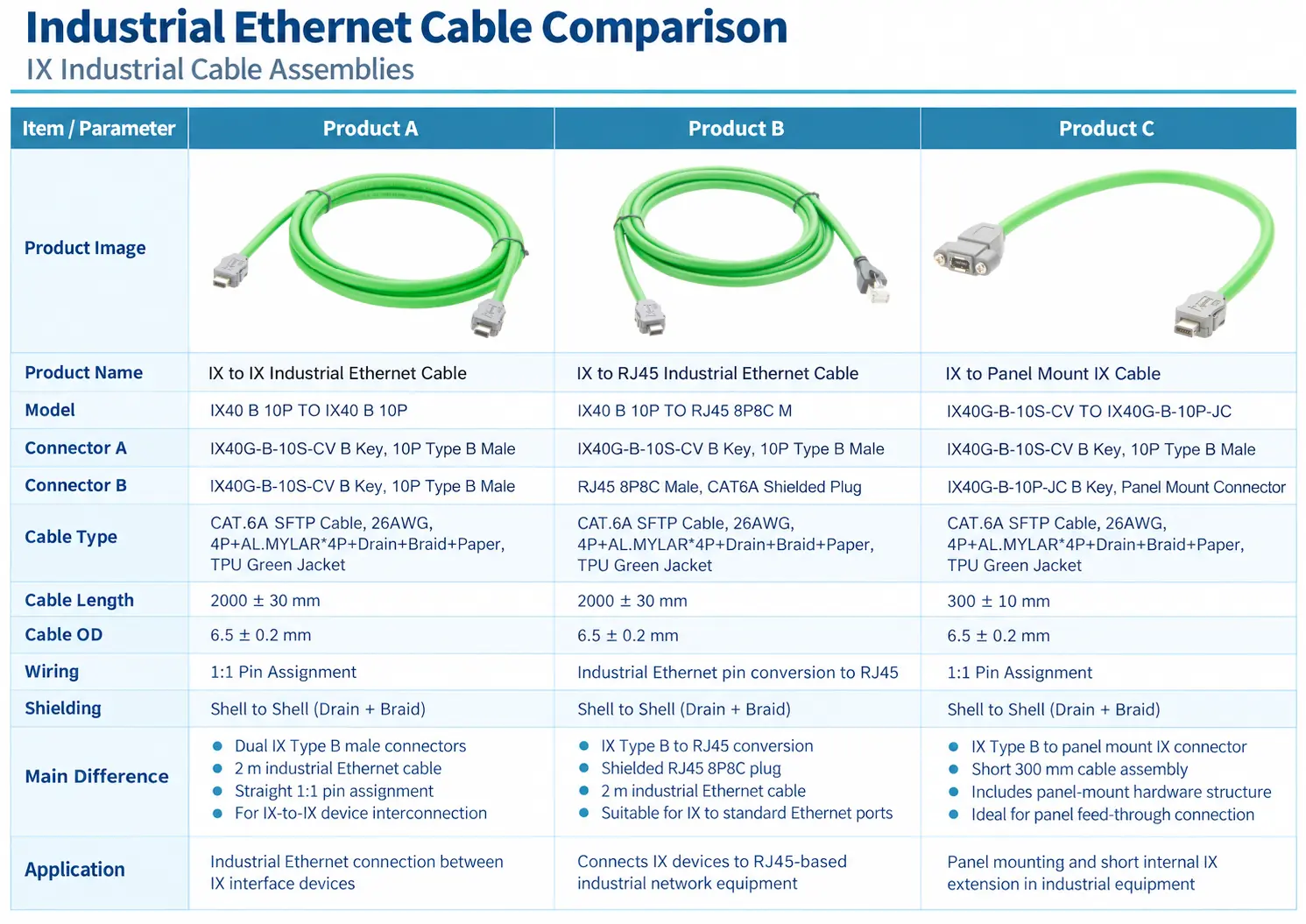

Similar products
Product Compatibility Statement
Compatibility Verification
- IX Type B, M12 X coding and Cat6A specifications alone do not guarantee compatibility. Before selection, confirm connector type, gender, complete pinout, pin mapping, communication protocol and shielding requirements to avoid physical mating without proper communication.
Passive Transmission & Link Performance
- This product is a passive cable assembly and does not actively convert protocols or signal formats. Actual link performance depends on cable length, Cat6A construction, shield continuity, equipment interfaces and installation conditions, so the complete link should be verified before use.
How to Select the Correct IX to M12 Cable ?
Confirm Interfaces and Pinout
Confirm connector type, key code, pin count, gender and complete pinout at both ends, and verify each pin mapping to avoid physical mating without proper communication.
Confirm Transmission and Shielding
Select the cable according to data rate, network type and cable category, and confirm shielding and grounding requirements when motors, drives or other interference sources are present.
Confirm Installation Environment
Consider fixed installation, flexing, abrasion, temperature and space limitations when selecting jacket material, cable diameter, length and cable exit direction.
Confirm Testing and Project Requirements
For bulk or custom projects, confirm continuity, short circuit, pinout and visual testing, together with required length, tolerance, labeling and packaging standards.
Customization Capabilities
↕ Custom Cable Length
Cable length can be customized according to equipment distance, cabinet space and routing requirements.
□ Connector Configuration
IX type, M12 coding, connector gender and connector combinations can be customized.
◉ Custom Pinout and Wiring
Pin mapping and wiring can be customized according to the equipment pinout.
⚙ Custom Cable Construction
AWG, cable diameter, shielding, jacket material and color can be customized.
⌘ Protection section
Overmolding, strain relief, labels and product identification can be customized.
◇ OEM Bulk Projects
OEM bulk orders are supported with custom packaging, labeling and testing requirements.
Conclusion：
PCM-HD-0115 is an IX Type B to M12 X Code Cat6A industrial Ethernet cable featuring four 26AWG twisted pairs, individual AL MYLAR shielding, overall braided shielding, a drain wire and TPU jacket for high speed industrial data connections.
Selection should confirm the IX Type B interface, M12 X coding, complete pinout, shield grounding and installation conditions. For custom, bulk or OEM projects, providing equipment models, drawings, length, quantity and operating requirements helps reduce compatibility risks and later modification costs.
Product FAQ
Can It Work with All Industrial Ethernet Devices ?
No. IX Type B, M12 X coding, pinout and communication definitions must match.
Are IX Type A and IX Type B Interchangeable ?
Not directly. Different key codes serve different applications and must match equipment specifications.
Why Use Dual Shielding ?
Pair foil and braided shielding help reduce crosstalk and electromagnetic interference.
Does Cat6A Guarantee Complete Cable Performance ?
Not always. Performance also depends on connectors, termination, shielding, length and testing.
Can Length and Pinout Be Customized ?
Yes. Cable length and wiring can be customized to equipment and project requirements.
What Information Is Needed for Quotation ?
Provide equipment model, connectors, pinout, length, quantity, environment and testing requirements.
