XT90 Panel Mount Power Cable :
Features, Applications And Selection Guide
Learn how an XT90 panel mount power cable combines 60A DC continuous-current capacity, UL1015 10AWG wiring, secure flange mounting and reinforced PVC overmolding for batteries, robots, energy storage systems and industrial DC power applications.
Quick Product Introduction

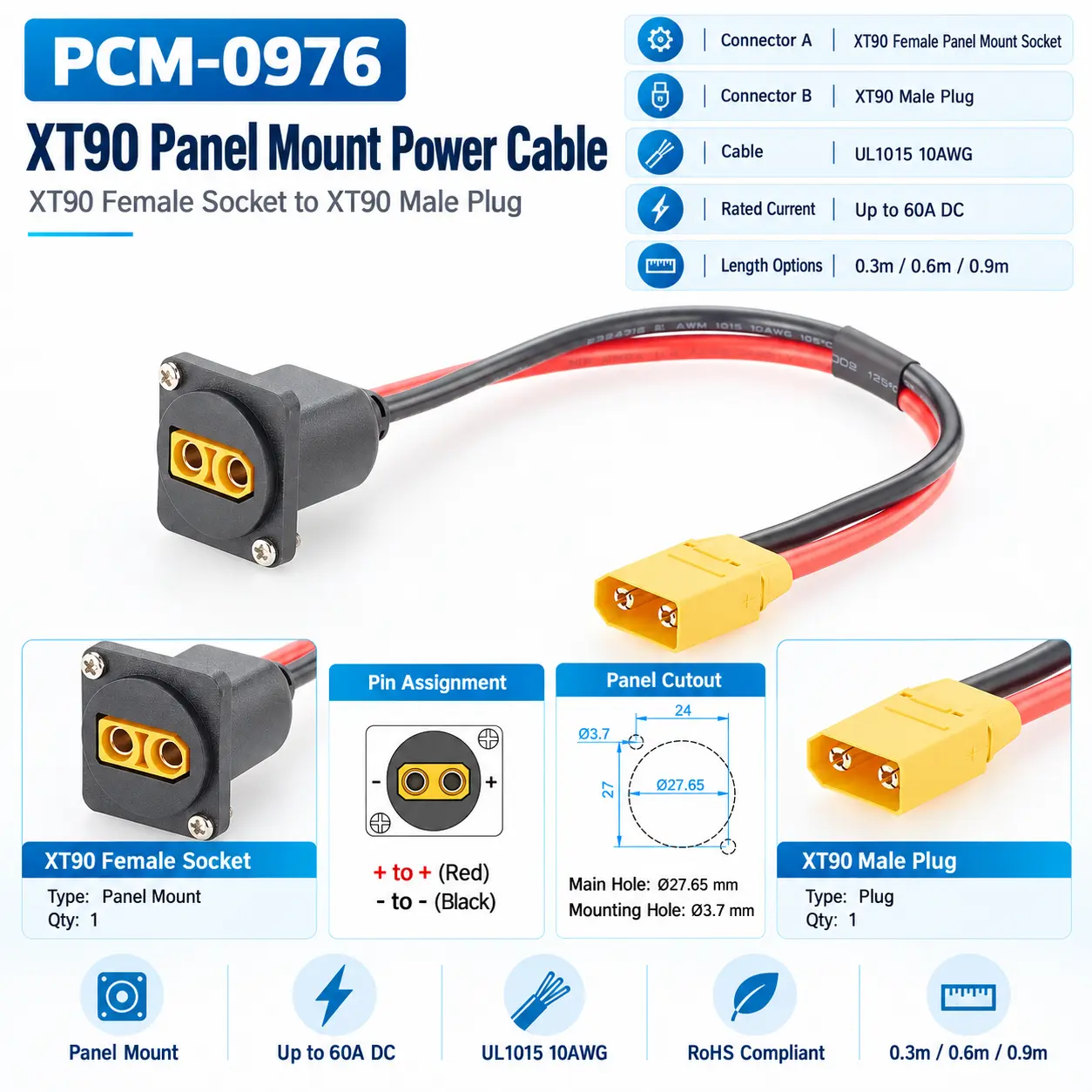

| Product Name | XT90 Panel Mount Power Cable |
| Premier Cable P/N | PCM-0976 |
| P1 Connector | XT90 Female Socket, Panel Mount |
| P2 Connector | XT90 Male Plug |
| Cable | UL1015 10AWG |
| Conductor Quantity |
|
| Rated Operating Current | Up to 60A DC Continuous Current |
| Main Panel Cutout | Ø27.65 mm |
| Locking Method | Embedded Mounting Nuts with M3 Screws |
PCM-0976 vs Standard XT90 Extension Cable
| Comparison | PCM-0976 Panel Mount | Standard XT90 Extension Cable |
|---|---|---|
| Interface Position | Fixed on Equipment Panel | Usually Suspended on Cable |
| Equipment Integration | Better for Equipment Integration | Better for Cable to Cable Connection |
| Installation | Flange and Screw Mounting | Normally No Panel Mount |
| Plugging Position | Fixed External Equipment Interface | Connector Moves with Cable |
| Internal Harness Protection | Can Reduce Direct External Loads on Internal Wiring | Cable Can Receive Pulling Force Directly |
| Maintenance | Defined Interface Position | Cable Position May Vary |
What Is an XT90 Panel Mount Power Cable ?
An XT90 panel mount power cable is a pre-assembled DC cable combining high-current transmission, panel mounting and quick-disconnect capability.
PCM-0976 uses an XT90 female panel mount socket at one end, an XT90 male plug at the other, and UL1015 10AWG red and black wires for positive and negative power transmission It is suitable for battery systems, robots and industrial equipment requiring a fixed power interface, high-current delivery, clear polarity and convenient maintenance.
Operating Principle
The operating principle of PCM-0976 does not involve voltage conversion, communication protocol conversion or electronic control
When the XT90 male plug is correctly mated with a compatible XT90 female connector, the internal metal contacts establish the electrical path.
The red 10AWG wire carries the positive circuit and the black 10AWG wire carries the negative circuit, completing power transmission between the equipment and a battery, power module or other DC power source.
The product is therefore fundamentally a high-current DC physical power connection assembly, not a power converter.
What problem does PCM-0976 solve
Core Product Value
PCM-0976
The core advantages of PCM-0976 can be summarized as:
◆ High Current Power Capability
PCM-0976 combines XT90 connectors with UL1015 10AWG red and black power wires and supports up to 60A DC continuous current. It is suitable for batteries, motor drives, robots, energy storage systems, inverters and industrial DC power applications.
◆ Organized Panel Mounting
The XT90 female socket mounts securely to an enclosure or control panel, creating a defined external power interface while reducing internal cable movement. Embedded mounting nuts simplify installation for control boxes, robots, power equipment and compact assemblies.
◆ Clear Polarity Identification
Red positive and black negative wires provide clear polarity identification during assembly, testing and maintenance, helping reduce wiring errors. PVC overmolding also reinforces the connector-to-wire transition for improved mechanical protection and handling.
◆ Flexible Application Options
Standard lengths of 0.3m, 0.6m and 0.9m are available, with OEM customization supported. The cable can be used in drones, robots, battery packs, chargers, energy storage systems, electric equipment, inverters and industrial control systems.
Products Display
Similar products
Compatibility Statement
Interface Compatibility Must Be Verified
- Mechanical mating of XT90 connectors does not guarantee system compatibility. Before purchasing, verify connector gender, polarity, operating voltage, current, cable length, panel cutout, screw positions and installation space. Mechanical mating does not guarantee electrical compatibility.
Continuous Current Must Be Verified
- The product supports up to 60A DC continuous current, but actual performance depends on cable length, ambient temperature, contact resistance, harness bundling, heat dissipation and duty cycle. High-current systems should be validated through temperature-rise, voltage-drop and load testing.
How to Select the Correct XT90 Panel Mount Power Cable ?
How to confirm the interface and polarity ?
Confirm XT90 connector gender and polarity against the battery, power module and equipment drawing to prevent incorrect electrical connections.
How to confirm the current and wire length ?
Verify continuous current, peak current and cable length. Avoid unnecessary cable length in high-current systems to reduce resistance, voltage drop and heat.
How to confirm the panel installation dimensions ?
Verify the 27.65mm key opening dimension, mounting holes, panel thickness, rear clearance, plug access and cable bending space.
How to confirm the actual usage environment ?
Confirm temperature, water, oil, dust, vibration, mating cycles, flame resistance and flexing requirements before selecting the standard product.
Customization Capabilities
↕ Custom Cable Length
Standard lengths are 0.3m, 0.6m and 0.9m. Custom lengths and controlled tolerances are available for project requirements.
□ Custom XT90 Configuration
XT90 gender combinations, panel orientation and equipment-side connection methods can be customized to suit the application.
◉ Custom Polarity and Wiring
Polarity, wire order, wire colors and internal wiring can be customized according to approved customer drawings.
⚙ Custom Wire Specification
Alternative wire specifications can be selected for different current, temperature, flexibility and certification requirements.
⌘ Custom Mounting Structure
Mounting screws, nuts, orientation, cable exit direction and mechanical dimensions can be customized for different panels.
◇ Customized appearance
PVC overmolding, labels, part numbers, harness markings and bulk packaging can be customized for OEM and volume orders.
Conclusion：
PCM-0976 XT90 panel mount power cable combines an XT90 quick-disconnect interface, panel mounting structure, UL1015 10AWG red and black wires and PVC overmolding It supports up to 60A DC continuous current and is available in 0.3m, 0.6m and 0.9m lengths. It is suitable for robots, batteries, energy storage, inverters and industrial DC systems.
Connector gender, polarity, current, voltage, mounting dimensions and operating environment should be confirmed before purchase, with customization available for cable length, wire, mounting, labeling and packaging.
Product FAQ
Is It Compatible with All XT90 Devices ?
Not always. Verify XT90 gender, polarity, operating voltage, current, cable length and panel structure. Mechanical mating does not guarantee electrical compatibility.
Why Is 10AWG Wire Used ?
10AWG provides a larger conductor area for high-current DC transmission, helping reduce resistance, voltage drop and heat. Actual load conditions should still be verified.
What Applications Can Use It ?
It can be used in compatible drones, robots, motor systems, energy storage equipment and inverters. Peak current, voltage and thermal conditions should be checked.
How Are Red and Black Wires Defined ?
In the standard version, red is positive and black is negative. Polarity should still be verified against equipment drawings, battery definitions and actual connector wiring.
What Must Be Checked for Panel Mounting ?
The 27.65mm value is only a key opening dimension. Also verify mounting holes, screw spacing, panel thickness, rear clearance and plug access space.
Is OEM Customization Available ?
Custom options include cable length, wire, XT90 configuration, polarity, cable exit direction, PVC overmolding, labels and mounting hardware. Drawings and samples should be approved before production.
