BNC to SMA panel mount RF adapter for reliable RF signal transmission between BNC and SMA interfaces.
The BNC to SMA panel mount RF adapter is used to convert between different RF interfaces in RF testing wireless communication laboratory instruments and automated test equipment.
This article covers its 50 ohm impedance DC to 6 GHz frequency range VSWR structure working principle applications compatibility risks and selection methods as well as custom wholesale and manufacturer services Proper selection requires matching connector type frequency impedance and mounting structure.

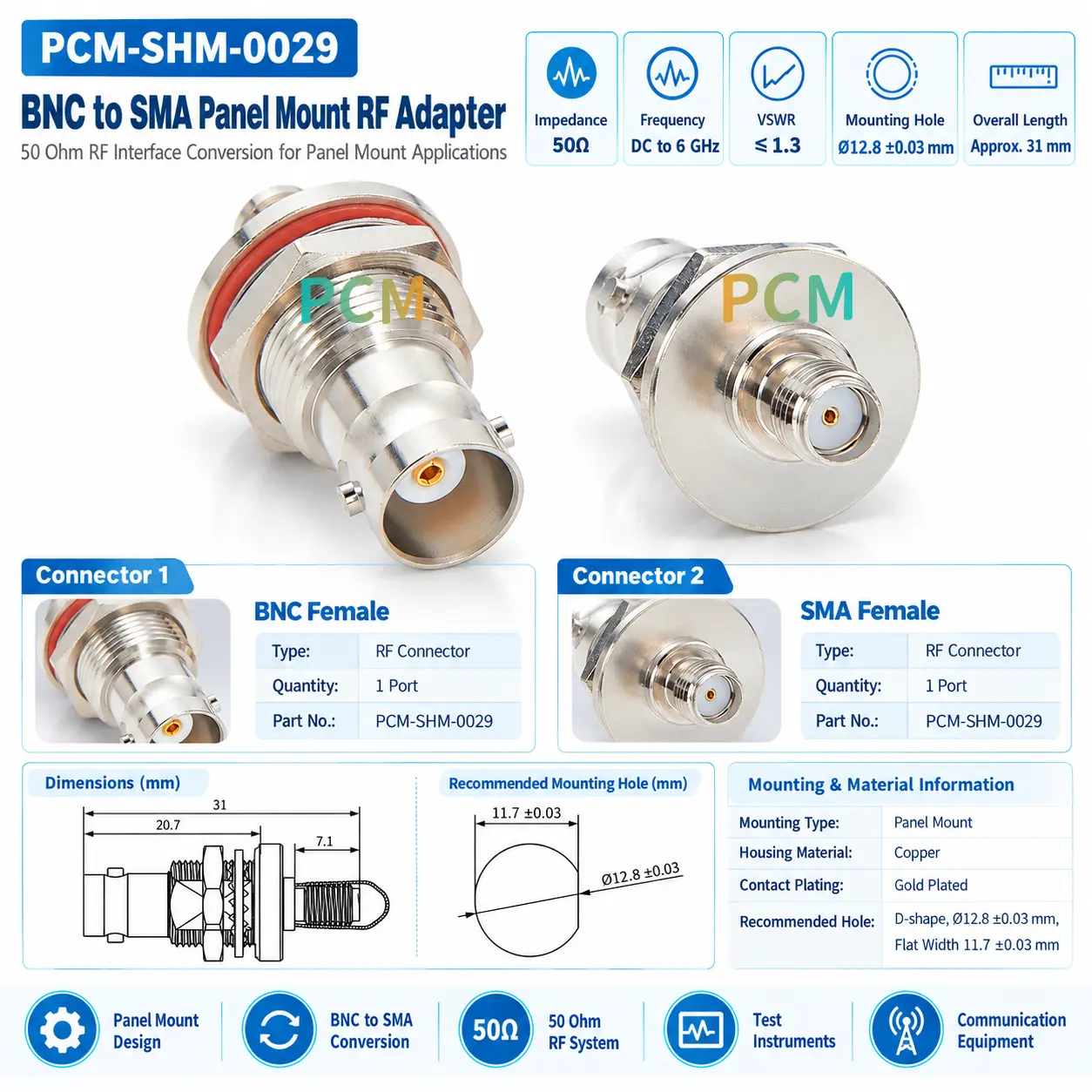

Quick Product Introduction
| Product Name | BNC to SMA Panel Mount RF Adapter | |
| Premier Cable P/N | PCM-SHM-0029 | |
| Connector A | BNC Female | |
| Connector B | SMA Female | |
| Mounting Type | Panel Mount / Bulkhead Mount | |
| Impedance | 50Ω | |
| Frequency Range | DC～6GHz | |
| VSWR | ≤1.3 | |
| Hole size |
12.8±0.03mm
|
|
| Contact Plating | Gold Plated |
BNC to SMA Panel Mount Adapter vs Standard Adapter
| Comparison | BNC to SMA Panel Mount Adapter | Standard Adapter |
| Mounting | Fixed to an equipment panel | Usually connected directly to a cable or equipment port |
| Interface | BNC Female to SMA Female | Varies by model |
| Mechanical Stability | Better for long term fixed connection | Better for temporary adaptation |
| Equipment Integration | Ideal for enclosures, instruments and panels | Limited panel integration |
| Applications | instruments, test and communication equipment | General interface conversion |
What Is a BNC to SMA Panel Mount RF Adapter ?
A BNC to SMA panel mount RF adapter is a passive RF connector used to convert a BNC interface to an SMA interface.
"Panel mount" or "bulkhead" means the adapter can be fixed through an equipmenta panel making it suitable for instruments test equipment and communication devices.
RF signals travel through the center conductor while the outer metal structure provides shielding and the return path Its design helps maintain 50-ohm impedance, reducing reflection and supporting stable signal transmission at GHz frequencies.
Working Principle
RF signals enter through the BNC side and travel to the SMA side through the internal coaxial structure.
The center conductor carries the signal while the outer conductor provides the return path and shielding helping maintain approximately 50 ohm impedance.
Impedance changes can cause signal reflection so VSWR is a key matching parameter With VSWR ≤1.3 from DC to 6 GHz this adapter helps reduce reflections and maintain signal integrity between compatible 50 ohm BNC and SMA devices.
Problems Faced by RF Adapters
Core Product Value
PCM-SHM-0029
The core advantages of PCM-SHM-0029 can be summarized as:
◆ Efficient BNC to SMA Conversion
The adapter connects BNC and SMA RF equipment without modifying existing interfaces It is suitable for test instruments communication modules and RF systems helping solve connection requirements between different RF interfaces while improving equipment compatibility and system integration efficiency.
◆ Supports DC to 6 GHz RF Applications
The DC to 6 GHz operating frequency covers many common RF testing and communication applications It supports compatible test equipment wireless communication modules and RF systems providing a stable and reliable interface conversion solution for RF signal connections.
◆ 50 Ohm Impedance and Low Reflection
The 50 ohm impedance design and VSWR ≤1.3 performance support compatible 50 ohm RF equipment and coaxial systems helping reduce impedance discontinuities and signal reflections at the interface while improving signal consistency in RF test and communication links.
◆ Panel Mount and Compact Design
The panel mount structure securely fixes the adapter to the equipment enclosure allowing the panel to support mating forces and reducing mechanical load on internal interfaces Its approximately 31 mm compact length also supports integration into space-limited test, communication and automation equipment.

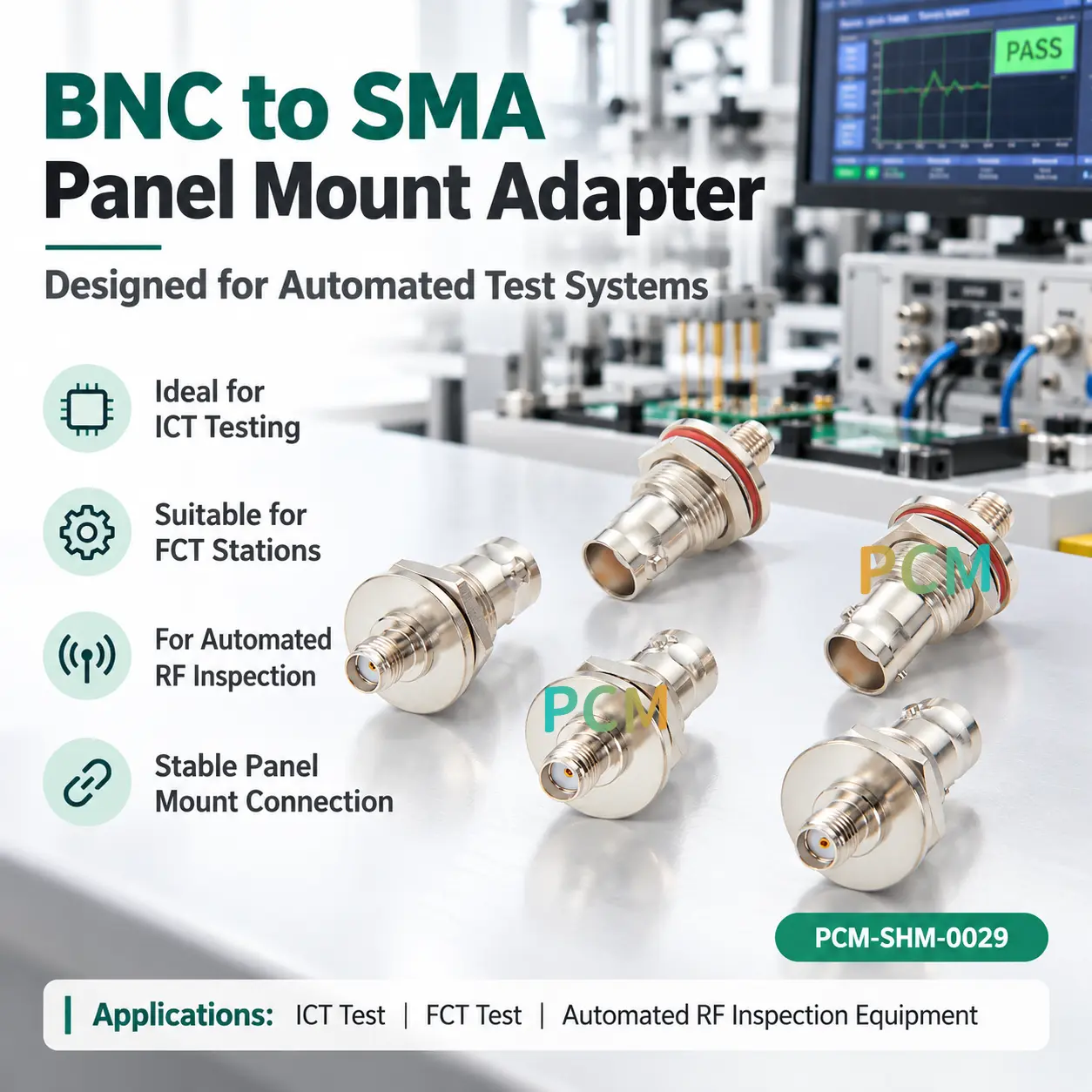

Products Display

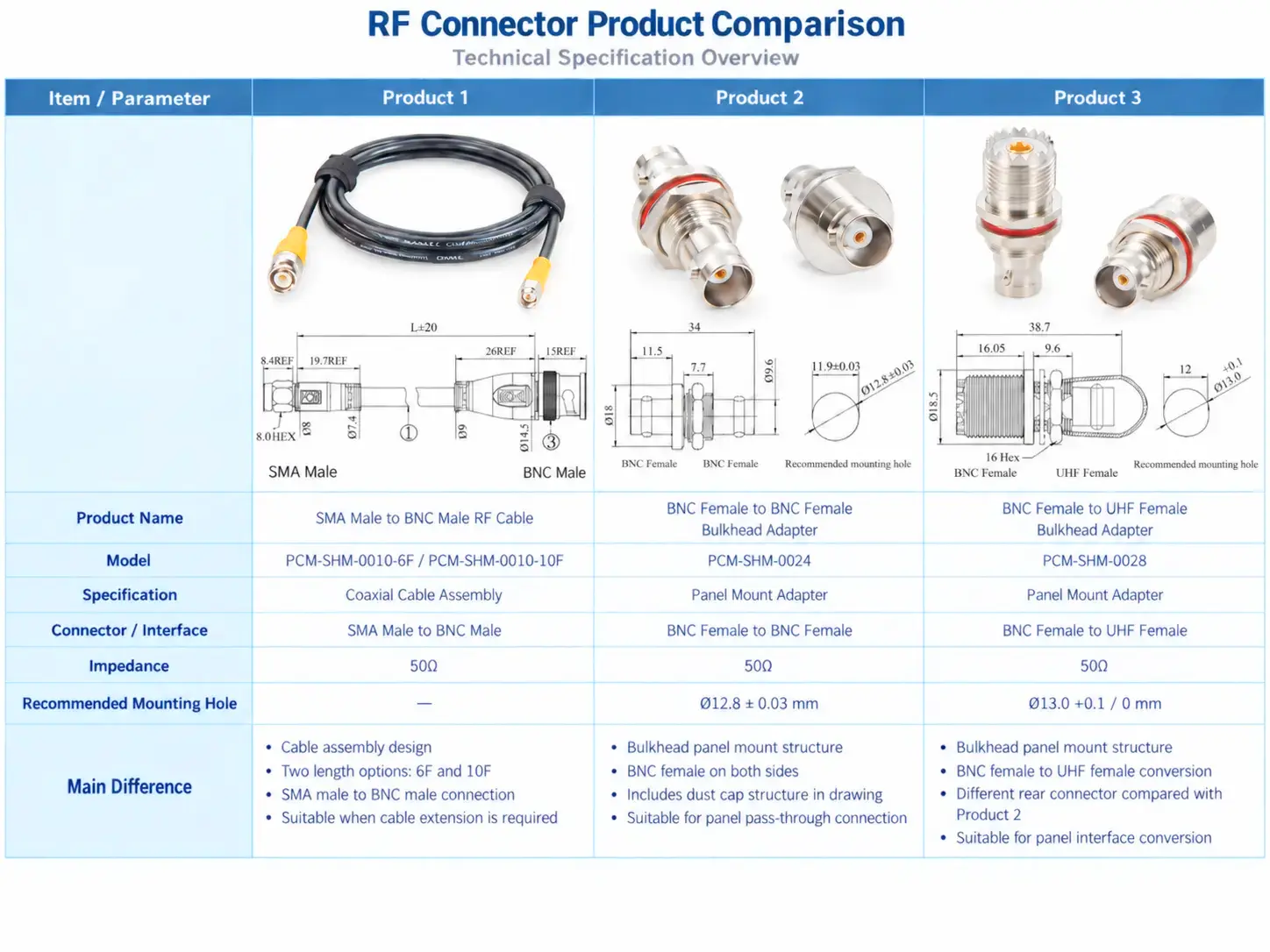

Similar products
Compatibility Statement
Electrical and Interface Compatibility
- BNC to SMA conversion does not guarantee compatibility with every device Before purchasing confirm the 50 ohm system impedance BNC female and SMA female interfaces DC to 6 GHz frequency range VSWR insertion loss and other RF requirements Systems using 75 ohm impedance higher frequencies or special performance requirements require further compatibility evaluation.
Installation and Environmental Requirements
- Before installation, confirm the 12.8±0.03 mm mounting hole diameter panel thickness, fastening method internal clearance and connector orientation Do not assume compatibility with undefined power voltage temperature waterproof or protection requirements. Aerospace outdoor and high-reliability applications also require verification of materials mechanical life and relevant certifications.
How to Select a BNC to SMA RF Adapter ?
Confirm Connector Type Gender and Impedance
Confirm BNC and SMA connector types, gender and system impedance This adapter is BNC female to SMA female with a 50 ohm design for compatible 50 ohm RF equipment and cables.
Check Frequency and VSWR Performance
Select the adapter according to the maximum system frequency This model supports DC to 6 GHz with VSWR ≤1.3 Precision RF applications should also evaluate total link reflection performance.
Check Panel Size and Installation Space
Confirm the 12.8±0.03 mm mounting hole panel thickness internal clearance connector orientation and tool access to ensure proper mounting and connection.
Evaluate Application Environment and Requirements
For high-temperature, vibration, outdoor, high-power or other special environments verify materials temperature range mechanical life protection rating and relevant testing or certification requirements.
Customization Capabilities
↕ Connector Customization
BNC SMA and other RF connector types genders and configurations can be customized for different equipment requirements.
□ Mounting Customization
Bulkhead length thread structure fastening method and mounting dimensions can be customized for different panel designs.
◉ RF Performance Customization
RF solutions can be evaluated according to operating frequency impedance and VSWR requirements for specific applications.
⚙ Material and Plating
Housing contact materials and plating can be customized for conductivity corrosion resistance and environmental requirements.
⌘ Dimension Customization
Product length mounting position and connector orientation can be customized according to equipment drawings for easier integration.
◇ OEM Volume Services
Sample evaluation OEM customization and volume purchasing are supported with drawings and specifications confirmed before production.
Conclusion：
The BNC to SMA panel mount RF adapter is an important RF interface conversion component This 50 ohm adapter supports DC to 6 GHz with VSWR ≤1.3 and is suitable for RF testing, communication and automation equipment.
Selection should consider connector gender, impedance, frequency, VSWR and mounting dimensions Connector dimension material OEM customization and volume purchasing services are also available for equipment manufacturers and system integration projects.
Product FAQ
Is It Compatible with All BNC Devices ?
No. This is a 50 ohm adapter Confirm impedance connector gender and operating frequency before use.
What Is the Maximum Frequency ?
The adapter supports DC to 6 GHz The complete RF path must also meet the required frequency.
What Does VSWR ≤1.3 Mean ?
VSWR ≤1.3 indicates good impedance matching under specified conditions helping reduce signal reflections.
What Connectors Does It Mate With ?
The BNC female mates with BNC male while the SMA female mates with SMA male.
What Mounting Hole Is Required ?
The mounting hole is 12.8±0.03 mm Panel thickness clearance and mounting structure should also be checked.
Are Custom and OEM Services Available ?
Connector, dimension and mounting customization are available along with samples volume orders and OEM services.
