A Micro DB9 to DB9 serial cable may appear to be a simple adapter cable between two 9 pin connectors, but connector shape alone does not determine whether the cable will work correctly. Connector gender, mechanical dimensions, locking screw specifications, pinout, DTE and DCE relationships, straight through or null modem wiring, shell grounding and the serial port definition of the target equipment can all directly affect compatibility.
This article explains the construction, operating principle, technical advantages, application challenges, shielding design, compatibility risks and correct selection of a Micro DB9 to DB9 female RS232 serial cable from an engineering perspective. It also explains Micro DB9 serial cable customization, OEM manufacturing, factory wholesale supply and project based production capabilities to help equipment manufacturers, system integrators, maintenance providers and industrial purchasing teams reduce selection errors and bulk purchasing risks.
Quick Product Introduction

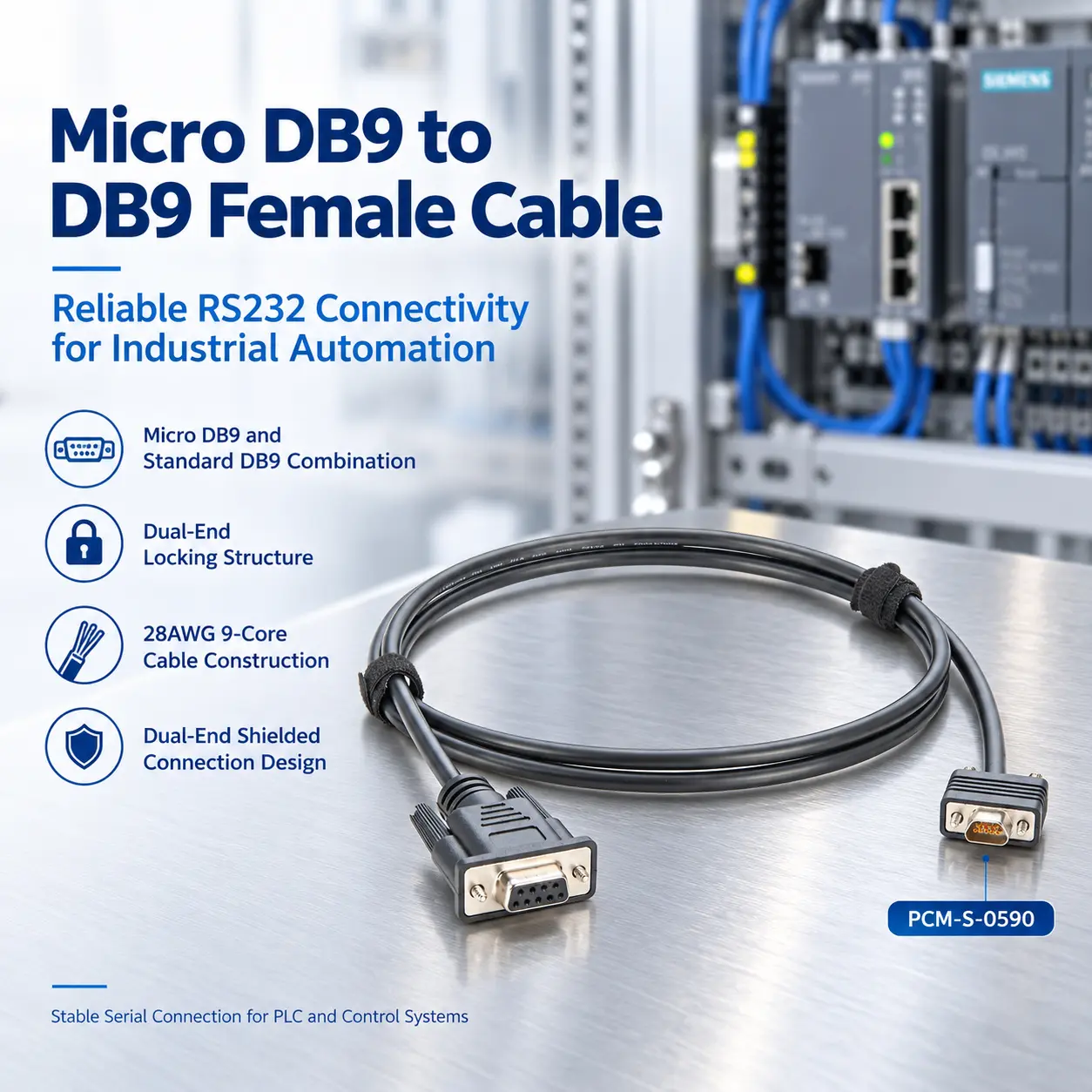

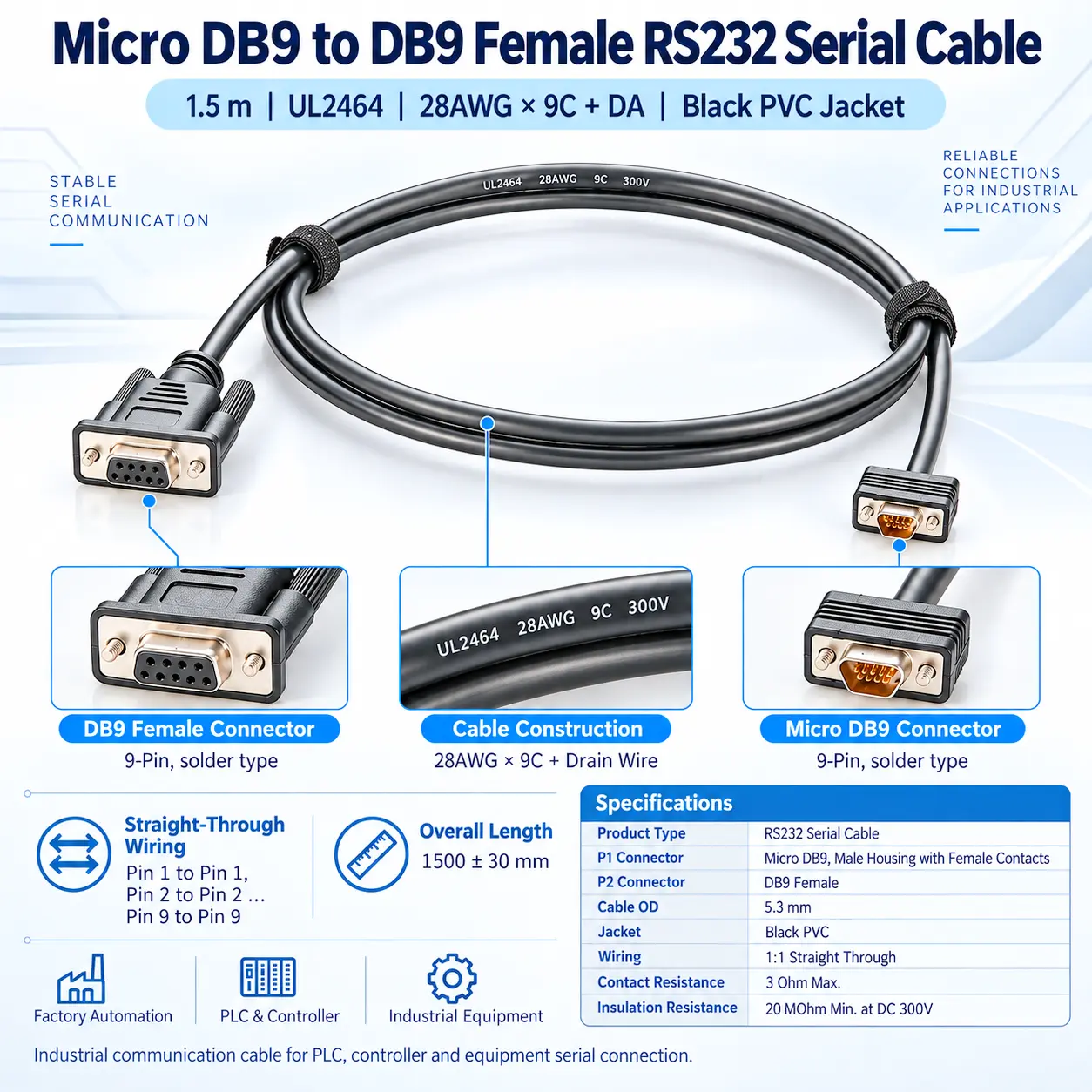

PCM-S-0590 is a Micro DB9 female to standard DB9 female serial cable equipped with mechanical locking screws, designed for stable serial signal connections in industrial equipment.
| Product Name | Micro DB9 to DB9 Female RS232 Serial Cable |
| Premier Cable P/N | PCM-S-0590 |
| P1 Connector | Micro DB9 9-Pin Connector |
| P2 Connector | DB9 9-Pin Female Connector |
|
|
1.5 m |
| Wire Gauge | 28AWG × 9C + DA |
| Termination | Solder Type |
| Cable Standard | UL2464 |
| Application Type | RS232 Serial Signal Connection |
Micro DB9 to DB9 Serial Cable Compared with Other Connection Solutions
| Comparison | Micro DB9 to DB9 RS232 Cable | Standard DB9 to DB9 Cable |
| Main Purpose | Connects compact serial ports to standard DB9 equipment | Connects two standard DB9 serial devices |
| Micro DB9 Support | Yes | No |
| Driver Required | Normally no driver for the cable itself | Normally no |
| Connector Footprint | More compact on the Micro DB9 side | Larger |
| Pinout Requirement | Must be verified | Must be verified |
| Locking Structure | Screw locking can be used at both ends | Usually supported |
| Typical Applications | Servers storage industrial control and high density equipment | Traditional PCs industrial equipment and instruments |
What Is a Micro DB9 to DB9 Female RS232 Serial Cable ?
A Micro DB9 to DB9 female RS232 serial cable connects a compact Micro DB9 interface to standard DB9 serial equipment, making it suitable for servers, storage systems, and industrial control devices with limited installation space. It provides physical interface adaptation and signal transmission rather than active protocol conversion.
Before use, verify the RS232 electrical standard, pinout, and wiring of TXD, RXD, GND, and related control signals.
Why Is This Cable Needed?
Traditional DB9 connectors are mechanically reliable but occupy relatively large panel space. On servers, storage systems, industrial computers and high density electronic equipment, connector space is often limited.
Micro DB9 connectors reduce the connector footprint while retaining multicircuit serial connectivity.
When maintenance personnel need to access equipment fitted with a Micro DB9 interface using a standard DB9 serial terminal, industrial PC, diagnostic device or USB to serial adapter, a Micro DB9 to DB9 serial cable with the correct mechanical interface and electrical pinout is required.
Problems Faced by Micro DB9
Core Product Value
PCM-S-0590
The core advantages of PCM-S-0590 can be summarized as:
◆ Compact Connector Design Saves Installation Space
The compact Micro DB9 interface is suitable for high-density equipment, control cabinets, and space-limited installations, reducing connector space while maintaining serial connectivity.
◆ Nine Conductor Design Supports Multiple Serial Signals
The standard DB9 connector on the opposite end enables convenient connection to industrial equipment, computers or maintenance terminals with a compatible serial interface.

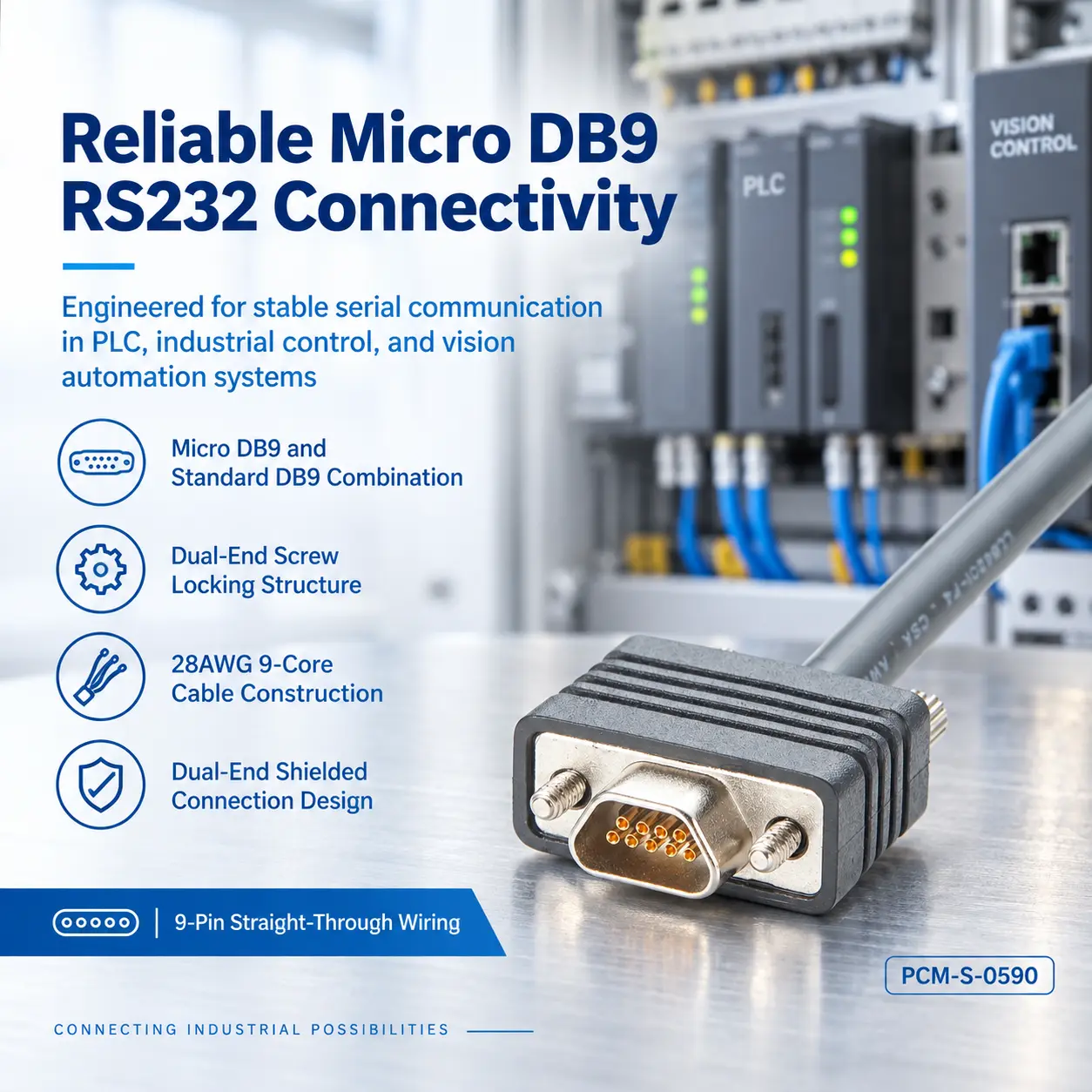

◆ Dual Mechanical Locking Improves Connection Stability
Mechanical locking on both Micro DB9 and standard DB9 ends helps reduce accidental disconnection caused by vibration, equipment movement, or cable pulling.
◆ Shielding Structure Improves Industrial EMI Resistance
The drain wire bonds the shielding system to the connector shell, supporting EMI control when properly grounded, while the UL2464 PVC cable balances durability and routing flexibility.

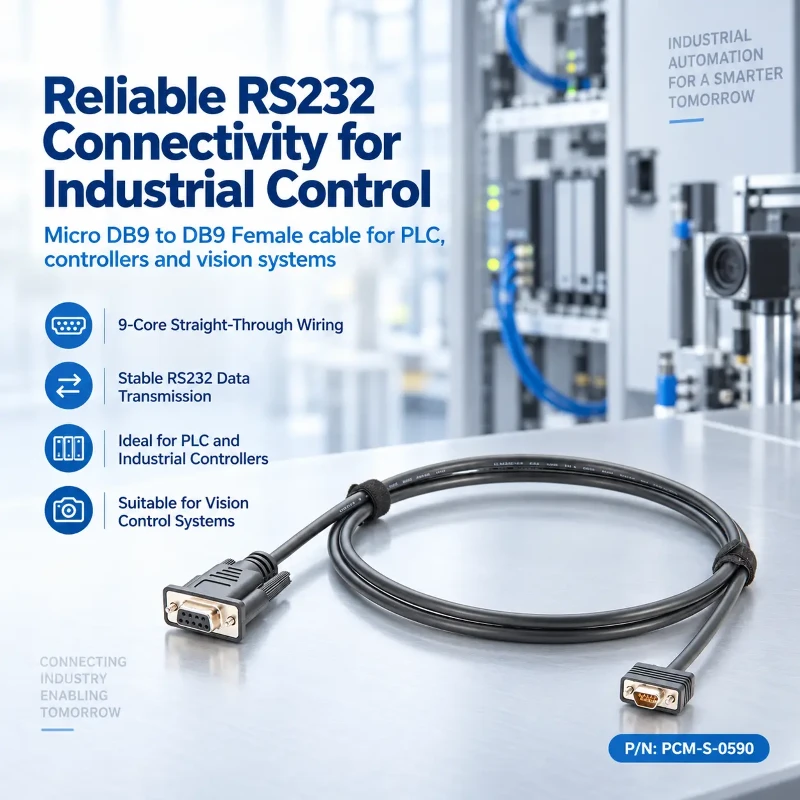

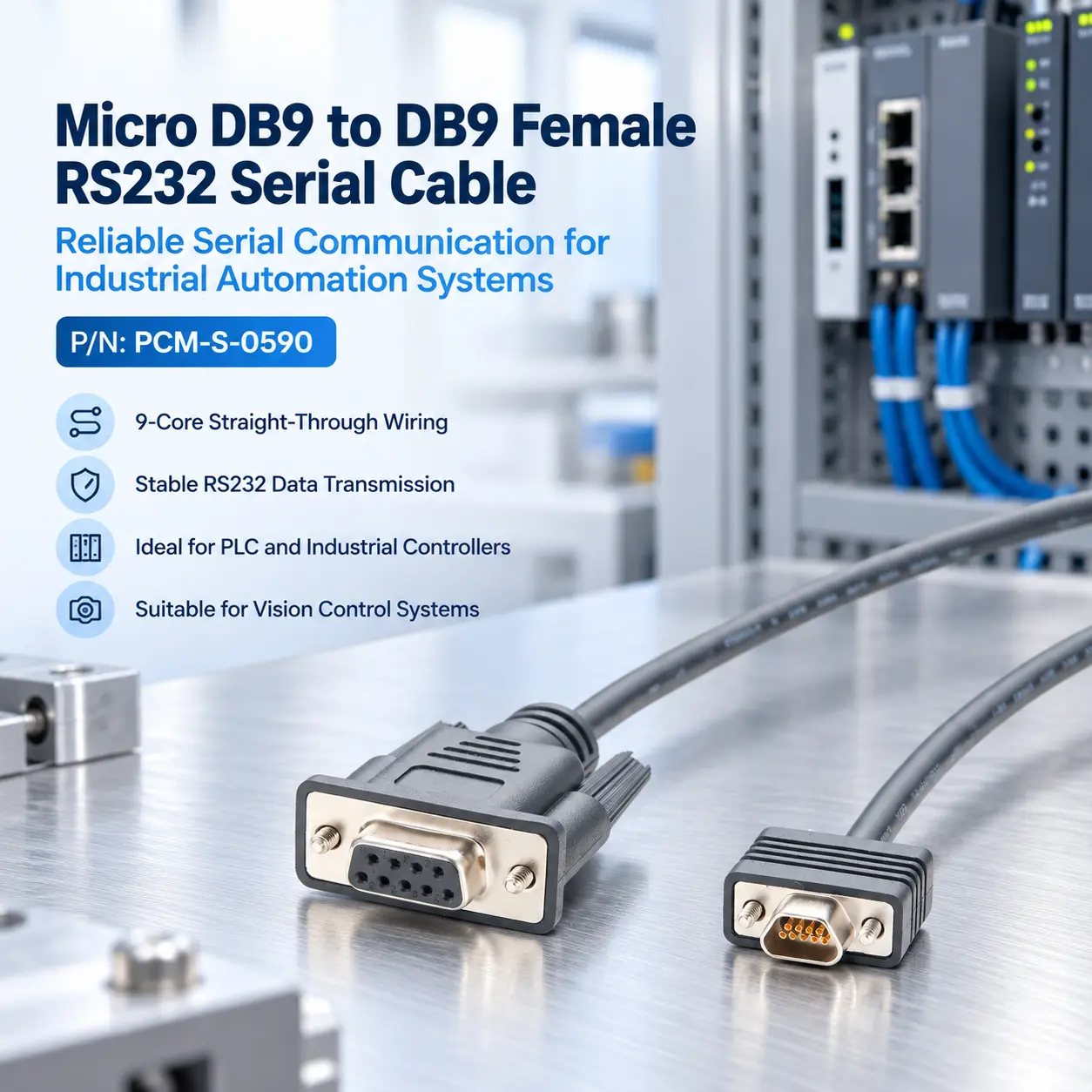

Products Display

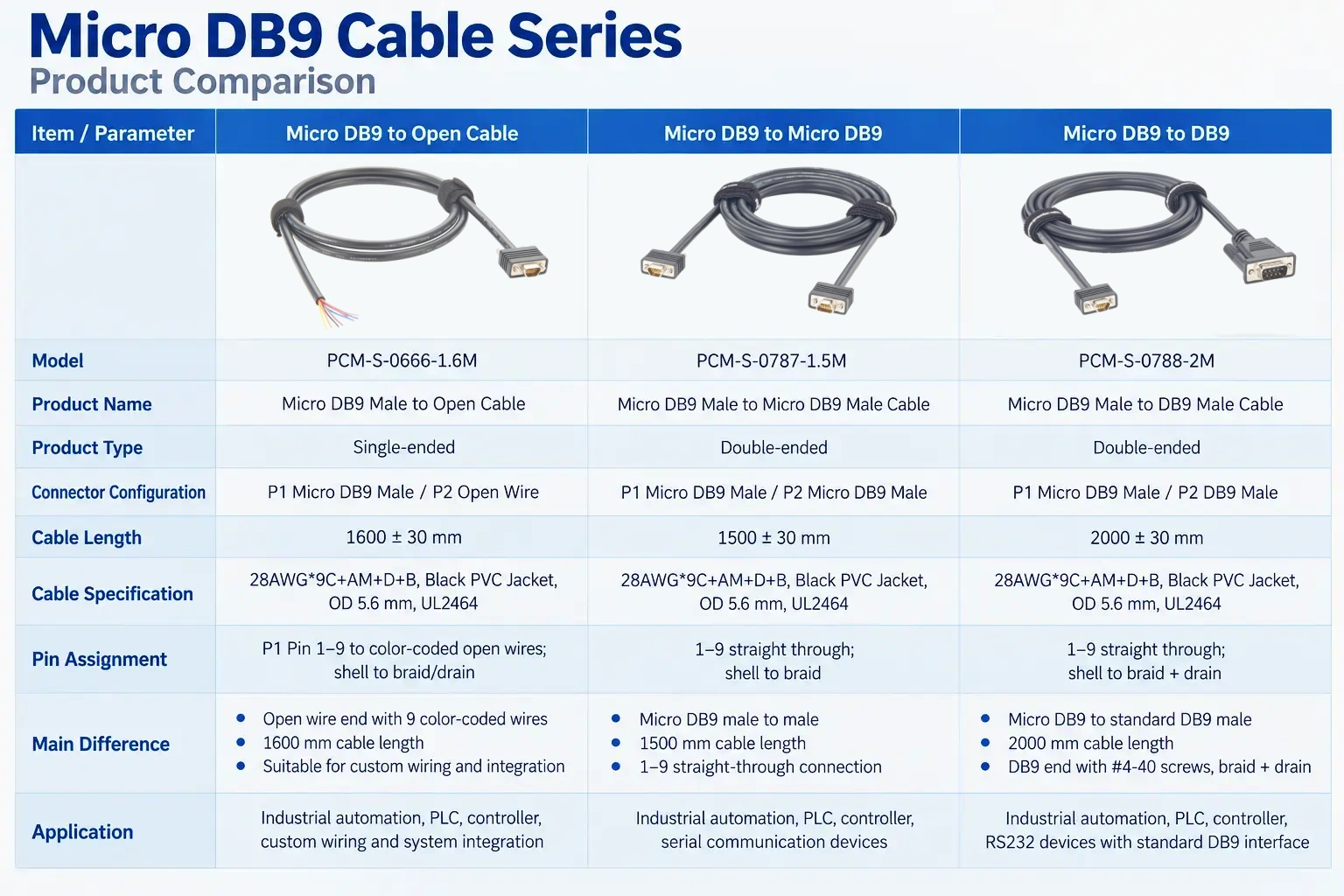

Similar products
Product Compatibility Statement
- Micro DB9, Commercial Micro D, and standard DB9 connectors are available in different mechanical designs and pinout configurations, so physical mating does not guarantee electrical compatibility. This product can be developed according to target equipment, original samples, drawings, or reference part numbers, including Dell EMC and Molex Commercial Micro D applications. For Dell EMC 038 003 084 and Molex 834219039, 834219040, and 834219041, direct interchangeability should not be assumed from the part number alone. Before bulk purchasing, verify connector gender, Pin 1–9 wiring, straight-through or crossover configuration, shell and drain connection, locking screw specifications, cable length, and serial port definition, followed by first-article testing.
How to Choose the Correct Micro DB9 to DB9 Serial Cable ?
Confirm Connector Type and Pinout
Confirm the Micro DB9 or standard DB9 connector type and gender, then verify the complete Pin 1–9 wiring using manuals, drawings, or samples.
Confirm Wiring Configuration and Cable Length
Confirm whether straight-through or null modem wiring is required, then select the cable length according to equipment distance and cabinet routing.
Confirm Mechanical Locking System Compatibility
Verify the #2 56UNC Micro DB9 and #4 40UNC DB9 locking systems to ensure proper mating and secure mechanical fastening.
Evaluate Actual Application Environment Requirements
For industrial or high-EMI environments, evaluate shielding, bend radius, temperature range, and grounding method to maintain reliable serial communication.
Customization Capabilities
↕ Custom Cable Length
Custom cable lengths and project-specific tolerances are available for cabinets, equipment, and OEM wiring needs.
□ Custom Pinout
Straight-through, crossover, and equipment-specific pinouts can be customized from drawings, samples, or interface definitions.
◉ Custom Connector
Micro DB9 and standard DB9 gender, orientation, and mechanical configurations can be customized for specific applications.
⚙ Custom Cable Specification
Wire gauge, conductor count, shielding, jacket material, and cable diameter can be customized for application needs.
⌘ Custom Appearance
Cable color, labels, heat shrink tubing, logos, and packaging can be customized for easier identification and management.
◇ OEM Volume Manufacturing
Prototyping, small-batch validation, and OEM volume production are supported from samples, drawings, pinouts, and BOMs.
Conclusion：
PCM-S-0590 is a Micro DB9 female to DB9 female RS232 serial cable designed for industrial equipment, servers, and control systems. Its nine-conductor construction, dual mechanical locking, and shielding design support compact installation, reliable connections, and improved EMI resistance. Before use, connector type, pinout, locking specifications, and device serial definitions should be verified. Cable length, wiring, connector configuration, and cable specifications can also be customized for OEM and volume production projects.
Product FAQ
Can It Work with All RS232 Devices ?
Not always. Verify connector type, pinout, DTE/DCE, and wiring configuration first.
What Is the Standard Wiring Configuration ?
Standard PCM-S-0590 uses Pin 1–9 straight-through wiring and supports customization.
Can It Replace Dell EMC or Molex Parts ?
Compatibility requires verification of pinout, connector structure, locking hardware, and cable length.
Are Custom Lengths and Pinouts Available ?
Yes. Cable length and pinout can be customized from drawings, samples, or device requirements.
Why Test a Sample Before Bulk Ordering ?
Sample testing verifies mating, continuity, and communication compatibility before volume production.
Do You Support OEM and Bulk Orders ?
Yes. OEM and volume production support custom cables, connectors, labels, and packaging.
