DMX RJ45 Terminator
PCM Cable Co., Ltd. is one of the leading dmx rj45 terminator manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
A simple and effective way to protect your DMX512 lighting system from data signal reflection.

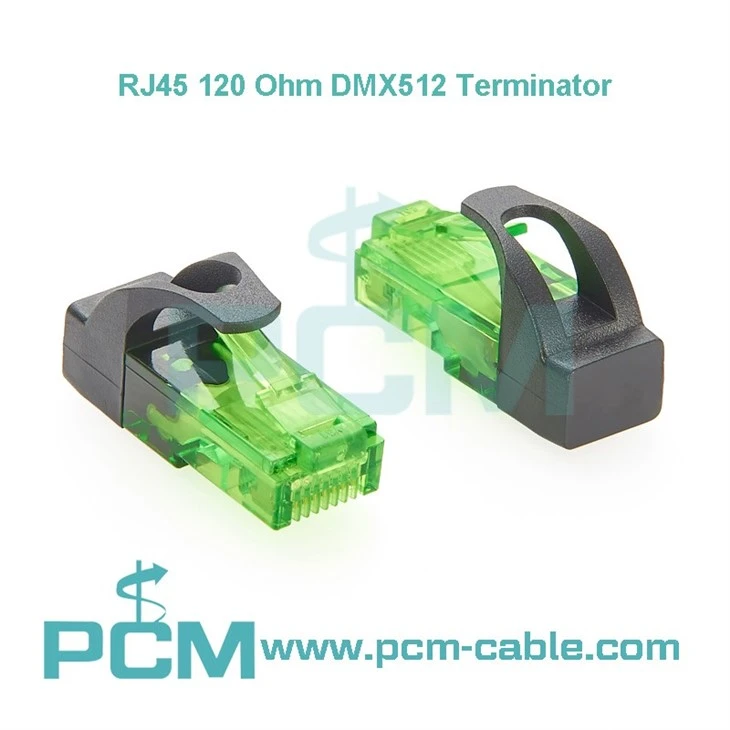

This RJ45 120 Ohm Terminator is designed for single-universe DMX networks using CAT5/CAT6 cabling and RJ45 ports. It includes an internal 120-ohm resistor placed between pins 1 and 2, ensuring proper signal termination at the end of your DMX daisy chain.
Whether you're running a small stage setup or wall-mounted architectural lighting, this plug-in terminator helps you eliminate erratic flickering, ghost signals, and communication failures in the chain.
Specifications
| Product name | DMXterminator RJ45 DMX Terminator 120 Ohm |
| Compatible with | CPOINT RJ45-DMXTERM-120 (CPOINT RJ45-DMXTERM-120-2U is available) |
| DWG No. | PCM-0838 |
| Connector type | RJ45 connector 8P8C, male |
| Resistance value | 120 Ohm, 1/8W |
| Number of resistors | 1 |
| Resistor placement | Between pins 1 and 2 |
| Contact | Gold-plated |
| Dimensions | Compact in-line style |
| Usage position | At the end of a DMX daisy-chain (last device) |
features
- 120 Ohm DMX512 termination for RJ45-based networks
- Internal resistor across pins 1 and 2
- Compact, molded RJ45 plug for easy handling
- Protected locking tab to prevent accidental unplugging
- Gold-plated contacts for long-lasting signal integrity
- No configuration or tools required – just plug it into the last DMX port
Application
In DMX512 control networks, the last device in the signal chain must be terminated. Without proper termination, data can reflect back along the line and cause unpredictable behavior. This adapter absorbs that excess signal and keeps your lighting system running smoothly.
Ideal for:
- Event lighting
- Theater and venue installations
- DJ setups and portable rigs
- Small to medium-sized fixed DMX control systems
About Premier Cable
Premier Cable offers two versions of professional-grade RJ45 DMX512 Terminators to meet the needs of different lighting setups:
1. Universe Version – RJ45-DMXTERM-120
A compact 120 Ohm DMX terminator in an RJ45 plug, ideal for single-universe DMX networks. Features gold-plated contacts, a molded housing, and a protected locking tab. Available in packs of 5 or 10.
2. Universe Version – RJ45-DMXTERM-120-2U
Designed for dual-universe DMX applications, with 120 Ohm resistors placed between pins 1/2 and 3/6. Built to the same high standards with CE, RoHS, REACH, and Prop65 certifications.
