Rugged Waterproof Ethernet Cable RJ45 Male To Male
PCM Cable Co., Ltd. is one of the leading rugged waterproof ethernet cable rj45 male to male manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

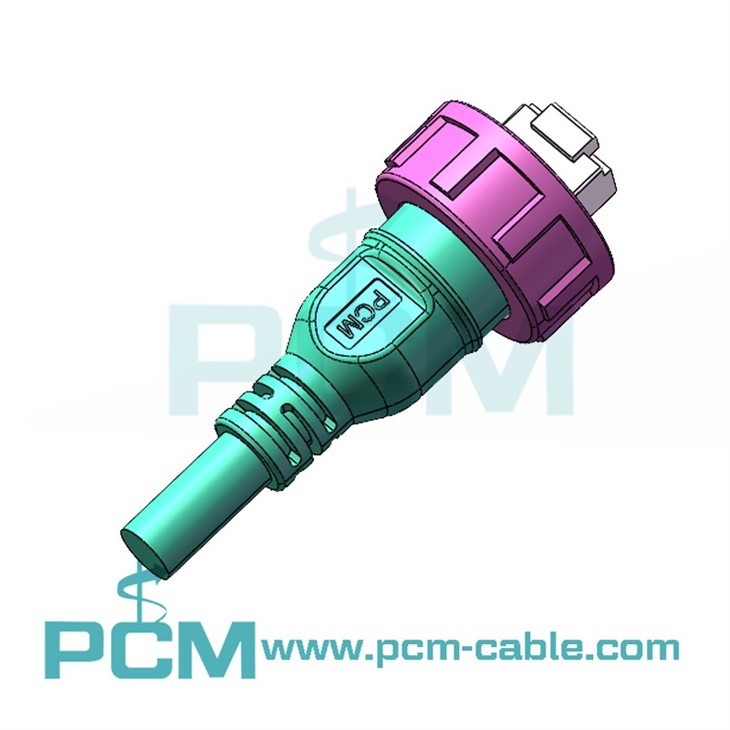

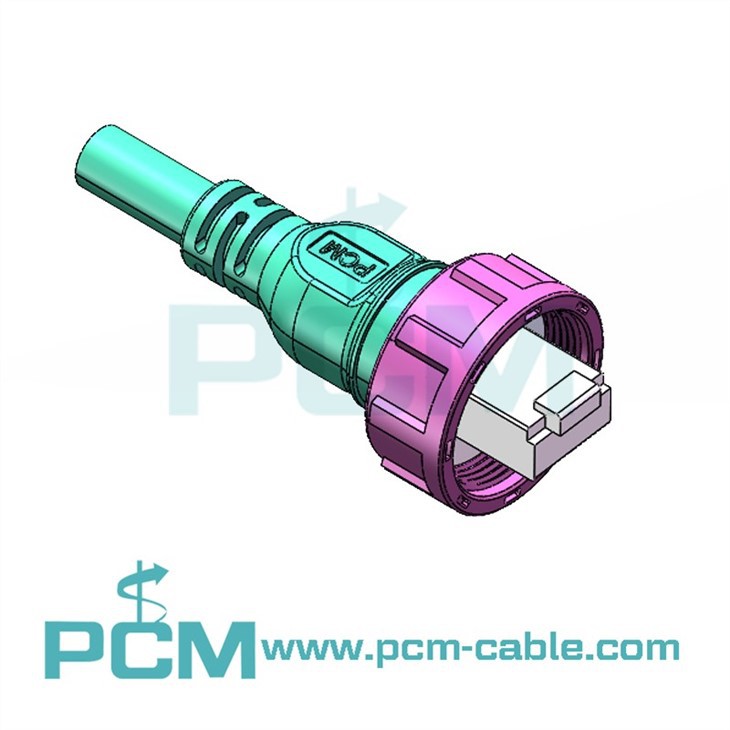

This Rugged Waterproof Ethernet Cable RJ45 Male to Male is a Cat8-rated waterproof Ethernet cable designed for applications requiring a sealed panel interface on one side and a standard RJ45 plug on the other. The assembly is built around an FTP shielded structure to maintain high-frequency, high-speed data transmission in sealed environments..

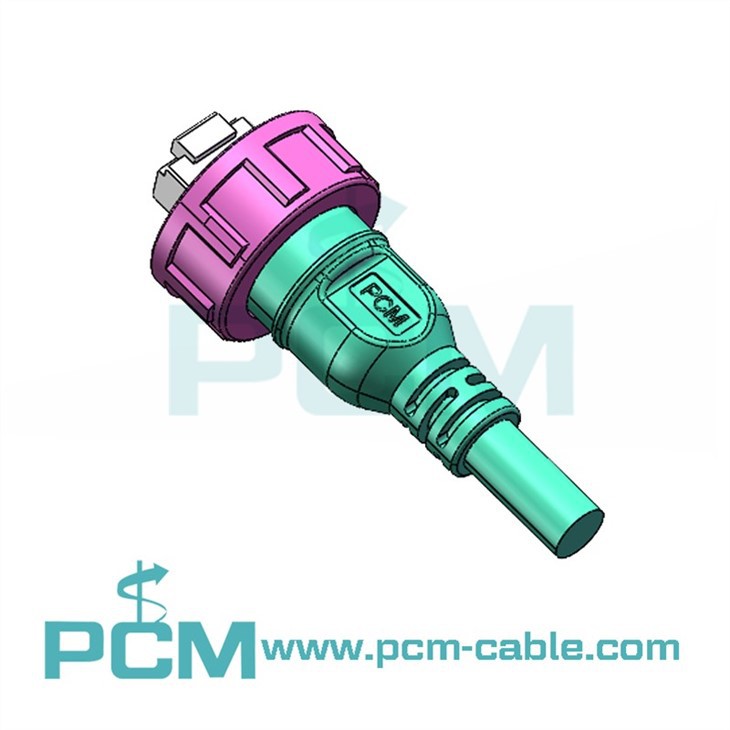

The panel mount end integrates a sealing gasket and screw-lock mechanism, enabling reliable IP67 protection when installed on enclosure walls.
It supports data rates up to 40Gbps with bandwidth up to 2000MHz, making it suitable for applications requiring stable performance under high EMI conditions.
Specifications
| Product Name | IP67 Waterproof RJ45 Panel Mount Cable Cat8 40G 2000MHz |
| DWG No. | PCM-HD-0237 |
| Connector 1 | RJ45 8P8C Male (standard plug) |
| Connector 2 | RJ45 8P8C Male with waterproof panel mount housing |
| Category | Cat8 FTP |
| Data Rate | Up to 40Gbps |
| Frequency | Up to 2000 MHz |
| Shielding | Foil + Drain + Braid |
| Conductor | 24AWG × 4 pairs |
| Shielding | Individual pair shielding + overall braid |
| Drain Wire | Included |
| Jacket | Black PVC |
| Cable Diameter | 7.8 ±0.2 mm |
| Cable Length | 1.5m, 3m, or Customized |
| Applications | Designed for 40G high-speed Ethernet transmission, ensuring signal integrity even in electrically noisy environments. |
Mechanical Design
- Low-pressure overmolding applied internally to stabilize conductor layout
- Panel mount connector includes sealing gasket for IP67 performance
- Screw locking improves retention under vibration
- Strain relief reduces bending stress at cable exit
Typical Integration Scenarios
- Industrial control cabinets
- Outdoor networking enclosures
- Machine vision systems
- Railway and transportation electronics
- Any sealed system requiring external RJ45 access
Notes for Installation
- IP67 rating depends on correct panel installation and gasket compression
- Recommended panel thickness should match connector design
- Not intended for continuous immersion
