Molex Mini Fit Cable Assembly 8 Pin DIN To 8 Way Mini Fit Harness
PCM Cable Co., Ltd. is one of the leading molex mini fit cable assembly 8 pin din to 8 way mini fit harness manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

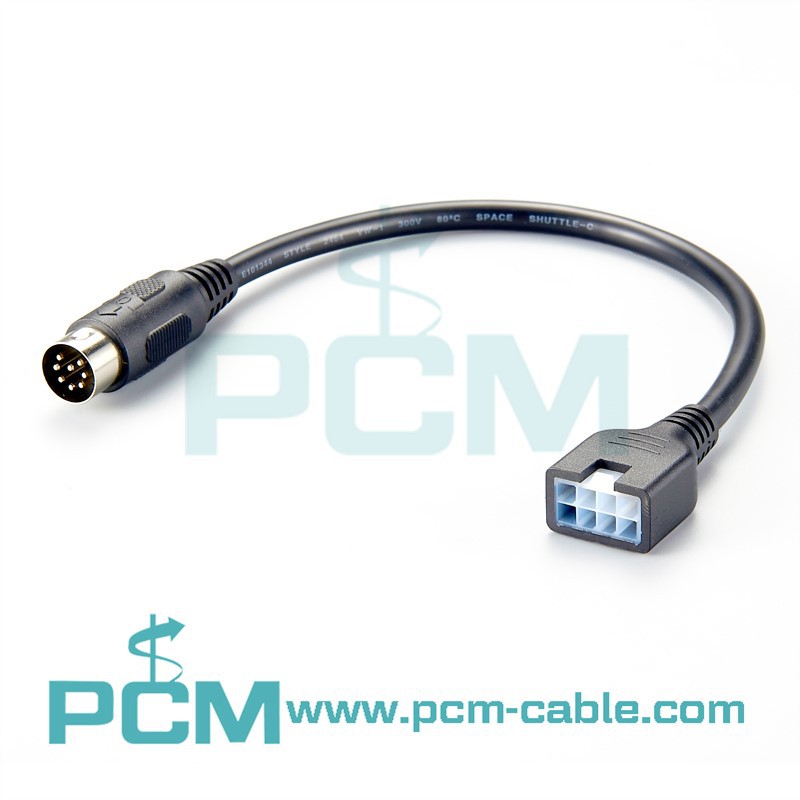

The Molex mini fit cable assembly 8 pin DIN to 8 way mini fit harness is a high-performance cable designed for demanding audio and electronic devices. This cable is equipped with an 8-pin DIN male connector on one end and a Molex Mini-Fit double-row 8-pin connector on the other end. Made with injection molding technology, it ensures long-term durability and excellent connection performance. This cable is designed to provide a reliable connection solution and is widely used in professional audio equipment and other related electronic devices.
Specifications
| Product name | Custom cable harness Molex mini-fit 8 pin dual row to 8 pin DIN |
| Connector 1 | 8-pin DIN male |
| Connector 2 | Molex Mini-Fit 8 Pin (2 Row) with injection molding |
| Cable length | Customized |
| Wire gauge | 18 - 24 AWG (customizable) |
| Mini-fit interface wiring wire gauge | 16 - 28 AWG |
| Jacket material | PVC or TPU |
| Rated current | Up to 13A (depending on wire diameter and connector specifications) |
| Certification | RoHS, REACH compliant |
Features
This cable uses an injection-molded Molex Mini-Fit connector, which has good dust and interference resistance, ensuring stable and clear signal transmission. At the same time, the DIN 8 Pin interface design is compatible with a variety of audio devices and provides flexible connection options.
Application
- Audio Interface
Audio interfaces are used to connect computers to audio devices, and are usually used for recording, editing, and playing audio signals. They can be external USB interfaces or built-in interfaces, and can achieve stable audio signal transmission through DIN or Molex cables.
- Mixer
A mixer is the core device for audio signal processing, and is often used in live performances and recording studios. Through the Mini-Fit cable harness, the mixer can be connected to various audio source devices (such as microphones, musical instruments, and audio players) to ensure high-quality transmission of audio signals.
- Sound System
Professional sound systems are widely used in live performances, conferences, and large-scale events. The Mini fit custom cable harness can connect the sound host to speakers and other devices to ensure stable output of audio signals and enhance sound effects.
- Digital Audio Workstation (DAW)
DAW is a computer software used for recording, editing, and producing audio, and is usually equipped with a variety of interfaces for connecting different audio devices. Through the DIN to Molex loom harness, DAW can be seamlessly connected with audio interfaces, external sound sources, and effects to optimize the audio processing process.
- Effects
Audio effects are used to process and change the characteristics of audio signals, such as reverb, delay, and compression. They usually need to be connected to audio equipment through high-quality cables to ensure signal integrity and clarity.
- Musical Instruments
Many electronic instruments (such as synthesizers, electronic drums, and electric guitars) need to be connected to other devices. DIN to Molex wiring loom can be used to connect these instruments to audio interfaces or mixers to achieve audio signal transmission and control.
Digital Signal Processor (DSP)
DSP is used to process and modify audio signals in real time to improve sound quality and effects. Through high-quality Molex wire harness, DSP can be connected to other audio equipment to provide more flexible audio processing solutions.
Usage
Connect the DIN 8 Pin plug to audio or electronic devices, and connect to other devices via the Molex Mini-Fit plug for efficient signal transmission and power connection.
