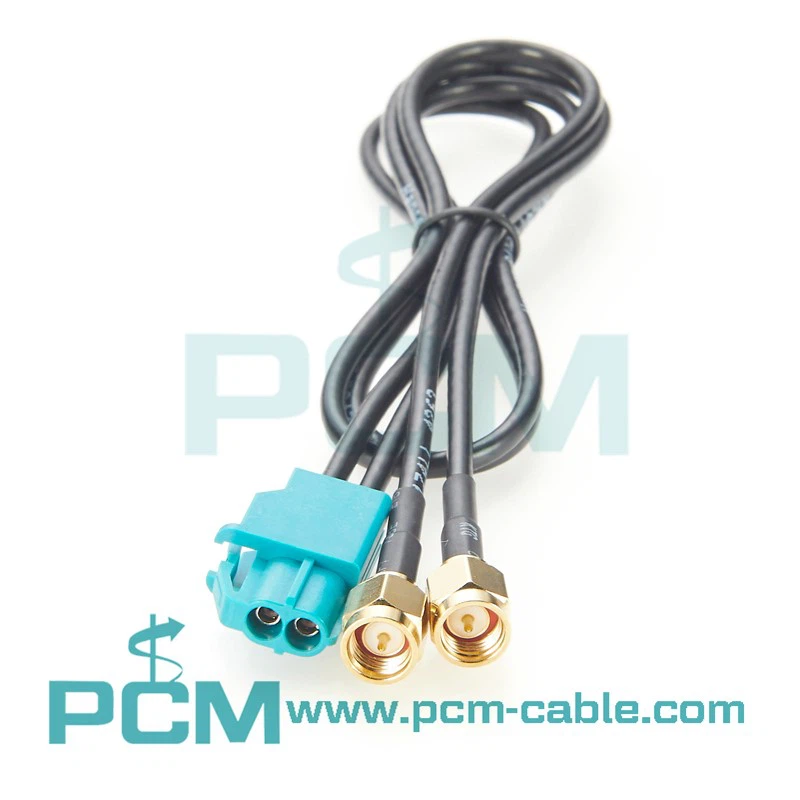

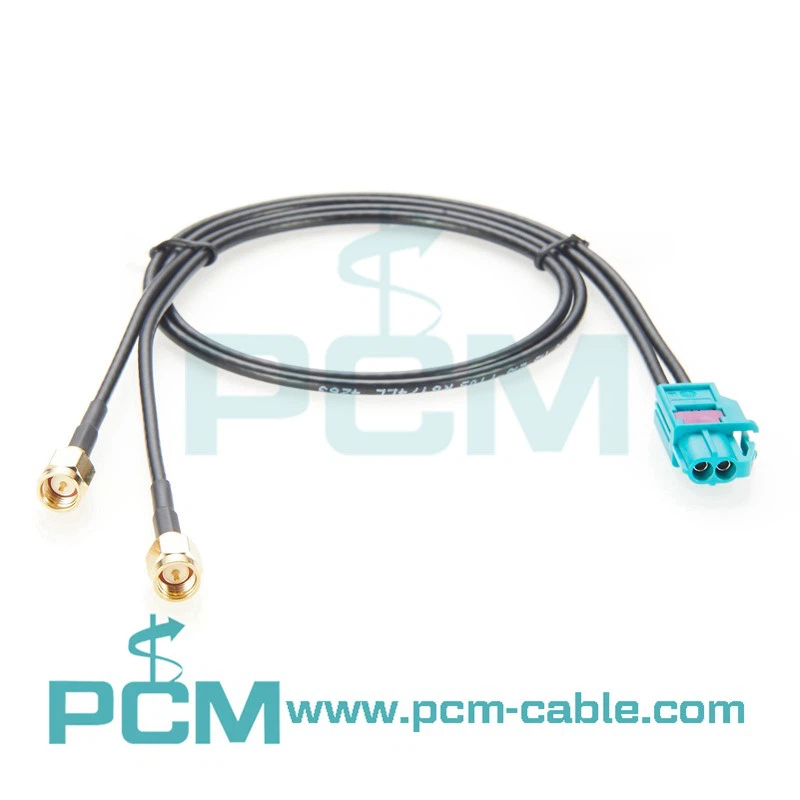

2 Pin Mini Fakra HFM Z Code To SMA Bulkhead Connector Cable Assembly
This high-performance 2 pin mini Fakra HFM Z code to SMA bulkhead connector cable assembly, with a Rosenberger HFM (High-Speed FAKRA-Mini) connector on one end and two separate SMA plugs on the other end, is suitable for high-speed data transmission. The cable can be customized in length and a variety of HFM plug styles are available to ensure that it meets the needs of various industrial and automotive applications.
Specifications
| Product name | HFM mini Fakra code Z straight harness - Rosenberger HFM dual connector |
| Connector 1 |
HFM 2 Pin Z Code (Rosenberger); AMK16C-102Z5-y; AMK16C-1M4Z5-y; AMK16C-103Z5-y; AMK17C-1AXZ5-y |
| Connector 2 | 2 x SMA connector, male (female is available) |
| Cable length | Customized upon request |
| Impedance | 50Ω |
| Frequency range | Suitable for frequencies up to 20 GHz |
| Return loss | ≥25 dB (DC to 3 GHz) |
Features
- High-speed data transmission: This mini Fakra cable harness supports the transmission of high-speed signals and is suitable for transmitting large amounts of data from multiple sensors, cameras, radars, and other devices.
- Multi-channel connection: The combination of HFM connector and dual SMA plug allows multiple signal sources (such as cameras, sensors, etc.) to be connected to the vehicle's onboard system to achieve real-time data processing and transmission.
- Strong adaptability: The cable length can be customized and a variety of HFM plug models are available to adapt to different installation needs and space constraints.
Applications
- Autonomous driving system: The HFM cable can transmit data from multiple sensors in real-time.
- Driver assistance system: The SMA to HFM cable assembly can provide accurate navigation and safety information for the vehicle.
- Infotainment system: The High-Speed FAKRA-Mini cable harness can provide high-quality video and audio signal transmission.
- Rear seat entertainment system: The Rosenberger automotive cable can provide a high-definition entertainment experience for rear passengers.
- In-vehicle wireless communication: Automotive signal transmission cable is used for high-speed wireless data transmission between vehicles.
FAQ
Q: What is the difference between Fakra and mini Fakra?
A: The main differences between Fakra and Mini Fakra are their size and applications:
- Size difference: Mini Fakra connectors are smaller than traditional Fakra connectors. Mini Fakra is more compact, so it is suitable for space-constrained environments, especially in automotive or other space-saving applications.
- Design and function: Although both are used for high-frequency signal transmission and are commonly used in the automotive industry, Mini Fakra connectors are designed to provide smaller size and higher integration, while Fakra connectors are relatively larger and are suitable for applications that require higher electrical performance and larger connection space.
- Connector type: Mini Fakra usually has fewer pins (such as 2-pin or 4-pin) and differs in the shape and locking method of the plug. Fakra is usually used for more complex multi-channel applications and has more size and form options.
In summary, Mini Fakra is smaller in size than Fakra and is suitable for space-constrained applications, while Fakra provides higher electrical performance and more connection options for larger connection needs.
Coding Rosenberger HFM Double, Vertical
