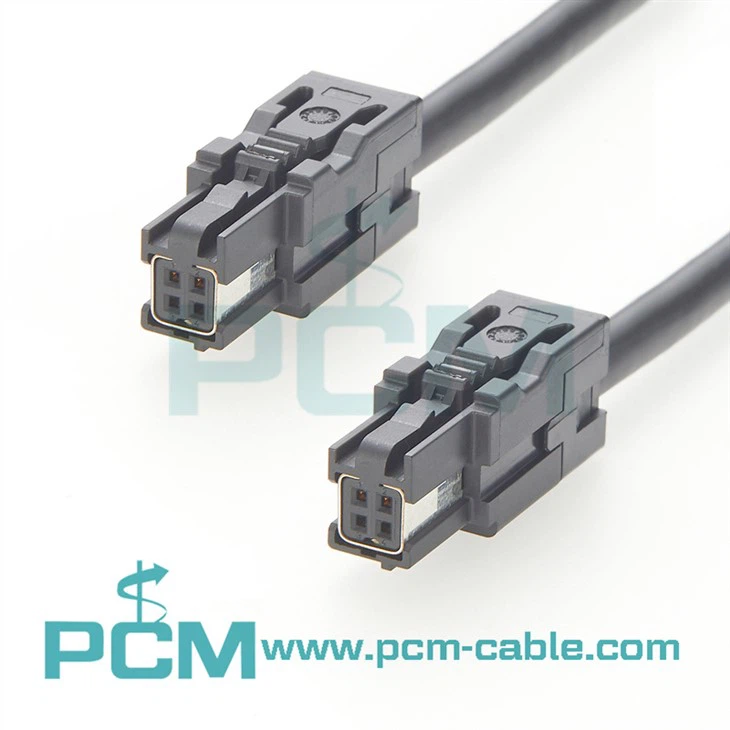

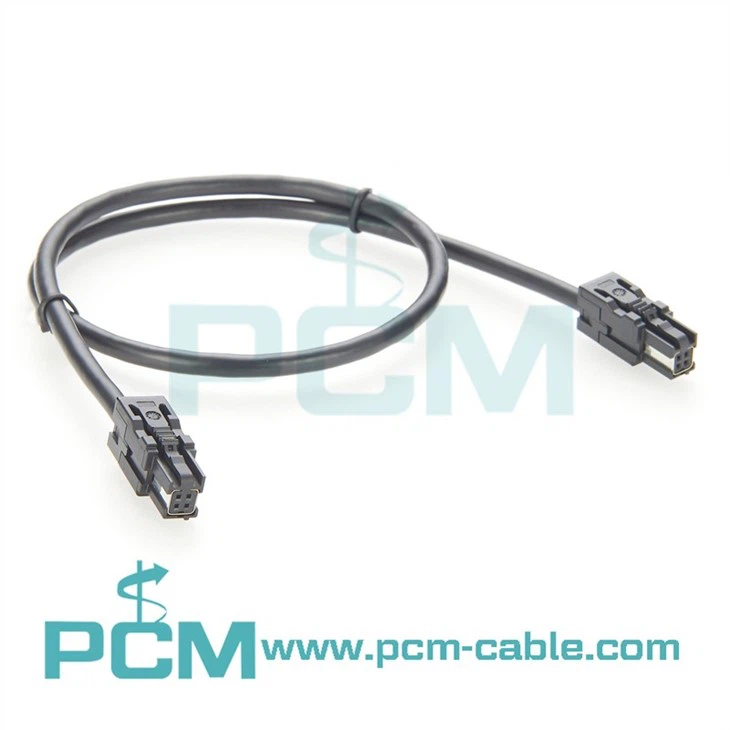

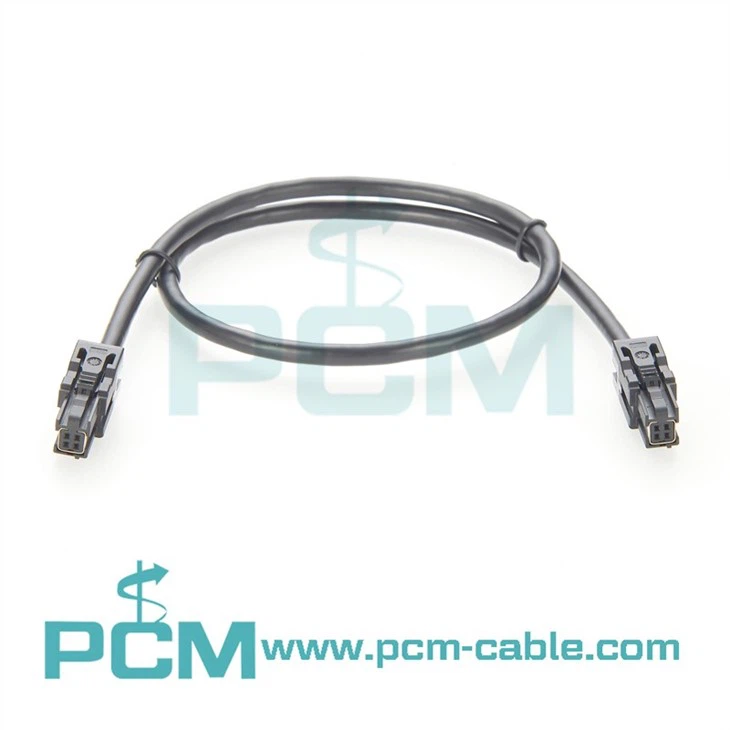

HSC HSL Cable Harness For Automotive Infotainment And Sensor Systems

The two ends of this wiring harness are connected to devices that support the HSC 4pin interface, such as the infotainment unit and sensor module or other on-board electronic devices in the vehicle system. Through the HSC 4pin connector, the wiring harness can achieve the following functions:



• Power transmission: Provide a stable power supply for the device to ensure normal operation of the device.
• Data transmission: Support high-speed data transmission for transmitting audio and video signals, sensor data or other on-board communication data.



This automotive wiring harness is mainly used in automotive electronic systems, connecting for example onboard displays, navigation systems, sensors, control units, etc., to ensure efficient communication and power supply between various electronic devices in the vehicle.





Product name	Automotive connector HSC HSL cable harness 4 pin
DWG No.	PCM-0802
Connector 1	HSC HSL connector, 4pin, female
Connector 2	HSC HSL connector, 4pin, female
Cable length	1m or customized
Wire gauge	28AWG*1P+24#*2C
Cable diameter	4.5mm
Cable jacket	Black PVC, UL2725
