HSD 4pin Female To HSL 4pin Female Cable Assembly For Auto Wire Harness

PCM Cable Co., Ltd. is one of the leading hsd 4pin female to hsl 4pin female cable assembly for auto wire harness manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

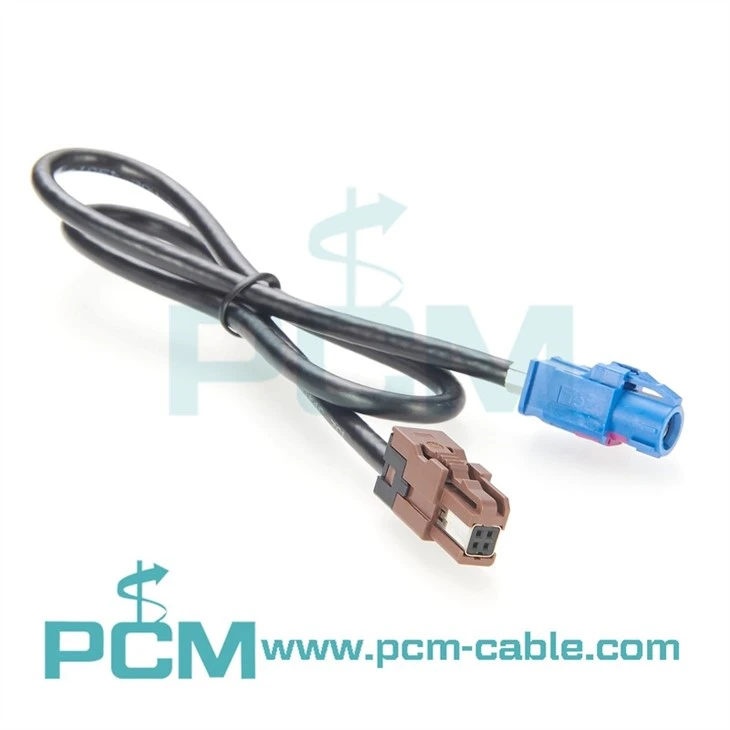

This HSD 4pin female To HSL 4pin female cable assembly is designed for automotive electronics and high-performance digital systems, especially for low voltage differential signal (LVDS) transmission. It adopts a 100Ω fully shielded interconnection system to ensure efficient prevention of crosstalk and external interference, suitable for reliable data transmission in harsh environments. By using high-quality shielded twisted four-core cable, the wiring harness can effectively ensure the stability of the signal and is widely used in automotive electronics, radio base stations, the telecommunications industry, digital infotainment systems, and digital symmetrical networks.





Product name	HSC HSL automotive wiring harness 4 pin HSD LVDS cable assembly
Connector 1	TE HSL 4pin female connector (HSC connector is available)
Connector 2	Rosenberger HSD 4pin female connector (Amphenol HSD connector is available)
Cable length	Customized
Impedance	100Ω







• Main lock and secondary lock: The unique design of the main and secondary lock structure ensures a more secure and reliable connection and prevents loose connections.



• Crimp connection: The efficient crimp connection method provides a strong electrical connection and ensures signal stability.



• Plug pins protected by plastic domes: The cable pins are protected by plastic domes to effectively prevent poor contact and improve the durability and stability of the connection.



• High cable retention: Strong cable retention function ensures that the cable is firmly fixed to prevent loosening under vibration and twisting conditions.



• High coding efficiency: Different coding is provided on the plastic housing to prevent incorrect connections and improve installation convenience and accuracy.



• No damage to contact pins: Precision-designed plugs and sockets ensure that the contact pins are not damaged during plugging and unplugging, enhancing the service life of the harness.



• Scratch-resistant design: The scratch-resistant housing material maintains good appearance and performance even when used in harsh environments.







• Automotive Electronics: The HSD cable assembly is widely used in automotive infotainment systems, autonomous driving assistance systems, and in-vehicle sensor networks, providing high-quality, low-latency data transmission.



• Telecommunications Industry: The HSL cable is applicable to radio base station equipment to ensure stable connection and data transmission between devices.



• Digital Infotainment Electronics: The Fakra HSC HSL HSD cable assembly is widely used for connection between in-vehicle or home digital entertainment devices, supporting high-speed, high-definition video and audio signal transmission.



• Digital Symmetric Network: Suitable for network connections that require high bandwidth and low interference to ensure the integrity of digital signals.



• LVDS Cameras, USB Connections, Ethernet and FireWire: Applicable to LVDS cameras, USB devices, Ethernet and FireWire connections to ensure high-speed data transmission and seamless interoperability between devices.





We offer comprehensive customization services and are able to tailor HSD to HSL cable harnesses to your specific needs. Whether it is different FAKRA connector types, cable lengths, or other special design requirements, we can provide professional solutions based on your application scenarios. Through OEM and ODM services, we ensure that each customized product can perfectly meet your technical needs and improve the performance of the overall system. Please feel free to contact us with your requirements and we will provide detailed consultation and customization services.
