Dual-Port Automotive Ethernet Cable H-MTD To RJ45

PCM Cable Co., Ltd. is one of the leading dual-port automotive ethernet cable h-mtd to rj45 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

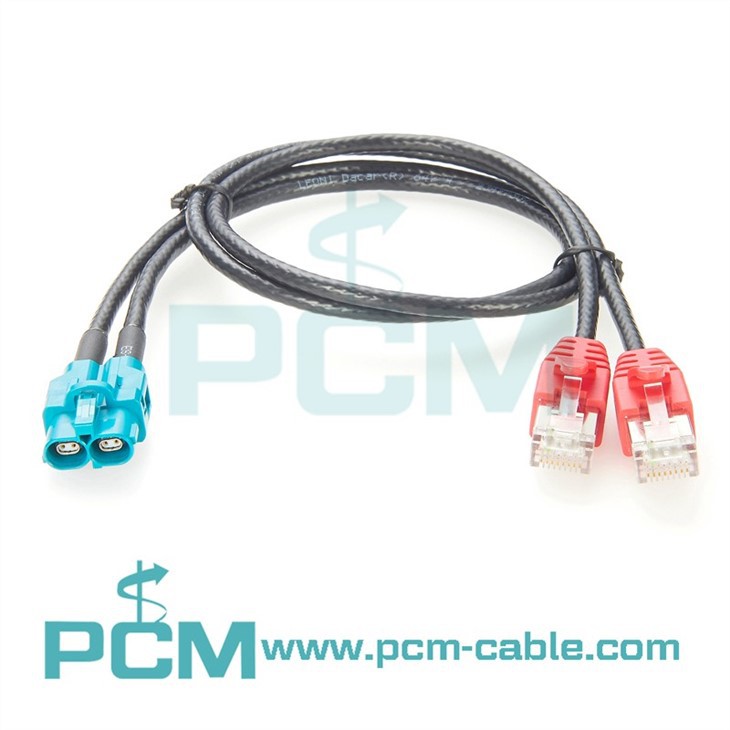

This dual-port automotive Ethernet cable seamlessly connects a dual-port H-MTD Z-coded interface with dual RJ45 interfaces, supports multi-port adaptation, saves space reduces system weight, and is used for high-speed data transmission in automotive Ethernet networks.

HSD (High-Speed ​​Data) and H-MTD (High-Speed ​​Modular Twisted Pair Data) are two automotive connector systems for high-speed data transmission. Although they are both used in automotive Ethernet and high-speed data transmission scenarios, there are some key differences in design, performance and application:

1. Design concept

• HSD: Mainly used to transmit 4 pairs of differential signals, suitable for applications with lower bandwidth requirements, such as camera systems, entertainment systems, etc. It has a compact design and is suitable for simpler connection requirements.
• H-MTD: It is a modularly designed connector system that supports higher frequencies (up to 20 GHz) and data rates (up to 56 Gbps), designed for future complex application scenarios such as autonomous driving and ADAS.

2. Performance

• HSD: The frequency range is usually within hundreds of MHz, which is suitable for relatively medium-speed signal transmission.
• H-MTD: It has higher frequency and bandwidth performance, supports higher-speed data transmission, and meets more complex and high-performance automotive network requirements.

3. Modularity and flexibility

• HSD: The design is relatively fixed and suitable for standardized applications.
• H-MTD: It has a modular design and supports multiple forms such as single cavity, dual cavity, and quad cavity. It is compatible with different cable types (such as shielded twisted pair and unshielded twisted pair), and has stronger adaptability.

4. Application scenarios

• HSD: It is used for devices with medium bandwidth requirements such as entertainment systems and basic driving assistance cameras.
• H-MTD: It is used in scenarios that require ultra-high bandwidth and low latency, such as advanced driver assistance systems (ADAS), autonomous driving, 4K and above resolution camera systems, and high-resolution displays.

5. Future adaptability

• HSD: It is more of a standard for current needs, and its future expansion capabilities are limited.
• H-MTD: It is more forward-looking in design and can support the expansion needs of future vehicle networks and protocols.
