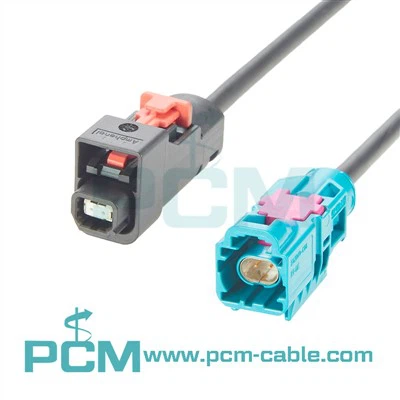

Automotive Ethernet Cable H-MTD To RJ45 Adapter

Automotive Ethernet cable H-MTD to RJ45 adapter can connect the vehicle-mounted H-MTD interface with the standard RJ45 interface to achieve high-speed Ethernet data communication. The H-MTD single-port Z-coding supports seamless integration with the vehicle network module, and the RJ45 end can be connected to external network devices such as diagnostic tools or infotainment systems. It adopts an automotive-grade design and can withstand harsh environments and high vibrations.





Product name	High-speed automotive Ethernet adapter: H-MTD to RJ45 connector
Connector 1	H-MTD connector, female, single port, Rosenberger E6K10A-1xxZ5-y, Z code
Connector 2	RJ45 connector, male
Cable length	Customized
Wire	Dacar 647-4
Multi-protocol compatibility	Supports common automotive Ethernet protocols, including 100BASE-T1, 1000BASE-T1, etc.
Application	Advanced driver assistance systems (ADAS), infotainment systems, autonomous driving applications, and vehicle diagnostics and maintenance







1. High-speed transmission capability



• Supports frequency range up to 20 GHz or data transmission rate of 56 Gbps, suitable for applications with high data demand such as 4K video, ADAS, autonomous driving, etc.



2. Modular design



• Provides a variety of cavity position options (single cavity, dual cavity, quad cavity, hexa cavity, etc.), flexibly supporting different connection requirements and future expansion.



3. Rugged and durable



• Meets automotive grade requirements, with high durability, can withstand harsh environmental conditions, including wide temperature range and anti-vibration performance.



4. High compatibility



• Supports multiple communication protocols such as automotive Ethernet (100BASE-T1, 1000BASE-T1, etc.), SERDES (APIX®, MIPI® A-PHYSM), USB, etc.



5. Anti-mis-mating design



• Mechanical keying and color coding options to ensure correct plugging and unplugging and avoid misconnection.

6. Reliable locking mechanism



• Equipped with primary lock, secondary lock and optional connector position assurance (CPA), it provides higher connection reliability, especially in critical safety applications.



7. High signal integrity



• Optimized shielding and contact design ensures signal transmission integrity and anti-interference.



8. Compact and lightweight



• The small design saves space and fits in complex automotive wiring systems while reducing the overall weight of the vehicle.



9. Versatility



• Supports shielded and unshielded cables for a variety of application scenarios, from infotainment systems to high-resolution cameras and displays.



10. Easy to integrate



• Suitable for automated assembly processes and can be customized according to customer requirements to meet specific automotive network and system needs.
