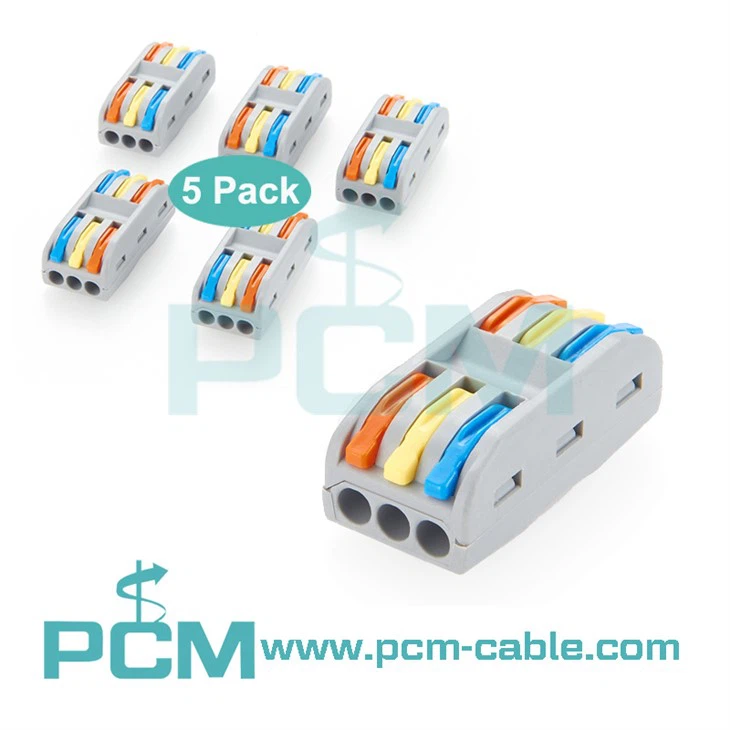

3-Way Fast Wire Connectors
PCM Cable Co., Ltd. is one of the leading 3-way fast wire connectors manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
When you need to connect multiple wires quickly and neatly, the 3-Way Fast Wire Connector from Premier Cable is the perfect choice.
This 3-in 3-out lever-type terminal block allows you to join or branch three pairs of wires effortlessly-no twisting, no soldering, no tools.
The colorful buttons make identification easier when wiring different circuits such as 5V, GND, or signal lines. Each color-coded lever controls its own circuit path, ensuring clean, safe, and organized wiring every time.
Compact in size but strong in performance, this connector is widely used in lighting systems, control cabinets, home appliances, DIY projects, and electrical installations.
Specifications

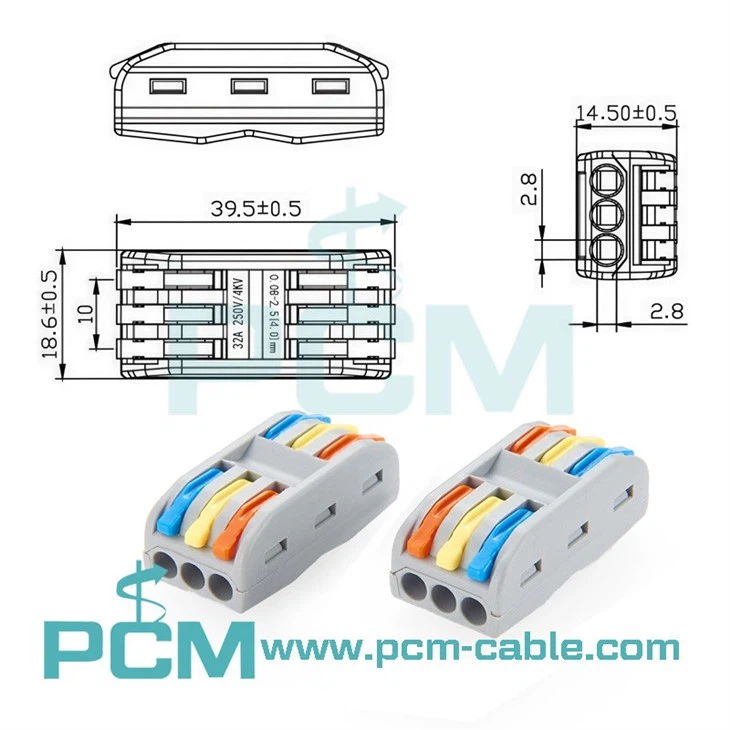

| Product Name | 3 In 3 Out Quick Connect Terminal Block for Electrical Wiring Projects |
| Model |
|
| Part Number | PCM-DF-2-3P |
| Connection Type | PUSH WIRE® |
| Rated Voltage | 250 / 600V |
| Rated Current | 32A |
| Withstand Impulse Voltage | 4 kV |
| Wire Gauge Range | Flexible: 0.2–2.5 mm²; Solid: 0.2–4.0 mm² |
| CTI (Comparative Tracking Index) | 300 |
| Operating Temperature | -20 °C to +105 °C |
| Applicable Standards | IEC 998-1, IEC 999, IEC 947-1, UL 1059, CSA C22.2 No.158-1987, UL 486E |
Features
3 In 3 Out Compact Design
Efficiently connect and distribute power or signals between three input and three output lines in one block.
Color-Coded Levers for Easy Wiring
Each color corresponds to a distinct connection path-ideal for differentiating voltage levels or signal types.
Quick, Tool-Free Operation
Just flip the lever up, insert the stripped wire (about 10mm), and lock it down-done in seconds. Secure grip with strong spring force ensures a reliable contact.
High-Quality Flame-Retardant Nylon Housing
Made from PA66 material, resistant to high voltage, aging, and heat. The solid build guarantees long-term durability and electrical safety.
Flexible Installation Options
Compact and lightweight for easy use in tight spaces; compatible with rail or screw mounting for panel integration.

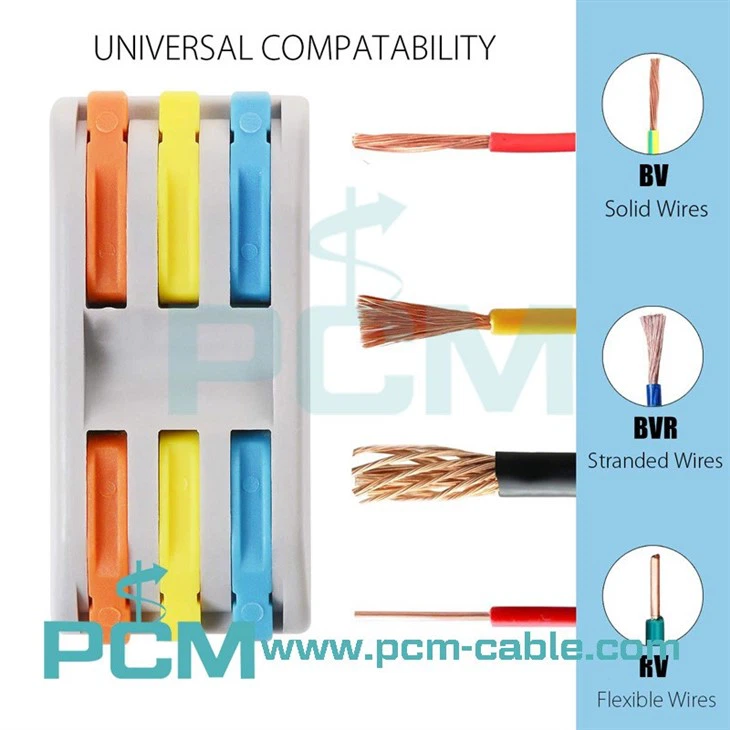

Universal Compatibility
Suitable for both solid (0.2–4.0 mm²) and flexible wires (0.2–2.5 mm²), handling up to 32A / 250–600V safely.
Hot Tags: 3-way fast wire connectors, suppliers, manufacturers, factory, customized, wholesale, quotation, free sample
