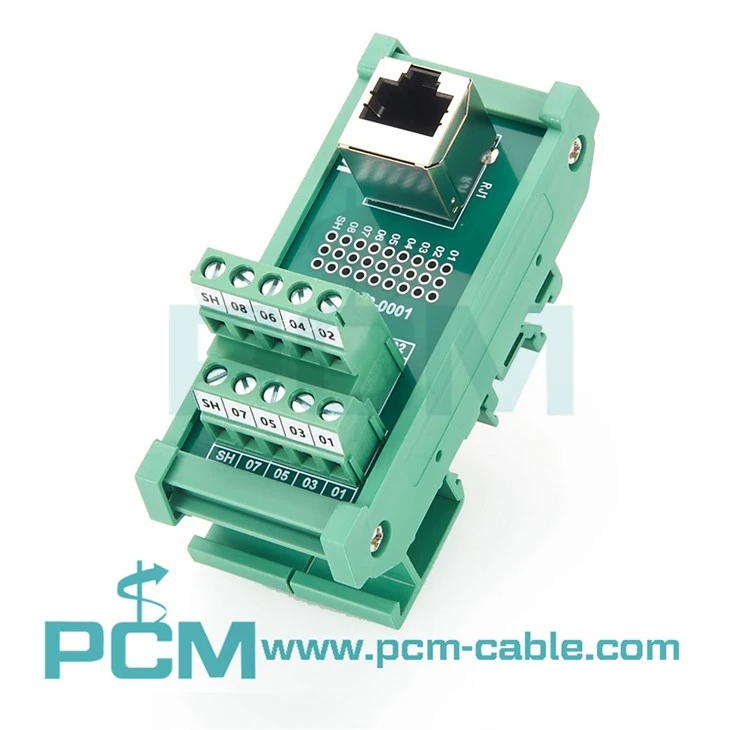

DIN Rail RJ45 To Terminal Block Adapter - Vertical Jack
PCM Cable Co., Ltd. is one of the leading din rail rj45 to terminal block adapter - vertical jack manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The DIN Rail RJ45 to Terminal Block Adapter is engineered for industrial wiring tasks that require secure RJ45 distribution and fast panel-level installation.
Built in our factory with strict quality control, this module converts a vertical RJ45 Ethernet interface into two rows of screw terminal connections, allowing engineers to break out each pin of the 8P8C interface with ease.
This RJ45 terminal block breakout board is a practical choice for sensors, displays, and microcontrollers where RJ45 cables need to be routed directly into terminal blocks without crimping.
Specification
| Product Name | Adapter connection RJ45 to terminal block breakout board for DIN rail |
| DWG No. | PCM-KP-0001 |
| Interface (Input) | Vertical RJ45 Female, 8P8C |
| Interface (Output) | Dual-row screw terminal block |
| Number of Terminals | 8 pins + shield |
| Housing | KPRH72mm, green |
| Terminal Block Pitch | 5.0mm |
| Wire Gauge Range | 16-26AWG |
| Operating Voltage | Signal level |
| Application | Signal wiring, automation, breakout |
Features
- Factory-manufactured for stable and consistent electrical performance
- Vertical RJ45 jack for space-efficient cabinet mounting
- Dual-row screw terminals for clear wiring organization
- Suitable for non-Ethernet signal transmission, RS485/RS232, I/O control, sensor lines
- Compatible with standard 35mm DIN rail
- Robust PCB with industrial-grade connectors
- Ideal for test setups, cabinet assembly, and signal breakout
Application
- Control cabinet signal wiring
- Industrial Ethernet / RJ45 pin breakout
- PLC and automation equipment integration
- Laboratory or field testing
- Retrofit wiring without RJ45 crimp tools
- Equipment panel interfaces
- sensors, displays, microcontrollers, etc.
