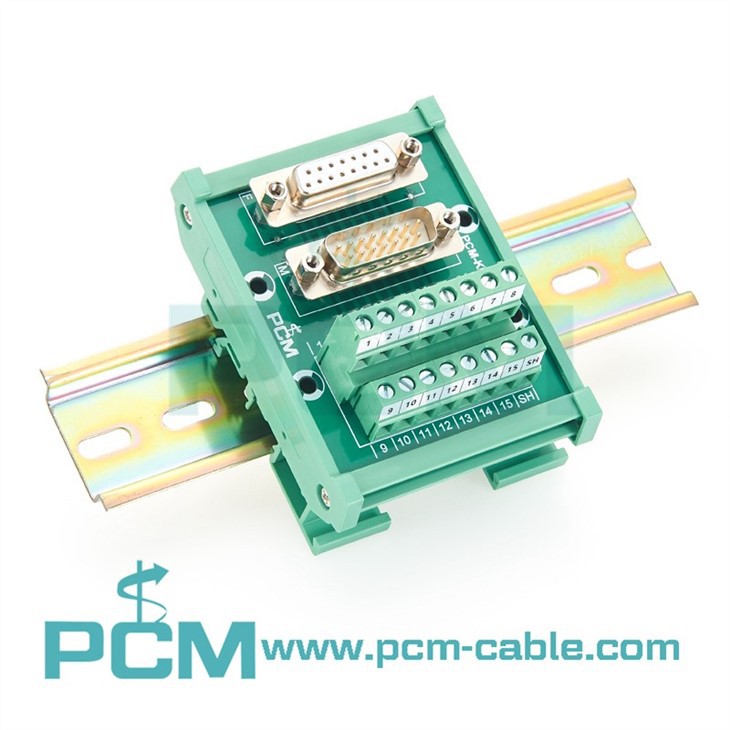

DB15 D-SUB Industrial Terminal Block Module – RS232 Serial to 15-Pin Breakout Adapter (DIN Rail)

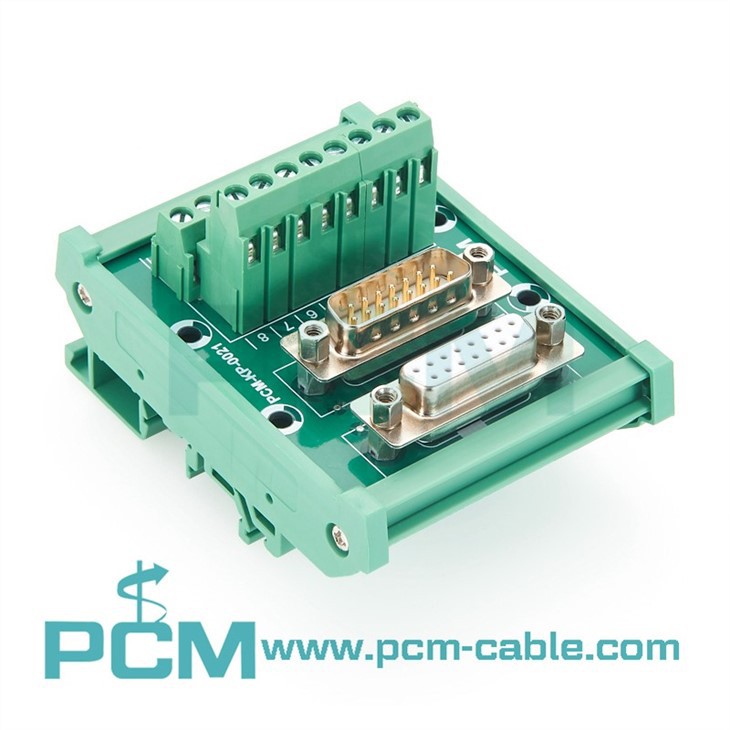

DB15 Male Female D-SUB Terminal Breakout Board with DIN Rail Mount for RS232 Serial Wiring
DIN Rail DB15 D-SUB Breakout Module – RS232 15-Pin Terminal Block Adapter

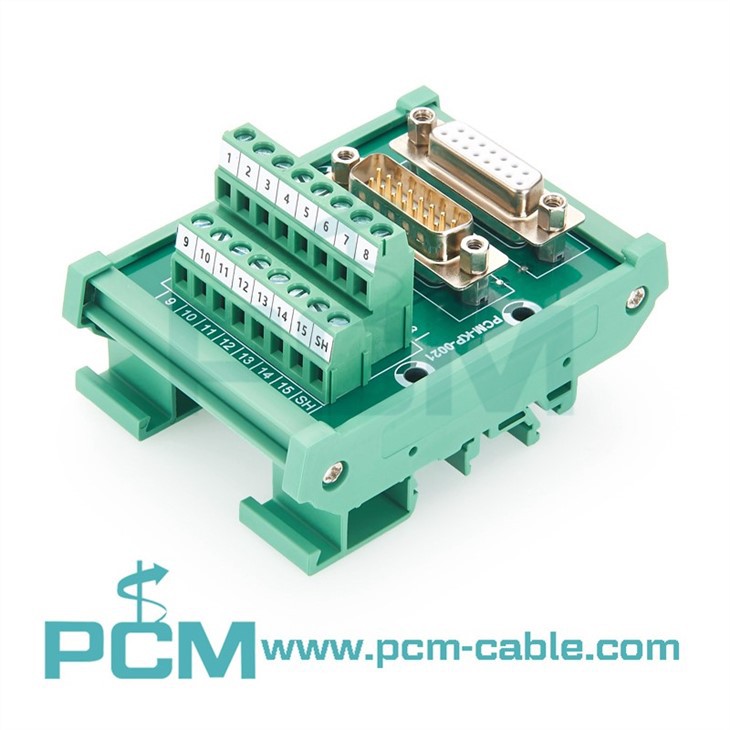

Industrial DB15 D-SUB DIN Rail Mount Interface Module – 15-Pin RS232 Terminal Breakout Board

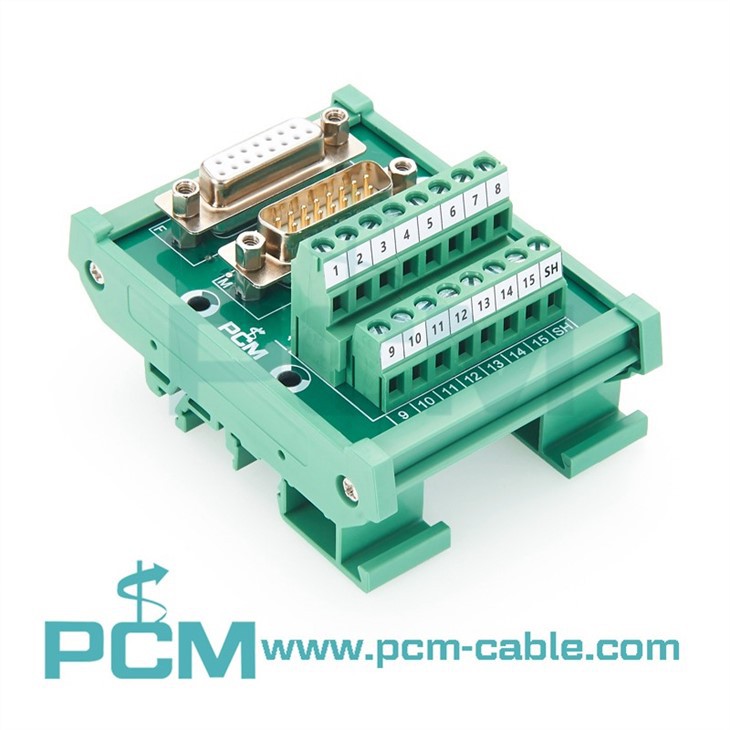

RS232 DB15 D-SUB DIN Rail Terminal Module – 15-Pin Screw Terminal Breakout Board

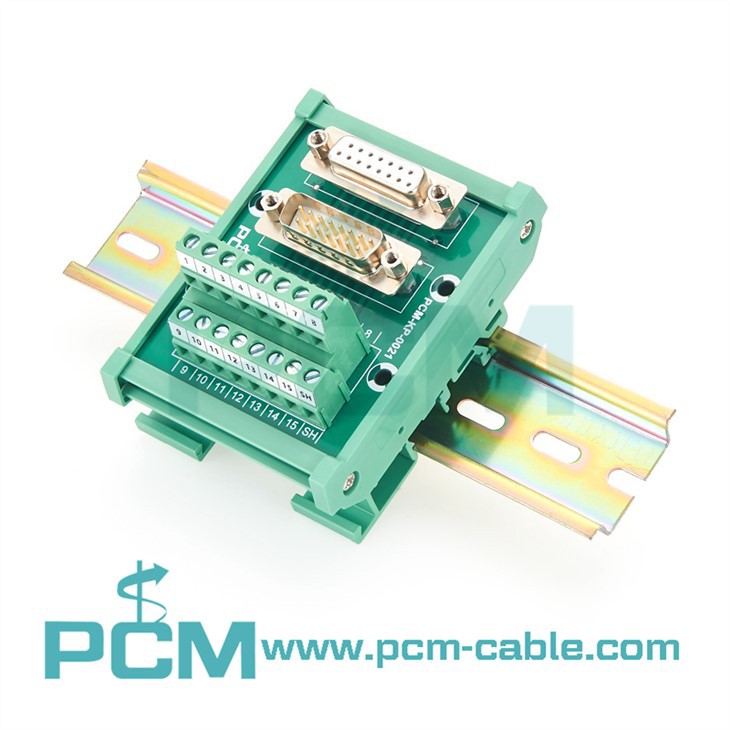

DB15 Male Female Breakout Board Terminal Block For DIN Rail Mounting
PCM Cable Co., Ltd. is one of the leading db15 male female breakout board terminal block for din rail mounting manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Our DB15 Male/Female D-SUB Din Rail Mount Interface Module is an industrial-grade RS232 breakout board designed for fast, reliable, and secure wiring in automation systems. As a direct factory manufacturer, we provide high-quality D-SUB terminal modules with customizable configurations for OEM and industrial applications.
This interface module converts a standard DB15 15-pin D-SUB connector into clearly labeled screw terminals, making it ideal for control cabinets, field wiring, and equipment signal routing. With its robust DIN rail mounting base, the board installs easily inside electrical enclosures, improving system organization and wiring efficiency.

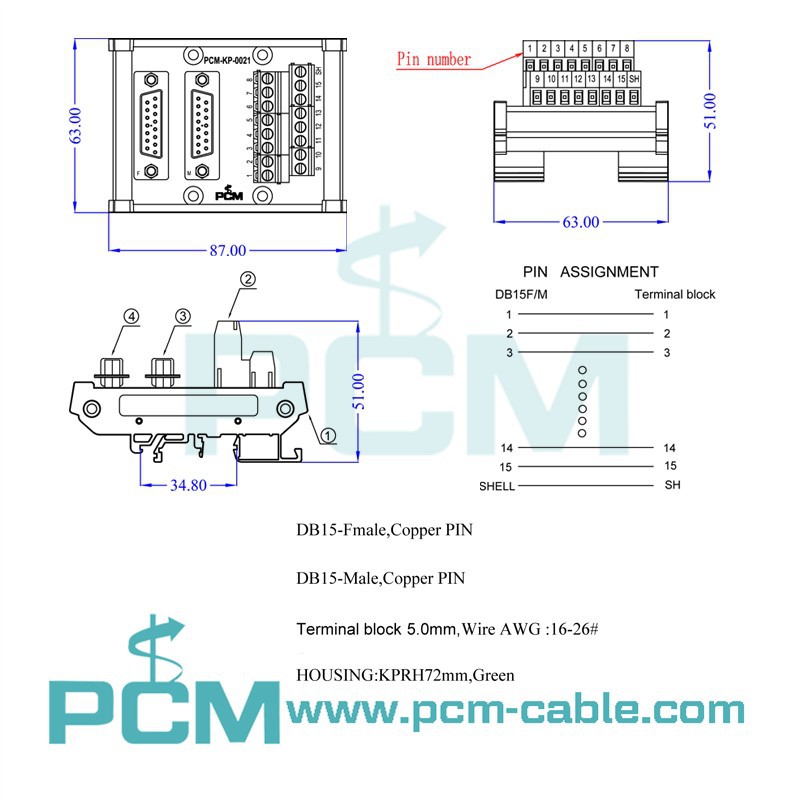

Specification
| Product Name | DB15 Male/Female D-SUB Din Rail Mount Interface Module |
| DWG No. | PCM-KP-0021 |
| Connector Type | DB15 Male / DB15 Female |
| Interface | RS232 / General 15-pin signal breakout |
| Terminal Block | 15-pin screw terminal block |
| Mounting | Standard 35mm DIN rail |
| Wiring Pitch | 5.0mm |
| Wire Range | 16–26AWG |
| Housing | KPRH72mm, green |
| Application | Industrial control, automation, communication, testing |
Features
Industrial-Grade DB15 D-SUB Interface
Available in both DB15 Male and DB15 Female connector types, supporting RS232 serial communication and 15-pin signal transmission.
15-Pin Terminal Block Breakout
Each pin is broken out to individual screw terminals, enabling quick wiring, signal testing, and field maintenance.
Secure DIN Rail Mounting
Built with a strong DIN rail mount housing, ensuring stability in industrial environments and simplifying cabinet layout.
High-Reliability PCB and Components
- Thick copper PCB
- Flame-retardant terminal blocks
- Industrial temperature rating
- Strong screw-locking D-SUB connectors
Wide Industrial Applications
Suitable for:
- RS232 communication systems
- Motion controllers and PLCs
- Machine vision equipment
- CNC machines
- Industrial automation wiring
- Test fixtures and prototyping setups
Factory Direct Supply
As a professional manufacturer, we offer:
- Stable production capacity
- OEM/ODM customization
- Competitive pricing
- Fast lead times
- Technical support and drawings
